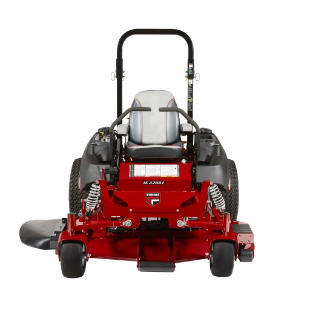

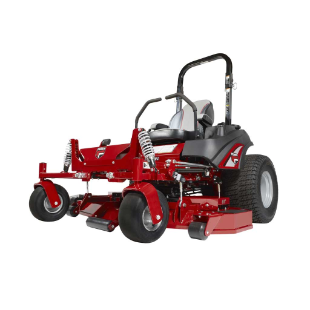

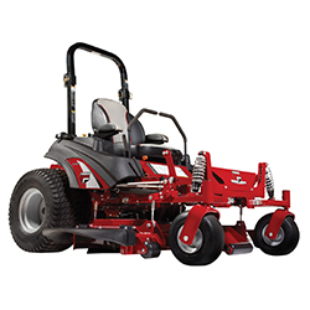

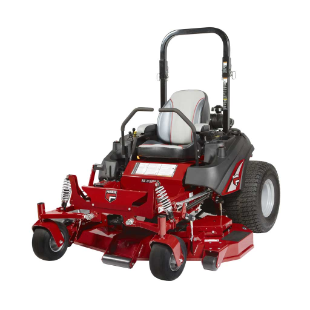

IS 3200Z

Premium Power and Performance

The IS® 3200Z is the latest in mowing technology. We took our top-of-the-line design and made it even more reliable and durable. The drive system features independent, commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles for improved dependability and increased performance, Large 26" drive tyres allow for greater traction, and a smoother ride.

FIND A DEALER
ferrismowers /

Product Details

500 Hour Oil Change (Select Models)

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.*

Acres Per Hour

Pillow block bearings on control mounts makes for long lasting smooth, precision controls.

Cast-Iron Spindles

Greasable cast-iron spindles for strength and durability (61" model).

Hydro-Gear Drive System

Hydro-Gear® commercial engineered drive system is designed for high performance and is fully serviceable.

*Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

HP (gross) * 37
Engine Brand Vanguard EFI with Oil Guard™
Power Take Off (PTO) Electric
Number of Cylinders V-Twin
Starting Electric
Fuel Tank Capacity (L) 41.6
Deck Type Rear Discharge
Cutting Width cm (in) 183 (72)
Cutting Height cm (in) 3.8 - 12.7 (1.5 - 5)
Deck Construction iCD™ Cutting System; 10-gauge, fabricated double top deck, double reinforced side skirts, overlap welded corners, Twin belt system with B section belts for longevity
Spindles Hercules II™ Cast-iron Greasable
Suspension 4-wheel independent
Transmission Hydro-Gear® Integrated ZT5400 Commercial Transmissions
Drive Axles 3.4 (1.375) Tapered
Drive Tyres (in) 26 x 12" - 12"
Caster Tyres (in) 13 x 6.5" - 6"
Ground Speed - Fwd (km/h) 0 - 19.3
Ground Speed - Rev (km/h) 0 - 8.1
Overall Length (cm) 215
Overall Width w/ Deflector Down / Deflector Up (cm) 194
Dry Weight (kg) 717
Seat Package Premium high back seat with armrests
Roll-over Protection System Standard
Instrumentation Dual-function hour meter, fuel level gauge in each tank
Controls/Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Parking Break / Safety Circuit Internal Disc Brake in Transaxle
Optional Extras Trailer hitch kit, Grass Collector, Mulch kit, Flat-free caster tyre, Light Kit
Engine Warranty† 3 Year Manufacturer's Warranty (Commercial Use)
Balance of Machine Warranty† 2+2 Warranty - 2 Year Commercial Use, additional 2 years (or 500 hours for Non-Commercial Use), front-to-rear, parts & labour excluding belts, blades, tyres and brake pads
Transmission Warranty† 2 Year Manufacturer's Warranty

* Power levels rated by engine manufacturer.
† Terms and conditions apply. See owners manual or ferrismowers.com.au for details.

HP (gross) * 37
Engine Brand Vanguard EFI with Oil Guard™
Power Take Off (PTO) Electric
Number of Cylinders V-Twin
Starting Electric
Fuel Tank Capacity (L) 41.6
Deck Type Side Discharge
Cutting Width cm (in) 183 (72)
Cutting Height cm (in) 3.8 - 12.7 (1.5 - 5)
Deck Construction iCD™ Cutting System; 10-gauge, fabricated double top deck, double reinforced side skirts, overlap welded corners, Twin belt system with B section belts for longevity
Spindles Hercules II™ Cast-iron Greasable
Suspension 4-wheel independent
Transmission Hydro-Gear® Integrated ZT5400 Commercial Transmissions
Drive Axles 3.4 (1.375) Tapered
Drive Tyres (in) 26 x 12" - 12"
Caster Tyres (in) 13 x 6.5" - 6"
Ground Speed - Fwd (km/h) 0 - 19.3
Ground Speed - Rev (km/h) 0 - 8.1
Overall Length (cm) 215
Overall Width w/ Deflector Down / Deflector Up (cm) 194
Dry Weight (kg) 717
Seat Package Premium high back seat with armrests
Roll-over Protection System Standard
Instrumentation Dual-function hour meter, fuel level gauge in each tank
Controls/Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Parking Break / Safety Circuit Internal Disc Brake in Transaxle
Optional Extras Trailer hitch kit, Grass Collector, Mulch kit, Flat-free caster tyre, Light Kit
Engine Warranty† 3 Year Manufacturer's Warranty (Commercial Use)
Balance of Machine Warranty† 2+2 Warranty - 2 Year Commercial Use, additional 2 years (or 500 hours for Non-Commercial Use), front-to-rear, parts & labour excluding belts, blades, tyres and brake pads
Transmission Warranty† 2 Year Manufacturer's Warranty

* Power levels rated by engine manufacturer.
† Terms and conditions apply. See owners manual or ferrismowers.com.au for details.

HP (gross) * 37
Engine Brand Vanguard EFI with Oil Guard™
Power Take Off (PTO) Electric
Number of Cylinders V-Twin
Starting Electric
Fuel Tank Capacity (L) 41.6
Deck Type Side Discharge
Cutting Width cm (in) 155 (61)
Cutting Height cm (in) 3.8 - 12.7 (1.5 - 5)
Deck Construction iCD™ Cutting System; 10-gauge, fabricated double top deck, double reinforced side skirts, overlap welded corners, Twin belt system with B section belts for longevity
Spindles Hercules II™ Cast-iron Greasable
Suspension 4-wheel independent
Transmission Hydro-Gear® Integrated ZT5400 Commercial Transmissions
Drive Axles 3.4 (1.375) Tapered
Drive Tyres (in) 26 x 12" - 12"
Caster Tyres (in) 13 x 6.5" - 6"
Ground Speed - Fwd (km/h) 0 - 19.3
Ground Speed - Rev (km/h) 0 - 8.1
Overall Length (cm) 215
Overall Width w/ Deflector Down / Deflector Up (cm) 169
Dry Weight (kg) 687
Seat Package Premium high back suspension seat with headrest
Roll-over Protection System Standard
Instrumentation Dual-function hour meter, fuel level gauge in each tank
Controls/Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Parking Break / Safety Circuit Internal Disc Brake in Transaxle
Optional Extras Trailer hitch kit, Grass Collector, Mulch kit, Flat-free caster tyre, Light Kit
Engine Warranty† 3 Year Manufacturer's Warranty (Commercial Use)
Balance of Machine Warranty† 2+2 Warranty - 2 Year Commercial Use, additional 2 years (or 500 hours for Non-Commercial Use), front-to-rear, parts & labour excluding belts, blades, tyres and brake pads
Transmission Warranty† 2 Year Manufacturer's Warranty

* Power levels rated by engine manufacturer.
† Terms and conditions apply. See owners manual or ferrismowers.com.au for details.
