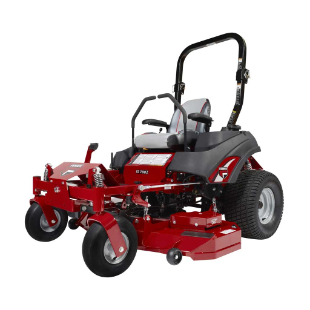

IS 700Z

Outstanding Value and Productivity

The IS® 700Z series features our patented suspension technology, iCD™ Cutting System, heavy-duty Hydro-Gear drive system and with 16 km/h mowing speeds, this mower is full of features to increase the operator’s productivity. You’ll mow more lawn in less time.

FIND A DEALER

Product Details

Suspension

Suspension system consists of rear coil-over-shocks and pivoting front axle with coil-over-shocks.

Aluminum Spindles

Greaseable aluminum spindles to maximize usable life.

ROPS

180° fold over ROPS(roll over protection structure) with retractable seat belt.

Heavy Duty Bumper

Heavy-duty bumper protects the engine while also allowing for easy service access.

Easy Access

Turn the removable floor pan knob to gain access to the top of the deck when maintenance is needed.

Exceptional Performance

A suspension and steering system combine to provide a comfortable ride with exceptionally smooth steering performance.

Acres Per Hour

Mows up to 4.3 acres per hour, based on 80% efficiency.

Drive System

Hydro-Gear® commercial engineered drive system is designed for high performance and is fully serviceable.

HP (gross) * 27
Power Take Off (PTO) Electric
Number of Cylinders 2
Starting Electric
Fuel Tank Capacity (litre) 21
Cutting Width (cm) 52
Cutting Height (cm) 3.8-12.7
Deck Construction iCD™ Cutting System; 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners
Spindles Aluminum Greaseable
Suspension Rear coil-over-shocks and pivoting front axle with shocks
Transmission Dual Hydro-Gear® ZT-3400® transaxles with 7" mounted cooling fans
Drive Axles 3.2 Tapered
Drive Tyres (in) 22 x 11 x 10
Caster Tyres (in) 13 x 5
Ground Speed - Fwd (km/h) 16
Ground Speed - Rev (km/h) 9.6
Overall Length (cm) 206
Overall Width (cm) Deflector Down / Deflector Up 171
Dry Weight (kg) 480
Seat Package Contour seat with arm rests
Roll-over Protection System Standard
Instrumentation Hour meter, Fuel gauge
Controls/Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Parking Break / Safety Circuit Internal transaxles
Warranty (Engine) ** 2 Year Manufacturer's Warranty
Warranty (Balance of Machine) ** labor excluding belts, blades, tyres and brake pads
Engine Series Commercial Turf Series™

*All power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.

HP (gross) * 23
Power Take Off (PTO) Electric
Number of Cylinders 2
Starting Electric
Fuel Tank Capacity (litre) 21
Cutting Width (cm) 52
Cutting Height (cm) 3.8 - 12.7
Deck Construction iCD™ Cutting System; 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners
Spindles Aluminum Greaseable
Suspension Rear coil-over-shocks and pivoting front axle with shocks
Transmission Dual Hydro-Gear® ZT-3400® transaxles with 7"" mounted cooling fans
Drive Axles 3.2 Tapered
Drive Tyres (in) 22 x 11 x 10
Caster Tyres (in) 13 x 5
Ground Speed - Fwd (km/h) 16
Ground Speed - Rev (km/h) 9.6
Overall Length (cm) 206
Overall Width (cm) Deflector Down / Deflector Up 171
Dry Weight (kg) 480
Seat Package Contour seat with arm rests
Roll-over Protection System Standard
Instrumentation Hour meter, Fuel gauge
Controls/Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Parking Break / Safety Circuit Internal transaxles
Warranty (Engine) ** 2 Year Manufacturer's Warranty
Warranty (Balance of Machine) ** labor excluding belts, blades, tyres and brake pads
Engine Series Kawasaki® FS691V

* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
**See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
