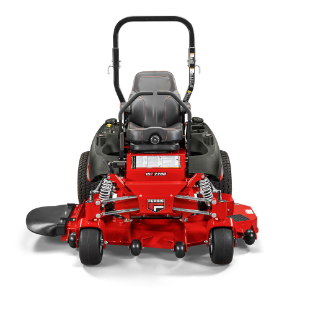

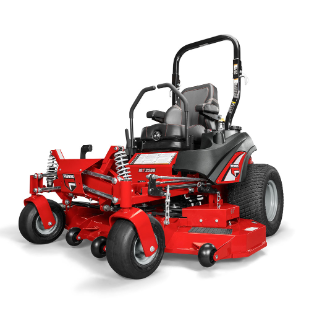

ISX™ 2200

The Leader in Suspension Technology for Turf

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 km/h, the ISX™ 2200 is engineered to increase efficiency and operator comfort.

FIND A DEALER

Product Details

Forefront™ Suspension System

The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

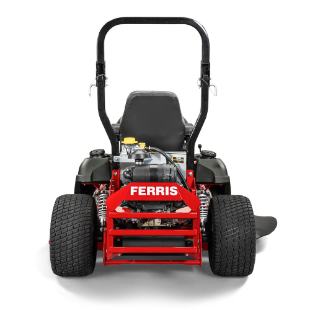

Redesigned Rear Bumper

The redesigned rear bumper provides additional ground clearance for moving over curbs and loading trailers. Higher side walls protect the engine while maintaining easy service access.

500 Hour Oil Change

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Drive System

Dual, commercial Hydro-Gear ZT-4400 transaxles deliver unmatched power and durability.

Adjustable Cut Height

Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5" (38.1 mm - 127 mm).

ISX™ 2200
HP (Gross)* 28 Gross HP
Engine Brand Vanguard™ 810cc EFI with Oil Guard
Power Take Off (PTO) Electric
Number of Cylinders 2
Fuel Capacity (L) 41.6
Cutting Width (cm) 155 (61)
Cutting Height (cm) 3.8 - 12.7 (1.5 - 5)
Deck Construction iCD™ Cutting System, 2-Belt
Spindles Cast Iron Greasable
Suspension ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axels (in) 1.375 in
Drive Tyres (in) 24 x 12 - 12
Caster Tyres (in) 13 x 6.5 - 6
Ground Speed - Fwd (km/h) 0 - 16.1
Ground Speed - Rev (km/h) 0 - 8.1
Overall Length (cm) 212
Dry Weight (kg) 634
Roll-over Protection System 180° foldable
Controls Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Balance of Machine Warranty† 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.

* Power levels rated by engine manufacturer.
† Terms and conditions apply. See owners manual or ferrismowers.com.au for details.
