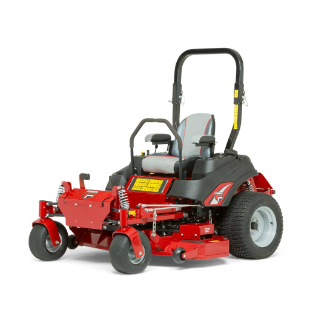

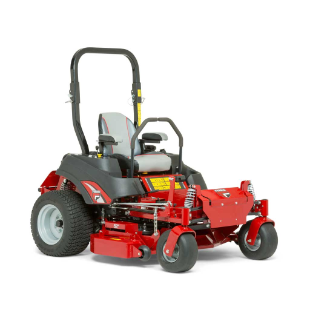

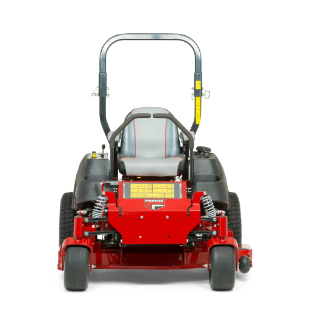

ISX™ 800

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 kph, the ISX™ 800 is engineered to increase efficiency and operator comfort.

FIND A DEALER

Product Details

ForeFront™ Suspension System

The system utilises four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Integrated Transmission

Commercial Hydro-Gear® ZT-3400™ transaxles are designed for high performance and are fully serviceable.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

iCD™ Cutting System

iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Acres per Hour

Mows up to 5 acres per hour, based on 80% efficiency.

Kilometres per Hour

Up to 16.1 km/h ground speed, reverse 8.1 km/h.

ISX™ 800
HP (Gross)* 27
Engine Brand Briggs & Stratton Commercial Series™
Power Take Off (PTO) Electric
Number of Cylinders V-Twin
Starting Electric
Fuel Capacity (L) 20.8
Deck Type Side Discharge
Cutting Width (cm) 132 (52)
Cutting Height (cm) 3.8 - 12.7 (1.5 - 5)
Deck Construction iCD™ Cutting System; 10-gauge, fabricated double top deck, double reinforced side skirts, overlap welded corners
Spindles Heavy Cast-Aluminium Greasable
Suspension ForeFront™ Suspension System - Front independent with four steel control rods
Drive Axles 2.9 (1.125) Tapered
Drive Tyres (in) 23 x 10.5" - 12"
Caster Tyres (in) 13 x 6.5" - 6"
Ground Speed - Fwd (km/h) 0 - 16.1
Ground Speed - Rev (km/h) 0 - 8.1
Overall Length (cm) 206
Dry Weight (kg) 508
Roll-over Protection System Standard
Instrumentation Dual-function hour meter, fuel level gauge in each tank
Controls Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Balance of Machine Warranty† 2+2 Warranty - 2 Year Commercial Use, additional 2 years (or 500 hours for Non-Commercial Use), front-to-rear, parts & labour excluding belts, blades, tyres and brake pads

* Power levels rated by engine manufacturer.
† Terms and conditions apply. See owners manual or ferrismowers.com.au for details.

ISX800 27HP/52"
HP (Gross)* 27
Engine Brand Briggs & Stratton Commercial Series™
Power Take Off (PTO) Electric
Number of Cylinders V-Twin
Starting Electric
Fuel Capacity (L) 20.8
Deck Type Side Discharge
Cutting Width (cm) 132 (52)
Cutting Height (cm) 3.8 - 12.7 (1.5 - 5)
Deck Construction iCD™ Cutting System; 10-gauge, fabricated double top deck, double reinforced side skirts, overlap welded corners
Spindles Heavy Cast-Aluminium Greasable
Suspension ForeFront™ Suspension System - Front independent with four steel control rods
Drive Axles 2.9 (1.125) Tapered
Drive Tyres (in) 23 x 10.5" - 12"
Caster Tyres (in) 13 x 6.5" - 6"
Ground Speed - Fwd (km/h) 0 - 16.1
Ground Speed - Rev (km/h) 0 - 8.1
Overall Length (cm) 206
Dry Weight (kg) 508
Roll-over Protection System Standard
Instrumentation Dual-function hour meter, fuel level gauge in each tank
Controls Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Balance of Machine Warranty† 2+2 Warranty - 2 Year Commercial Use, additional 2 years (or 500 hours for Non-Commercial Use), front-to-rear, parts & labour excluding belts, blades, tyres and brake pads

* Power levels rated by engine manufacturer.
† Terms and conditions apply. See owners manual or ferrismowers.com.au for details.
