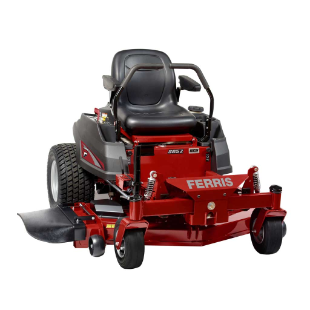

Ride-On S65Z
- Patented Suspension Technology for comfort and longevity
- Cyclonic Filter in-built into the proven Commercial Series V-Twin
- Cup holder, storage compartment and visible fuel gauge
- Replaceable oil filters and overflow reservoirs fitted to the Premium transmissions
Product Details
| HP (gross) * | 25 |
| Power Take Off (PTO) | Electric |
| Starting | Electric |
| Fuel Capacity (Litre) | 11.4 |
| Cutting Width in (cm) | 107 (42) |
| Cutting Height in (cm) | 3.8-11.4 (1.5-4.5) |
| Deck Construction | Fabricated 12-gauge |
| Spindles | Cast-Aluminum Greasable |
| Front Suspension | SCS™ Suspension Comfort System |
| Transmission | Hydro-Gear® Integrated ZT2800 Premium Transmissions with Charge Pumps |
| Drive Axles | 2.5 (1) Tapered |
| Drive Tyres | 20 x 10 - 10 |
| Caster Tyres (in) | 11 x 4.5 |
| Ground Speed - Fwd (km/h) | 0-12.8 |
| Ground Speed - Rev (km/h) | 0-6 |
| Overall Length (cm) | 183 |
| Overall Width (cm) | 107 |
| Rollover Protection System ROPS | Not Available |
| Instrumentation | Fuel level gauge in tank, Hour meter |
| Controls/Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit |
| Limited Warranty (Engine)† | 2 Years |
| Limited Commercial Warranty† | 3-Year limited warranty (36 months). Fabricated Deck: Lifetime limited warranty.‡ |
| Limited Consumer Warranty (Product)† | 2 Years |
| Rear Suspension | Yes |
*All power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.
| HP (gross) * | 25 |
| Power Take Off (PTO) | Electric |
| Starting | Electric |
| Fuel Capacity (Litre) | 11.4 |
| Cutting Width in (cm) | 132 (52) |
| Cutting Height in (cm) | 3.8-11.4 (1.5-4.5) |
| Deck Construction | Fabricated 10-gauge |
| Spindles | Cast-Aluminum Greasable |
| Front Suspension | Yes |
| Transmission | Hydro-Gear® Integrated ZT2800 Premium Transmissions with Charge Pumps |
| Drive Axles | 2.5 (1) Tapered |
| Drive Tyres | 20 x 10 - 10 |
| Caster Tyres (in) | 11 x 4.5 |
| Ground Speed - Fwd (km/h) | 0-12.8 |
| Ground Speed - Rev (km/h) | 0-6 |
| Overall Length (cm) | 183 |
| Overall Width (cm) | 165 |
| Seat Package | Contour |
| Instrumentation | Fuel level gauge in tank, Hour meter |
| Controls/Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit |
| Limited Warranty (Engine)† | 2 Years |
| Limited Commercial Warranty† | 3-Year limited warranty (36 months). Fabricated Deck: Lifetime limited warranty.‡ |
| Limited Consumer Warranty (Product)† | 2 Years |
| Rear Suspension | Yes |
*All power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.
