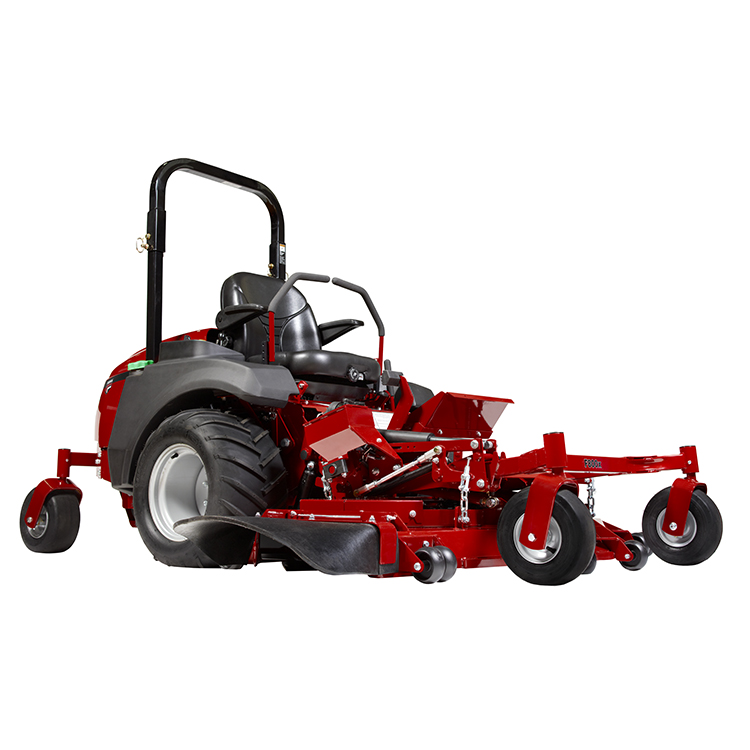

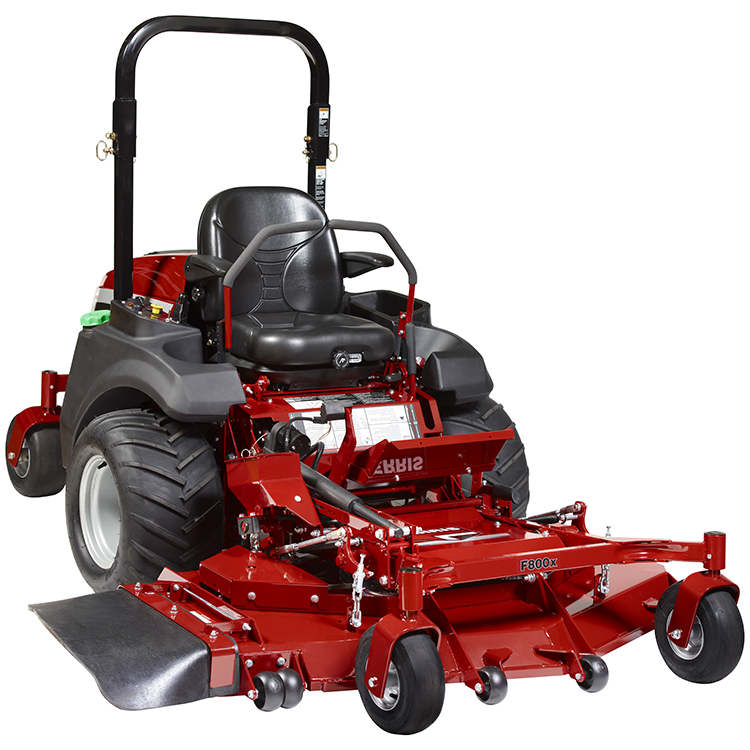

F800X Front Mount Mower Series

SUPERIOR VISIBILITY AND TOP-KNOTCH VERSATILITY



The visibility and versatility of the F800X Front-mount Zero-turn Mower can't be beat. Its out-front design is perfect for trimming around trees, bushes and landscaped areas with ease. Be even more productive with the F800X by choosing from a wide selection of accessory and attachment options.

Optional accessories: 60” sweepster rotary broom, snow blower and cab enclosure, FAST-Vac™ EZ Dump XL™ grass collection system and mulch kit.

    F800X Features:
  • The 31 gross-horsepower* Vanguard™ engine offers big performance along with a 3-year limited manufacturer’s warranty†.
  • The F800X has a speed of up-to 10 mph and features a pivoting rear axle with a floating front frame, pillow block bearings on its control mounts, dual hydro pumps and wheel motors equipped with 7” mounted cooling fans.
  • The iCD™ Cutting System comes with a 61” or 72” wide deck equipped with heavy-duty, cast-iron spindles.
  • The electric deck lift makes cut-height adjustments easy.
  • Quick access switches and quick release latches for the undercarriage and engine for easy maintenance.
  • Premium suspension seat for adjustable comfort.
  • Other features: twin six-gallon fuel tanks with integrated choke throttle, PTO and ignition switches; large, 24” flat-free drive tires; cup holder; and storage compartment.

Looking For A Price?



Overview

iCD™ Cutting System

Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

Easy Cut Height Adjustment

Electric deck lift makes for easy cut-height adjustment.

Precision Finish

Pivoting rear axle and floating front mower frame allow the F800X to follow the landscape's contours for a precise finish.

Electric Deck Lift

Raise the deck with a flip of the switch to make deck lawn mower maintenance a snap.

Easy Access

Quick release latches allow for easy access to engine compartment.

Smooth Controls

Smooth, precision controls last longer as a result of pillow block bearings on control mounts.

Acres Per Hour

Mows up to 6 acres per hour, based on 80% efficiency.

Miles Per Hour

Up to 10 MPH ground speed, reverse 6 MPH.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Vanguard™
Displacement (cc)
896
Cylinders
2
Fuel Tank Capacity (gal)
12.0
Cutting Height (in)
1.5 - 5
Deck Construction
iCD™ Cutting System
Drive Axles (in)
1.25
Caster Tires (in.)
13 x 6.5 (rear); 11 x 4 (front)
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
77 / 63.5
Seat Package
Premium adjustable suspension seat with arm rests, adjustable fore and aft positioning
Instrumentation
Hour meter
Safety Group/Controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Hourmeter Location
Hour meter
Engine Power Rating *
31 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
61
Spindles
Cast-iron
Transmission
Dual hydro pumps and wheel motors with 7" cooling fans
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Overall Length (in)
115.5
Dry Weight (lbs)
1514
Certified Roll-over Protection System
Standard, 90° foldable
Parking Brake / Safety Circuit
Disk
Warranty (Engine) †
3-Year limited manufacturer's warranty
Width in incl discharge
77" / 63.5"
Rear Suspension
N/A
Marketing Model
5901236
Engine Brand
Vanguard™
Displacement (cc)
896
Cylinders
2
Fuel Tank Capacity (gal)
12.0
Cutting Height (in)
1.5 - 5
Deck Construction
iCD™ Cutting System
Drive Axles (in)
1.25
Caster Tires (in.)
13 x 6.5 (rear); 11 x 4 (front)
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
88 / 74
Seat Package
Premium adjustable suspension seat with arm rests, adjustable fore and aft positioning
Instrumentation
Hour meter
Safety Group/Controls
Seat activated engine kill, blade, clutch safety switch, parking brake, safety circuit/adjustable twin steering controls
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Hourmeter Location
Hour meter
Engine Power Rating *
31 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
72
Spindles
Cast-iron
Transmission
Dual hydro pumps and wheel motors with 7" cooling fans
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Overall Length (in)
115.5
Dry Weight (lbs)
1677
Certified Roll-over Protection System
Standard, 90° foldable
Parking Brake / Safety Circuit
Disk
Warranty (Engine) †
3-Year limited manufacturer's warranty
Width in incl discharge
88" / 74"
Rear Suspension
N/A
Marketing Model
5901236

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand
Vanguard™
Vanguard™
Vanguard™
Engine Power Rating *
31 gross hp
31 gross hp
31 gross hp
Displacement (cc)
896
896
896
PTO
Electric
Electric
Electric
Cylinders
2
2
2
Starting
Electric
Electric
Electric
Fuel Tank Capacity (gal)
12.0
12.0
12.0
Cutting Width (in)
72
61
72
Cutting Height (in)
1.5 - 5
1.5 - 5
1.5 - 5
Spindles
Cast-iron
Cast-iron
Cast-iron
Deck Construction
iCD™ Cutting System
iCD™ Cutting System
iCD™ Cutting System
Transmission
Dual hydro pumps and wheel motors with 7" cooling fans
Dual hydro pumps and wheel motors with 7" cooling fans
Dual hydro pumps and wheel motors with 7" cooling fans
Drive Axles (in)
1.25
1.25
1.25
Drive Tires (in)
24 x 12-12
24 x 12-12
24 x 12-12
Caster Tires (in.)
13 x 6.5 (rear); 11 x 4 (front)
13 x 6.5 (rear); 11 x 4 (front)
13 x 6.5 (rear); 11 x 4 (front)
Ground Speed-Fwd (mph)
0-10
0-10
0-10
Ground Speed-Rev (mph)
0-5
0-5
0-5
Overall Length (in)
115.5
115.5
115.5
Overall Width (in) Deflector Down/Deflector Up
88 / 74
77 / 63.5
88 / 74
Dry Weight (lbs)
1677
1514
1677
Seat Package
Premium adjustable suspension seat with arm rests, adjustable fore and aft positioning
Premium adjustable suspension seat with arm rests, adjustable fore and aft positioning
Premium adjustable suspension seat with arm rests, adjustable fore and aft positioning
Certified Roll-over Protection System
Standard, 90° foldable
Standard, 90° foldable
Standard, 90° foldable
Instrumentation
Hour meter
Hour meter
Hour meter
Parking Brake / Safety Circuit
Disk
Disk
Disk
Safety Group/Controls
Seat activated engine kill, blade, clutch safety switch, parking brake, safety circuit/adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Seat activated engine kill, blade, clutch safety switch, parking brake, safety circuit/adjustable twin steering controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Width in incl discharge
88" / 74"
77" / 63.5"
88" / 74"
Hourmeter Location
Hour meter
Hour meter
Hour meter
Rear Suspension
N/A
N/A
N/A
Marketing Model
5901236
5901236
5901236

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Attachments

Grass Bag Collection

Shown with optional FAST-Vac™ EZ Dump XL™ Grass Collection System. Capacity: 14 cubic feet.

Broom Attachment

Make your Ferris F800X even more productive with the addition of our 60" broom attachment.

Turbo-Pro™ Max or Fast-Vac® EZ Dump™ XL Collection System

Ideal for larger jobs. Simply squeeze the handle and pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped. Capacity: 14 cubic feet

Snow Blower / Cab

Two-stage 60" snow blower with electric chute rotation available. (Optional cab available)

Mulch Kit

Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.

Flat-Free Caster Tires

Run all day with no flats, eliminates down time.

Lawn Striping Kit

Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.
