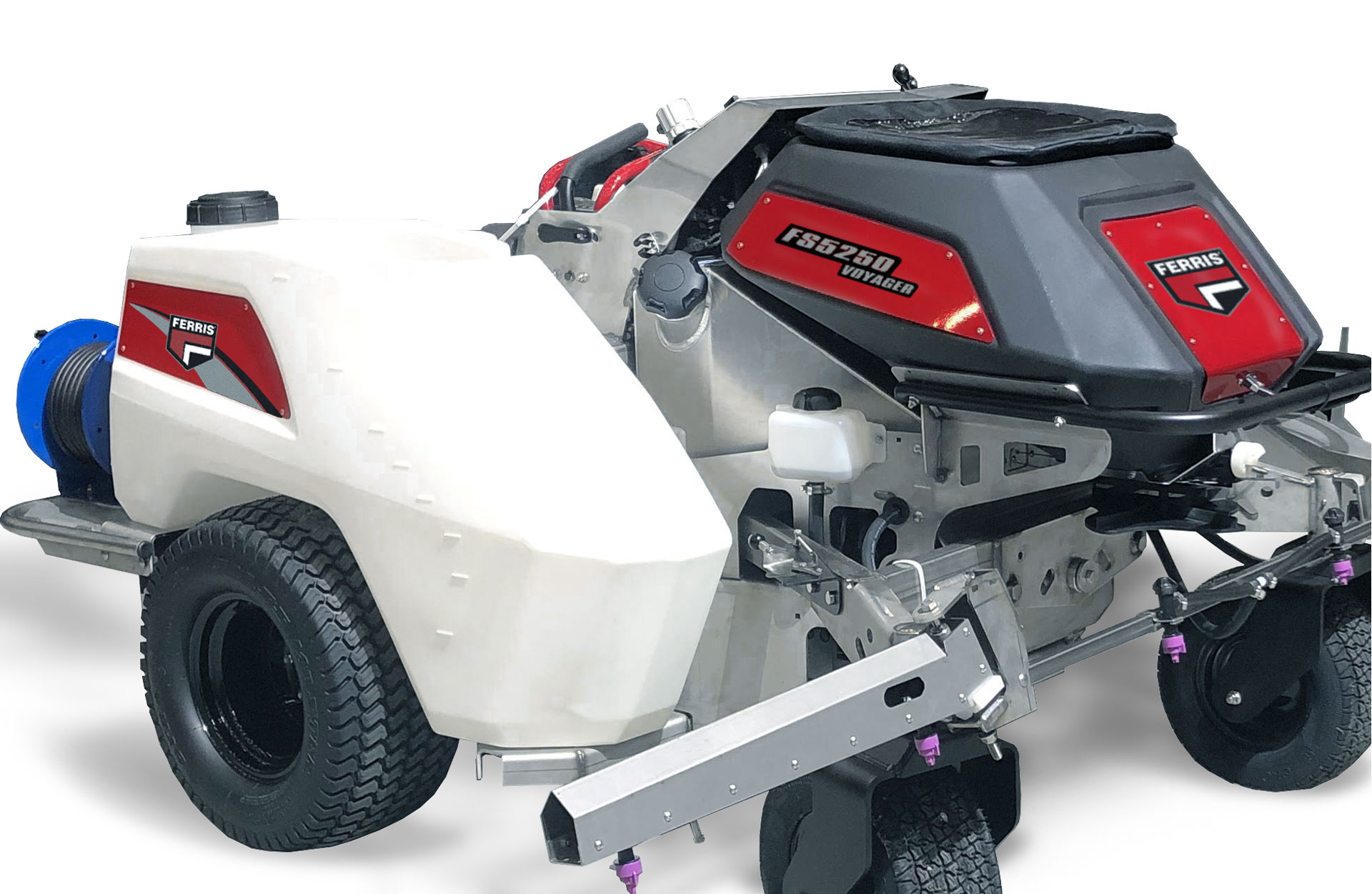

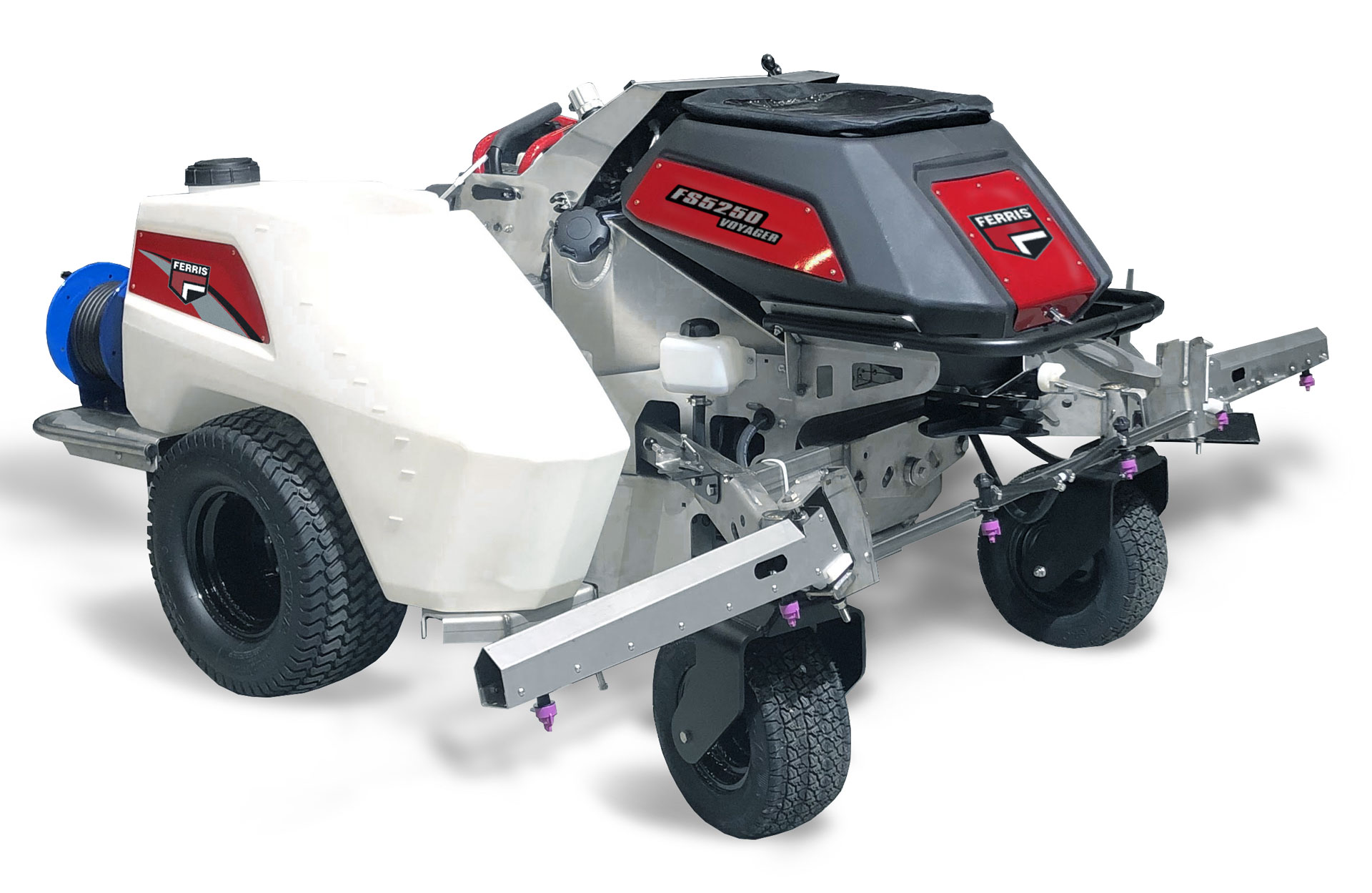

Voyager FS5250 Ride-On Spreader/Sprayer

INDUSTRY-LEADING RIDE-ON SPREADER SPRAYER PROVIDES 20% MORE PRODUCTIVITY

The Voyager FS5250 provides 20% more productivity than current industry units due to a larger footprint, more liquid and granular capacity and 12' of spray coverage. This added productivity provides up to an additional $800 per day in revenue. The pivoting front axle and low center of gravity provide excellent performance on sloping terrain, allowing your operators to spend more time riding the unit versus treating areas on foot.

Features

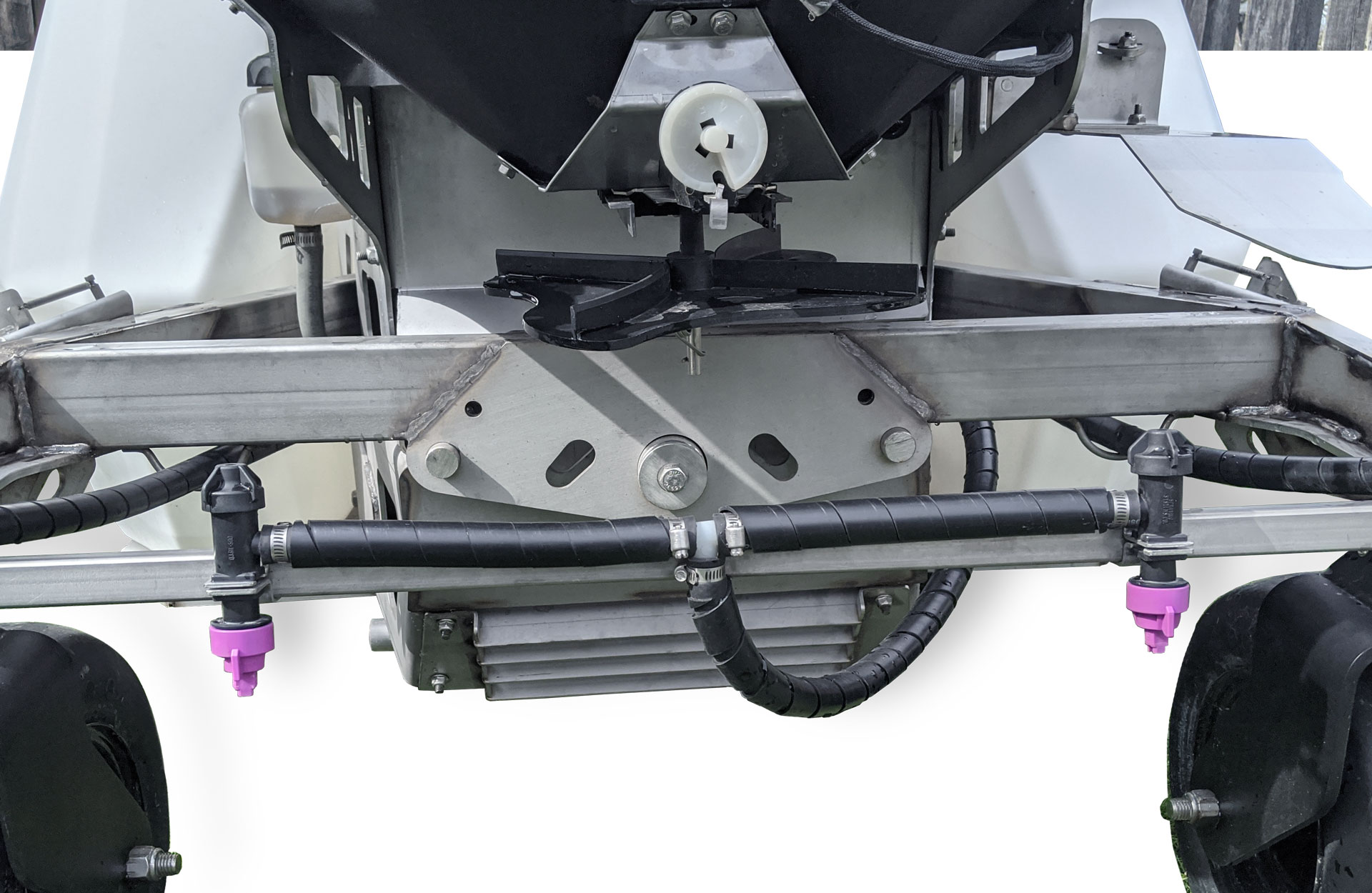

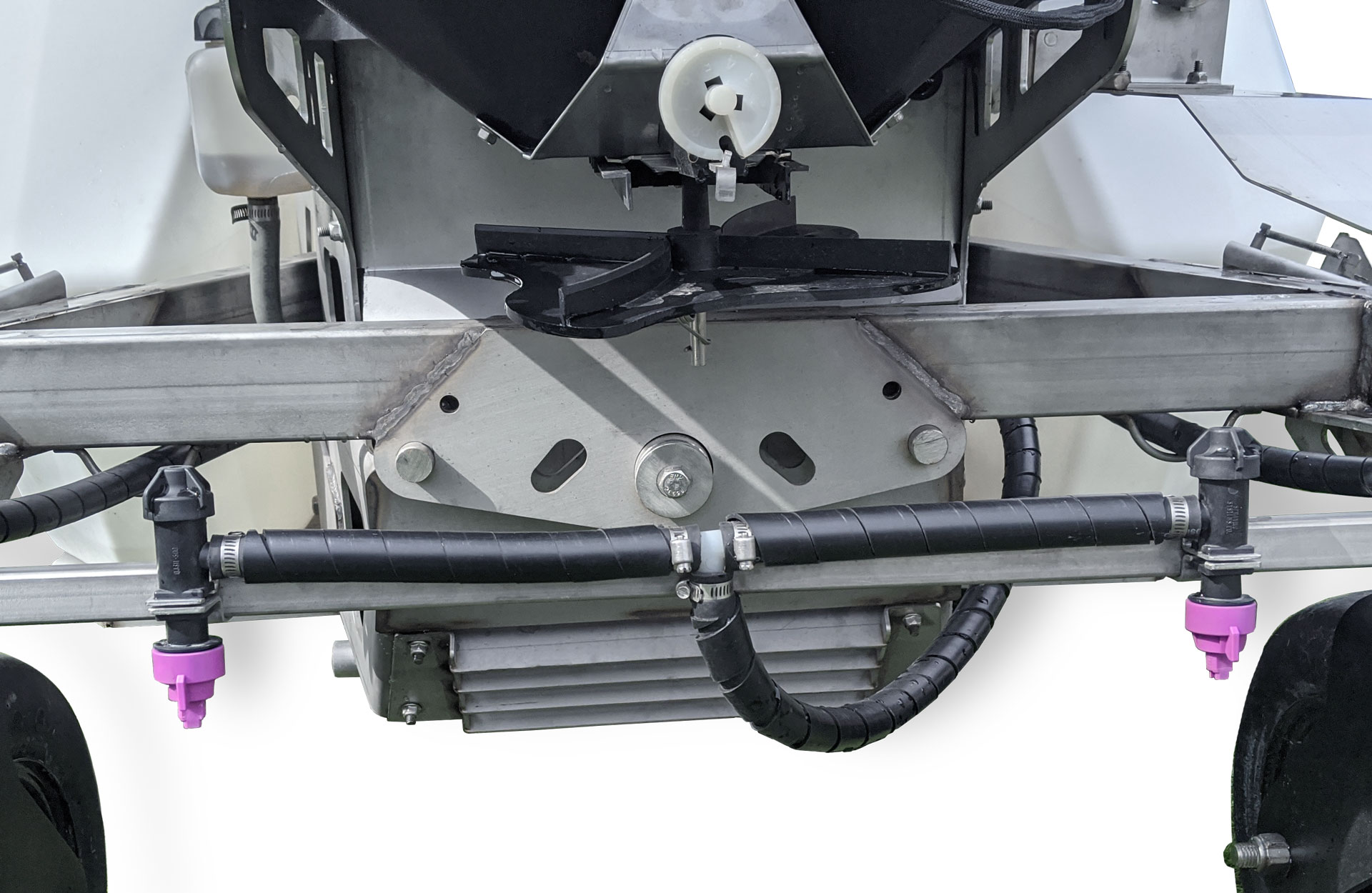

12 Feet of Spray Coverage

Six spray nozzles supplied by direct controllable independent hoses provide consistent spray tip volume and eliminates spikes and unequal tip pressure during operation.

Industry-Leading Capacity

The Voyager offers 80 gallons of liquid capacity, 250 pounds of granular capacity and molded side pockets to carry an additional 100 pounds of granular material for an additional 200,000 sq.ft. of coverage per day over other units.

Pivoting Front Axle

Ensures that all four wheels hold their contact with terrain for a smoother ride while maintaining more consistent ground to nozzle distance in uneven terrain.

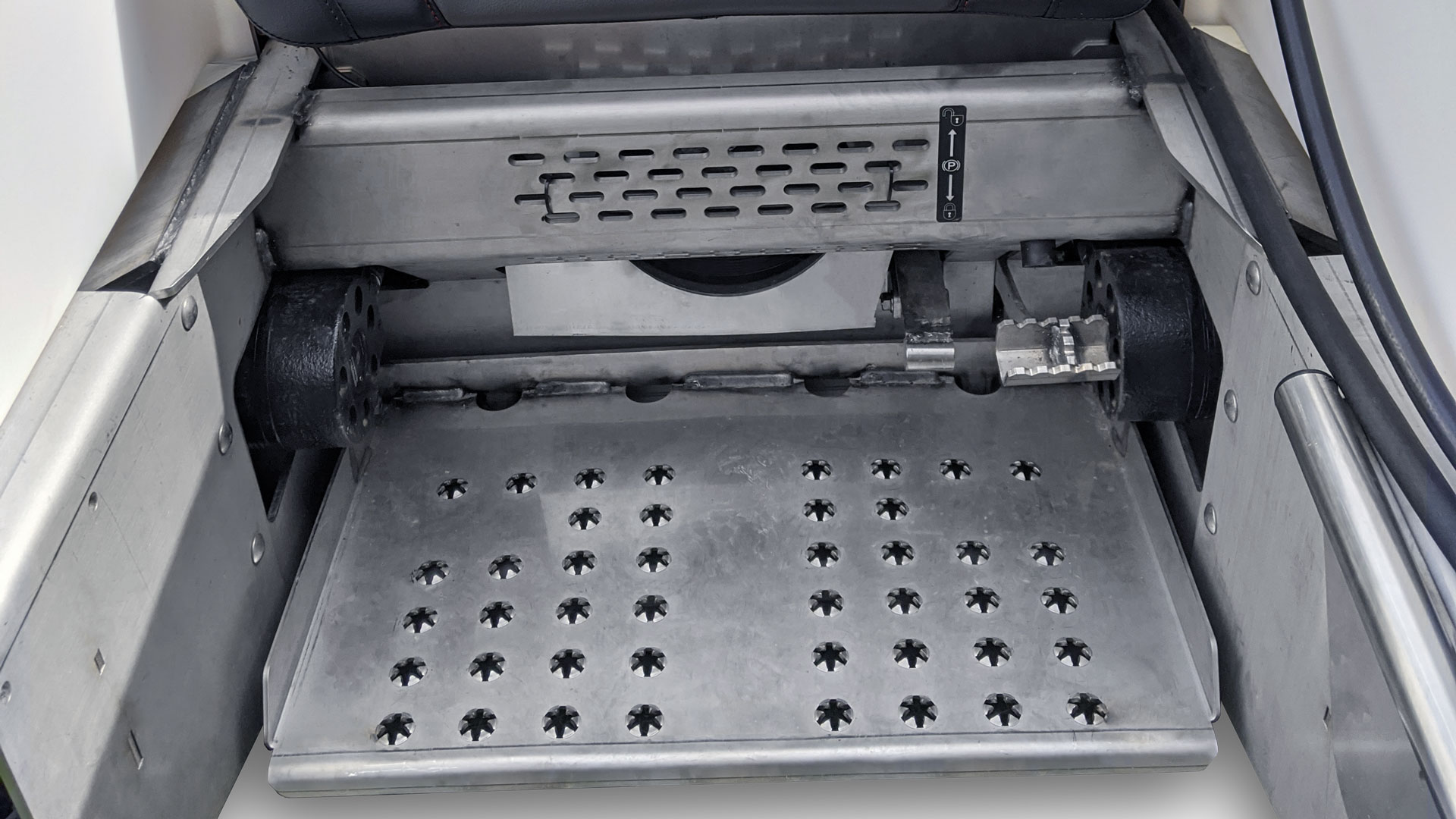

Iso-Mounted Operator Platform

Cushions rough terrain for enhanced operator comfort and is positioned directly over the drive wheels. This improves the vehicle's center of gravity and reduces operator acceleration during turning for a more comfortable driving experience.

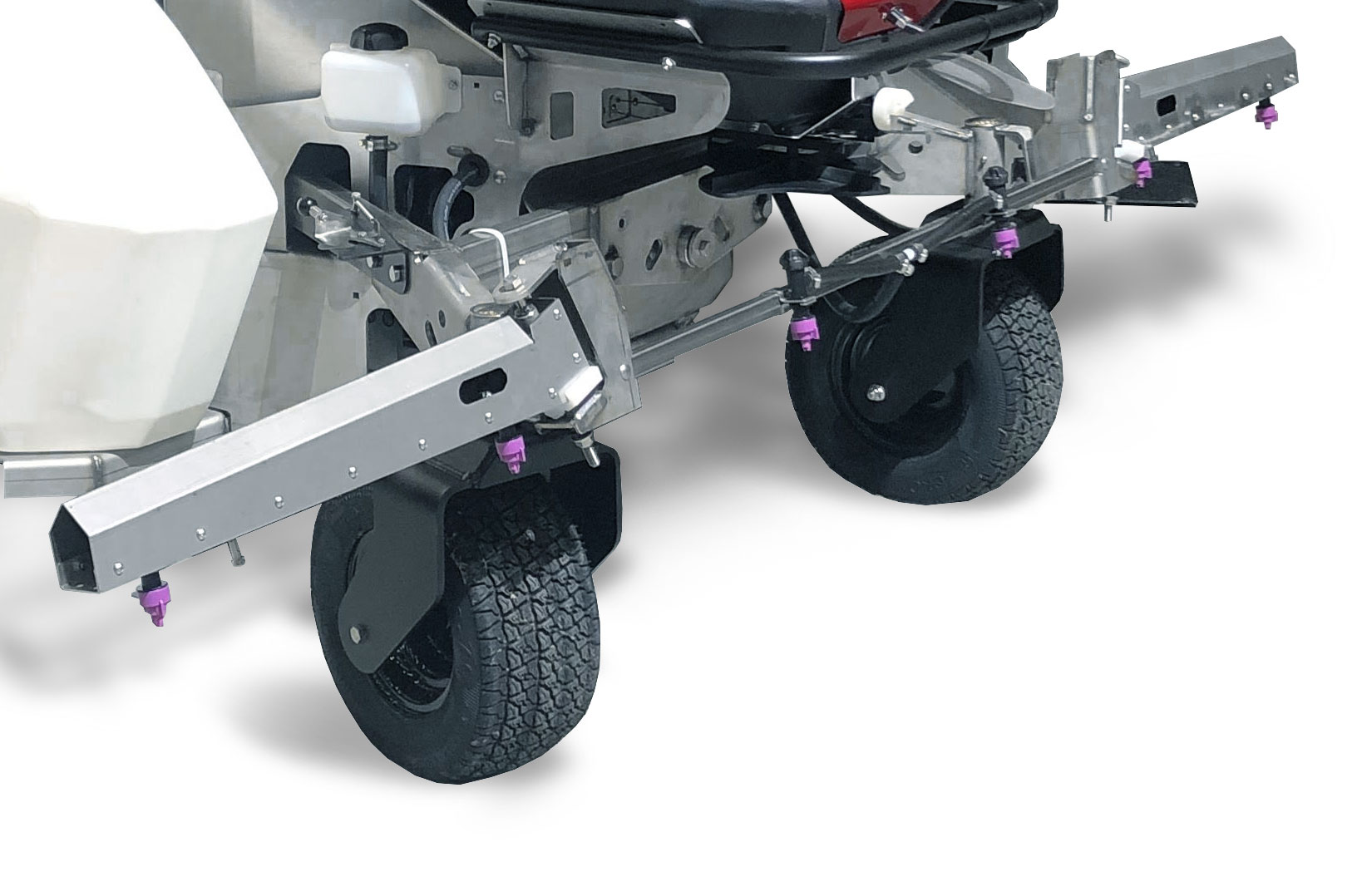

Three-Section Breakaway Boom

Two outward folding boom sections can be released from the operator platform and feature bi-directional breakaway to prevent boom damage.

100% Stainless Steel Frame

Resists rust and corrosion from chemicals.

75' Hose Reel

Hose and spray wand allows the applicator to treat hard to reach areas on foot.

Specifications

Engine Model

Vanguard^® V-Twin

Power Rating (gross hp)

Fuel Capacity - gal (L)

9 (34.1)

Speed (mph)

Front Tires

16 x 8.5 - 8

Rear Tires

24 x 12 - 12

Spreader Hopper Capacity (lbs.)

250

Granular Coverage per Fill - sq.ft. (acres)

62,500 (1.43)

Variable Spread Width

3' to 25'

Spray Pump

9.2 gpm roller pump

Sprayer Tank Capacity - gal (L)

80 (302.8)

Spray Width

4', 8' or 12'

Liquid Coverage per Fill - sq.ft. (acres)

320,000 (7.35)

Overall Length - in. (cm)

79 (200.6)

Overall Width - in. (cm)

61 (154.9)

Overall Height - in. (cm)

50 (127)

Dry Weight - lbs (kg)

1,406 (637.7)

Full Weight - lbs (kg)

2,600 (1,179.3)

Operator's Manuals

Illustrated Parts List - English
Download Icon

Operator's Manual - English
Download Icon

Operator's Manual - Spanish
