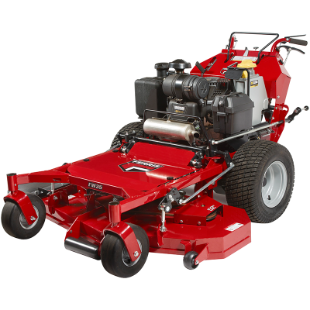

FW35 Walk Behind Mowers
FUEL-EFFICIENT WIDE AREA COMMERCIAL MOWERS BUILT FOR COMFORT & CONTROL
Reward your hardworking lawn care crew with the walk behind mower that might make them forget they're working at all. The FW35 dual hydrostatic walk-behind was built from the ground up to meet the demands of professional mowing crews. The design gives this mower smoother and more user-friendly operation.
Starting at $6,749.00^
Click and drag image to rotate.
28 HP
Gross Torque
48" +
Width of Cut
7 MPH
Ground Speed
2-Years
Limited Warranty
Features
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model Number
5901318
Engine Brand
Kawasaki® FX730V
Engine Power Rating *
23.5 gross hp
Displacement (cc)
726 cc
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 80.5, CC™: 76.75
Overall Width (in) Deflector Down/Deflector Up
76.5 / 65
Dry Weight (lbs)
888
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - EnglishOperator's Manual - SpanishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishModel Number
5901319
US MSRP ^
$7,049.00
Engine Brand
Kawasaki® FX651V
Engine Power Rating *
20.5 gross hp
Displacement (cc)
726 cc
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 78.75, CC™: 75
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
814
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - EnglishOperator's Manual - SpanishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishModel Number
5901320
US MSRP ^
$6,749.00
Engine Brand
Kawasaki® FX651V
Engine Power Rating *
20.5 gross hp
Displacement (cc)
726 cc
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
48
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 7-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 78.75, CC™: 75
Overall Width (in) Deflector Down/Deflector Up
62.5 / 49.5
Dry Weight (lbs)
809
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal Transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - EnglishOperator's Manual - SpanishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishModel Number
5901361
US MSRP ^
$6,749.00
Engine Brand
Kawasaki® FX651V
Engine Power Rating *
20.5 gross hp
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
48
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 7-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 78.75, CC™: 75
Overall Width (in) Deflector Down/Deflector Up
62.5 / 49.5
Dry Weight (lbs)
809
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - EnglishOperator's Manual - SpanishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishModel Number
5901362
US MSRP ^
$7,049.00
Engine Brand
Kawasaki® FX651V
Engine Power Rating *
20.5 gross hp
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 78.75, CC™: 75
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
814
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual - SpanishOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishModel Number
5901363
US MSRP ^
$7,699.00
Engine Brand
Kawasaki® FX730V
Engine Power Rating *
23.5 gross hp
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 80.5, CC™: 76.75
Overall Width (in) Deflector Down/Deflector Up
76.5 / 65
Dry Weight (lbs)
888
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual - SpanishOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishModel Number
5901365
Engine Brand
Vanguard™ 810cc
Engine Power Rating *
26 gross hp
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
61
Cutting Height (in)
1.5 - 4.75
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
76.75
Overall Width (in) Deflector Down/Deflector Up
76.5 / 65
Dry Weight (lbs)
888
Parking Brake/Safety Circuit
Internal transaxles
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Belts, tires, brake pads, battery, blades: 90 days.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual - SpanishOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishModel Number
5901599
US MSRP ^
$8,099.00
Engine Brand
Vanguard™ 810cc EFI with Oil Guard
Engine Power Rating *
28 gross hp
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 78.75, CC™: 75
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
814
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal Transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual - SpanishOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishModel Number
5901600
US MSRP ^
$8,099.00
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Engine Power Rating *
28 gross hp
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 78.75, CC™: 75
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
814
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual - SpanishOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishModel Number
5901601
US MSRP ^
$8,399.00
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Engine Power Rating *
28 gross hp
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 80.5, CC™: 76.75
Overall Width (in) Deflector Down/Deflector Up
76.5 / 65
Dry Weight (lbs)
888
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual - SpanishOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishModel Number
5901602
US MSRP ^
$8,399.00
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Engine Power Rating *
28 gross hp
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Suspension
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 80.5, CC™: 76.75
Overall Width (in) Deflector Down/Deflector Up
76.5 / 65
Dry Weight (lbs)
888
Seat
N/A
Rollover Protection System (ROPS)
N/A
Instrumentation
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual - SpanishOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishModel Number
5901451
Engine Brand
Vanguard™ 810cc
Engine Power Rating *
26 gross hp
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
61
Cutting Height (in)
1.5 - 4.75
Spindles
Aluminum
Deck Construction
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
80.5
Overall Width (in) Deflector Down/Deflector Up
76.5 / 65
Dry Weight (lbs)
888
Parking Brake/Safety Circuit
Internal transaxles
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Belts, tires, brake pads, battery, blades: 90 days.
Assembled Height
41.5
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishOperator's Manual - SpanishOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - English* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Prices are shown in U.S. dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901319
5901318
5901319
Engine Brand
Kawasaki® FX651V
Kawasaki® FX730V
Kawasaki® FX651V
Engine Power Rating *
20.5 gross hp
23.5 gross hp
20.5 gross hp
Displacement (cc)
726 cc
726 cc
726 cc
PTO
Electric
Electric
Electric
Cylinders
2
2
2
Starter
Electric
Electric
Electric
Fuel Tank Capacity (gal)
5
5
5
Cutting Width (in)
52
61
52
Cutting Height (in)
1.5 - 5
1.5 - 5
1.5 - 5
Spindles
Aluminum
Aluminum
Aluminum
Deck Construction
Fabricated 10-gauge
Fabricated 10-gauge
Fabricated 10-gauge
Suspension
N/A
N/A
N/A
Transmission
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1
1
1
Caster Tires (in)
11 x 4-5 Flat-free
11 x 4-5 Flat-free
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
20 x 8-10
20 x 8-10
Ground Speed-Fwd (mph)
0-7
0-7
0-7
Ground Speed-Rev (mph)
0-3
0-3
0-3
Overall Length (in)
Standard: 78.75, CC™: 75
Standard: 80.5, CC™: 76.75
Standard: 78.75, CC™: 75
Overall Width (in) Deflector Down/Deflector Up
67 / 57
76.5 / 65
67 / 57
Dry Weight (lbs)
814
888
814
Seat
N/A
N/A
N/A
Rollover Protection System (ROPS)
N/A
N/A
N/A
Instrumentation
Hour meter, speed indicator
Hour meter, speed indicator
Hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Internal transaxle
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
US MSRP ^
$7,049.00
$7,049.00
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Prices are shown in U.S. dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Attachments
Reviews
Q&A
