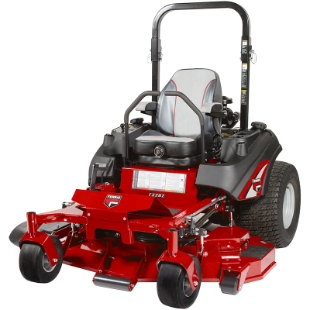

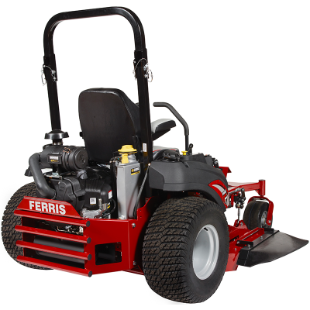

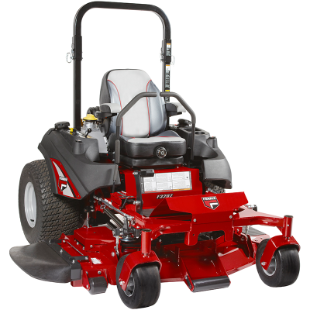

F320Z Series Zero Turn Lawn Mower
F320Z Series Zero Turn Lawn Mower
F320Z Series Zero Turn Lawn Mower
F320Z Series Zero Turn Lawn Mower
F320Z Series Zero Turn Lawn Mower
F320Z Series Zero Turn Lawn Mower

F320Z Series Zero Turn Lawn Mower

BIG ON MOWER PERFORMANCE, BIG ON VALUE



If you demand power, performance and dependability all at a great value, look no further than the Ferris® F320Z. This top-of-the-line Fleet Series model comes equipped with a premium high-back adjustable suspension seat and heavy-duty components, such as Hercules™ II cast-iron spindles. Large 26" drive tires allow for greater traction, smoother ride and improved curb climbing performance.

Choose between multiple engine options: a Vanguard BIG BLOCK and a Vanguard BIG BLOCK EFI both offering a 500 hour oil change interval with the new Oil Guard System or a Kawasaki® FX850V EFI, all with a 3-year limited manufacturer’s warranty†

F320Z Features:

  • Available with the Oil Guard System on Vanguard BIG BLOCK EFI engine options. Save 60% on oil maintenance per season per unit!**
  • Comfortable thicker 1” tubular steering control levers.
  • Available in 61″and 72″ cutting widths, our state-of-the-art iCD Cutting System allows for better airflow, discharge and superior cut quality even at 12 mph.
  • Find comfort with suspension seat in our premium high-back design, along with adjustable cushioned armrests.
  • Experience easy, smooth & precise control with long-lasting pillow block bearings on control mounts.
  • Foot-operated deck for easy cut height adjustments from 1.5″ to 5″ in .25″ increments.
  • Larger 26″ drive tires for superior traction, flat-free front caster tires, 11-gallon dual fuel tanks and our Hercules II cast iron, greaseable spindles for lasting performance.
  • Convenient removable floor pan for easier lawn mower maintenance.
  • Integrated transmission with dual, commercial-grade, fan-cooled Hydro-Gear® ZT-5400 Powertrain® transaxles provides reliability and durability.
  • Number of attachments like an array of collection systems, LED light kit, mulch kit, trailer hitch kit & more.

Looking For A Price?



Overview

500 Hour Oil Change (Select Models)

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Powerful Engine

For the most challenging applications, this BIG BLOCK™ EFI Engine has been expertly engineered to deliver the dependability to get more done in less time.

iCD™ Cutting System

The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

Hercules™ II Spindles

Hercules™ II Spindles industrial 10" dia. cast-iron spindle assembly with 1 3/16" dia. shaft and greaseable double row angular contact ball bearings, which can be greased through the convenient top access grease fitting.

Accessibility

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Commercial Transmission

Dual, commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles deliver unmatched power and durability.

Foot-Operated Deck Lift

Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".

Premium High-Back Suspension Seat

Suspension seat with reclining back and lumbar support for optimal comfort.

Traction

Large 26" drive tires allow for greater traction, smoother ride and improved curb climbing performance and faster cutting speeds.

Ride-On Mower Warranties

4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Brand
Vanguard™ BIG BLOCK™ EFI with Oil Guard
Displacement (cc)
993
Cylinders
2
Fuel Tank Capacity (gal)
11
Cutting Height (in)
1.5 - 5
Deck Construction
iCD™ Cutting System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Caster Tires (in)
13 x 6.5-6 Flat-free
Ground Speed-Fwd (mph)
0-12
Overall Length (in)
81
Dry Weight (lbs)
1405
Instrumentation/Hour Meter
Fuel level gauge in each tank, hour meter
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Brake
Internal transaxles
Engine Power Rating *
37 gross hp
PTO
Electric
Starter
Electric
Cutting Width (in)
61
Spindles
Hercules™ II Spindles
Suspension
N/A
Drive Axles (in)
1.375 Tapered
Drive Tires (in)
26 x 12-12
Ground Speed-Rev (mph)
0-6
Overall Width (in) Deflector Down/Deflector Up
76 / 63
Seat Package
Premium suspension high-back seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
Standard, 165° foldable
Parking Brake / Safety Circuit
Internal transaxles
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Engine Brand
Vanguard™ BIG BLOCK™ EFI with Oil Guard
Displacement (cc)
993
Cylinders
2
Fuel Tank Capacity (gal)
11
Cutting Height (in)
1.5 - 5
Deck Construction
iCD™ Cutting System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Caster Tires (in)
13 x 6.5-6 Flat-free
Ground Speed-Fwd (mph)
0-12
Overall Length (in)
81
Dry Weight (lbs)
1439
Instrumentation/Hour Meter
Fuel level gauge in each tank, hour meter
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Brake
Internal transaxles
Engine Power Rating *
37 gross hp
PTO
Electric
Starter
Electric
Cutting Width (in)
72
Spindles
Hercules™ II Spindles
Suspension
N/A
Drive Axles (in)
1.375 Tapered
Drive Tires (in)
26 x 12-12
Ground Speed-Rev (mph)
0-6
Overall Width (in) Deflector Down/Deflector Up
88 / 74
Seat Package
Premium suspension high-back seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
Standard, 165° foldable
Parking Brake / Safety Circuit
Internal transaxles
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Engine Brand
Vanguard™ BIG BLOCK™ with Oil Guard
Displacement (cc)
893
Cylinders
2
Fuel Tank Capacity (gal)
11
Cutting Height (in)
1.5 - 5
Deck Construction
iCD™ Cutting System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Caster Tires (in)
13 x 6.5-6 Flat-free
Ground Speed-Fwd (mph)
0-12
Overall Length (in)
81
Dry Weight (lbs)
1405
Instrumentation/Hour Meter
Fuel level gauge in each tank, hour meter
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Striping Kit
No
Engine Power Rating *
32 gross hp
PTO
Electric
Starter
Electric
Cutting Width (in)
61
Spindles
Hercules™ II Spindles
Suspension
N/A
Drive Axles (in)
1.375 Tapered
Drive Tires (in)
26 x 12-12
Ground Speed-Rev (mph)
0-6
Overall Width (in) Deflector Down/Deflector Up
76 / 63
Seat Package
Premium suspension high-back seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
Standard, 165° foldable
Parking Brake / Safety Circuit
Internal transaxles
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Engine Brand
Kawasaki® FX850V EFI
Displacement (cc)
852
Cylinders
2
Fuel Tank Capacity (gal)
11
Cutting Height (in)
1.5 - 5
Deck Construction
iCD™ Cutting System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Caster Tires (in)
13 x 6.5-6 Flat-free
Ground Speed-Fwd (mph)
0-12
Overall Length (in)
81
Dry Weight (lbs)
1405
Instrumentation/Hour Meter
Fuel level gauge in each tank, hour meter
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Engine Power Rating *
29.5 gross hp
PTO
Electric
Starter
Electric
Cutting Width (in)
61
Spindles
Hercules™ II Spindles
Suspension
N/A
Drive Axles (in)
1.375 Tapered
Drive Tires (in)
26 x 12-12
Ground Speed-Rev (mph)
0-6
Overall Width (in) Deflector Down/Deflector Up
76 / 63
Seat Package
Premium suspension high-back seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
Standard, 165° foldable
Parking Brake / Safety Circuit
Internal transaxles
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Engine Brand
Vanguard™ BIG BLOCK™ with Oil Guard
Displacement (cc)
893
Cylinders
2
Fuel Tank Capacity (gal)
11
Cutting Height (in)
1.5 - 5
Deck Construction
iCD™ Cutting System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Caster Tires (in)
13 x 6.5-6 Flat-free
Ground Speed-Fwd (mph)
0-12
Overall Length (in)
81
Dry Weight (lbs)
1439
Instrumentation/Hour Meter
Fuel level gauge in each tank, hour meter
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Engine Power Rating *
32 gross hp
PTO
Electric
Starter
Electric
Cutting Width (in)
72
Spindles
Hercules™ II Spindles
Suspension
N/A
Drive Axles (in)
1.375 Tapered
Drive Tires (in)
26 x 12-12
Ground Speed-Rev (mph)
0-6
Overall Width (in) Deflector Down/Deflector Up
88 / 74
Seat Package
Premium suspension high-back seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
Standard, 165° foldable
Parking Brake / Safety Circuit
Internal transaxles
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Engine Brand
Kawasaki® FX850V EFI
Displacement (cc)
852
Cylinders
2
Fuel Tank Capacity (gal)
11
Cutting Height (in)
1.5 - 5
Deck Construction
iCD™ Cutting System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Caster Tires (in)
13 x 6.5-6 Flat-free
Ground Speed-Fwd (mph)
0-12
Overall Length (in)
81
Dry Weight (lbs)
1439
Instrumentation/Hour Meter
Fuel level gauge in each tank, hour meter
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Engine Power Rating *
29.5 gross hp
PTO
Electric
Starter
Electric
Cutting Width (in)
72
Spindles
Hercules™ II Spindles
Suspension
N/A
Drive Axles (in)
1.375 Tapered
Drive Tires (in)
26 x 12-12
Ground Speed-Rev (mph)
0-6
Overall Width (in) Deflector Down/Deflector Up
88 / 74
Seat Package
Premium suspension high-back seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
Standard, 165° foldable
Parking Brake / Safety Circuit
Internal transaxles
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.

 * All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand
Kawasaki® FX1000V
Vanguard™ BIG BLOCK™ EFI with Oil Guard
Engine Power Rating *
35 gross hp
37 gross hp
Displacement (cc)
999
993
PTO
Electric
Electric
Cylinders
2
2
Starter
Electric
Electric
Fuel Tank Capacity (gal)
11
11
Cutting Width (in)
61
61
Cutting Height (in)
1.5 - 5
1.5 - 5
Spindles
Hercules™ II Spindles
Hercules™ II Spindles
Deck Construction
iCD™ Cutting System
iCD™ Cutting System
Suspension
N/A
N/A
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Drive Axles (in)
1.375 Tapered
1.375 Tapered
Caster Tires (in)
13 x 6.5-6 Flat-free
13 x 6.5-6 Flat-free
Drive Tires (in)
26 x 12-12
26 x 12-12
Ground Speed-Fwd (mph)
0-12
0-12
Ground Speed-Rev (mph)
0-6
0-6
Overall Length (in)
81.5
81
Overall Width (in) Deflector Down/Deflector Up
76 / 63
76 / 63
Dry Weight (lbs)
1405
1405
Seat Package
Premium suspension high-back
Premium suspension high-back seat with adjustable arm rests, adjustable lumbar and back recline
Instrumentation/Hour Meter
Fuel level gauge in each tank, hour meter
Fuel level gauge in each tank, hour meter
Certified Roll-over Protection System
Standard, 165° foldable
Standard, 165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Internal transaxles
Internal transaxles
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
Brake
Internal transaxles
Internal transaxles

 * All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Attachments

Mulch Kit

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

Trailer Hitch Kit

Will accept a 1/2” shank ball and comes complete with hardware.

LED Light Kit

Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.

Turbo-Pro™ Max or Fast-Vac® Triple Bag Soft Top

Simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. (61” Deck Only) Capacity: 12.5 cubic feet

Turbo-Pro™ Max or Fast-Vac® Triple Bag Hard Top

Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle and tapered bag to assist with removal. (61” Deck Only) Capacity: 15 cubic feet

Turbo-Pro™ Max or Fast-Vac® EZ Dump XL™

Ideal for larger jobs. Simply squeeze the handle and pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped. (61” Deck Only) Capacity: 14 cubic

Turbo-Pro™ Max or Fast-Vac® Electric DFS

Simply flip the switch on the control panel to release the hopper right from your seat. (61” Deck Only) Capacity: 12.5 cubic feet

Lawn Striping Kit

Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.

Reviews

Q&A
