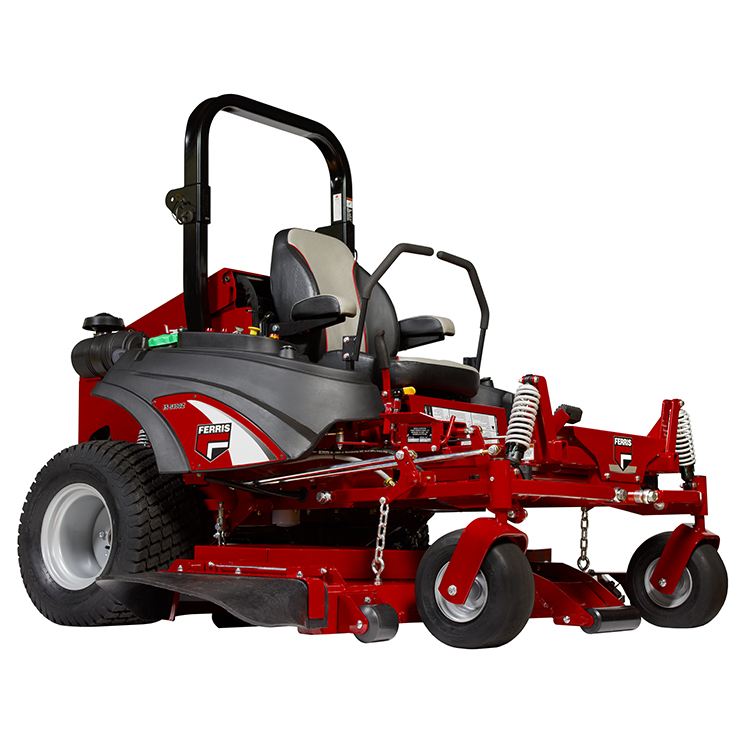

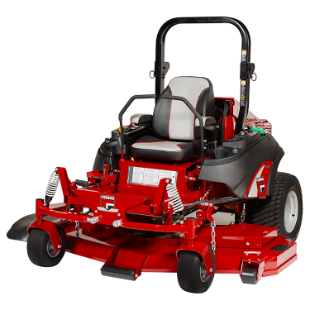

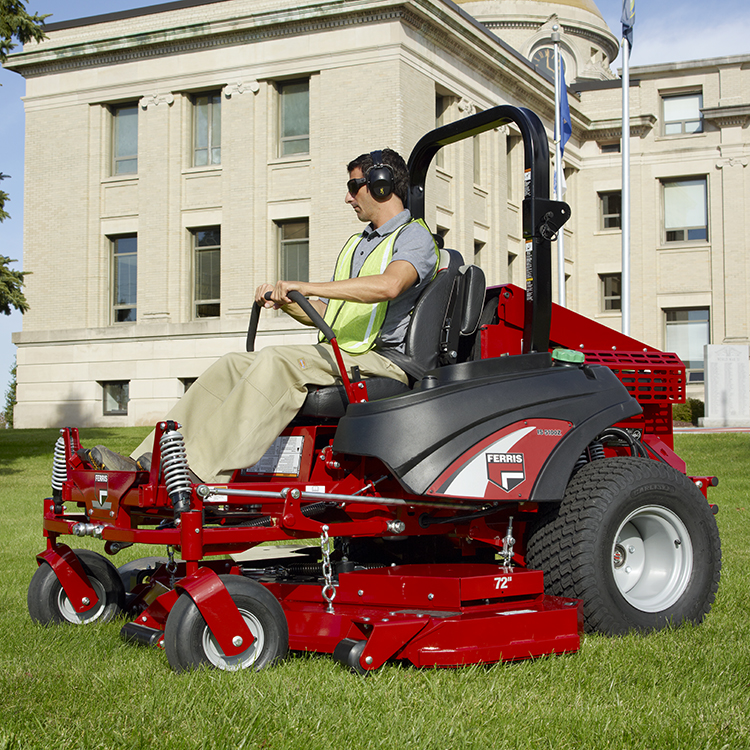

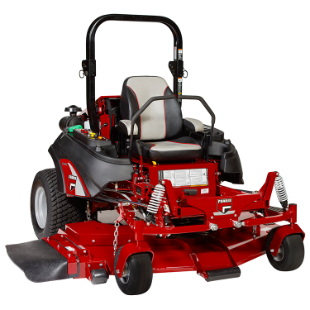

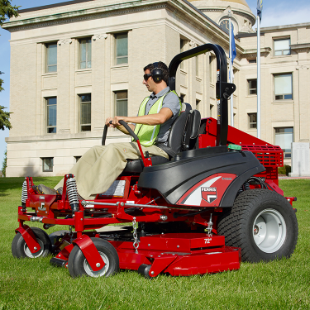

IS® 5100Z Zero Turn Mowers

THE ULTIMATE RIDING AND CUTTING MACHINE

The IS® 5100Z zero turn series of diesel powered zero turn mowers feature an impressive complement of comfort, performance and convenience. Easy access to service areas, impressive horsepower, enhanced lawn mowing operator comfort and increased performance all contribute to the time this zero turn mower will save you. When it comes to commercial zero turn lawn mowers, this is truly the ultimate riding and cutting machine.

Looking For A Price?

FIND A DEALER

Zero Turn Mower Reviews

Product Details

Caterpillar®  Diesel

Caterpillar® 1500cc (model 3013C) diesel lawn mower engine with 55ft/lbs of torque at 2800 rpm delivers more torque at a lower rpm for increased power when needed.

Patented Suspension

Suspension system consists of rear dual coil-over-shocks with dual cast-iron maintenance-free suspension arms (shown) and front independent adjustable coil-over-shocks.

Ride-On Mower Warranties†

Coil-over-shocks and all suspension-related components are covered for 4 years (48 months) unlimited hours. We are committed to providing performance, productivity and durability.

iCD™ Cutting System

Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

Rear Discharge Deck

Rear-discharge decks, used for special applications, disperse grass clippings directly behind the mower.

Hydraulic Deck Lift

Foot-activated hydraulic deck lift makes raising and lowering the deck effortless.

Accessibilty

Automotive-style hood latch for easy service access

Hercules Spindles

Hercules™ cast-iron mower spindles utilizes large 1 1⁄4" Timken®  tapered roller bearings, 1 1⁄4" shaft and 10 1⁄4" 6-bolt flange design. Long lasting, adds strength to the deck and requires minimal maintenance.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Acres Per Hour

Mows up to 7.2 acres per hour, based on 80% efficiency.

Miles Per Hour

Up to 12 MPH ground speed, reverse 6 MPH.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Caterpillar®  Diesel
Engine Power Rating * 33.5 gross hp
Displacement (cc) 1500
PTO Electric
Cylinders 3
Starter Electric
Fuel Tank Capacity (gal) 15
Cutting Width (in) 72 (side)
Cutting Height (in) 1.5 - 6
Spindles Hercules™ II Cast-Iron
Deck Construction iCD™ Cutting System with professional lawn striper
Suspension Rear dual coil-over-shocks with dual cast-iron maintenance-free suspension arms and front independent adjustable shocks
Transmission Dual hydro pumps and wheel motors with remote oil cooler
Drive Axles (in) 1.25
Caster Tires (in) 13 x 6.5-6
Drive Tires (in) 26 x 12-12
Ground Speed-Fwd (mph) 0-12
Ground Speed-Rev (mph) 0-6
Overall Length (in) 92
Overall Width (in) Deflector Down/Deflector Up 88 / 74
Dry Weight (lbs) 2360
Seat Package Premium adjustable high-back seat with arm rests, adjustable fore and aft positioning
Instrumentation Fuel level gauge in each tank, visual water temperature gauge, hour meter
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Parking Brake / Safety Circuit Disk
Warranty (Engine) † 2-Year limited manufacturer's warranty
Warranty (Balance of Machine) † 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Hourmeter Location Fuel level gauge in each tank, visual water temperature gauge, hour meter
Rollover Protection System ROPS Standard, 130° foldable
OPERATOR'S MANUALS Download IconInstruction Sheet - English
Download IconInstruction Sheet - English
Download IconIPL/WDS - English
Download IconOperator's Manual - USASpanish
Download IconOperator's Manual - English
Download IconSetup Guide - English

^Power levels rated by engine manufacturer.
†See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Caterpillar®  Diesel
Engine Power Rating * 33 gross hp
Displacement (cc) 1500
PTO Electric
Cylinders 3
Starter Electric
Fuel Tank Capacity (gal) 15
Cutting Width (in) 72 (rear)
Cutting Height (in) 1.5 - 6
Spindles Hercules™ II Cast-Iron
Deck Construction iCD™ Cutting System
Suspension Rear dual coil-over-shocks with dual cast-iron maintenance-free suspension arms and front independent adjustable shocks
Transmission Dual hydro pumps and wheel motors with remote oil cooler
Drive Axles (in) 1.25
Caster Tires (in) 13 x 6.5-6
Drive Tires (in) 26 x 12-12
Ground Speed-Fwd (mph) 0-12
Ground Speed-Rev (mph) 0-6
Overall Length (in) 92
Overall Width (in) Deflector Down/Deflector Up 88 / 74
Dry Weight (lbs) 2360
Seat Package Premium adjustable high-back seat with arm rests, adjustable fore and aft positioning
Instrumentation Fuel level gauge in each tank, visual water temperature gauge, hour meter
Controls / Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit
Parking Brake / Safety Circuit Disk
Warranty (Engine) † 2-Year limited manufacturer's warranty
Warranty (Balance of Machine) † 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Hourmeter Location Fuel level gauge in each tank, visual water temperature gauge, hour meter
Rollover Protection System ROPS Standard, 130° foldable
OPERATOR'S MANUALS Download IconInstruction Sheet - English
Download IconInstruction Sheet - English
Download IconIPL/WDS - English
Download IconOperator's Manual - USASpanish
Download IconOperator's Manual - English
Download IconSetup Guide - English

^Power levels rated by engine manufacturer.
†See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

MULCH KIT

Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.

TRAILER HITCH KIT

Will accept a 1/2” shank ball and comes complete with hardware.

SUSPENSION SEAT

Suspension seat for optimal comfort.

SEAT INSERT

Add this to the premium adjustable seat for increased comfort during landscaping jobs.

360° ANTI-SCALP ROLLERS

Adjustable anti-scalp rollers allow for tight turns and less chance of drag marks.

FLAT-FREE CASTER TIRES

Run all day with no flats, eliminates down time.
