Mower Deck Part Number
5901869
Marca del motor
Caterpillar® - Euro Stage 5 Diesel
Fuel System
Common-rail, Turbo charged, direct injection with Diesel Oxidation Catalyst
Caballos de fuerza (HP)**
48.3
Cilindros
3 Cylinders in line
Refrigeración
Liquid cooled
Capacidad de combustible (l)
51
Ancho de corte (cm/pulgada)
183 / 72

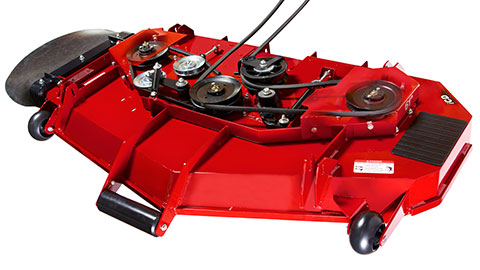

Configuración de la cubierta
TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades
Altura de corte (cm)
3,8 - 15,2
Construcción de la cubierta
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
Ejes de rotación del cortacésped
HERCULES™ II Cast-iron Ø257 mm; Ø30,16 mm shaft
Sistema elevador de la cubierta
Hydraulic
Embrague PTO
Warner GT300 Clutch-Brake (610 Nm)
Front Suspension System
IS® Independent front wheel suspension system utilizing single independent control arms and large adjustable coil-over-shocks
Rear Suspension System
Independent rear wheel suspension system utilizing double A-arms and large adjustable coil-over-shocks
Reactive Deck Mounting System
Front and rear
Sistema de dirección
Independant Hydro-Gear® PW 21cc pumps and Parker TG0335 wheel motors with industrial oil filter and remote oil cooler
Ejes de transmisión
Ø31,75 mm drive shaft with 5-bolt wheel hub
Ruedas motrices (pulgada)
26 x 12.00 - 12 (4 ply) Pneumatic tyre w. turf tread
Ruedas libres (pulgada)
13 x 6.50 - 6 (4 ply) Pneumatic tyre w. smooth tread
Velocidad hacia delante (km/h)
0 - 20
Velocidad marcha atrás (km/h)
0 - 10
Longitud total (cm)
229,5
Anchura total (cm)
RD: 188,5 - SD: 194,5 / 228,5 (Deflector up / Deflector down)
Asiento
Premium high-back seat with padded armrests, adjustable headrest and integrated retractable seat belt
Estructura de protección contra vuelcos
Standard, foldable
Instrumentos
Fuel level gauge in each tank. Multi-functional color display showing engine functions, machine functions, engine warnings and maintenance reminders
Controles/circuito de seguridad
Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit
Freno de estacionamiento
Drum type
Garantía (equilibro de la máquina) ‡
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
Garantía (Coil-Over-Shocks, Suspension Related Components) ‡
5-Years (60 months) unlimited hours
Garantía (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡
90 Days
Garantía (correa de transmisión de la cubierta) ‡
3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)
Garantía (motor) ‡
2-Year / 2000 hours Manufacturer’s Limited Warranty
