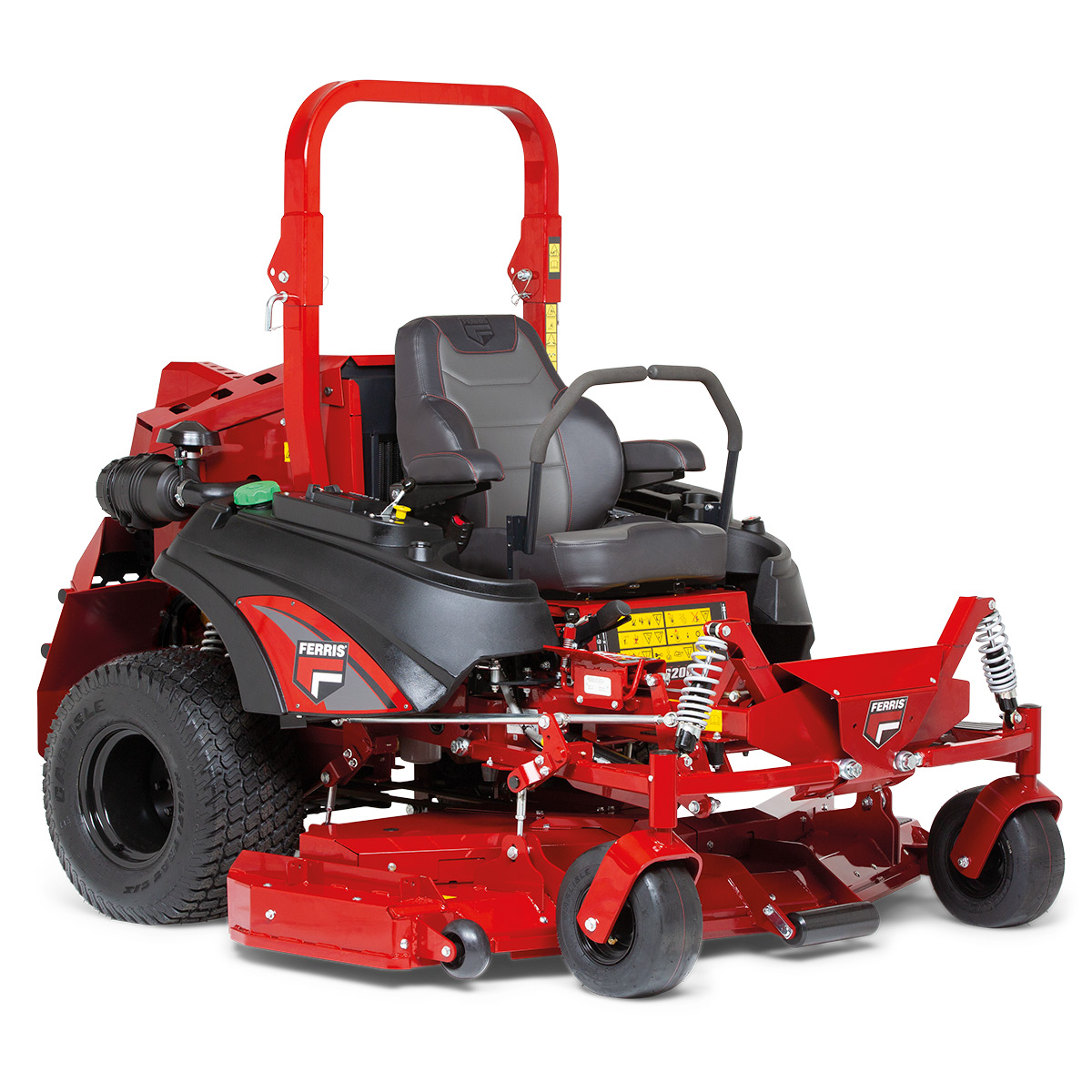

IS® 6200 Diesel Zero Turn Mower
Big Diesel Power for Heavy-Duty Commercial Mowing
Looking for the ultimate workhorse that has an unprecedented level of productivity and is extremely comfortable to operate at the same time? Stop looking any further, you’ve found it! Its incredible engine power and highly versatile deck design will conquer the most challenging mowing jobs while our exclusive suspension technology reduces the effects of uneven terrain, allowing you to maintain mowing speed and increasing your productivity by getting the job done faster. Because, why decide between getting your work done faster or feeling good when you finish? Ferris got your back on both! With the IS® 6200, we set the new industry benchmark for the ultimate riding and cutting machine.
Deck Size
183 cm (72”) Triple iCD™
Power Rating*
48 HP
Ground Speed
Up to 20 km/h
Suspension Warranty
10 years
Features

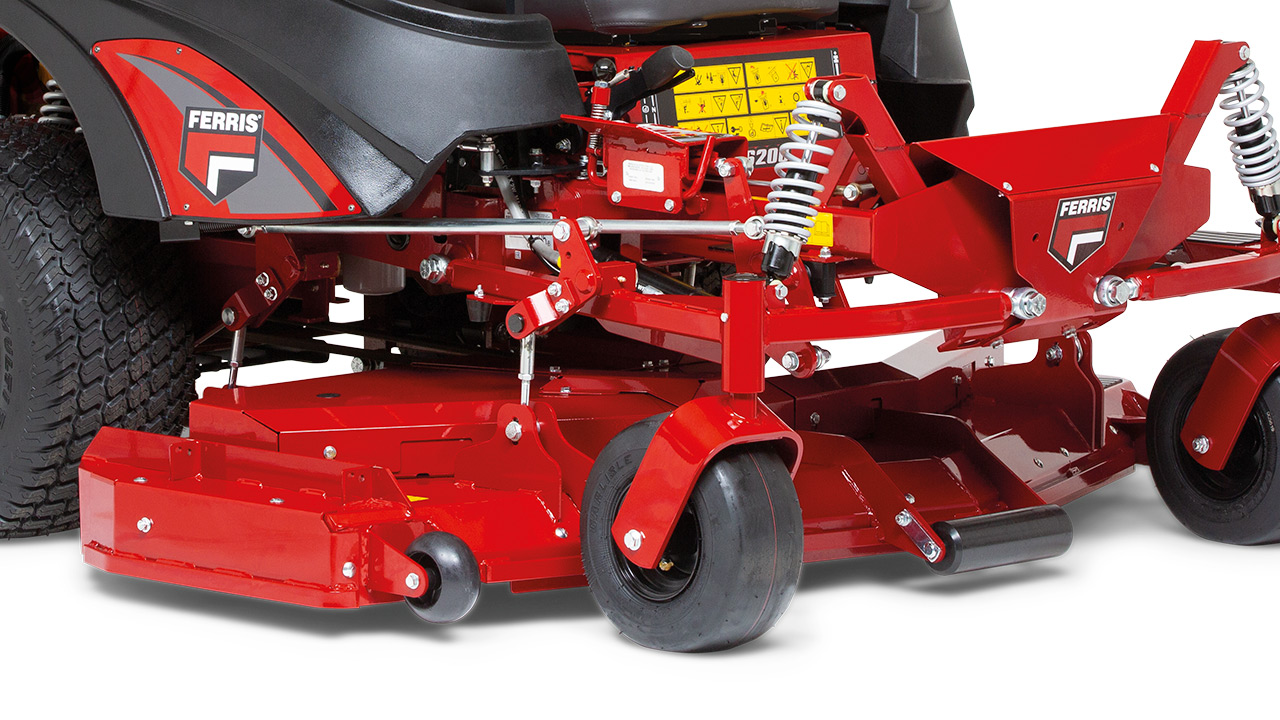

ICD™ CUTTING SYSTEM
The 72” Triple iCD™ deck offers side discharge, rear discharge and mulching options in one configuration. Its redesigned chamber improves vacuum, airflow and cut quality, supported by a durable 2-belt drive system engineered for extended service life.

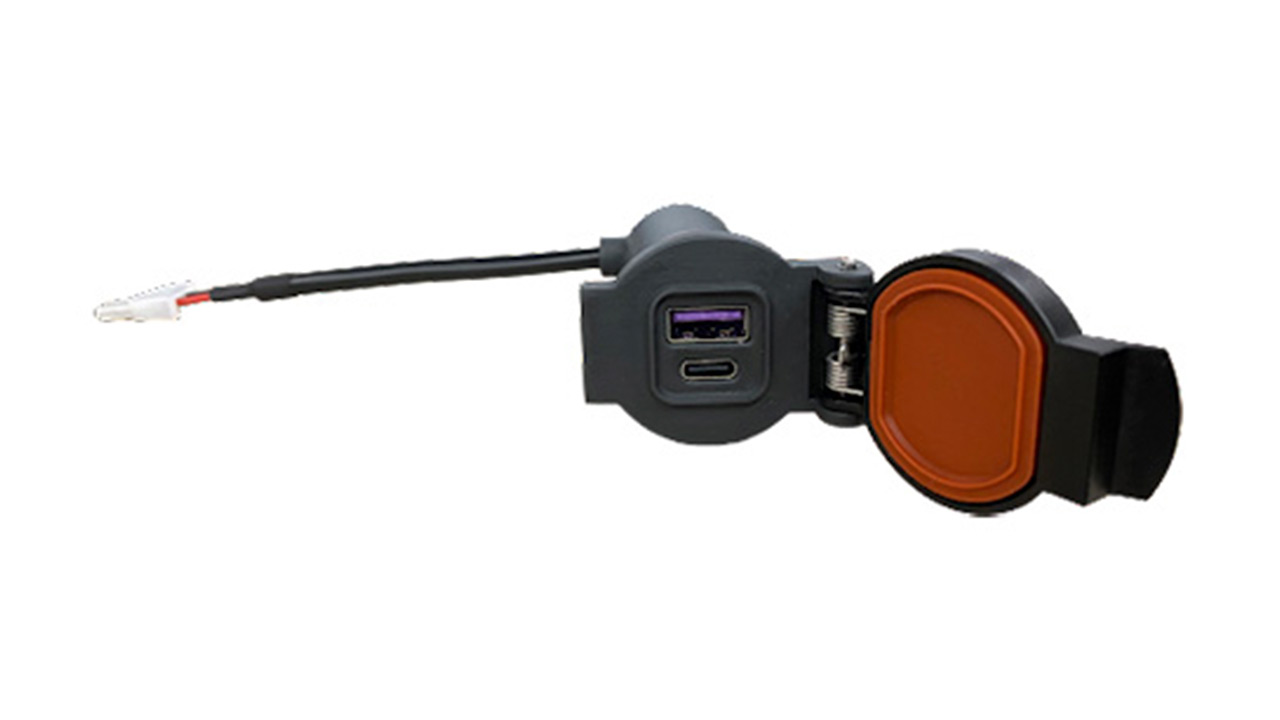

USB PORT
A 12V–60V USB Type-A and Type-C charging port is conveniently located on the dash for keeping devices powered during long working days.

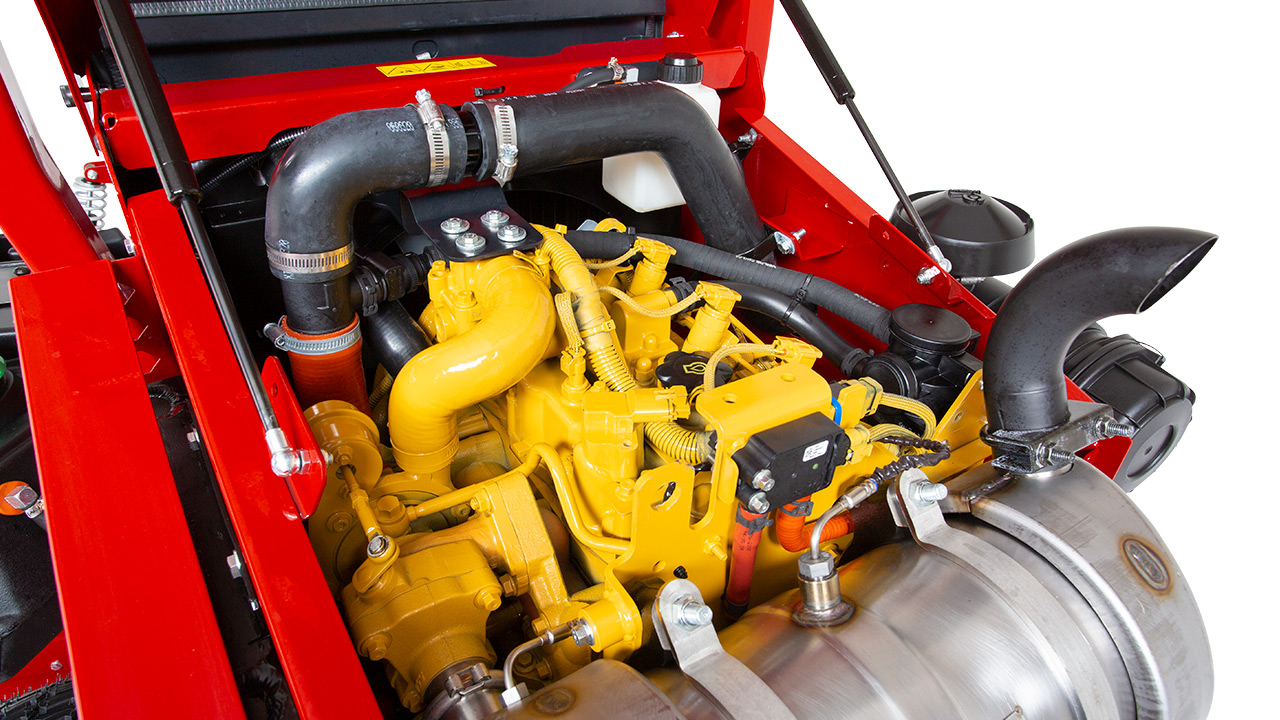

CAT® 48 HP TURBO DIESEL ENGINE
The CAT® C1.7 Stage V turbo diesel engine delivers exceptional torque and a long service life, with a typical operating lifespan of 4,000–5,000 hours. Fully compatible with renewable fuels such as HVO100, BTL and GTL for cleaner, more efficient operation.

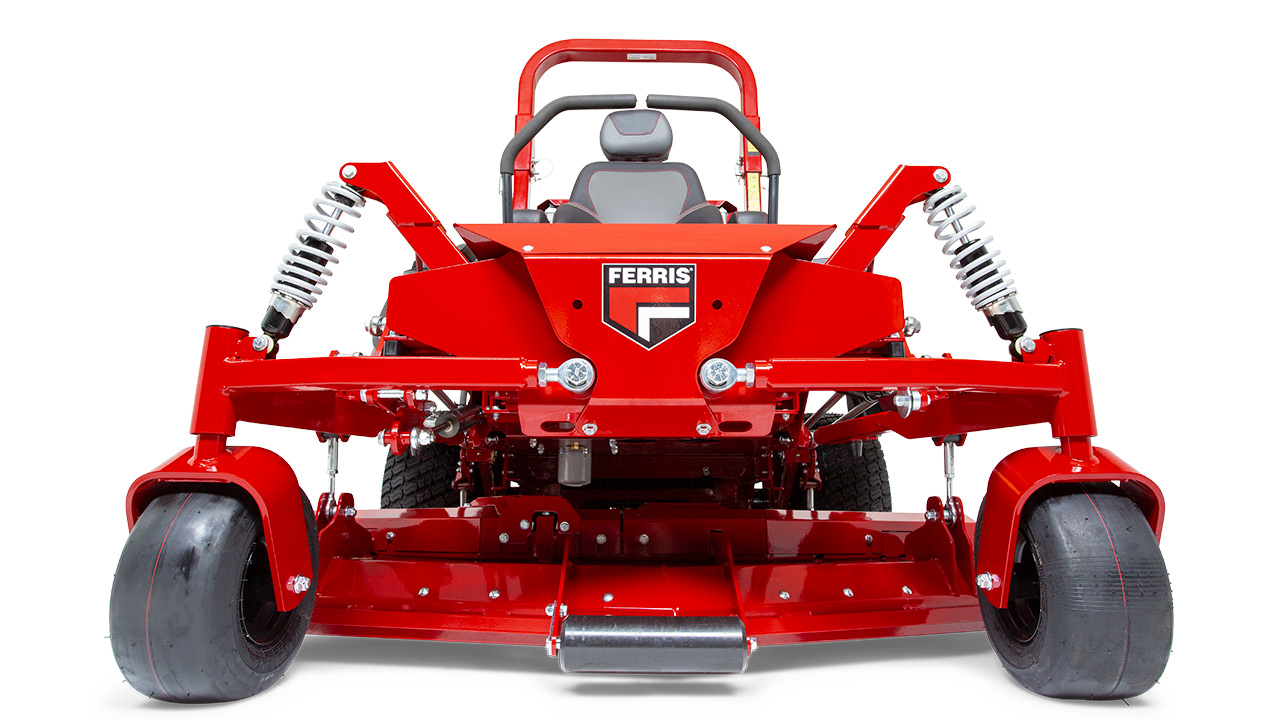

INDEPENDENT SUSPENSION SYSTEM
Ferris’ multi-patented independent suspension system uses front control arms, rear A-arms and large adjustable coil-over shocks to improve traction, enhance comfort and maintain cut quality across uneven or challenging terrain.

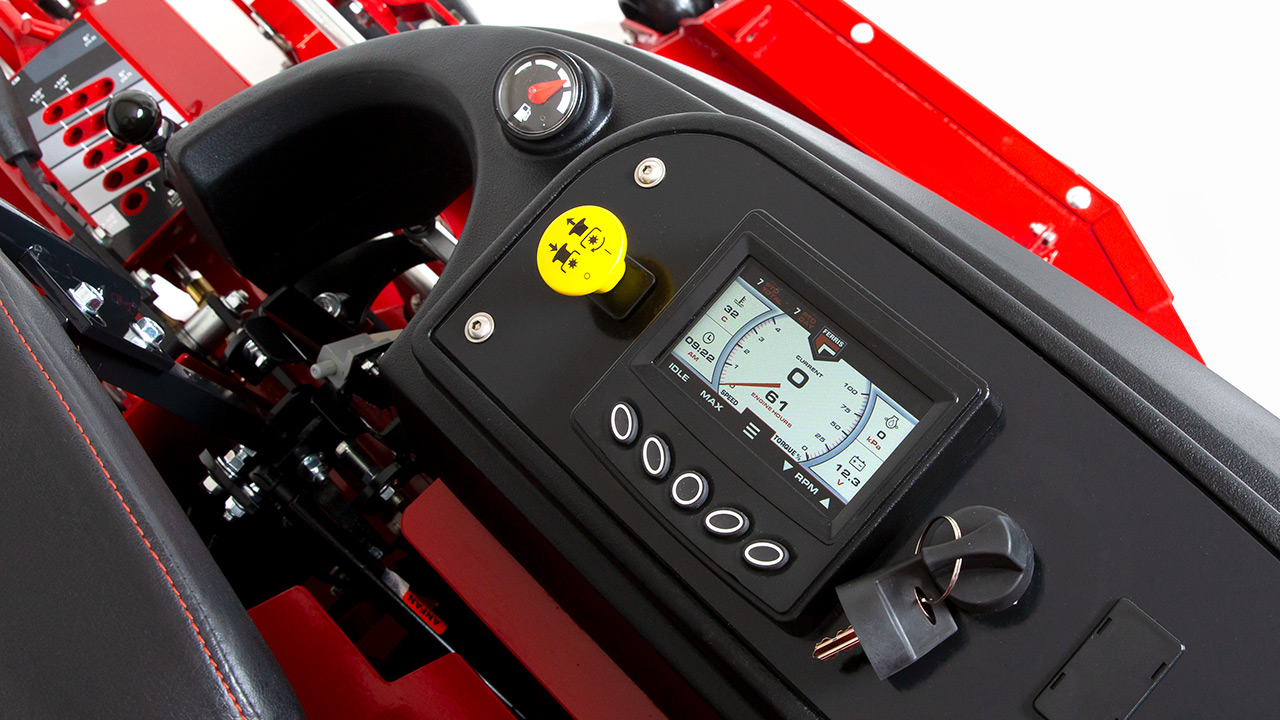

PERFORMANCE MONITORING DISPLAY
An interactive multi-functional colour display provides real-time operating data, maintenance reminders, system warnings and performance insights to help protect key components and maximise uptime.

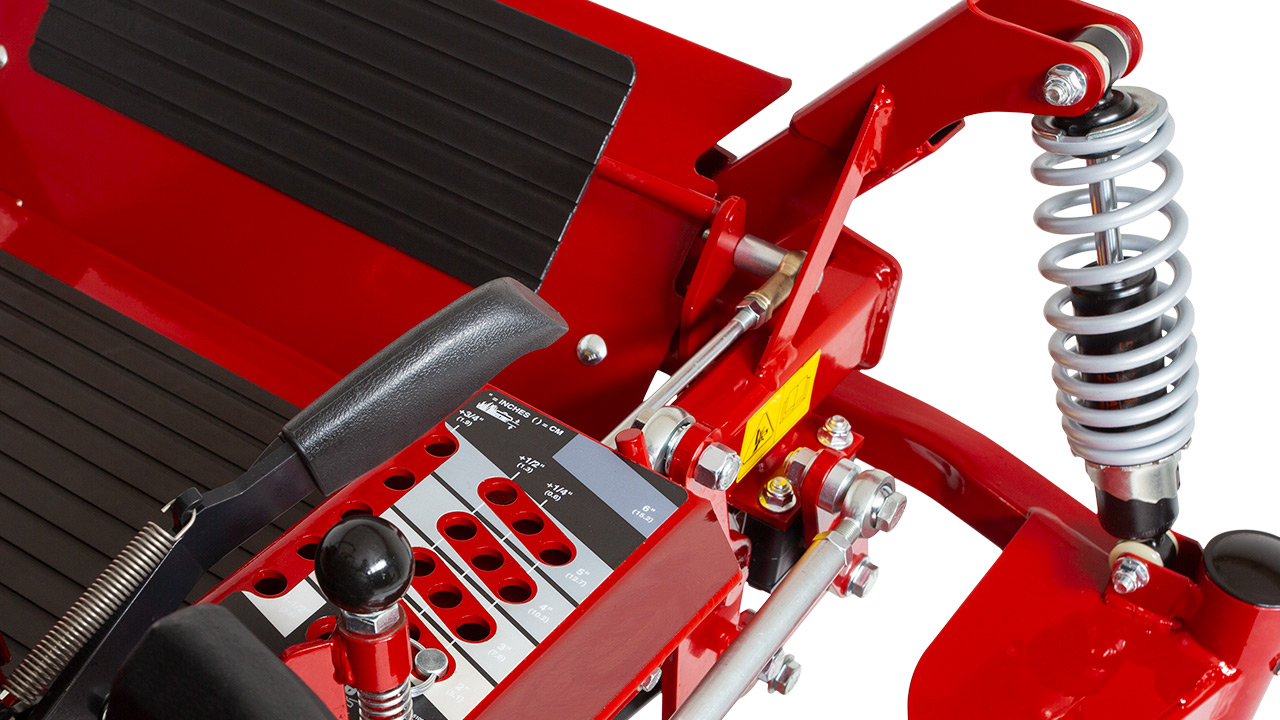

HYDRAULIC DECK LIFT
A foot-activated hydraulic lift system makes it easy to raise or lower the deck, with height-of-cut adjustments ranging from 3.8–15.2 cm in 0.6 cm increments.

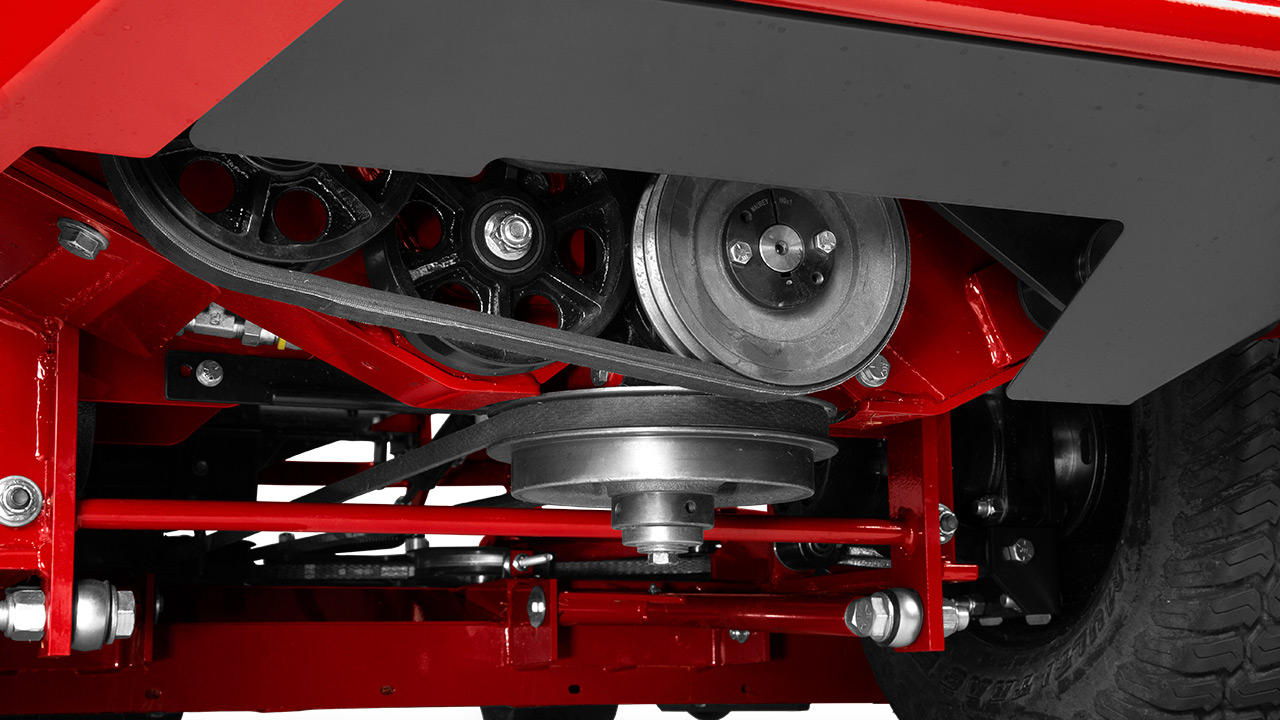

HEAVY-DUTY COMPONENTS
Commercial-grade Hydro-Gear PW pumps, Parker TG wheel motors and a Warner GT300 clutch deliver robust drive performance, improved cooling and reliable power delivery for demanding commercial applications.
Reduce your carbon footprint
Renewable fuels, such as HVO100, BTL and GTL, derived from biomass are supported to be used in this engine***. The use of renewable fuels reduces the carbon footprint, compared to fossil fuels, on a life cycle analysis basis.
Specifications
| Engine | 5901850 |
| Engine Make | Caterpillar® Euro Stage 5 Diesel |
| Engine Model | C1.7 |
| Fuel Type | Diesel |
| Fuel System | Common-rail, Turbo charged, direct injection with Diesel Oxidation Catalyst |
| Fuel Tank Capacity (litres) | 51 |
| Horsepower | 48,3 |
| Gross kW | 36,0 |
| Cylinders | 3 |
| Displacement (cc) | 1699 |
| Cooling | Liquid Cooled |
| Starting System | Electric |
| Mower | 5901850 |
| Cutting width (cm/inch) | 183 cm (72”) Triple iCD™ |
| Deck Configuration | Configurable deck including: rear discharge, side discharge, mulching and mulching blades |
| Cutting Height (cm) | 3,8 - 15,2 |
| Deck Construction | 3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge |
| Spindles | HERCULES™ II Cast-iron Ø257 mm; Ø30,16 mm shaft |
| Deck Lift System | Hydraulic |
| PTO clutch | Warner GT300 Clutch-Brake (610 Nm) |
| PTO engagement | Electric |
| Suspension | 5901850 |
| Suspension Front | IS® Independent front wheel suspension system utilising single independent control arms and large adjustable coil-over-shocks |
| Suspension Rear | Independent rear wheel suspension system utilising double A-arms and large adjustable coil-over-shocks |
| Reactive deck mounting system | Front and rear |
| Drive Train | 5901850 |
| Drive System | Independant Hydro-Gear® PW 21cc pumps and Parker TG0335 wheel motors with industrial oil filter and remote oil cooler |
| Drive Axles | Ø31,75 mm drive shaft with 5-bolt wheel hub |
| Drive Tyres (in) | 26 x 12.00 - 12 (4 ply) Pneumatic tyre with turf tread |
| Caster Tyres | 13 x 6.50 - 6 (4 ply) Pneumatic tyre with smooth tread |
| Ground Speed | 5901850 |
| Forward speed (km/h) | 0 - 20 |
| Reverse speed (km/h) | 0 - 10 |
| Dimensions | 5901850 |
| Overall Length (cm) | 229,5 |
| Overall Width (cm) | RD: 188,5 - SD: 194,5 | 228,5 (Deflector up | Deflector down) |
| Dry Weight (kg) | 1158 |
| Control | 5901850 |
| Seat | Premium high-back seat with padded armrests, and integrated retractable seat belt |
| Roll-over Protection System | Standard, foldable |
| Instrumentation | Fuel level gauge in each tank. Multi-functional color display showing engine functions, machine functions, engine warnings and maintenance reminders |
| Controls / Safety Circuit | Independent (left and right) forward & reverse levers, seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit |
| Parking Brake | Drum type |
| Warranty | 5901850 |
| Balance of Machine | 4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months) |
| Coil-over-shocks and all suspension related components | 5-Years (60 months) unlimited hours |
| Hydro drive belts, Tyres, Brake Pads, Hoses, Battery, Blades | 90 Days |
| Mower deck drive belt | 3-years (36 months) or 300 hours, whichever occurs first (parts and labor in year one; parts only in years two and three) |
| Engine | 2-Year / 2000 hours Manufacturer’s Limited Warranty |
| Documentation / Manuals | 5901850 |
