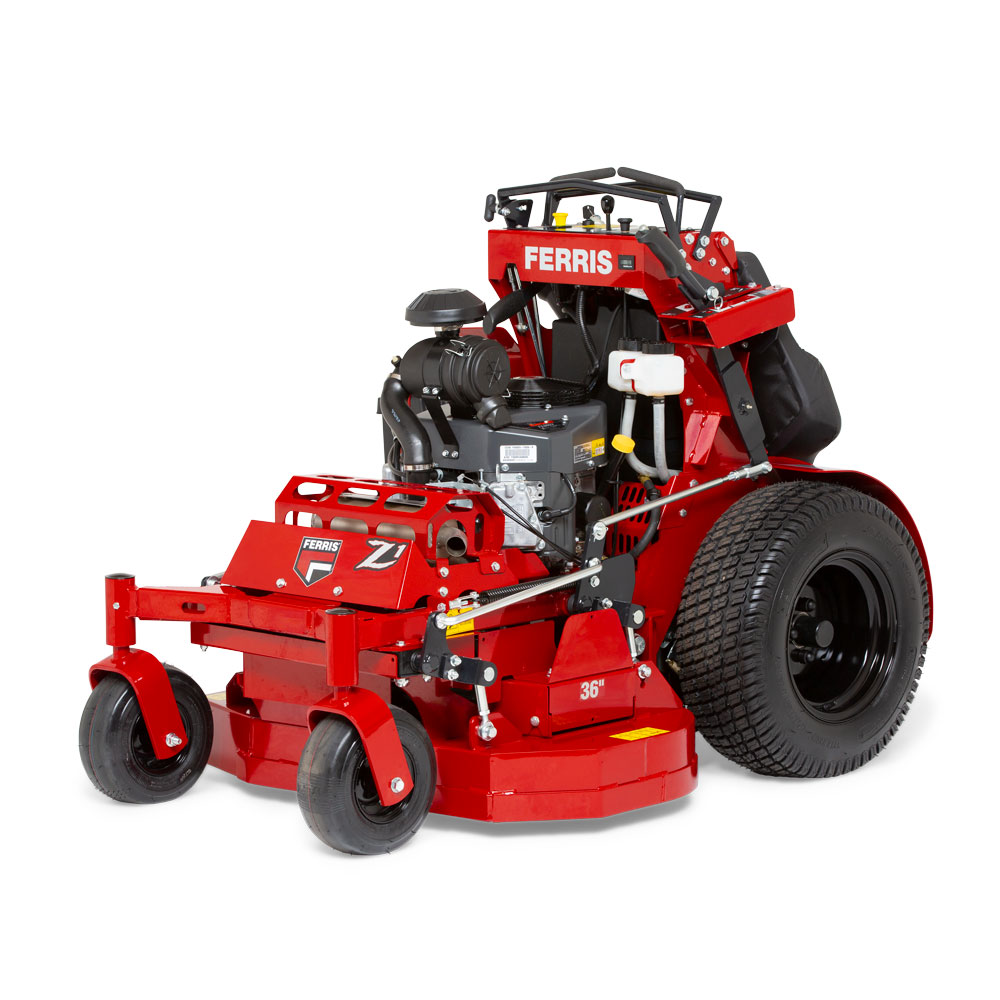

SRS™ Z1 Stand-On Mower

RIDE CONFIDENTLY INTO NARROW SPACES

The Soft Ride Stand-on SRS™ Z1 is raising the bar with adjustable operator platform, featuring suspension technology, optimising operator comfort and increasing productivity!

The superior balance provides stability and manoeuvrability that exceeds expectations for traction and handling. The SRS™ Z1 is designed to allow for quick operator exit and re-entry. Need to walk away from the mower to move an obstacle or debris? The PTO will automatically disengage when the operator leaves the platform. Restarting the blades is just as easy. When the operator steps back onto the platform and reengages the PTO switch they can continue mowing.

A rear discharge cutting deck with included mulch plug means no bulky deflector flap and no thrown objects, making the Z1 the ideal mower for domestic lots where access is limited.

Cutting Width (in)

Power Rating* (HP)

0 - 12.8

Ground Speed (kph)

4-Years

Limited Warranty†

Features

Suspension Platform System

The suspension platform system is adjustable for a large range of weights and operating conditions, optimising operator comfort and increasing productivity.

Adjustable Height of Cut

Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 4.5".

Speed Control Setting

The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.

Standing Comfort

Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.

Integrated Mowing Transmissions

Commercial Hydro-Gear^® ZT-3400^® transaxles with 7" cooling fans are designed for high performance and are fully serviceable.

Generous Fuel Capacity

A 22.7 litre fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

Ride-On Mower Warranties^†

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Specifications

Part Number

5901943

Engine Brand

Kawasaki^® FX600V

Engine Power Rating (HP) *

Displacement (cc)

603

PTO

Electric

Cylinders

Starter

Electric

Fuel Tank Capacity (litres)

22.7

Cutting Width in(cm)

36 (91)

Cutting Height in(cm)

1.75 - 4.5 (44 - 114)

Spindles

Aluminum greaseable

Deck Construction

10 gauge, fabricated, rear discharge

Suspension

Adjustable coil-over shock; Operator Suspension Platform

Transmission

Hydro-Gear^® ZT-3400^® transaxles with 7" cooling fans

Drive Axles (in)

1.125

Caster Tyres (in)

11 x 4 - 5, Flat Free

Drive Tyres (in)

23 x 8.50 - 12

Ground Speed-Fwd (kph)

0 – 12.8

Ground Speed-Rev (kph)

0 – 6.4

Overall Length (mm)

1620

Overall Width (mm) Deflector Down / Up

920

Dry Weight (kg)

368

Seat Package

Not Available

Instrumentation

Fuel gauge, hour meter

ROPS

Not Available

Controls / Safety Group

Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart

Parking Brake / Safety Circuit

Hand-operated internal transaxle brake

Warranty (Engine) †

3-Year limited manufacturer's warranty

Warranty (Balance of Machine) †

4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.

_{We reserve the right to change specifications, features and pricing without notice. Products may vary from images shown.
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.}
