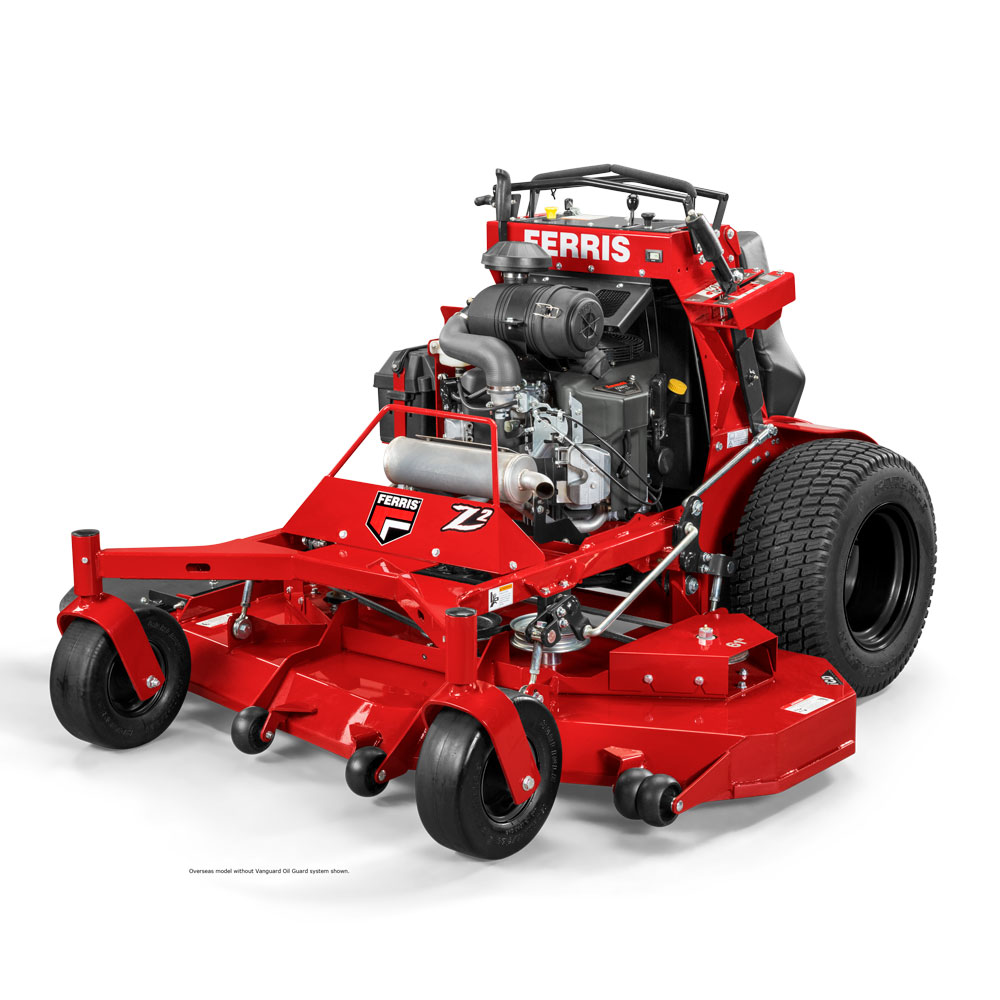

SRS™ Z2 Soft Ride Stand-On Mower

A COMBINATION OF SPEED, AGILITY AND HIGH QUALITY OF CUT

The Soft Ride Stand-On SRS™ Z2 raises the bar with our adjustable operator platform, which features suspension technology that optimises operator comfort and increases productivity. The superior balance provides stability and maneuverability that exceeds expectations for traction and handling.

FIND A DEALER

Product Details

Suspension Platform System

The suspension platform system is adjustable for a large range of weights and operating conditions, optimising operator comfort and increasing productivity.

500 Hour Oil Change (Select Models)

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Fuel Capacity

Generous 30-Litre fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

Vanguard™ 810cc EFI engines

Vanguard™ 810cc engines deliver the optimum power, performance and efficiency commercial zero-turn mowers need.

Learn More >

Speed Control Setting

The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.

Standing Comfort

Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.

Adjustable Height of Cut

Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 5".

Integrated Mowing Transmissions

Commercial Hydro-Gear® ZT-3800® transaxles are designed for high performance and are fully serviceable.

iCD™ Cutting System

Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

Ride-On Mower Warranties†

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Acres Per Hour

Mows up to 5 acres per hour, based on 80% efficiency.

Speed

Up to 16 kph ground speed.

SRS™ Z2 Soft Ride Stand-On Mower
HP (Gross)* 28
Engine Brand Vanguard™ 810 EFI with Oil Guard
Power Take Off (PTO) Electric
Number of Cylinders 2
Starting Electric
Fuel Capacity (L) 30
Cutting Width (in) 52 (132 cm)
Cutting Height (in) 1.75 - 5 (45mm - 127mm)
Deck Construction iCD™ Cutting System
Spindles Aluminum Greaseable
Suspension Adjustable coil-over-shock; Operator Suspension Platform
Transmission Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7" cooling fans and oil coolers
Drive Axles (in) 1.125
Drive Tyres (in) 23 x 10.5-12
Caster Tyres (in) 13 x 5-6, Flat-free
Ground Speed - Fwd (kph) 0 - 16.1
Ground Speed - Rev (kph) 0 - 8.1
Overall Length (cm) 170
Dry Weight (kg) 426
Overall Width (Deflector Up/Down) (cm) 165 / 140
Roll-over Protection System N/A
Instrumentation Dual-function hour meter, fuel level gauge
Controls Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit Hand operated; Internal transaxle brake
Balance of Machine Warranty† 4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

SRS™ Z2 Soft Ride Stand-On Mowers
HP (Gross)* 28
Engine Brand Vanguard™ 810 EFI with Oil Guard
Power Take Off (PTO) Electric
Number of Cylinders 2
Starting Electric
Fuel Capacity (L) 30
Cutting Width (in) 52 (132 cm)
Cutting Height (in) 1.75 - 5 (45mm - 127mm)
Deck Construction iCD™ Cutting System
Spindles Aluminum Greaseable
Suspension Adjustable coil-over-shock; Operator Suspension Platform
Transmission Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7" cooling fans and oil coolers
Drive Axles (in) 1.125
Drive Tyres (in) 23 x 10.5-12
Caster Tyres (in) 13 x 5-6, Flat-free
Ground Speed - Fwd (kph) 0 - 16.1
Ground Speed - Rev (kph) 0 - 8.1
Overall Length (cm) 170
Dry Weight (kg) 426
Overall Width (Deflector Up/Down) (cm) 165 / 140
Roll-over Protection System N/A
Instrumentation Dual-function hour meter, fuel level gauge
Controls Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit Hand operated; Internal transaxle brake
Balance of Machine Warranty† 4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
