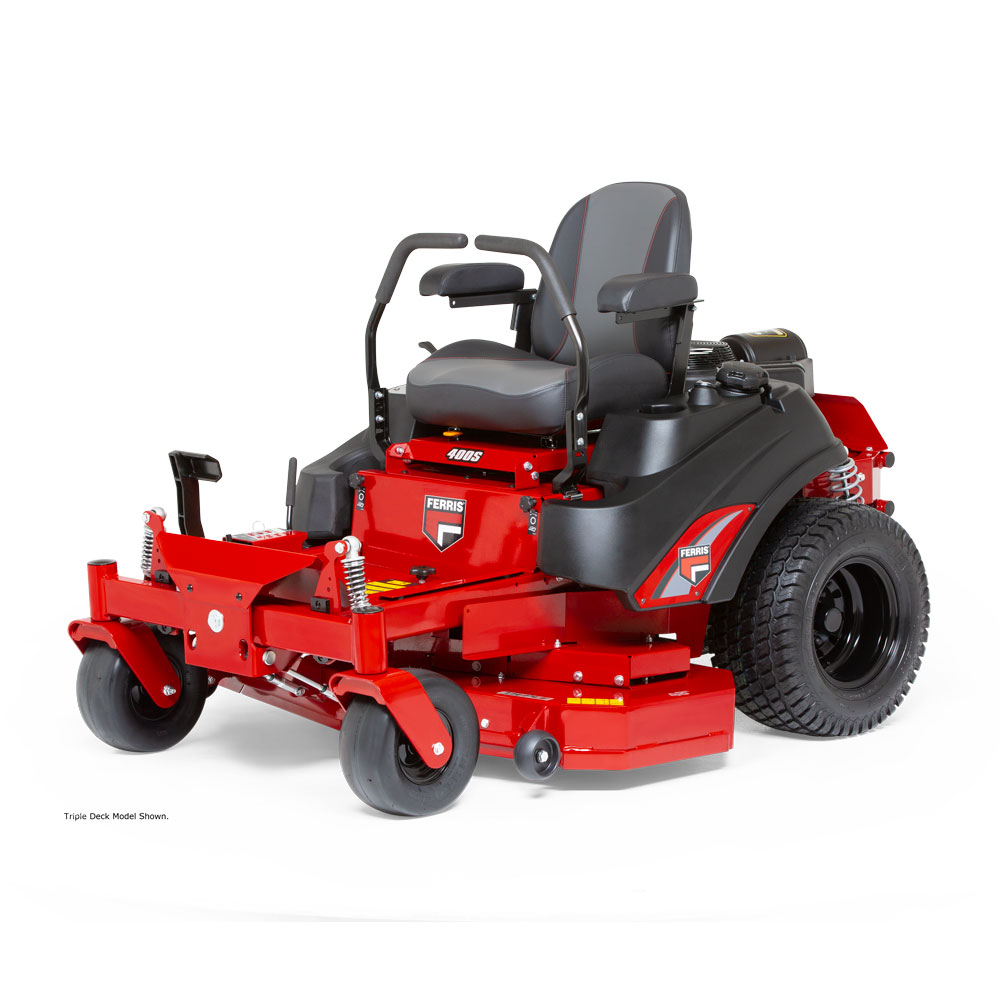

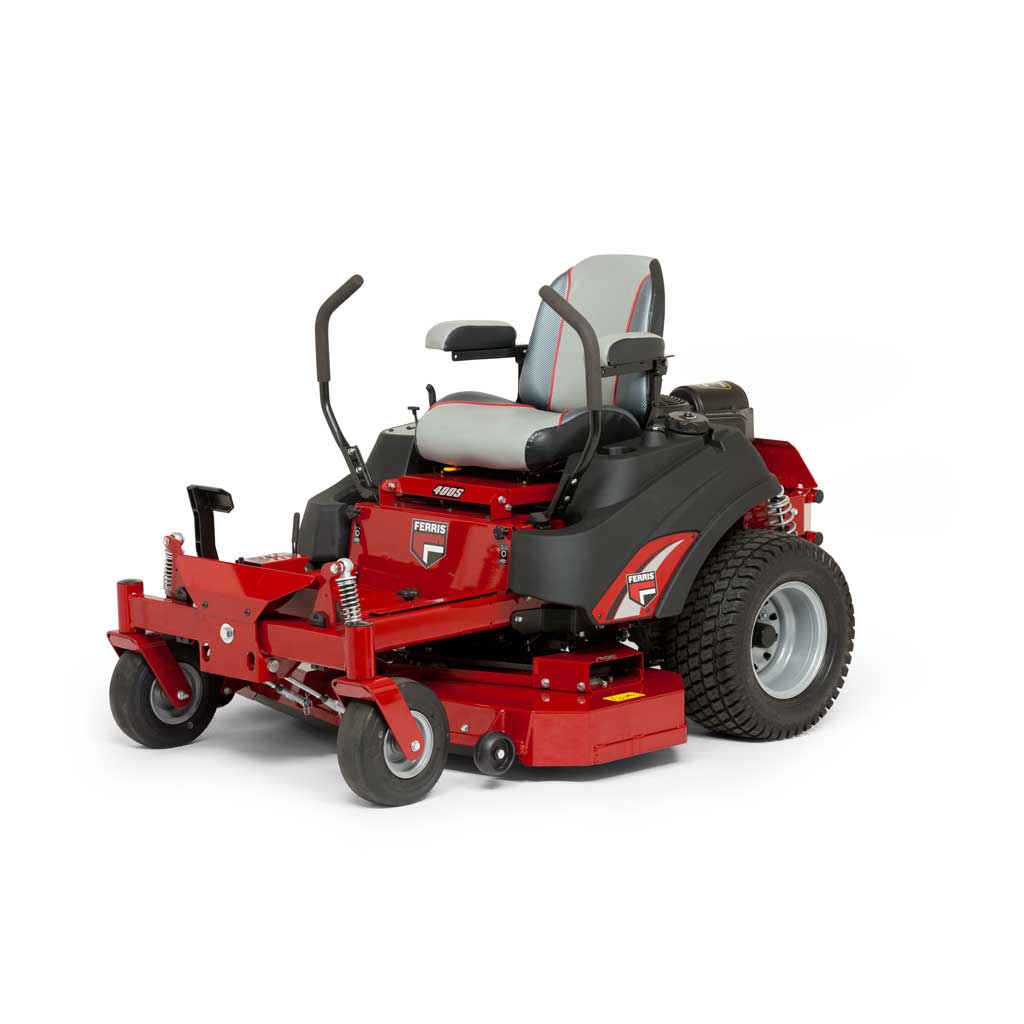

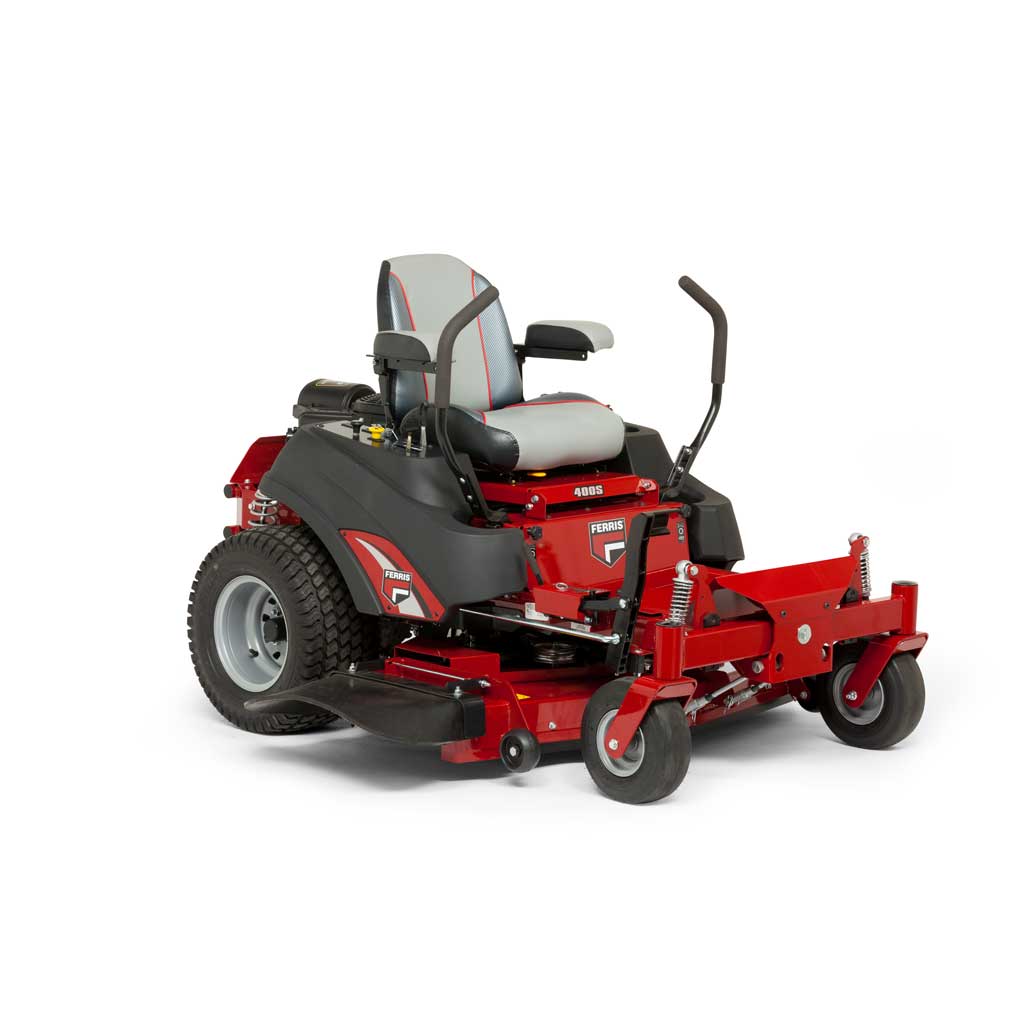

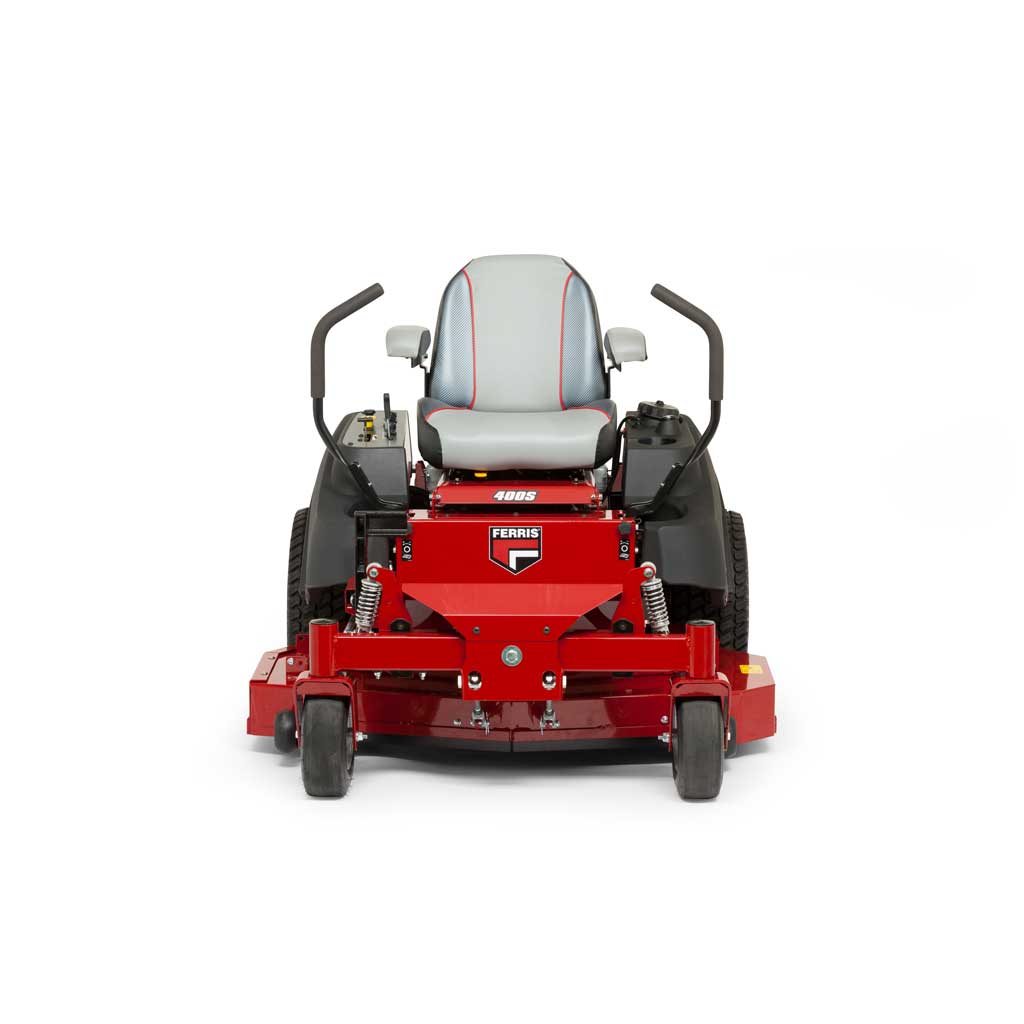

400S Zero Turn Mower

BEST IN CLASS, SPEED & TOUGHNESS

We made the S Series for those who need their mower to take on a little bit of everything. This zero-turn workhorse has industry-leading suspension technology, serving up cut quality, comfort and durability for professionals and homeowners alike. We built it to be more affordable, so more operators can experience a superior cut.

48

Cutting Width (in)

23

Power Rating* (HP)

0 - 12.8

Ground Speed (kph)

4-Years

Limited Warranty†

Features

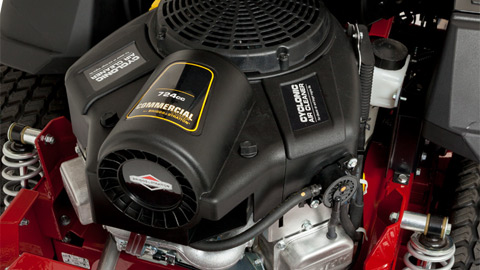

Commercial Grade Power

Briggs & Stratton® Commercial Series engines are built with the ultimate in dust and particle filtration, an advanced debris management system and beefed-up cylinder block structure.

Suspension System

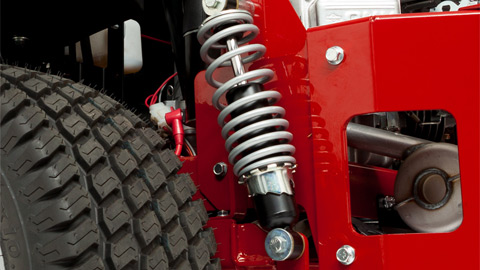

The 400S comes equipped with independent rear coil-over shocks (shown) meaning less concern for uneven ground, and more focus on getting work done.

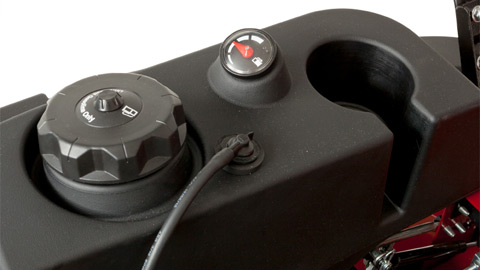

Thoughtful Styling

Flanking the operator seat you will notice a conveniently integrated cup holder and an easy to read fuel gauge for the generous 20.5 litre fuel tank.

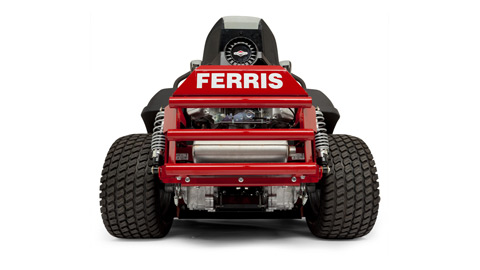

Fabricated Bumper

The fabricated steel / tubular bumper protects the 400S’s engine while giving easier access for service, and accepts a variety of attachments like a bagging or tow/hitch system.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

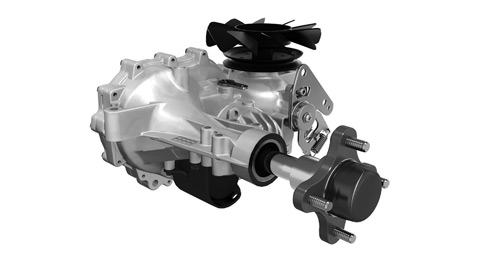

Hydro-gear® ZT-3100®

The dual Hydro-gear® ZT-3100® transaxles deliver speeds up to 8 mph and feature an external oil filter for easier maintenance, so you can spend more time getting work done.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901990
Engine Brand
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
23
Displacement (cc)
724
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
20.8
Cutting Width in(cm)
48 (122)
Cutting Height in(cm)
1.5 - 4.5 (38 - 144)
Spindles
Aluminium greaseable
Deck Construction
10-gauge fabricated, 3 in 1 mulch / side / rear discharge
Suspension
Front and rear adjustable coil-over-shock
Transmission
Dual Hydro-Gear® ZT-3100® transaxles with 7" cooling fants
Drive Axles (in)
1.00
Caster Tyres (in)
11 x 6 - 5
Drive Tyres (in)
20 x 10 - 10
Ground Speed-Fwd (kph)
0 - 12.8
Ground Speed-Rev (kph)
0 - 6.43
Overall Length (mm)
1867
Overall Width (mm) Deflector Down / Up
1499 / 1347
Dry Weight (kg)
342
Seat Package
Mid-back seat with armrests
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
Not Available
Controls / Safety Group
Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit
Integrated transaxle brake
Warranty (Engine) †
2-Year commercial limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Part Number
5901952
Engine Brand
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
23
Displacement (cc)
724
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
20.8
Cutting Width in(cm)
48 (122)
Cutting Height in(cm)
1.5 - 4.5 (38 - 144)
Spindles
Aluminium greaseable
Deck Construction
10-gauge fabricated
Suspension
Front and rear adjustable coil-over-shock
Transmission
Dual Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1.00
Caster Tyres (in)
11 x 6 - 5
Drive Tyres (in)
20 x 10 - 10
Ground Speed-Fwd (kph)
0 - 12.8
Ground Speed-Rev (kph)
0 - 6.43
Overall Length (mm)
1867
Overall Width (mm) Deflector Down / Up
1499 / 1347
Dry Weight (kg)
342
Seat Package
Mid-back seat with arm rests
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
Not Available
Controls / Safety Group
Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit
Integrated transaxle brake
Warranty (Engine) †
2-Year commercial limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Part Number
5901990
5901952
Engine Brand
Briggs & Stratton® Commercial Series
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
23
23
Displacement (cc)
724
724
PTO
Electric
Electric
Cylinders
2
2
Starter
Electric
Electric
Fuel Tank Capacity (litres)
20.8
20.8
Cutting Width in(cm)
48 (122)
48 (122)
Cutting Height in(cm)
1.5 - 4.5 (38 - 144)
1.5 - 4.5 (38 - 144)
Spindles
Aluminium greaseable
Aluminium greaseable
Deck Construction
10-gauge fabricated, 3 in 1 mulch / side / rear discharge
10-gauge fabricated
Suspension
Front and rear adjustable coil-over-shock
Front and rear adjustable coil-over-shock
Transmission
Dual Hydro-Gear® ZT-3100® transaxles with 7" cooling fants
Dual Hydro-Gear® ZT-3100® transaxles with 7" cooling fans
Drive Axles (in)
1.00
1.00
Caster Tyres (in)
11 x 6 - 5
11 x 6 - 5
Drive Tyres (in)
20 x 10 - 10
20 x 10 - 10
Ground Speed-Fwd (kph)
0 - 12.8
0 - 12.8
Ground Speed-Rev (kph)
0 - 6.43
0 - 6.43
Overall Length (mm)
1867
1867
Overall Width (mm) Deflector Down / Up
1499 / 1347
1499 / 1347
Dry Weight (kg)
342
342
Seat Package
Mid-back seat with armrests
Mid-back seat with arm rests
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
ROPS
Not Available
Not Available
Controls / Safety Group
Adjustable twin fold out 1" tubular steering levers with comfort grip
Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit
Integrated transaxle brake
Integrated transaxle brake
Warranty (Engine) †
2-Year commercial limited manufacturer's warranty
2-Year commercial limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
