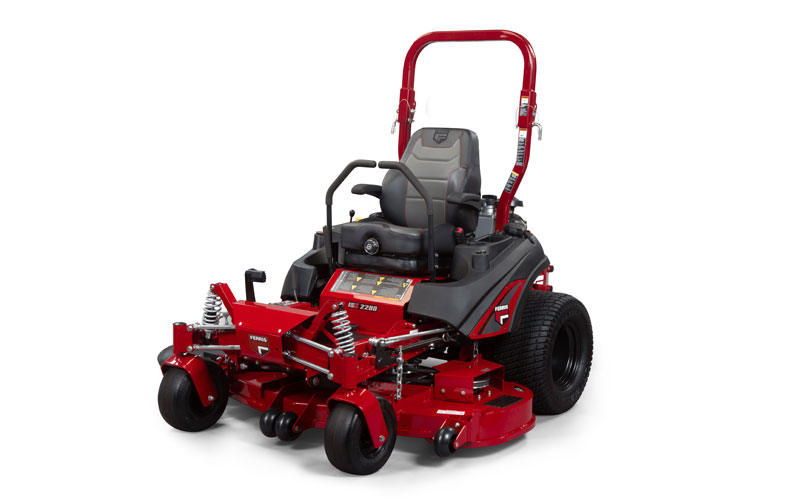

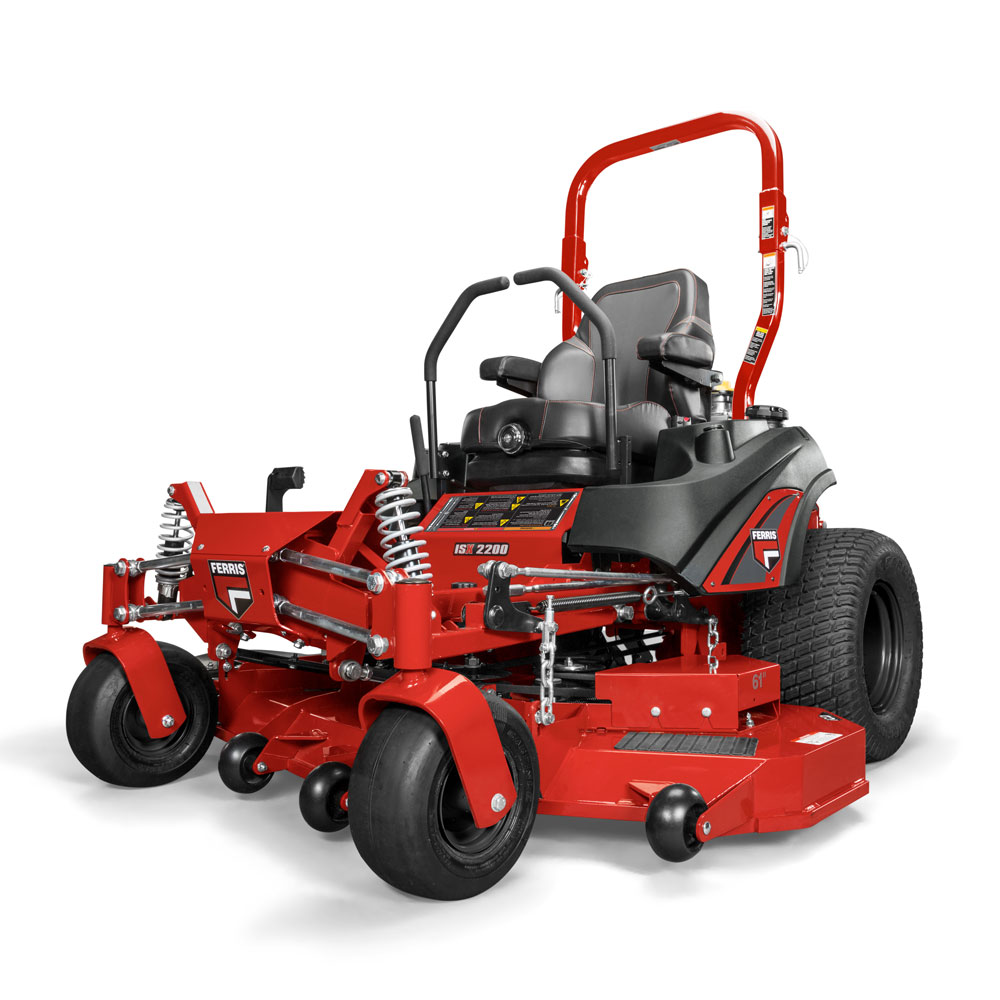

ISX™ 2200 Zero Turn Mower

THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 kph, the ISX™ 2200 is engineered to increase efficiency and operator comfort.

61

Cutting Width (in)

28

Power Rating* (HP)

0 - 16.1

Ground Speed (kph)

4-Years

Limited Warranty†

Features

Forefront™ Suspension System

The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

500 Hour Oil Change

Vanguard™ Engines with Oil Guard™ System reduce maintenance time and costs by up to 60%.**

Premium Suspension Seat

Premium high-back suspension seat with armrests, adjustable lumbar and back recline.

Hydro-Gear ZT-4400™ Transaxles

Dual-commercial transaxles with 8.3" cooling fans to repel debris.

Adjustable Cut Height

Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5" (38 mm - 127 mm).

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901927
Engine Brand
Vanguard® 810cc EFI with Oil Guard™
Engine Power Rating (HP) *
28
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
41.6
Cutting Width in(cm)
61 (155)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Cast-iron greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in)
1.375
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
24 x 12 - 12
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2096
Overall Width (mm) Deflector Down / Up
1982 / 1563
Dry Weight (kg)
634
Seat Package
Premium high-back Suspension Seat with arm rests, adjustable lumbar and back recline.
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
