ISX™ 800 Zero Turn Mowers

LANDSCAPER'S LEVERAGE

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 kph, the ISX™ 800 is engineered to increase efficiency and operator comfort.

52 - 61

Cutting Width (in)

27

Power Rating* (HP)

0 - 16.1

Ground Speed (kph)

4-Years

Limited Warranty†

Features

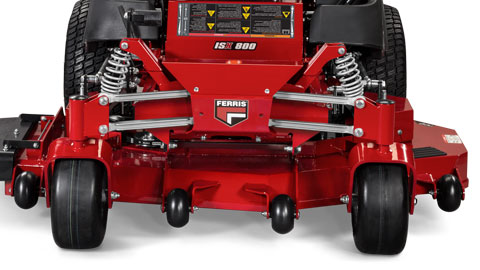

Forefront™ Suspension System

The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

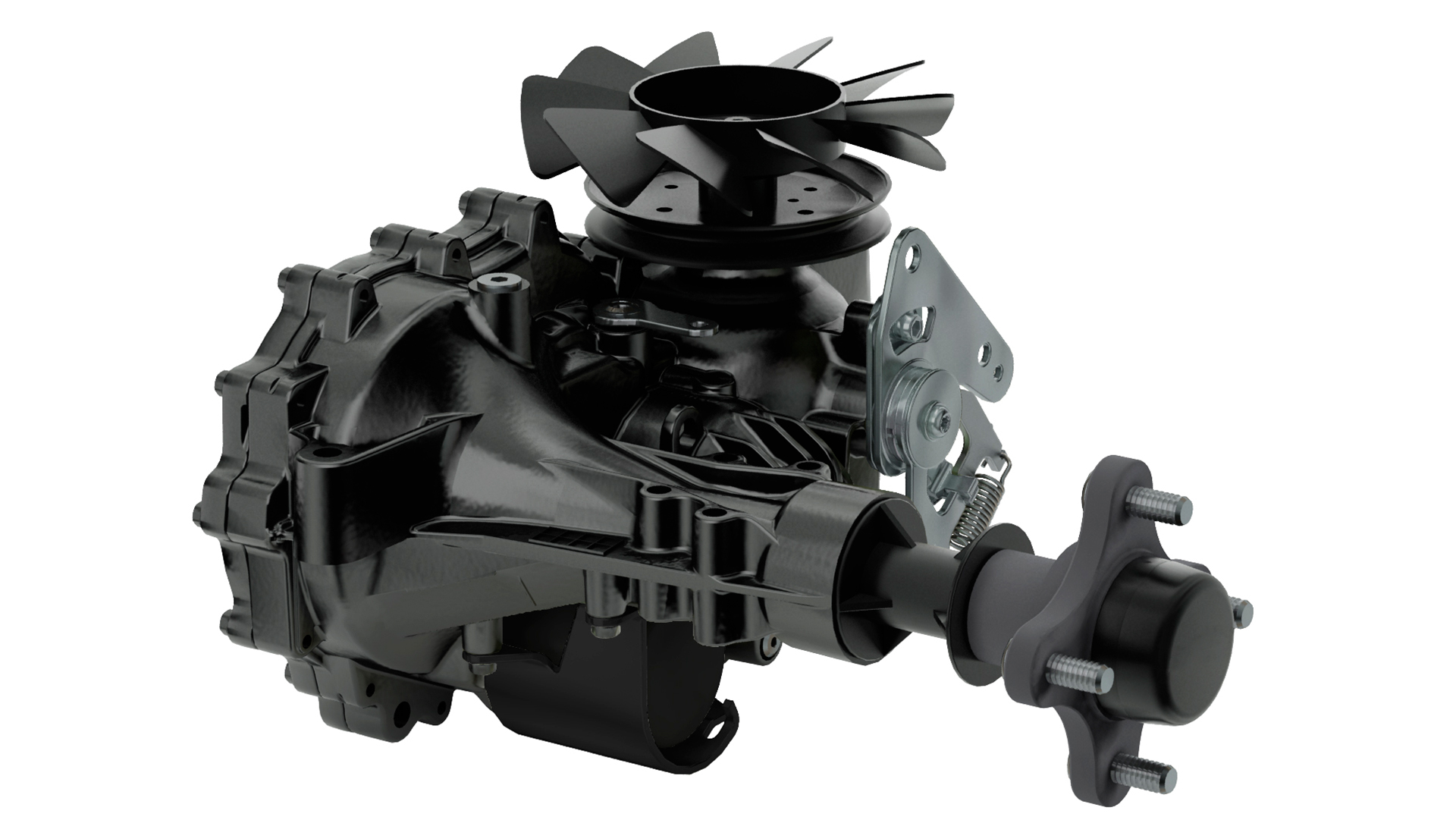

Integrated Transmission

Commercial Hydro-Gear® ZT-3400™ transaxles, with 7" cooling fans, are designed for high performance and are fully serviceable.

EFI-ETC Engine Technology

Models feature the Briggs & Stratton Commercial Series engine with EFI-ETC technology for easy starting and smooth performance.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

iCD™ Cutting System

iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).

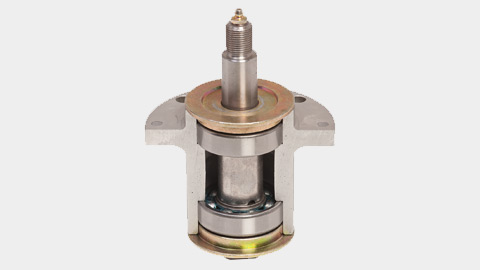

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Kilometres per Hour

Up to 16.1 km/h ground speed, reverse 8.1 km/h.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5902020
Engine Brand
Briggs & Stratton® Commercial Series - EFI ETC
Engine Power Rating (HP) *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
20.8
Cutting Width in(cm)
52 (132)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Aluminium Greaseable
Deck Construction
iCD™ Cutting System, 2-belt
Suspension
ForeFront™ Suspension System - Front independent with four cast-iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
23 x 10.5 - 12
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2058
Overall Width (mm) Deflector Down / Up
1651 / 1448
Dry Weight (kg)
508
Seat Package
Premium mid back adjustable suspension seat with armrests
Instrumentation
Dual-function hour meter, fuel level gauge in tank
ROPS
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Part Number
5902038
Engine Brand
Briggs & Stratton® Commercial Series - EFI ETC
Engine Power Rating (HP) *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
20.8
Cutting Width in(cm)
61 (155)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Aluminium Greaseable
Deck Construction
iCD™ Cutting System, 2-belt
Suspension
ForeFront™ Suspension System - Front independent with four cast-iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
23 x 10.5 - 12
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2108
Overall Width (mm) Deflector Down / Up
1905 / 1613
Dry Weight (kg)
543
Seat Package
Premium mid back adjustable suspension seat with armrests
Instrumentation
Dual-function hour meter, fuel level gauge in tank
ROPS
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Part Number
5902020
5902038
Engine Brand
Briggs & Stratton® Commercial Series - EFI ETC
Briggs & Stratton® Commercial Series - EFI ETC
Engine Power Rating (HP) *
27
27
Displacement (cc)
810
810
PTO
Electric
Electric
Cylinders
2
2
Starter
Electric
Electric
Fuel Tank Capacity (litres)
20.8
20.8
Cutting Width in(cm)
52 (132)
61 (155)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
1.5 - 5 (38 - 127)
Spindles
Aluminium Greaseable
Aluminium Greaseable
Deck Construction
iCD™ Cutting System, 2-belt
iCD™ Cutting System, 2-belt
Suspension
ForeFront™ Suspension System - Front independent with four cast-iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks
ForeFront™ Suspension System - Front independent with four cast-iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
1.125
Caster Tyres (in)
13 x 6.5 - 6
13 x 6.5 - 6
Drive Tyres (in)
23 x 10.5 - 12
23 x 10.5 - 12
Ground Speed-Fwd (kph)
0 - 16.1
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
0 - 8.1
Overall Length (mm)
2058
2108
Overall Width (mm) Deflector Down / Up
1651 / 1448
1905 / 1613
Dry Weight (kg)
508
543
Seat Package
Premium mid back adjustable suspension seat with armrests
Premium mid back adjustable suspension seat with armrests
Instrumentation
Dual-function hour meter, fuel level gauge in tank
Dual-function hour meter, fuel level gauge in tank
ROPS
180° foldable
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
