S65Z Series Zero Turn Mower

COMMERCIALLY INSPIRED

Along with the exclusive Suspension Comfort System™ and the commercially-inspired features such as fully-welded frames and rugged front axles, the all new S65Z residential zero-turn mower brings new levels of comfort to the yard!

42 - 52

Cutting Width (in)

25

Power Rating* (HP)

0 - 12.8

Ground Speed (kph)

3-Years

Limited Warranty†

Features

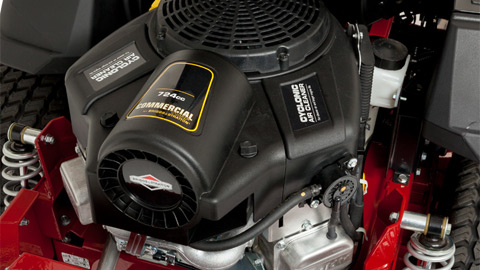

Commercial Grade Power

Briggs & Stratton® Commercial Series engines are built with the ultimate in dust and particle filtration, an advanced debris management system and beefed-up cylinder block structure.

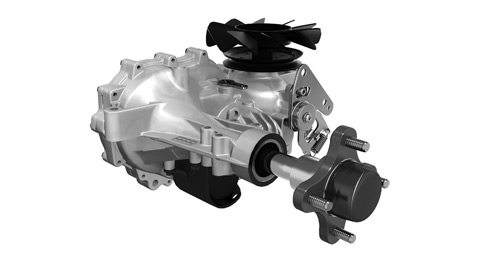

Hydro-gear® ZT-2800®

The dual Hydro-gear® ZT-2800® transaxles deliver speeds up to 8 mph and feature an external oil filter for easier maintenance, so you can spend more time getting work done.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
2691384
Engine Brand
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
​25
Displacement (cc)
724
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
11.4
Cutting Width in(cm)
42 (106)
Cutting Height in(cm)
1.5 - 4.5 (38 - 144)
Spindles
Aluminium greaseable
Deck Construction
12-gauge fabricated
Suspension
Front coil-over shocks
Transmission
Dual Hydro-Gear® ZT-2800® Premium transmissions with charge pumps
Drive Axles (in)
1.00
Caster Tyres (in)
11 x 4 - 5
Drive Tyres (in)
20 x 7 - 10
Ground Speed-Fwd (kph)
0 - 12.8
Ground Speed-Rev (kph)
0 - 6.43
Overall Length (mm)
1867
Overall Width (mm) Deflector Down / Up
1400 / 1120
Dry Weight (kg)
342
Seat Package
Contour with armrests
Instrumentation
Fuel level gauge, hour meter
ROPS
Not Available
Controls / Safety Group
Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit
Integrated transaxle brake
Warranty (Engine) †
3-Year commercial limited manufacturer's warranty
Warranty (Balance of Machine) †
3-Year Limited OR 565 hours, whichever comes first.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Part Number
2691386
Engine Brand
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
​25
Displacement (cc)
724
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
11.4
Cutting Width in(cm)
52 (132)
Cutting Height in(cm)
1.5 - 4.5 (38 - 144)
Spindles
Aluminium greaseable
Deck Construction
10-gauge fabricated
Suspension
Front and rear adjustable coil-over shocks
Transmission
Dual Hydro-Gear® ZT-2800® premium transmissions with charge pumps
Drive Axles (in)
1.00
Caster Tyres (in)
11 x 4 - 5
Drive Tyres (in)
20 x 10 - 10
Ground Speed-Fwd (kph)
0 - 12.8
Ground Speed-Rev (kph)
0 - 6.43
Overall Length (mm)
1867
Overall Width (mm) Deflector Down / Up
1650 / 1380
Dry Weight (kg)
342
Seat Package
Contour with armrests
Instrumentation
Fuel level gauge, hour meter
ROPS
Not Available
Controls / Safety Group
Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit
Integrated transaxle brake
Warranty (Engine) †
3-Year commercial limited manufacturer's warranty
Warranty (Balance of Machine) †
3-Year Limited OR 565 hours, whichever comes first.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Part Number
2691384
2691386
Engine Brand
Briggs & Stratton® Commercial Series
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
​25
​25
Displacement (cc)
724
724
PTO
Electric
Electric
Cylinders
2
2
Starter
Electric
Electric
Fuel Tank Capacity (litres)
11.4
11.4
Cutting Width in(cm)
42 (106)
52 (132)
Cutting Height in(cm)
1.5 - 4.5 (38 - 144)
1.5 - 4.5 (38 - 144)
Spindles
Aluminium greaseable
Aluminium greaseable
Deck Construction
12-gauge fabricated
10-gauge fabricated
Suspension
Front coil-over shocks
Front and rear adjustable coil-over shocks
Transmission
Dual Hydro-Gear® ZT-2800® Premium transmissions with charge pumps
Dual Hydro-Gear® ZT-2800® premium transmissions with charge pumps
Drive Axles (in)
1.00
1.00
Caster Tyres (in)
11 x 4 - 5
11 x 4 - 5
Drive Tyres (in)
20 x 7 - 10
20 x 10 - 10
Ground Speed-Fwd (kph)
0 - 12.8
0 - 12.8
Ground Speed-Rev (kph)
0 - 6.43
0 - 6.43
Overall Length (mm)
1867
1867
Overall Width (mm) Deflector Down / Up
1400 / 1120
1650 / 1380
Dry Weight (kg)
342
342
Seat Package
Contour with armrests
Contour with armrests
Instrumentation
Fuel level gauge, hour meter
Fuel level gauge, hour meter
ROPS
Not Available
Not Available
Controls / Safety Group
Adjustable twin fold out 1" tubular steering levers with comfort grip
Adjustable twin fold out 1" tubular steering levers with comfort grip
Parking Brake / Safety Circuit
Integrated transaxle brake
Integrated transaxle brake
Warranty (Engine) †
3-Year commercial limited manufacturer's warranty
3-Year commercial limited manufacturer's warranty
Warranty (Balance of Machine) †
3-Year Limited OR 565 hours, whichever comes first.
3-Year Limited OR 565 hours, whichever comes first.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
