ISX™ 2200 Zero Turn Mower

ISX™ 2200 Zero Turn Mower

Spend one day on the ISX™ 2200 zero-turn mower and you will discover how our patented suspension technology turns slow and bumpy mowing into riding comfort and enhanced productivity. With TRIPLE mowing technology under the mower deck, you’ll enjoy unique versatility that’s all available in one package!

This machine is an aggressive performer for professional users and extremely discerning homeowners. The Vanguard® EFI engine with Oil Guard™ System is fuel efficient and features extended oil change intervals. The 2-belt mower deck drive is designed for longer belt life, reduced maintenance and less downtime and offers a three-year, 300-hour limited warranty.

More info? Let us call you back!

3,8 - 12,7

Height of Cut (cm)

0 - 18,0

Ground Speed (km/h)

1,90 / 2,23

Productivity (ha/h)*

28.0

Horsepower (HP)**

Features

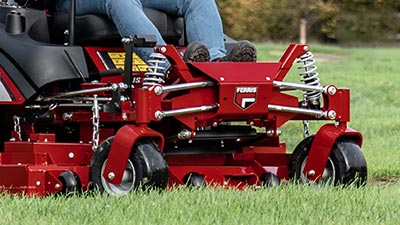

ForeFront™ suspension system

This patented suspension system dramatically increases operator comfort and productivity, which includes:
- Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks.
- Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks.

Foot operated deck lift

Foot operated and spring assisted deck lift system. Takes the effort out of adjusting the cutting height.

Ride-on mower warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Heavy duty construction

Rugged fabricated frame featuring 3.05 mm walled 38.1 x 50.8 mm tubular steel frame rails. The heavy duty integrated rear bumper protects the engine compartment.

iCD™ deck with 2-belt deck drive

iCD™ deck technology allows grass a longer period of time to rise in the chamber before cutting blades make contact, resulting in a better cut quality. The 2-Belt deck drive system improves belt life and is more dependable.

TRIPLE deck

The TRIPLE mower deck is the all-in-one solution including side discharge, rear discharge and mulching options. No matter the circumstances, the best mower configuration is always at your disposal. With top greaseable cast-iron mower spindles.

Vanguard EFI engine with Oil Guard™

Vanguard® EFI engine features reduced fuel consumption, increased power and load acceptance and optimized starting. The Oil Guard™ system protects the oil from thermal breakdown extending the oil maintenance interval to 500 hours.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901992
Engine Make
Vanguard®
Engine Model
MOD49, 810 Series
Fuel Type
Petrol
Fuel System
Electronic Fuel Injection and Oil Guard™ System
Horsepower (HP)**
28.0
Gross kW**
20.9
Cylinders
2 Cylinders V-Twin
Displacement (cc)
810
Cooling
Air-cooled
Starting
Electric
Fuel Capacity (l)
42
Cutting Width (cm / inch)
132 / 52
Deck Configuration
TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades
Height of Cut (cm)
3,8 - 12,7
Deck Construction
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
Mower Spindles
Cast-iron Ø201 mm; Ø25,4 mm shaft
Deck Lift System
Foot pedal, spring assisted
PTO Clutch
Warner CMS Clutch-Brake (271 Nm)
PTO Engagement
Electric
Front Suspension System
Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks
Rear Suspension System
Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks
Reactive Deck Mounting System
Front and rear
Drive System
Independent Hydro-Gear® ZT-4400™ transaxles
Drive Axles
Ø34,93 mm drive shaft with 5-bolt wheel hub
Drive Tyres (inch)
24 x 9,50 - 12 (4 ply) Pneumatic tyre w. turf tread
Caster Tyres (inch)
13 x 6,50 - 6 (4 ply) Pneumatic tyre w. smooth tread
Speed-fwd. (km/h)
0 - 18,0
Speed-rev. (km/h)
0 - 8,0
Overall Length (cm)
213,5
Overall Width (cm)
RD: 136,5 - SD: 142,5 / 176,5 (Deflector up / Deflector down)
Dry Weight (kg)
594
Seat
Premium mid-back seat with padded armrests and integrated retractable seat belt
Roll-Over Protection Structure
Standard, foldable
Instrumentation
Fuel level gauge in each tank, hour meter, engine malfunction indicator
Controls / Safety Circuit
Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit
Parking Brake
Internal wet disc brake in transaxle
Warranty (Balance of Machine) ‡
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
Warranty (Coil-Over-Shocks, Suspension Related Components) ‡
5-Years (60 months) unlimited hours
Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡
90 Days
Warranty (Deck Drive Belt) ‡
3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)
Warranty (Engine) ‡
3-Year Manufacturer’s Limited Warranty

‡ See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
* Based on 80% efficiency. Up to 1,90 hectares/hour (132 cm deck) and 2,23 hectares/hour (155 cm deck).
** All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton®.

Part Number
5901993
Engine Make
Vanguard®
Engine Model
MOD49, 810 Series
Fuel Type
Petrol
Fuel System
Electronic Fuel Injection and Oil Guard™ System
Horsepower (HP)**
28.0
Gross kW**
20.9
Cylinders
2 Cylinders V-Twin
Displacement (cc)
810
Cooling
Air-cooled
Starting
Electric
Fuel Capacity (l)
42
Cutting Width (cm / inch)
155 / 61
Deck Configuration
TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades
Height of Cut (cm)
3,8 - 12,7
Deck Construction
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
Mower Spindles
Cast-iron Ø201 mm; Ø25,4 mm shaft
Deck Lift System
Foot pedal, spring assisted
PTO Clutch
Warner CMS Clutch-Brake (271 Nm)
PTO Engagement
Electric
Front Suspension System
Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks
Rear Suspension System
Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks
Reactive Deck Mounting System
Front and rear
Drive System
Independent Hydro-Gear® ZT-4400™ transaxles
Drive Axles
Ø34,93 mm drive shaft with 5-bolt wheel hub
Drive Tyres (inch)
24 x 12,00 - 12 (4 ply) Pneumatic tyre w. turf tread
Caster Tyres (inch)
13 x 6,50 - 6 (4 ply) Pneumatic tyre w. smooth tread
Speed-fwd. (km/h)
0 - 18,0
Speed-rev. (km/h)
0 - 8,0
Overall Length (cm)
213,5
Overall Width (cm)
RD: 161,5 - SD: 167,5 / 201,5 (Deflector up / Deflector down)
Dry Weight (kg)
639
Seat
Premium mid-back seat with padded armrests and integrated retractable seat belt
Roll-Over Protection Structure
Standard, foldable
Instrumentation
Fuel level gauge in each tank, hour meter, engine malfunction indicator
Controls / Safety Circuit
Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit
Parking Brake
Internal wet disc brake in transaxle
Warranty (Balance of Machine) ‡
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
Warranty (Coil-Over-Shocks, Suspension Related Components) ‡
5-Years (60 months) unlimited hours
Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡
90 Days
Warranty (Deck Drive Belt) ‡
3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)
Warranty (Engine) ‡
3-Year Manufacturer’s Limited Warranty

‡ See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
* Based on 80% efficiency. Up to 1,90 hectares/hour (132 cm deck) and 2,23 hectares/hour (155 cm deck).
** All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton®.

Part Number
5901992
5901993
Engine Make
Vanguard®
Vanguard®
Engine Model
MOD49, 810 Series
MOD49, 810 Series
Fuel Type
Petrol
Petrol
Fuel System
Electronic Fuel Injection and Oil Guard™ System
Electronic Fuel Injection and Oil Guard™ System
Horsepower (HP)**
28.0
28.0
Gross kW**
20.9
20.9
Cylinders
2 Cylinders V-Twin
2 Cylinders V-Twin
Displacement (cc)
810
810
Cooling
Air-cooled
Air-cooled
Starting
Electric
Electric
Fuel Capacity (l)
42
42
Cutting Width (cm / inch)
132 / 52
155 / 61
Deck Configuration
TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades
TRIPLE iCD™ configurable deck including: rear discharge, side discharge, mulching and mulching blades
Height of Cut (cm)
3,8 - 12,7
3,8 - 12,7
Deck Construction
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
Mower Spindles
Cast-iron Ø201 mm; Ø25,4 mm shaft
Cast-iron Ø201 mm; Ø25,4 mm shaft
Deck Lift System
Foot pedal, spring assisted
Foot pedal, spring assisted
PTO Clutch
Warner CMS Clutch-Brake (271 Nm)
Warner CMS Clutch-Brake (271 Nm)
PTO Engagement
Electric
Electric
Front Suspension System
Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks
Forefront™ Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks
Rear Suspension System
Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks
Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks
Reactive Deck Mounting System
Front and rear
Front and rear
Drive System
Independent Hydro-Gear® ZT-4400™ transaxles
Independent Hydro-Gear® ZT-4400™ transaxles
Drive Axles
Ø34,93 mm drive shaft with 5-bolt wheel hub
Ø34,93 mm drive shaft with 5-bolt wheel hub
Drive Tyres (inch)
24 x 9,50 - 12 (4 ply) Pneumatic tyre w. turf tread
24 x 12,00 - 12 (4 ply) Pneumatic tyre w. turf tread
Caster Tyres (inch)
13 x 6,50 - 6 (4 ply) Pneumatic tyre w. smooth tread
13 x 6,50 - 6 (4 ply) Pneumatic tyre w. smooth tread
Speed-fwd. (km/h)
0 - 18,0
0 - 18,0
Speed-rev. (km/h)
0 - 8,0
0 - 8,0
Overall Length (cm)
213,5
213,5
Overall Width (cm)
RD: 136,5 - SD: 142,5 / 176,5 (Deflector up / Deflector down)
RD: 161,5 - SD: 167,5 / 201,5 (Deflector up / Deflector down)
Dry Weight (kg)
594
639
Seat
Premium mid-back seat with padded armrests and integrated retractable seat belt
Premium mid-back seat with padded armrests and integrated retractable seat belt
Roll-Over Protection Structure
Standard, foldable
Standard, foldable
Instrumentation
Fuel level gauge in each tank, hour meter, engine malfunction indicator
Fuel level gauge in each tank, hour meter, engine malfunction indicator
Controls / Safety Circuit
Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit
Independent (left and right) forward & reverse levers, Seat activated engine kill, PTO clutch safety switch, neutral and parking brake safety circuit
Parking Brake
Internal wet disc brake in transaxle
Internal wet disc brake in transaxle
Warranty (Balance of Machine) ‡
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
Warranty (Coil-Over-Shocks, Suspension Related Components) ‡
5-Years (60 months) unlimited hours
5-Years (60 months) unlimited hours
Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡
90 Days
90 Days
Warranty (Deck Drive Belt) ‡
3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)
3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)
Warranty (Engine) ‡
3-Year Manufacturer’s Limited Warranty
3-Year Manufacturer’s Limited Warranty

‡ See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
* Based on 80% efficiency. Up to 1,90 hectares/hour (132 cm deck) and 2,23 hectares/hour (155 cm deck).
** All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton®.
