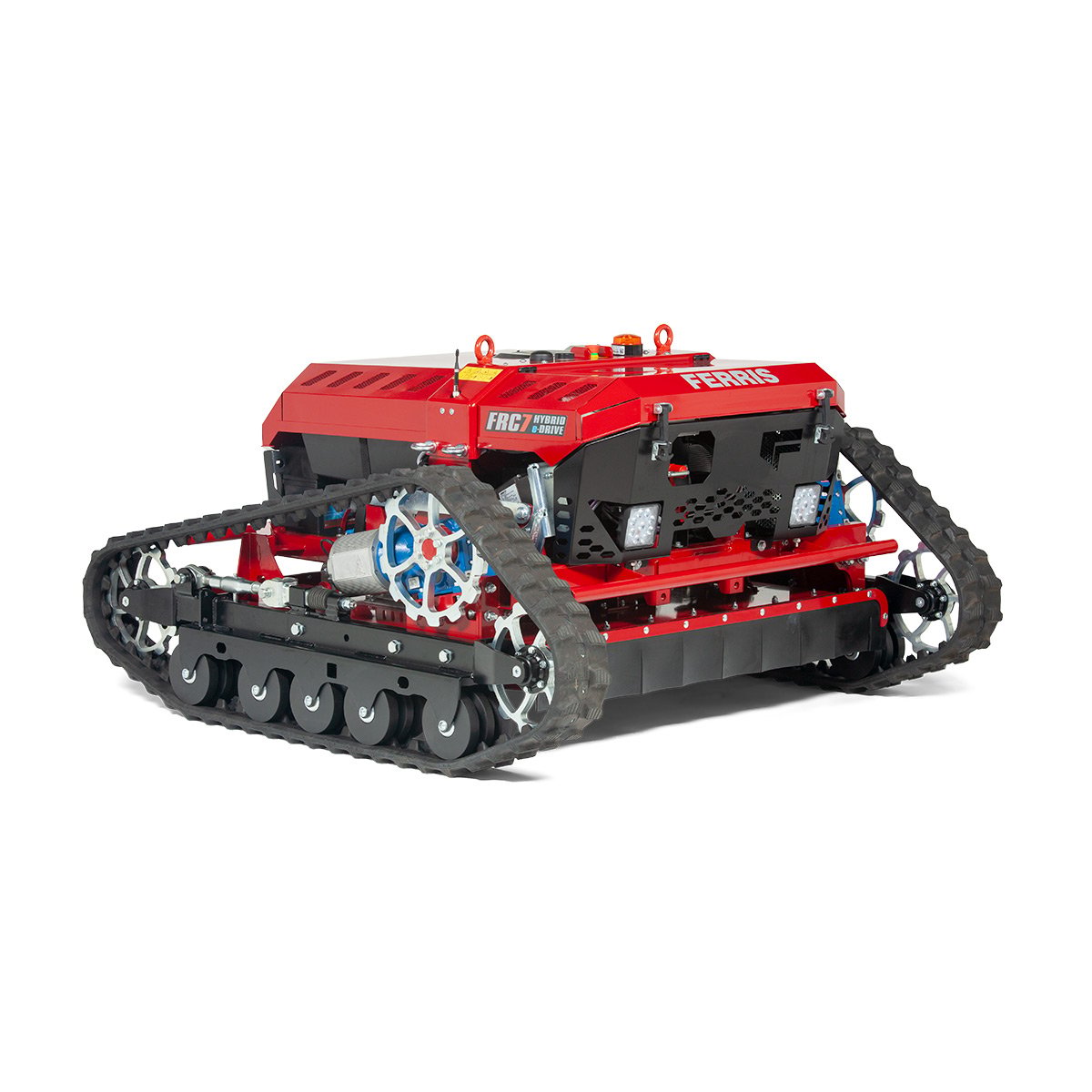

FRC7 Remote Controlled Hybrid Slope Mower
Remote-Controlled Stability and Power for Extreme Slopes
Mowing banks and other inclined areas can potentially cause dangerous situations for both the operator and bystanders. Using dedicated remote controlled machinery drastically reduces risk, physical effort and exposure to vibration, noise and emissions.

The FRC7’s tracked low gravity undercarriage ensures stability on steep inclines up to 55° and provides superior traction.


Features

  • Vanguard EFI Engine With Electronic Throttle Control
  • Removable Fuel Tank
  • True Hybrid Drive System
  • Tracked Drive System
  • Easy Track Tension System
  • Bi-Directional Mowing Deck
  • Remote Control
  • Jack Stand Included

Where to Buy Book a demo

115 cm

Deck Size

23.0 HP

Power Rating*

Up to 55°

Maximum Slope

0–7.0 km/h

Ground Speed

Both the FRC7 tracks and mower deck are electrically driven by a hybrid e-drive system that combines a combustion engine with a battery drive system, resulting in a highly effective powertrain.

The FRC7 can mow forwards and backwards, making turning on a slope unnecessary. This will prevent potential damage to the underlying soil. The Vanguard® EFI engine is fuel-efficient and operates independently from the electrical system. Its load sensing ability keeps the mower deck performing optimally and automatically adjusts the mowing speed when conditions get tougher.

What makes the FRC7 stand out?



Tackle slopes up to 55° with confidence thanks to a tracked, low-center-of-gravity undercarriage

Hybrid e-Drive System for efficient, smooth power from both the combustion engine and battery

Fuel-Efficient Vanguard® EFI Engine with load sensing for optimal performance under tough conditions

Reduced Noise, Emissions & Vibration – for a safer and greener mowing experience
feat-frc7-05

Easy Track Tension System

In case a track requires tensioning, the FRC7 is equipped with a straightforward tensioning system by means of a top bar. To simplify tensioning, a special tensioning wrench is located under the hood so that you can effortlessly re-tension the track whenever you need to.

feat-frc7-06

Bi-Directional Mowing Deck

The FRC7 mower deck cuts in both forward and reverse direction. This makes having to turn the machine at the end of the slope redundant, therefore preventing potential damage to the turf. The cutting deck features two blade spindles, each equipped with 4 pendulum cutting blades, for a smooth, even cut. A load sensing system ensures optimal mowing performance and automatically adjusts travel speed as conditions change.

feat-frc7-04

Tracked Drive System

The traction drive system features rubber tracks that assure traction on a slope. The unique track system is specially developed for this machine and features a reduced footprint with approaching and departure angles for maximizing traction with minimal turf damage.

jack-stand-lifestyle

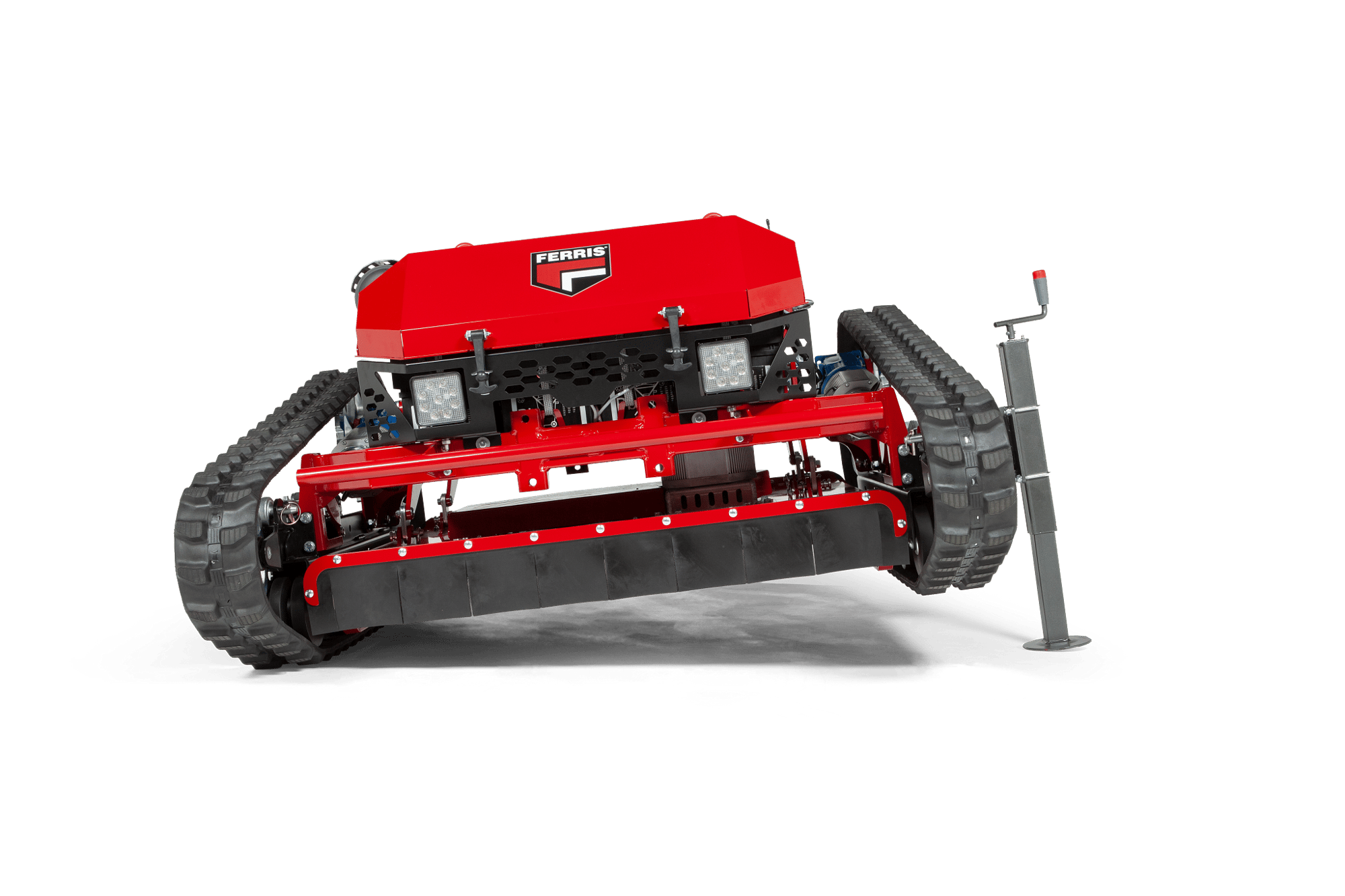

Jack Stand Included

The FRC7 comes standard with a service jack that allows the machine to be lifted effortlessly in case a track comes off. Along with the onboard tension wrench, it makes reinstalling a track quick and effortless.
feat-frc7-02

Removable Fuel Tank

The FRC7 features a removable 23 liter fuel tank with a marine-style quick-disconnect coupling. This greatly simplifies the removal of the tank when you have a spare second tank on standby. The FRC7 can drive up to 200 m on battery power only, without having to start the engine. Ideal when you run out of fuel while mowing.

efi-engine-frc7-close-up

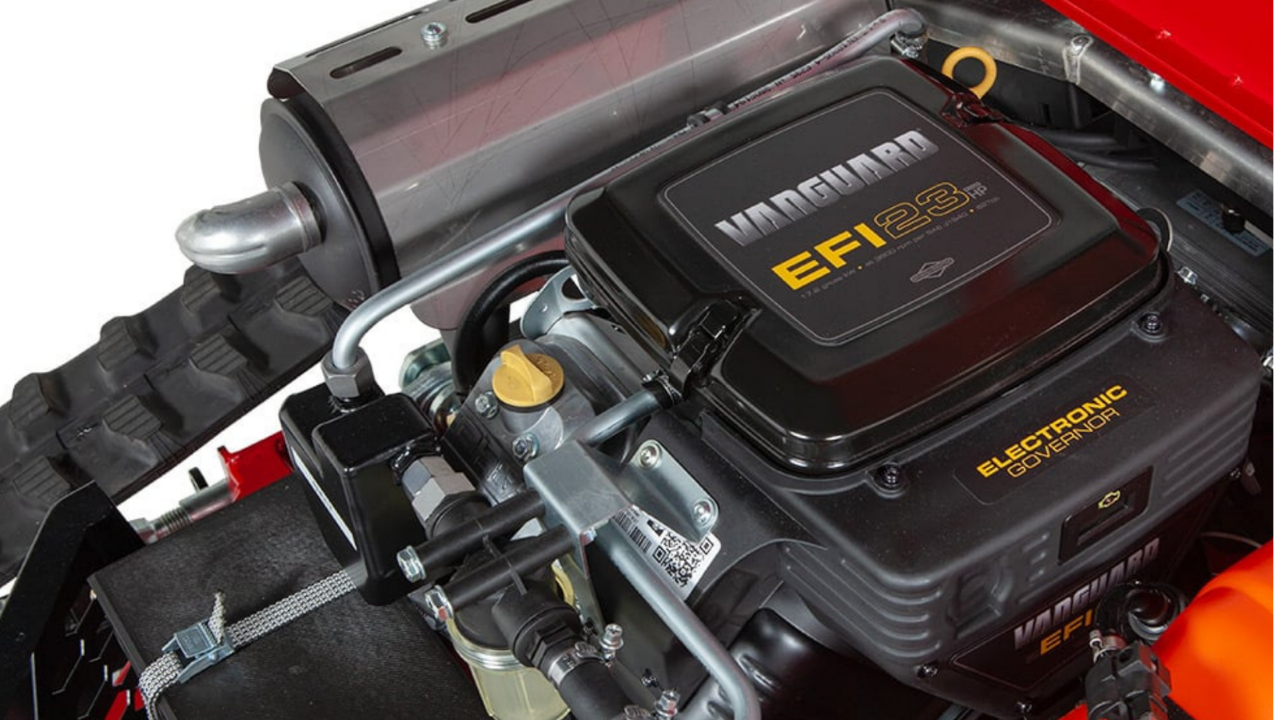

Vanguard EFI Engine With Electronic Throttle Control

The FRC7's Vanguard engine has a fuel injection system that delivers just the right amount of fuel in every circumstance, for better performance and fuel economy. Its electric governor optimizes engine power and allows for more efficient power delivery. The engine features an advanced breather system for application on slopes.

feat-frc7-03

True Hybrid Drive System

The 48V hybrid system feeds power from a generator (permanently coupled to the EFI engine) to a battery buffer pack, from which the traction drive motors and mower deck drive motor are directly fed. This ensures that maximum power is immediately available when needed and that the system responds quickly to your commands via the remote controller. Varying mower deck loads have less influence on the engine, making it run smoother, which has a positive effect on fuel consumption.

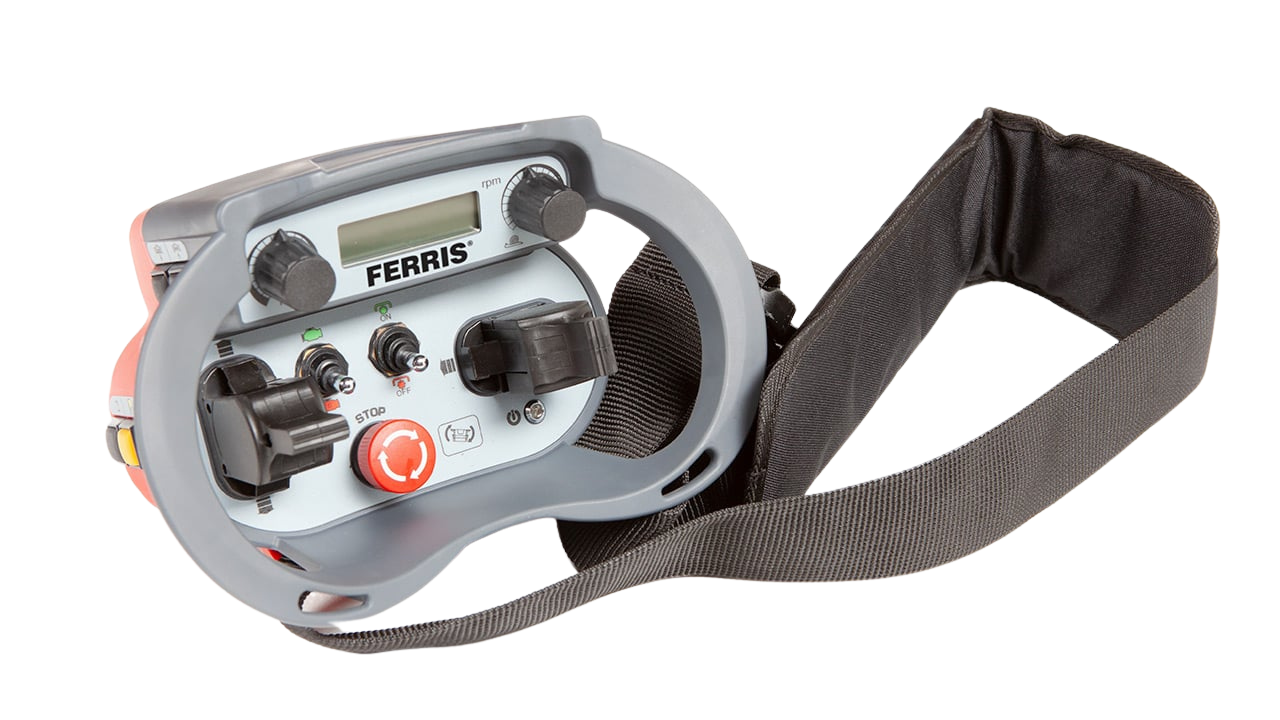

Remote Control



The remote control allows the mower to be operated from up to 300 m distance. Remote control functions include: steering control, engine start/stop, PTO, cutting height adjustment, undercarriage trim, drive speed limiter, horn, safety beacon light, LED headlights, operator safety tilt sensor, emergency stop and reset.


remote-control-feature-frc7

Multi-Patented Suspension Technology

This innovation reduces the effects of uneven terrain, virtually eliminating shock to the chassis and your body.

Learn More >



ICDTM Cutting System

Exclusive, next-level mowing performance in a variety of conditions.

Learn More >

Extended Oil Change Interval

Our first-of-its-kind Oil Guard System from Vanguard means you spend less on oil and can cut up to 500 hours before ever needing an oil change.

Learn More >





Innovative Engine Technology

The EFI-ETC technology delivers improved starting and load performance with an easier maintenance experience.

Learn More >

FRC7-in-action

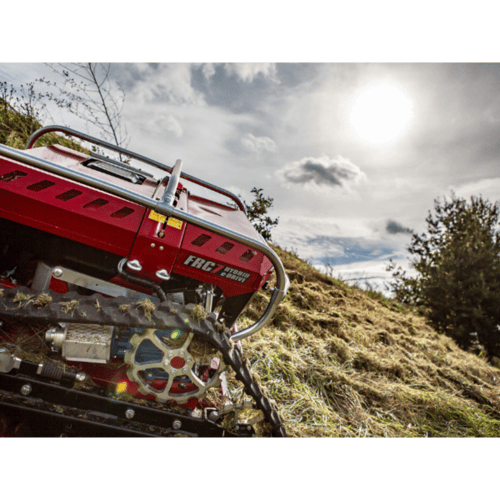

FRC7 vs traditional mowers

Most mowers max out at 15°–30° inclines, and push their limits doing it. The FRC7 is built to break that limit. With its remote control, hybrid drive, and slope-optimised design, it handles inclines up to 55°. Safely, efficiently, and with zero operator risk thanks to remote operation.



How does the FRC7 handle slopes up to 55° ?

Specifications

Engine
Engine Make Vanguard® V-Twin
Engine Model MOD38E3
Fuel Type Petrol
Fuel System Electronic Fuel Injection with Electronic Throttle Control
Fuel Tank Capacity (litres) 25; removable fuel tank with quickconnect fuel hose
Horsepower 23
Gross kW 17,2
Cylinders 2
Displacement (cc) 627
Cooling Air-cooled
Starting System Electric
Mower
Cutting Width (cm/inch) 115 cm (45")
Deck Configuration Bi-directional mowing deck, rear discharge configuration
Cutting Height (cm) 5,0 - 18,0
Deck Construction Fabricated construction, full width double top deck, metal scuff guards, flexible rubber front/rear guards
Spindles 2; Off-set positioned spindles
Deck Lift System Cross-cut swing-back blades, with 2 x flat off-set blades & 2 x low-lift blades per spindle
PTO Clutch Electric linear actuator, infinite adjustment
PTO Engagement Smooth start function, engaged via remote controller
Drive System
Track Drive Motors Benevelli, 2 x 3 kW
Deck Drive Motor Benevelli, 10 kW
Generator Benevelli, 13 kW
Battery Bank 48 V (4 x 12 V / 35 Ah)
Tracks Rubber, 150mm wide, universal tread
Track Tension System Turnbuckle, with locking latch
Deck Drive Load Management Automatic drive speed adjustment
Propulsion on Battery Power Yes, for (un)loading and retrieval in case of emergency
Ground Speed
Forward Speed (km/h) 0 - 7,0
Reverse Speed (km/h) 0 - 7,0
Dimensions
Overall Length (cm) 160
Overall Height (cm) 89
Overall Width (cm) 150
Dry Weight (kg) 677
Control
Remote Receiver Abitron / RCV CBB-1; 2,4 GHz
Remote Controller Abitron / T3
Batteries 2 Batteries and charger included; batteries are rechargeable and user replaceable
Controller Carrier Strap Adjustable waiste-strap
Maximum Working Range (m) 300
Maximum Working Angle (°) 55 (side-ways, left-to-right); 30 (nose-up); 40 (nose-down)
Remote Control Functions Direction & steering control, engine start/stop, PTO engagement, cutting height adjustment, undercarriage trim, drive speed limiter, horn, work lights, emergency stop, reset, display with status/error communication
Safety Circuits Emergency stop switch on unit and remote controller, Operator safety tilt sensor, Fail-safe brake on track drive motors
Lighting Safety beacon light, 2 LED work lights on each side
Accessories Included Track tensioner tool, Jack stand
Service Portal Two-year free subscription included. Optional subscription after two years
Warranty
Balance of Machine 2-Years Limited Warranty
Drive Belts, Rubber Tracks, Brake Pads, Hoses, Batteries and Blades 90 Days
Engine 3-Years Manufacturer's Limited Warranty
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton®. See your dealer or www.ferrismowers.eu for warranty details.
