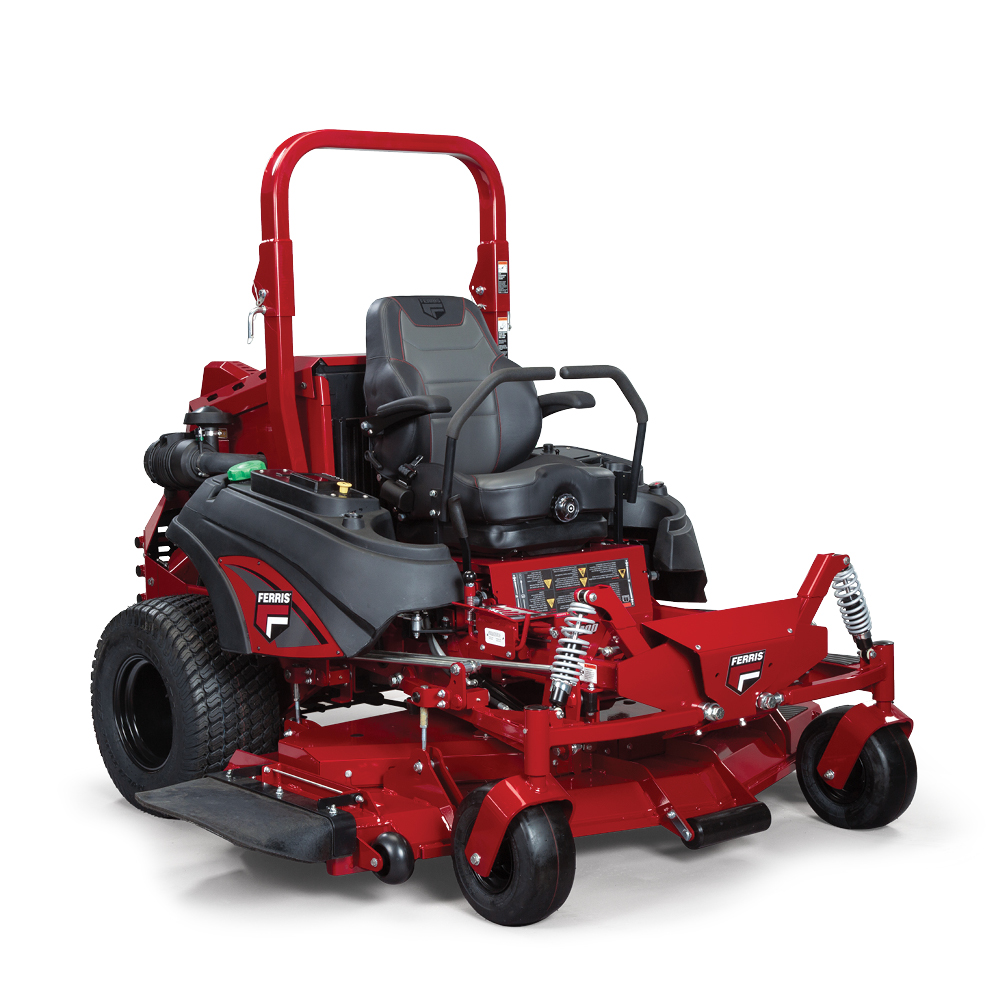

IS® 6200 Zero Turn Mower
Big Jobs Require Big Power
Comfort, durability, and power are what make the IS 6200 more than a luxury, it's a necessity. The 48 hp* CAT® turbo diesel engine provides up to two times more longevity than a traditional gas engine. Designed for the rigors of maintaining municipal and industrial properties, the IS 6200 is a must in your trailer to grow your business. Featuring our redesigned iCD™+ Cutting System for maximum vacuum and clipping ejection to deliver only the most premium cut.
Deck Size
72"
Power Rating*
48 HP
Ground Speed
19.3 kph
Limited Warranty†
4 Years
Features

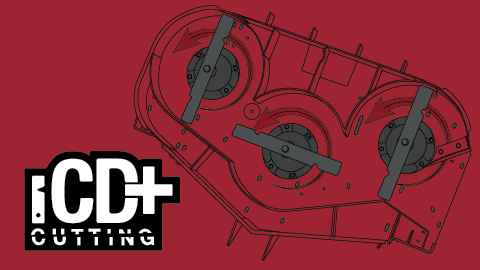

ICD™+ CUTTING SYSTEM
Redesigned to deliver next-level performance, increased durability and superior results. Select models.
USB PORT
12V-60V, USB Type A & C located on the dash panel for easy access and charging. 2.1A x 2 output and moisture rated to IP67.

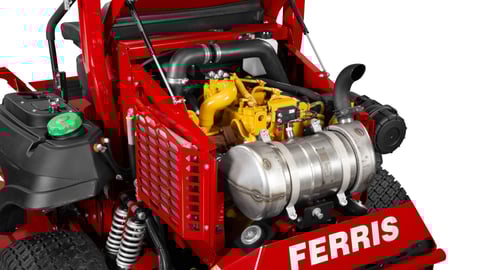

CAT 48 HP* TURBO DIESEL ENGINE
The top-of-the-line CAT C1.7L turbo diesel engine has a life expectancy between four and five thousand hours (double that of gas engines). It's rated at 48 gross horsepower (the highest for a zero turn mower in its class) and 1700cc of grass dominating power.
INDEPENDENT SUSPENSION SYSTEM
Utilises rear a-arm and front control arms with large adjustable coil-over shocks to minimise caster chatter and deliver a smooth ride.

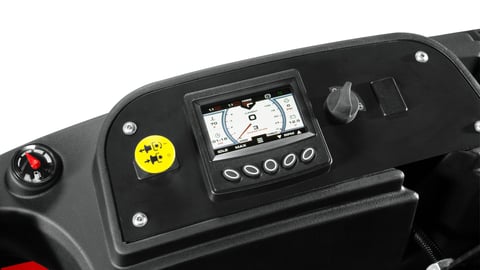

PERFORMANCE MONITORING DISPLAY
The interactive onboard display maintains and monitors the performance and operation of the mower for peak performance. The display also ensures the proper engagement of safety interlock and mower components with visual fault indicators to extend the life of belts and clutch.

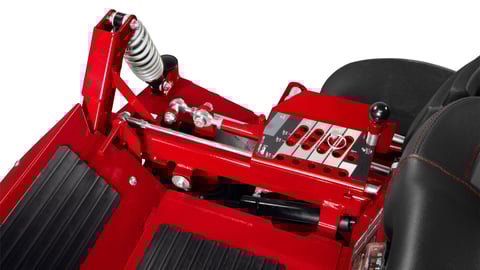

HYDRAULIC DECK LIFT
Hydraulic deck lift makes it easy to lift and lower the mower deck to achieve the optimal height-of-cut for the job at hand. Cut height ranges from 1.5-6 inches.

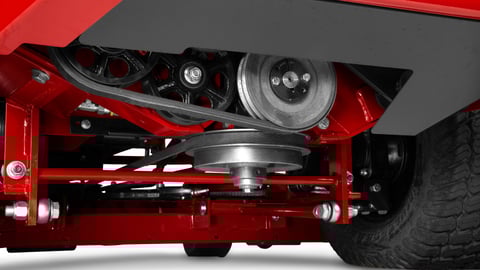

HEAVY DUTY COMPONENTS
A hand-operated 450 ft lb Warner Electric clutch and a right angled Curtis© gearbox with dual 1" shafts harnesses more horsepower for a smoother and faster operation. Dual-commercial 21cc Hydro-Gear pumps and 20.6 cu inch Parker wheel motors with an external oil cooler.
Specifications
| 5902163 | |
| Engine Brand | CAT Turbo Diesel |
| Horsepower | 48 |
| Engine Displacement (cc) | 1700 |
| Number of Cylinders | 3 |
| Starter | Electric |
| Ground Speed - Fwd (kph) | 0 - 19.3 |
| Ground Speed - Rev (kph) | 0 - 8.1 |
| Parking Brake | Hand operated external drum type |
| Suspension | Independent front and rear-suspension, featuring adjustable large coil-over shock |
| Seat Package | Premium high-back suspension seat with adjustable armrests, adjustable lumbar and back recline |
| Fuel Tank Capacity (lit) | 68.2 |
| Certified Roll-over Protection System | 105° foldable |
| Controls / Safety Group | Hand operate external drum type |
| Deck Size (in/cm) | 72/183 |
| Deck Construction | iCD™ Cutting System, 2-Belt |
| Cutting Height (in) | 1.5-6/3.8-15.3 |
| Spindles | Hercules II Cast-Iron greaseable |
| Drive Tyres (in) | 26 x 12-12 |
| Caster Tires | 13 X 6.5-6 |
| Overall Length (cm) | 2278 |
| Overall Width (in) Deflector Down/Deflector Up | 2182/1180 |
| Dry Weight (lbs) | 1143 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 2-Year limited manufacturer's warranty |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
