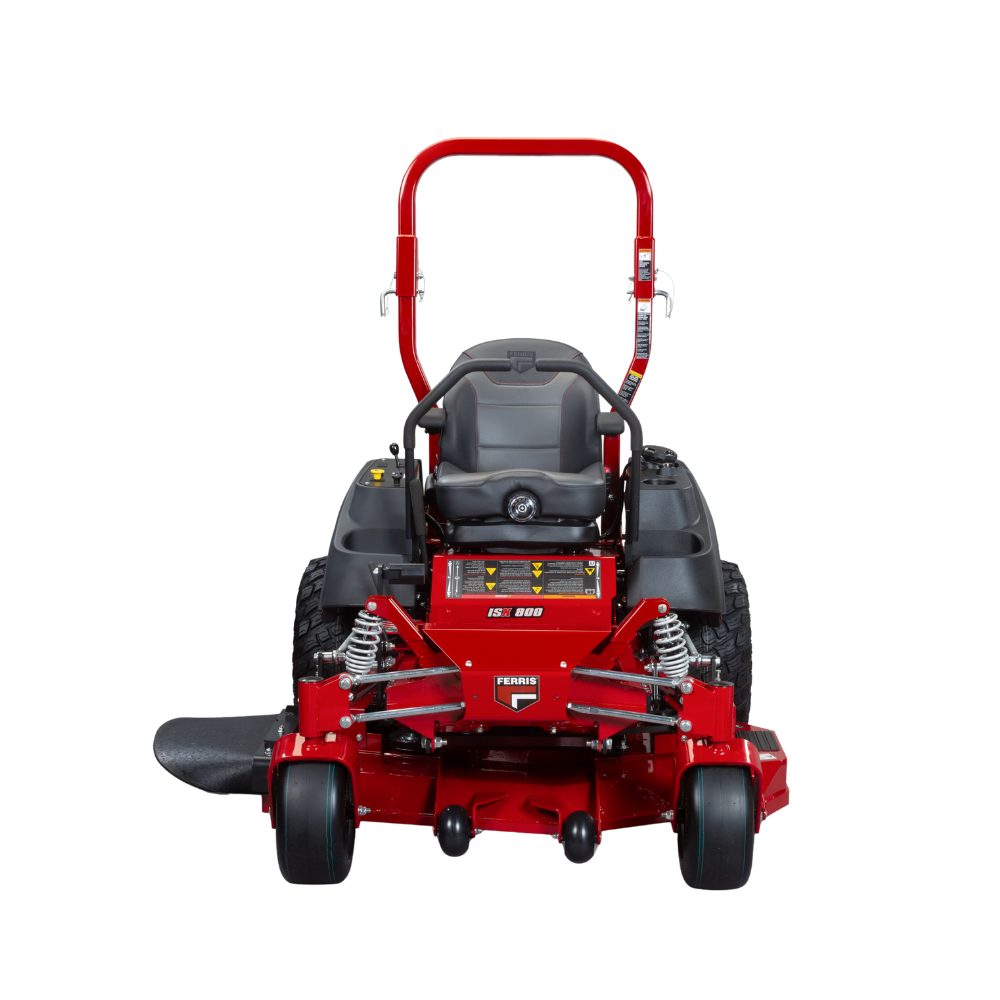

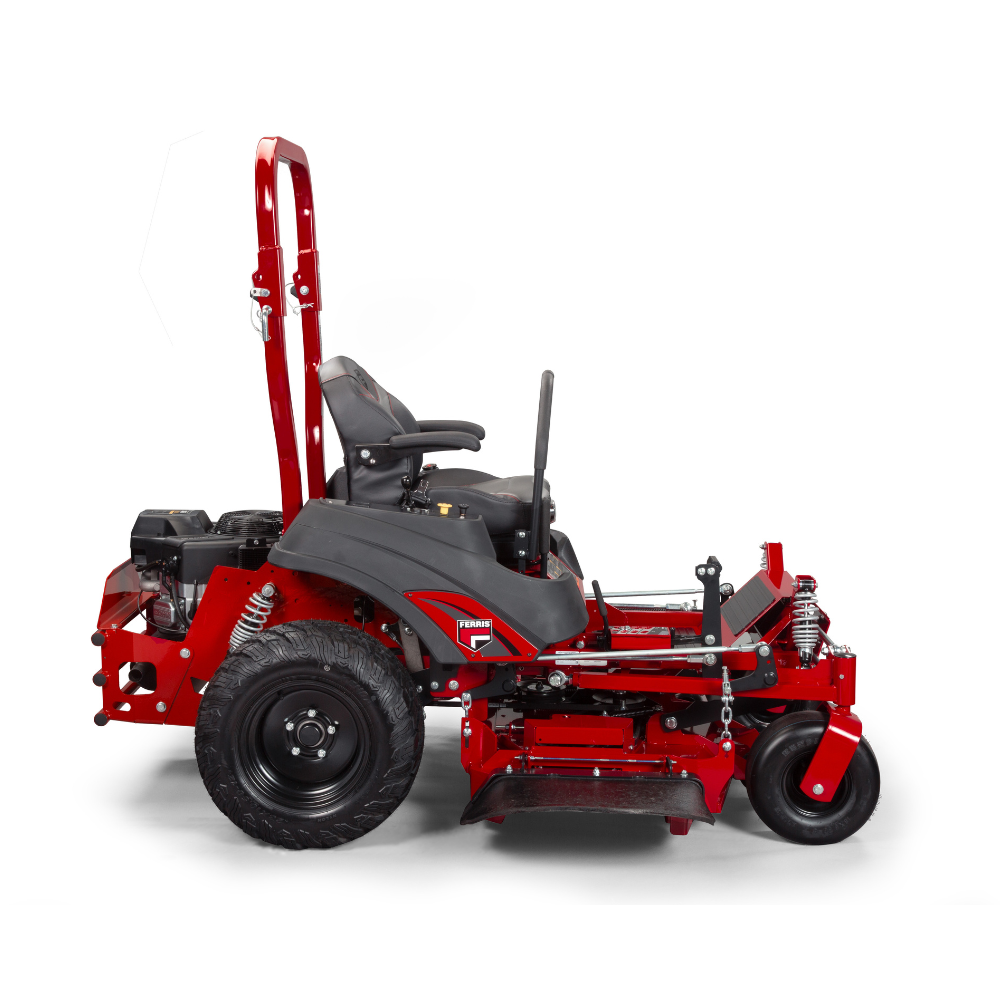

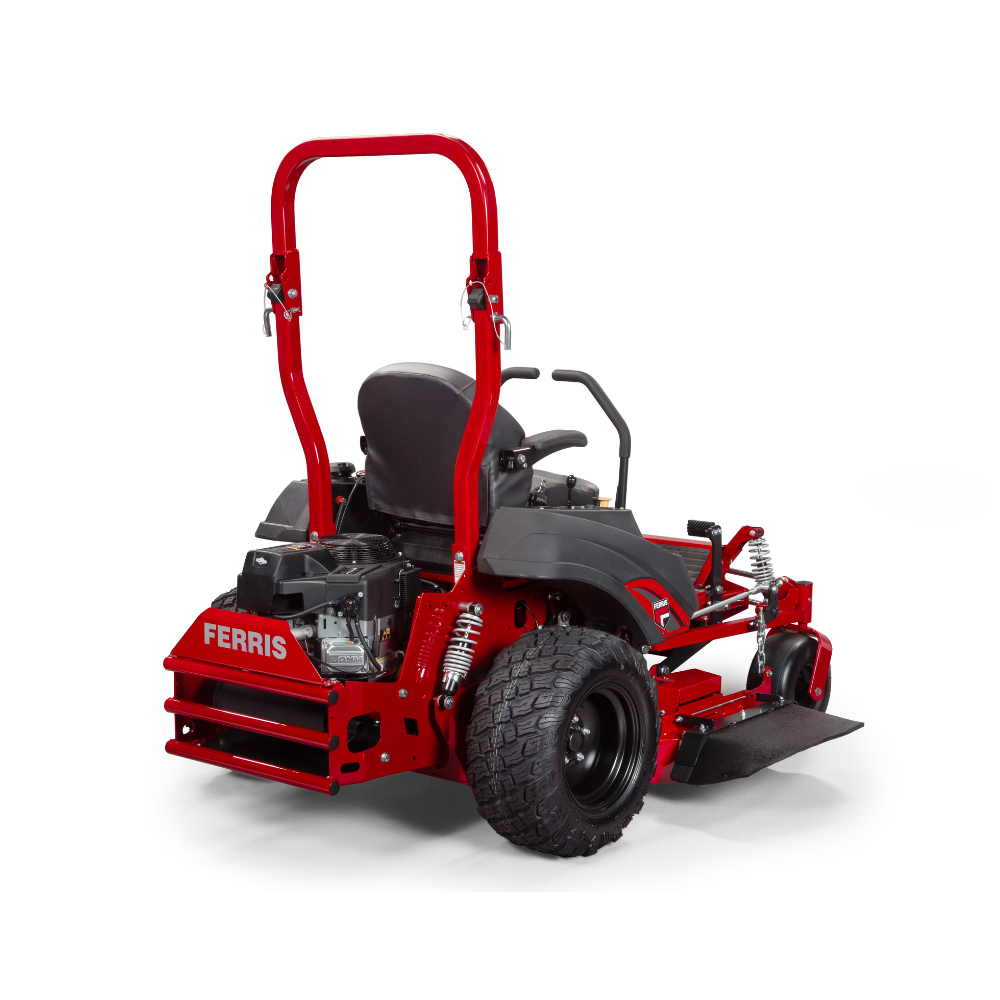

ISX800 Zero Turn Mowers
Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 kph, the ISX™ 800 is engineered to increase efficiency and operator comfort.
Deck Size
52 - 60 in
Power Rating*
27 HP
Ground Speed
16.1 kph
Limited Warranty†
4 Years
Features
OIL XTEND™
Oil Xtend technology minimises downtime by extending oil change intervals to 250 hours. Timing of oil, oil filter, fuel filter, and air filter changes is standardised to simplify maintenance and fleet management.
ICD™+ CUTTING SYSTEM
Redesigned to deliver next-level performance, increased durability and superior results.
USB PORT
USB type A & C located on the dash panel for easy access. 2.1A x 2 output and moisture rated to IP67
EFI-ETC ENGINE TECHNOLOGY
Electronic Fuel Injection (EFI) and Electronic Throttle Control (ETC) deliver reliable starting, improved response and efficiency.
FOREFRONT™ SUSPENSION SYSTEM
The system utilises four upper and lower control rods that ensure the front castor bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
INTEGRATED TRANSMISSION
Commercial Hydro-Gear® ZT-3400™ transaxles, with 7" cooling fans, are designed for high performance and are fully serviceable.
EASY ACCESS
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Specifications
| 5902189 | 5902173 | |
| Engine Brand | Briggs & Stratton® CXi Series EFI-ETC w/ Oil Xtend™ | Briggs & Stratton® CXi Series EFI-ETC w/ Oil Xtend™ |
| Horsepower* | 27 | 27 |
| Engine Displacement (cc) | 810 | 810 |
| Number of Cylinders | 2 | 2 |
| Starter | Electric | Electric |
| Transmission Type | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans |
| Ground Speed - Fwd (kph) | 0 - 16.1 | 0 - 16.1 |
| Ground Speed - Rev (kph) | 0 - 8.1 | 0 - 8.1 |
| Parking Brake | Hand-operated internal transaxle brake | Hand-operated internal transaxle brake |
| Suspension | ForeFront™ Suspension System - Front independent with four cast iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks. | ForeFront™ Suspension System - Front independent with four cast iron control rods paired with medium size adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks. |
| Seat Package | Premium mid back adjustable suspension seat with armrests | Premium mid back adjustable suspension seat with armrests |
| Fuel Tank Capacity (lit) | 20.8 | 20.8 |
| Certified Roll-over Protection System | 180° foldable | 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank | Dual-function hour meter, fuel level gauge in tank |
| Deck Size (in/cm) | 52/132 | 61/155 |
| Deck Construction | iCD™+ Cutting System, 2-Belt | iCD™+ Cutting System, 2-Belt |
| Cutting Height (in / cm) | 1.5 - 5 / 38 - 12.7 | 1.5 - 5 / 38 - 12.7 |
| Spindles | Aluminum greasable | Aluminum greasable |
| Drive Tyres (in) | 23 x 10.5-12 | 23 x 10.5-12 |
| Caster Tyres (in) | 13 x 6.5 - 6 | 13 x 6.5 - 6 |
| Axles (in) | 1.125 | 1.125 |
| Overall Length (mm) | 2058 | 2058 |
| Overall Width (mm) Deflector Down/Deflector Up | 1651/1448 | 1906/1676 |
| Dry Weight (KG) | 508 | 576 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Operator's Manuals |
Fine Print
* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
