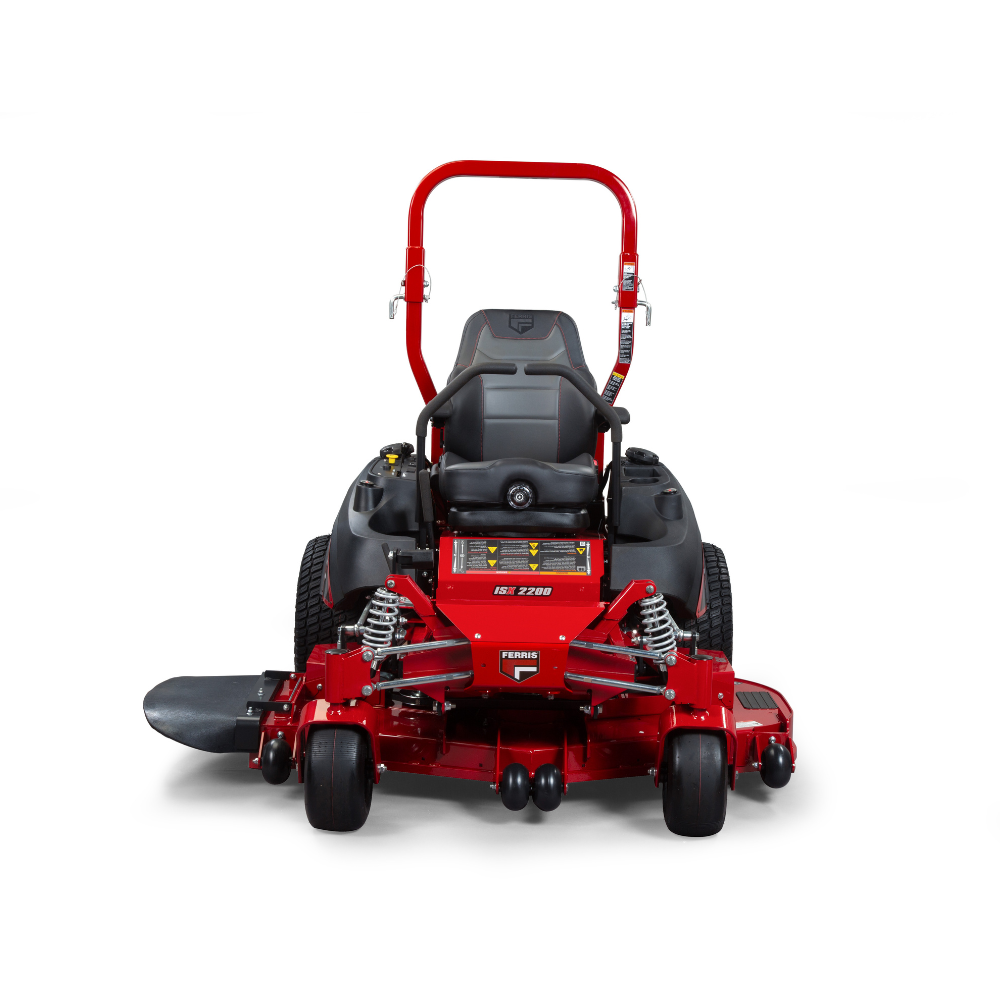

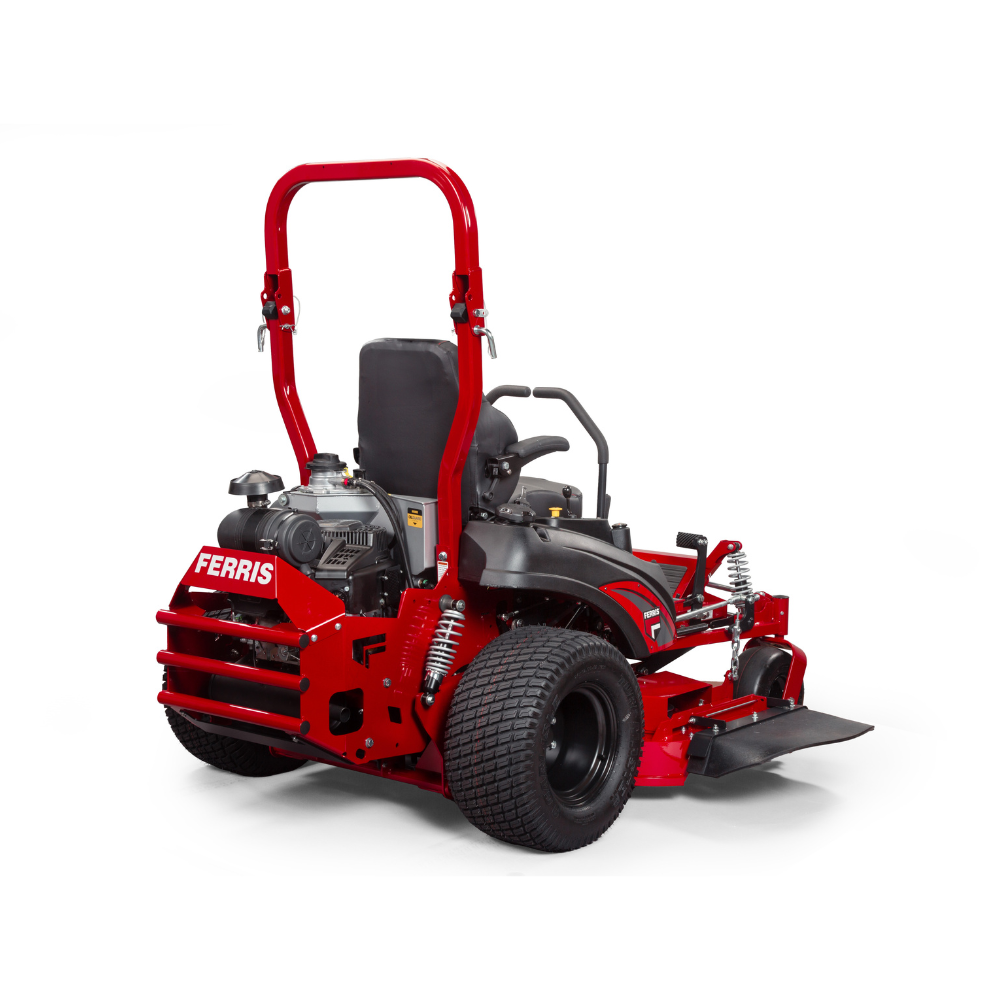

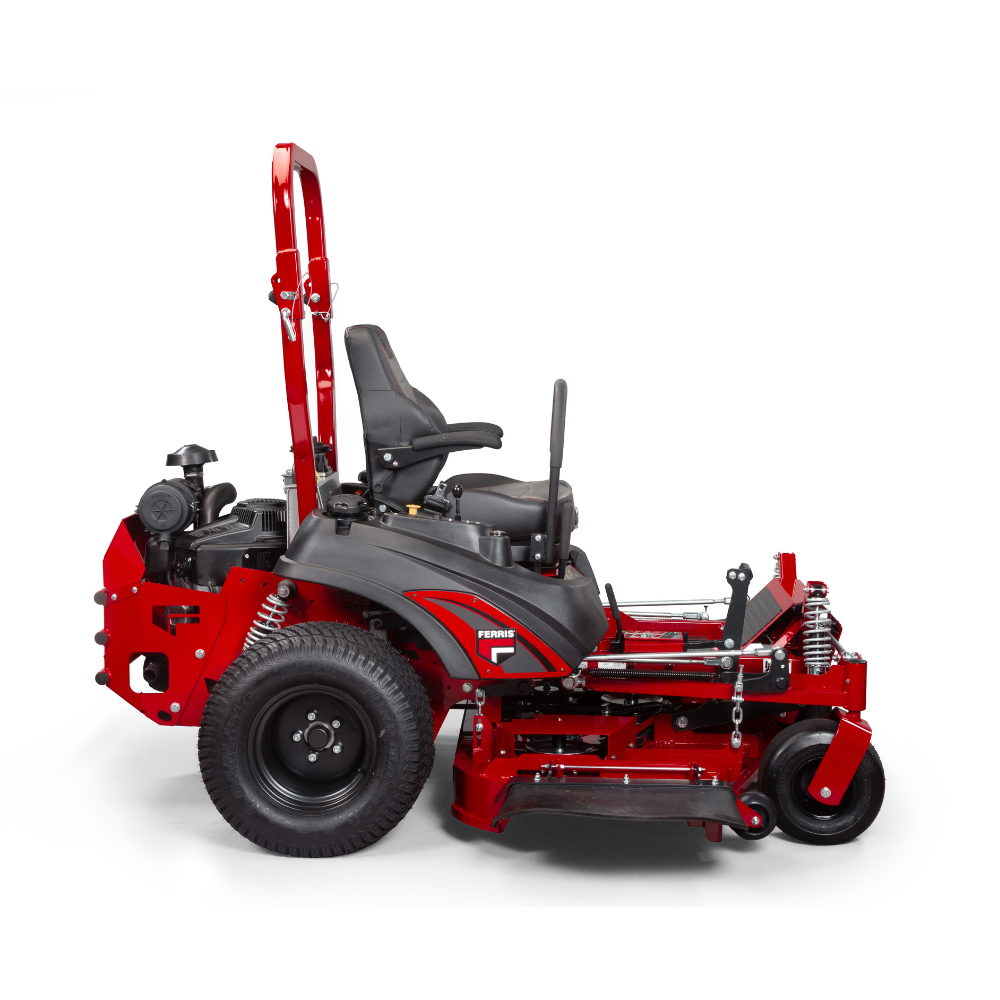

ISX™ 2200 Zero Turn Mower
The Leader In Suspension Technology For Turf
Take productivity and comfort up a notch. The ISX™ 2200 boasts our most advanced suspension technology – ForeFront™ Suspension, ensuring operator comfort. A redesigned 2-belt iCD™+ cutting system delivers unrivaled cut quality and the heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system provides power and durability to get the job done.
Cutting Width
60 in
Power Rating*
28 HP
Ground Speed
16.1 kph
Limited Warranty†
4 Years
Features
ICD™+ CUTTING SYSTEM
Redesigned to deliver next-level performance, increased durability and superior results.
USB PORT
USB type A & C located on the dash panel for easy access. 2.1A x 2 output and moisture rated to IP67.
FOREFRONT™ SUSPENSION SYSTEM
The system utilises four upper and lower control rods and mower-specific shocks that ensure the front castor bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
VANGUARD® EFI ENGINE WITH OIL GUARD™
The Vanguard engine features Electronic Fuel Injection (EFI) for improved responsiveness and fuel efficiency. Vanguard® Oil Guard™ technology reduces maintenance costs‡ and increases productivity by allowing you to mow up to 500 hours between oil changes.
HYDRO-GEAR ZT-4400™ TRANSAXLES
Dual commercial transaxles with 8.3" cooling fans to repel debris.
ADJUSTABLE CUT HEIGHT
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
Specifications
| 5902081 | |
| RRP | $26,499 |
| Engine Brand | Vanguard® 810cc EFI with Oil Guard™ |
| Horsepower* | 28 |
| Engine Displacement (cc) | 810 |
| Number of Cylinders | 2 |
| Starter | Electric |
| Transmission Type | Dual, commercial Hydro-Gear® ZT-4400TM Transaxles with 8.3" cooling fansT |
| Ground Speed - Fwd (kph) | 0 - 16.1 |
| Ground Speed - Rev (kph) | 0 - 8.1 |
| Parking Brake | Hand-operated internal transaxle brake |
| Suspension | ForeFront™ Suspension System |
| Seat Package | Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline |
| Fuel Tank Capacity (L) | 41.6 |
| Certified Roll-over Protection System | 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank |
| Deck Size (in/cm) | 60/152 |
| Deck Construction | iCD™+ Cutting System, 2-Belt |
| Cutting Height (in / cm) | 1.5-5 (3.8-12.7) |
| Spindles | Cast iron greaseable |
| Drive Tyres (in) | 24 x 12-12 |
| Castor Tyres (in) | 13 X 6.5-6 |
| Axles (in) | 1.375 |
| Overall Length (mm) | 2096 |
| Overall Width (mm) Deflector Down/Deflector Up | 1880/1651 |
| Dry Weight (KG) | 638 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks are covered for 6 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Suspension | 10 Years |
| Operator's Manuals |
Fine Print
* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
