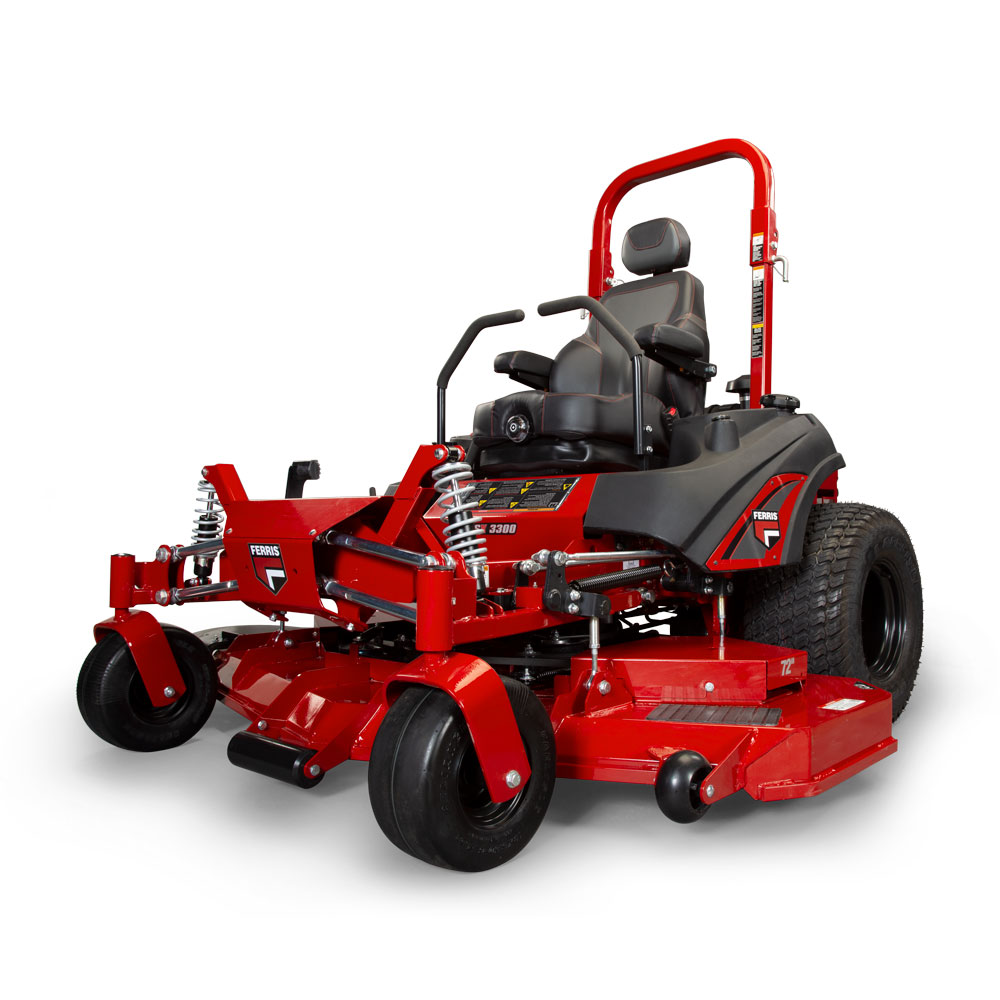

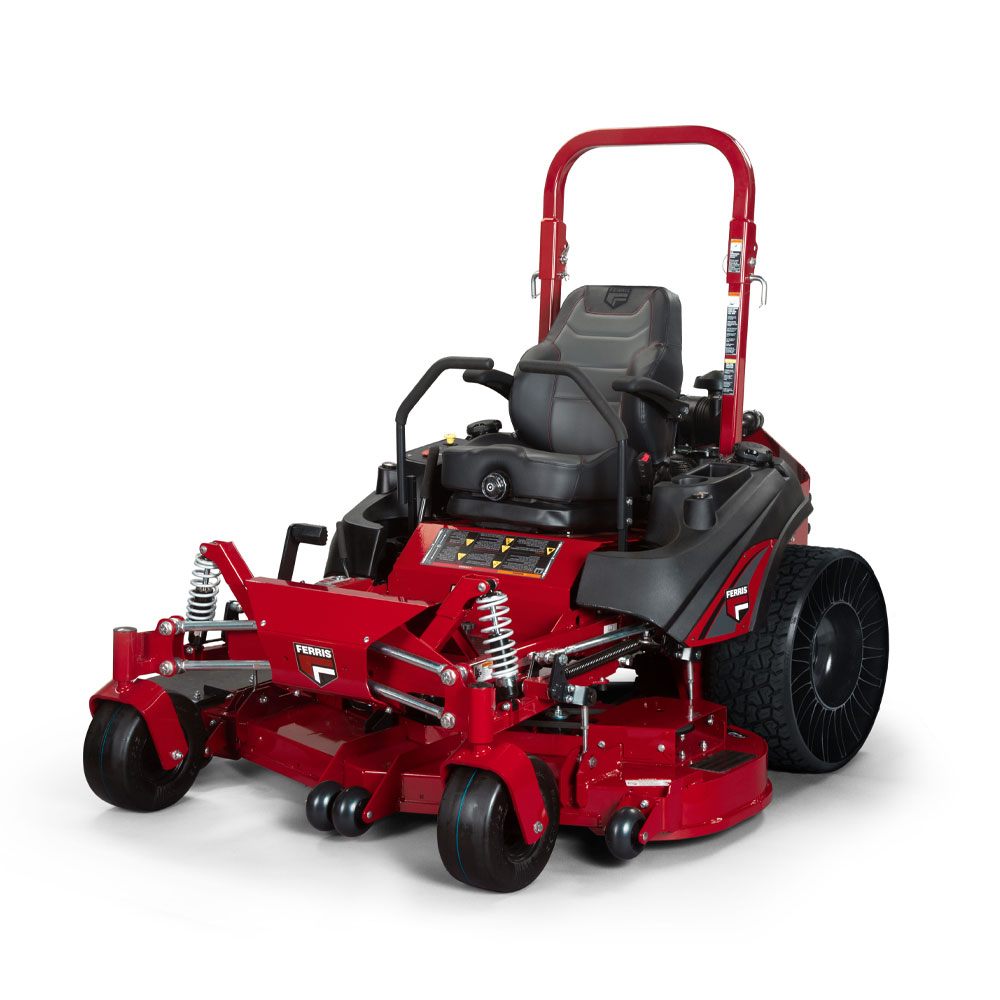

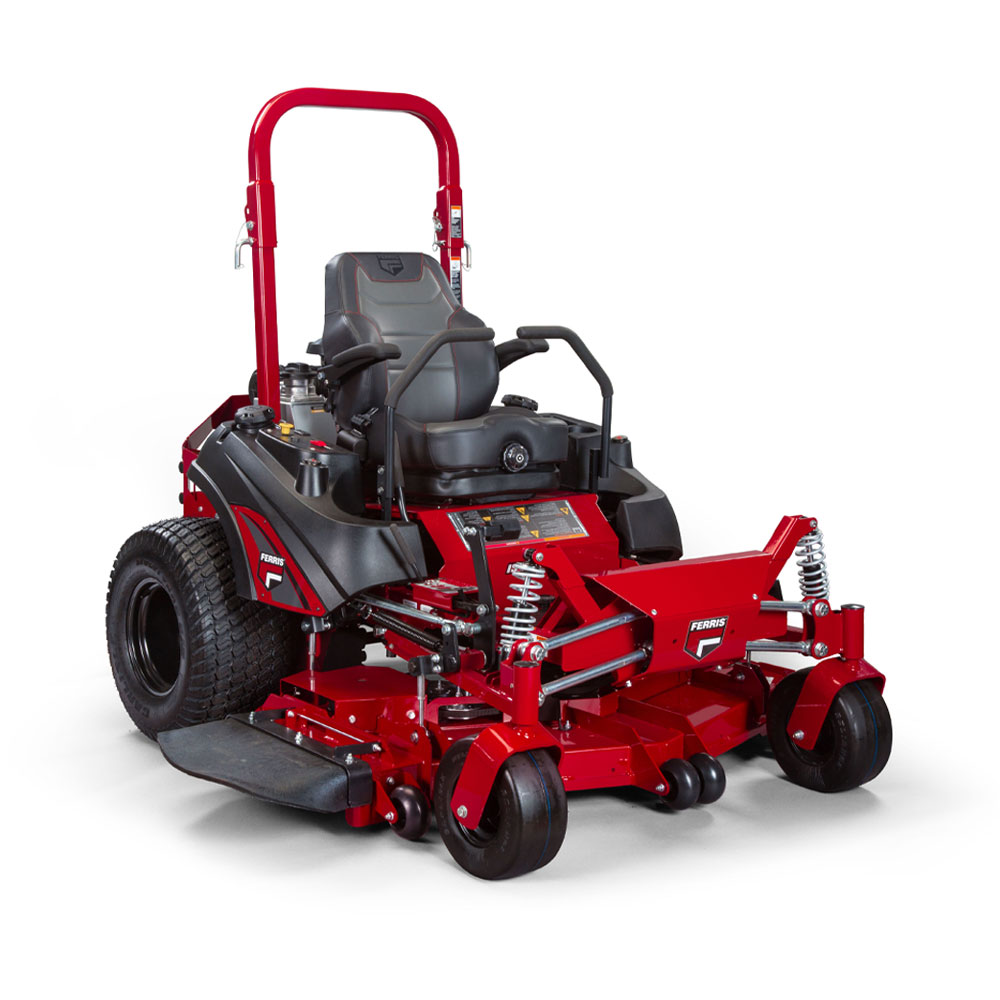

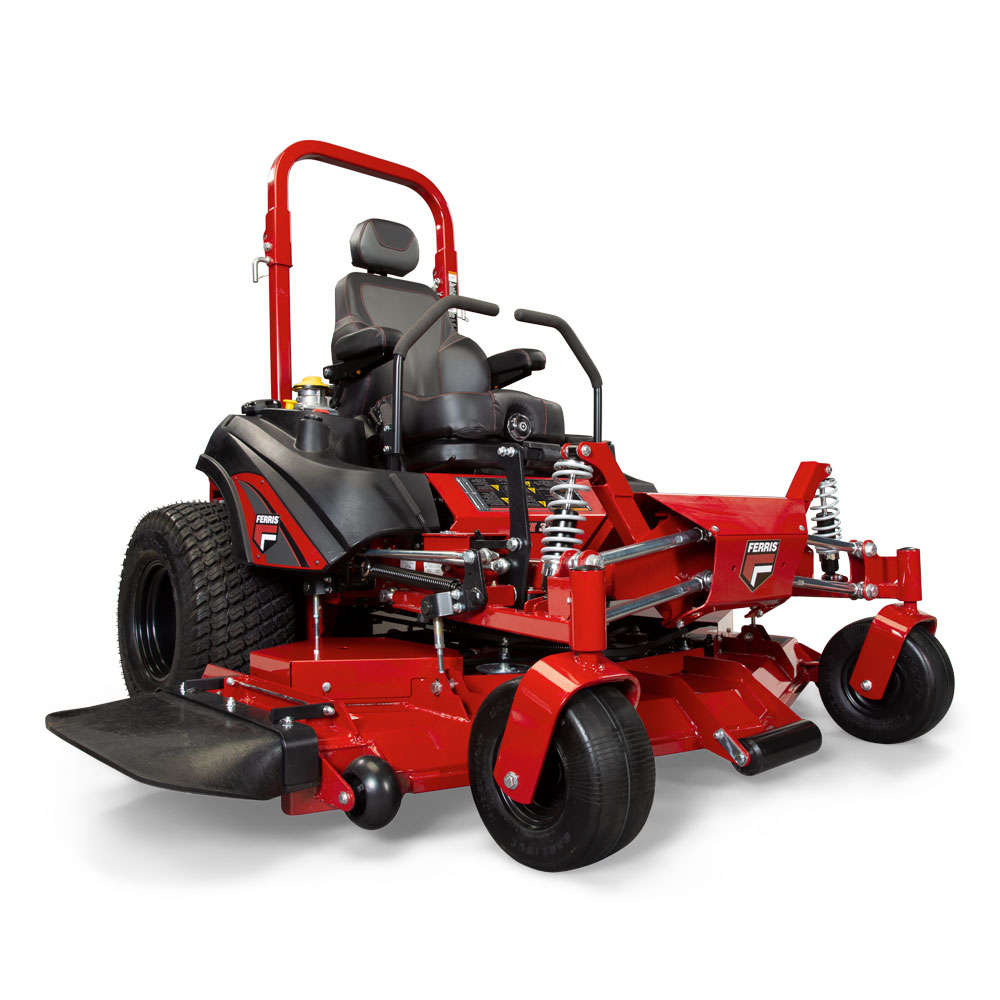

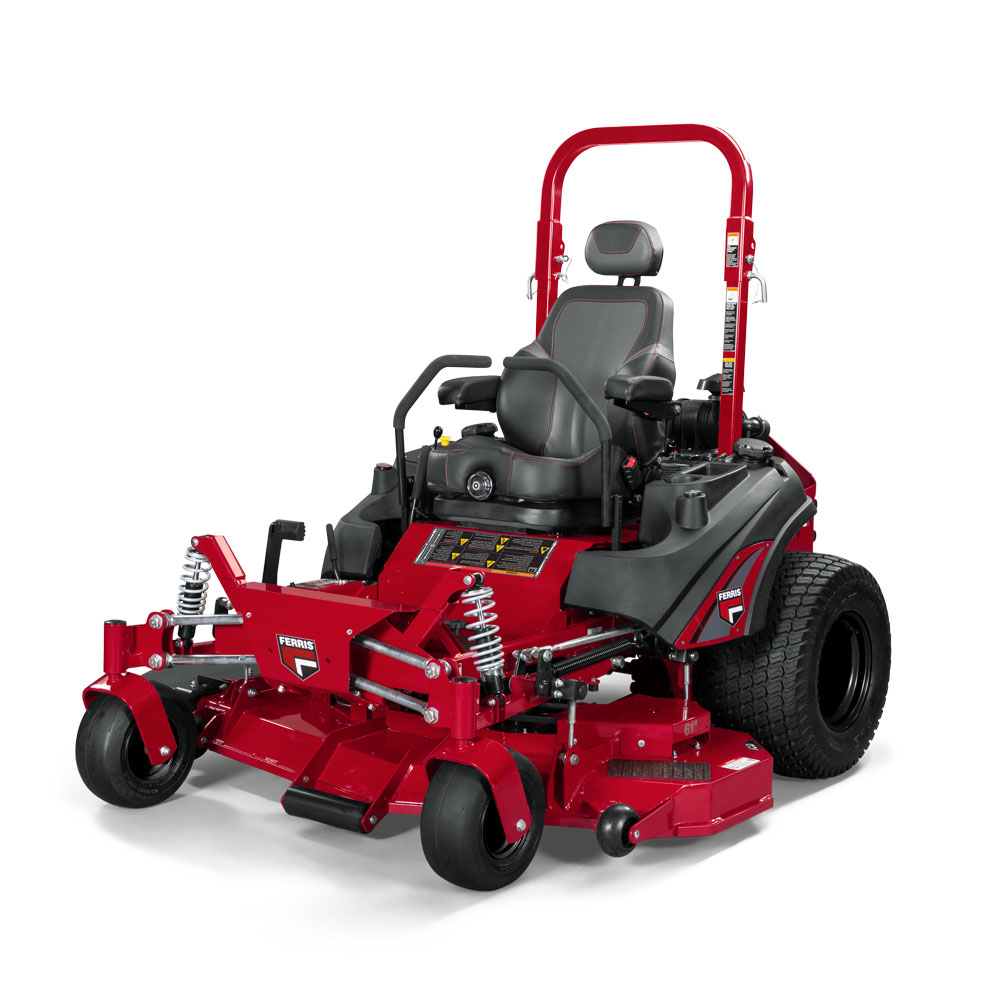

ISX™ 3300 Zero Turn Mowers

THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF

Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 19.3 kph, the ISX™ 3300 is engineered to increase efficiency and operator comfort.

61 - 72

Cutting Width (in)

37 - 40

Power Rating* (HP)

0 - 19.3

Ground Speed (kph)

4-Years

Limited Warranty†

Features

Forefront™ Suspension System

The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

500 Hour Oil Change

Vanguard™ Engines with Oil Guard™ System reduce maintenance time and costs by up to 60%.**

Drive System

Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans

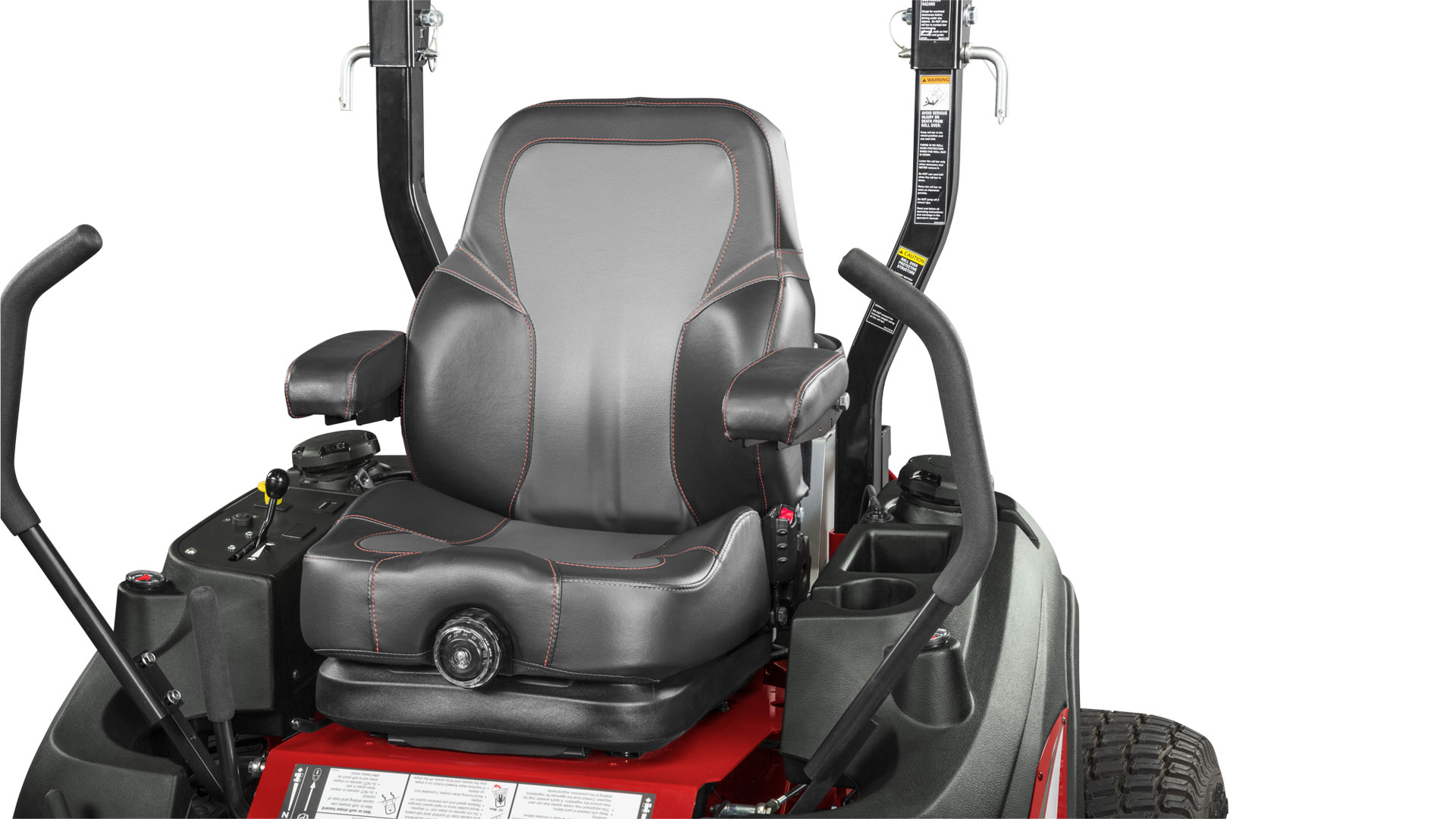

Premium High-Back Suspension Seat

Mow in superior comfort with arm rests, multi-position head rest, adjustable lumbar and seat recline

Hercules™ II Spindles

Hercules™ II spindles; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

Vanguard Electronic Throttle Control

This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901938
Engine Brand
Vanguard® BIG BLOCK™ EFI with Oil Guard™
Engine Power Rating (HP) *
37
Displacement (cc)
993
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
41.6
Cutting Width in(cm)
61 (155)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Hercules™ II Cast-Iron
Deck Construction
iCD™ Cutting System, 2-Belt
Deck Discharge Type
Side Discharge
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
26 x 12 - 12
Ground Speed-Fwd (kph)
0 - 19.3
Ground Speed-Rev (kph)
0 - 8.05
Overall Length (mm)
2147
Overall Width (mm) Deflector Down / Up
1956 / 1690
Dry Weight (kg)
667
Seat Package
Premium high-back suspension seat with arm rests, multi-position head rest, adjustable lumbar and back recline
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

Part Number
5901937 + 5901572/5901580
Engine Brand
Vanguard® BIG BLOCK™ EFI with Oil Guard™
Engine Power Rating (HP) *
37
Displacement (cc)
993
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
41.6
Cutting Width in(cm)
72 (183) Side or rear discharge
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Hercules™ II Cast-Iron
Deck Construction
iCD™ Cutting System, 2-Belt
Deck Discharge Type
Side Discharge or Dedicated Rear Discharge
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
26 x 12-12
Ground Speed-Fwd (kph)
0 - 19.3
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2147
Overall Width (mm) Deflector Down / Up
2185 / 1880
Dry Weight (kg)
717
Seat Package
Premium high-back suspension seat with arm rests, multi-position head rest, adjustable lumbar and back recline
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

Part Number
5902039
Engine Brand
Vanguard® BIG BLOCK™ EFI with Oil Guard™ and Electronic Throttle Control
Engine Power Rating (HP) *
40
Displacement (cc)
993
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
41.6
Cutting Width in(cm)
61 (155)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Hercules™ II cast-iron
Deck Construction
iCD™ Cutting System, 2-belt
Deck Discharge Type
Side Discharge
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
Transmission
Dual-commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
26 x 12-12
Ground Speed-Fwd (kph)
0 - 19.3
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2147
Overall Width (mm) Deflector Down / Up
1956 / 1690
Dry Weight (kg)
724
Seat Package
Premium high-back suspension seat with arm rests, multiposition headrest, adjustable lumbar and back recline
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
ROPS
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

Part Number
5901938
5901937 + 5901572/5901580
5902039
Engine Brand
Vanguard® BIG BLOCK™ EFI with Oil Guard™
Vanguard® BIG BLOCK™ EFI with Oil Guard™
Vanguard® BIG BLOCK™ EFI with Oil Guard™ and Electronic Throttle Control
Engine Power Rating (HP) *
37
37
40
Displacement (cc)
993
993
993
PTO
Electric
Electric
Electric
Cylinders
2
2
2
Starter
Electric
Electric
Electric
Fuel Tank Capacity (litres)
41.6
41.6
41.6
Cutting Width in(cm)
61 (155)
72 (183) Side or rear discharge
61 (155)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
1.5 - 5 (38 - 127)
1.5 - 5 (38 - 127)
Spindles
Hercules™ II Cast-Iron
Hercules™ II Cast-Iron
Hercules™ II cast-iron
Deck Construction
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-belt
Deck Discharge Type
Side Discharge
Side Discharge or Dedicated Rear Discharge
Side Discharge
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks.
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Dual-commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in)
1.375
1.375
1.375
Caster Tyres (in)
13 x 6.5 - 6
13 x 6.5 - 6
13 x 6.5 - 6
Drive Tyres (in)
26 x 12 - 12
26 x 12-12
26 x 12-12
Ground Speed-Fwd (kph)
0 - 19.3
0 - 19.3
0 - 19.3
Ground Speed-Rev (kph)
0 - 8.05
0 - 8.1
0 - 8.1
Overall Length (mm)
2147
2147
2147
Overall Width (mm) Deflector Down / Up
1956 / 1690
2185 / 1880
1956 / 1690
Dry Weight (kg)
667
717
724
Seat Package
Premium high-back suspension seat with arm rests, multi-position head rest, adjustable lumbar and back recline
Premium high-back suspension seat with arm rests, multi-position head rest, adjustable lumbar and back recline
Premium high-back suspension seat with arm rests, multiposition headrest, adjustable lumbar and back recline
Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
ROPS
165° foldable
165° foldable
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Hand operated internal transaxle brake
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
