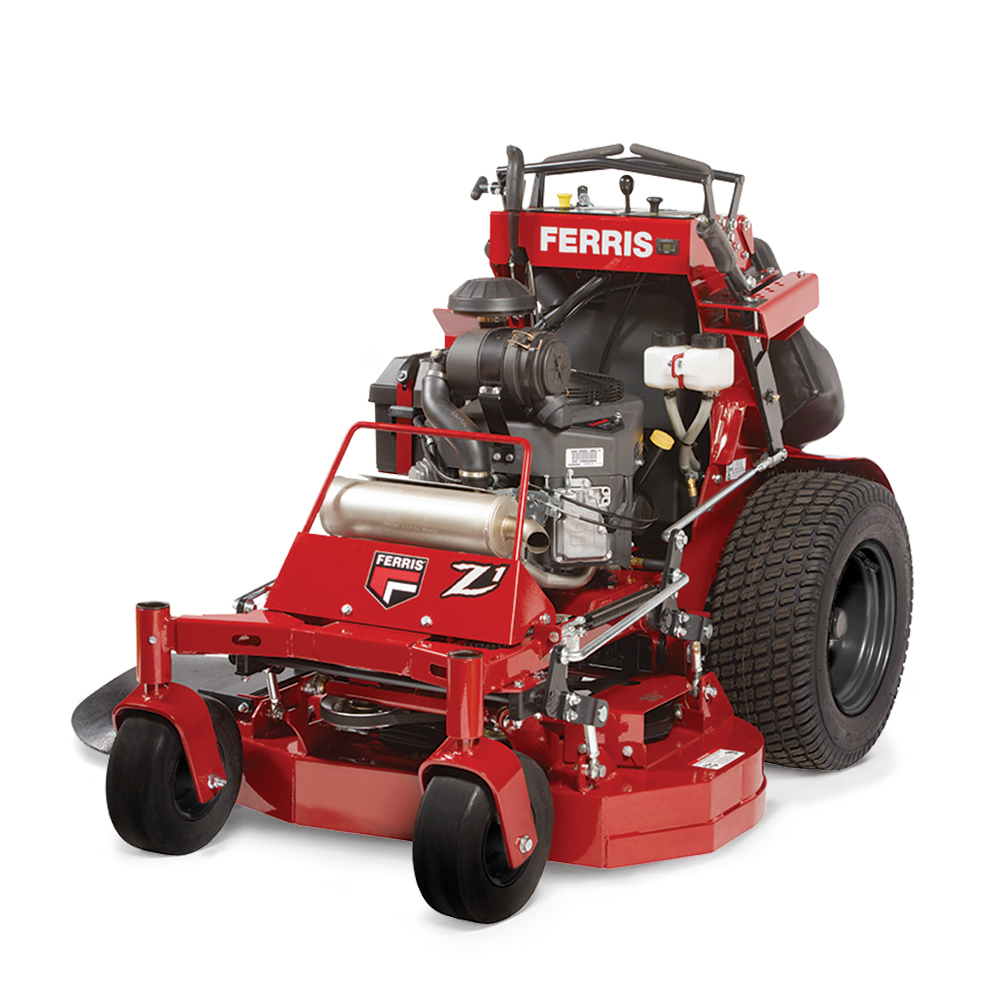

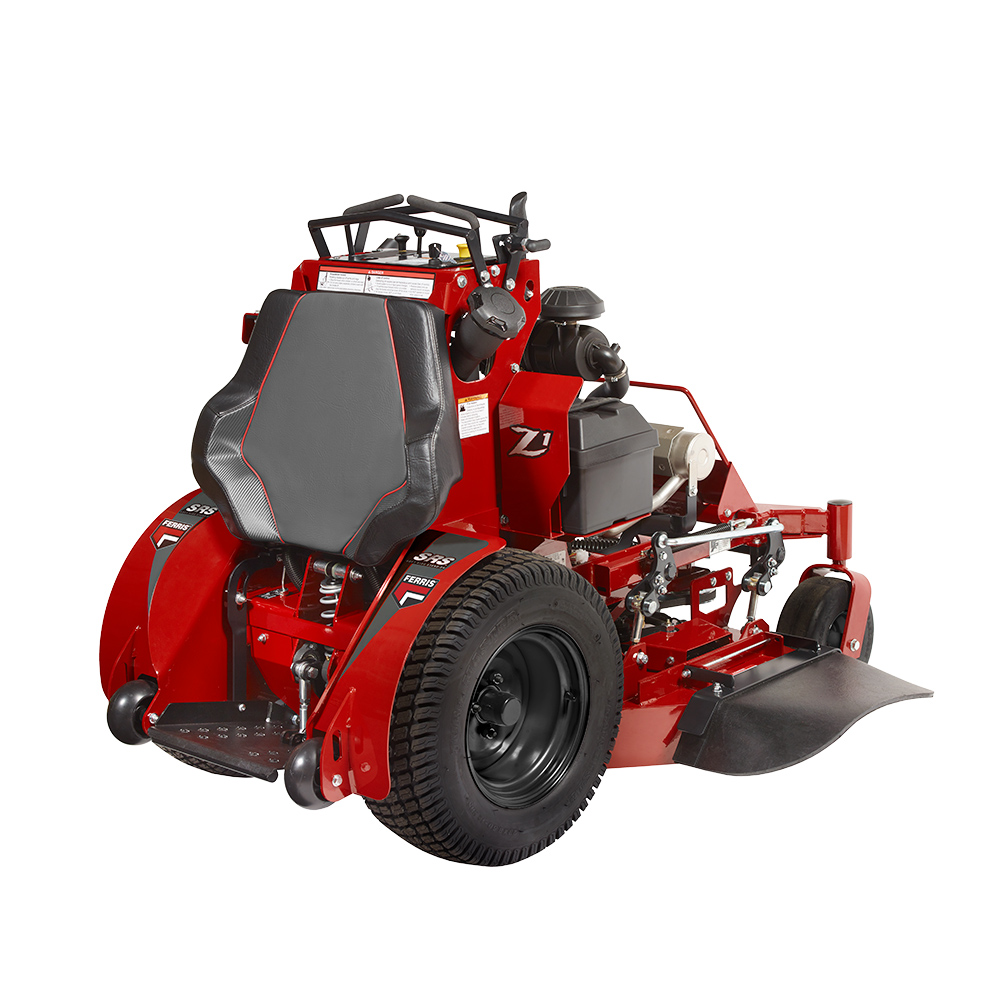

SRS Z1 Stand-On Mower
RIDE CONFIDENTLY INTO NARROW SPACES
The Soft Ride Stand-on SRS™ Z1 is raising the bar with adjustable operator platform, featuring suspension technology, optimising operator comfort and increasing productivity!
The superior balance provides stability and manoeuvrability that exceeds expectations for traction and handling. The SRS™ Z1 is designed to allow for quick operator exit and re-entry. Need to walk away from the mower to move an obstacle or debris? The PTO will automatically disengage when the operator leaves the platform. Restarting the blades is just as easy. When the operator steps back onto the platform and reengages the PTO switch they can continue mowing.
A rear discharge cutting deck with included mulch plug means no bulky deflector flap and no thrown objects, making the Z1 the ideal mower for domestic lots where access is limited.
Deck Size
36 in
Power Rating*
19 HP
Ground Speed
0 - 12.8 kph
Limited Warranty†
4 Years
Features

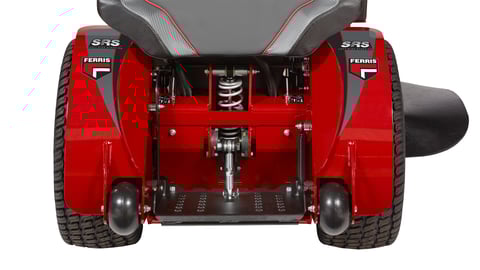

SUSPENSION PLATFORM SYSTEM
The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

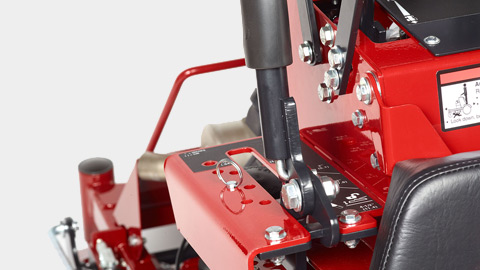

ADJUSTABLE HEIGHT OF CUT
Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 4.5".

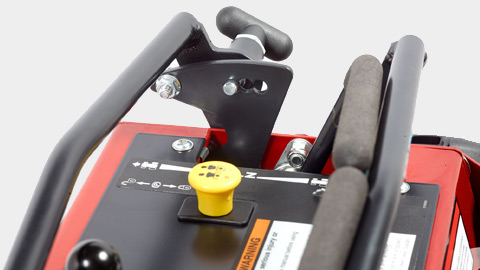

SPEED CONTROL SETTING
The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.
STANDING COMFORT
Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.

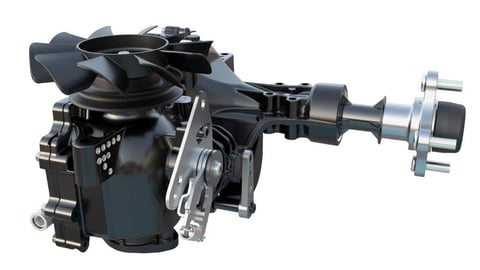

INTEGRATED MOWING TRANSMISSIONS
Commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans are designed for high performance and are fully serviceable.
ICD™ CUTTING SYSTEM
Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

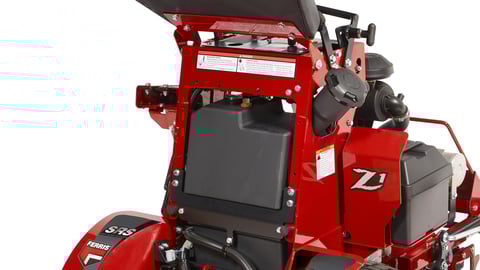

GENEROUS FUEL CAPACITY
A 6-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.
Specifications
| 5901939 | |
| Engine Brand | Kawasaki® FX600V |
| Horsepower | 19 |
| Engine Displacement (cc) | 603 |
| Number of Cylinders | 2 |
| Starter | Electric |
| Type | Hydro-Gear® ZT-3400® transaxles with 7" cooling fans |
| Ground Speed - Fwd (kph) | 0-12.8 |
| Ground Speed - Rev (kph) | 0-6.4 |
| Parking Brake | Hand operated Internal transaxle brake |
| Suspension | Adjustable coil-over shock, Operator Suspension Platform |
| Fuel Tank Capacity (lit) | 22.7 |
| Controls / Safety Group | Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart |
| Hour Meter/Instrumentation | Fuel gauge, hour meter |
| Deck Size (in/cm) | 36/91 |
| Deck Construction | 10-gauge, fabricated, rear discharge |
| Cutting Height (in) | 1.75-4.5/4.4-11.4 |
| Spindles | Aluminum Greasable |
| Drive Tyres (in) | 23 x 8.5 - 12 |
| Caster Tires | 11 x 4 - 5, Flat Free |
| Axles (in) | 1.125 |
| Overall Length (cm) | 1620 |
| Overall Width (in) Deflector Down/Deflector Up | 920 |
| Dry Weight (lbs) | 368 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 6 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Operator's Manuals |
Fine Print
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
