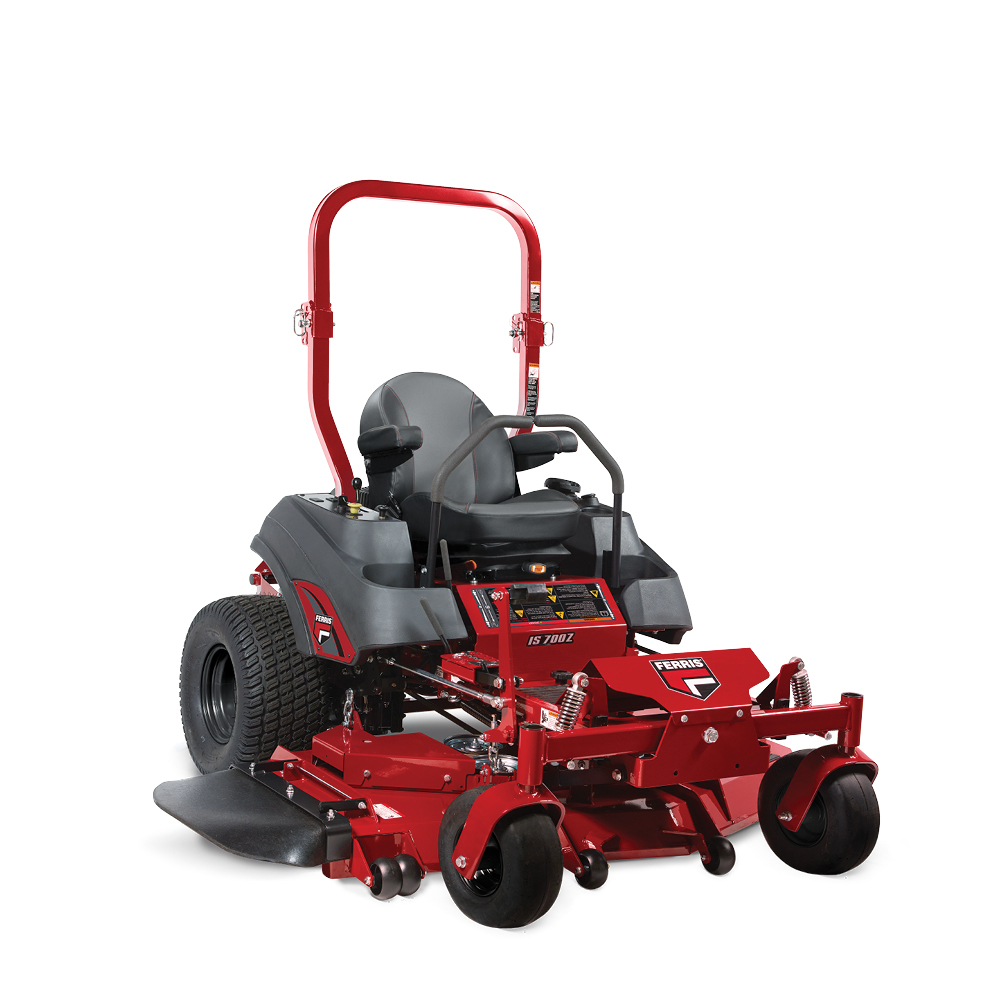

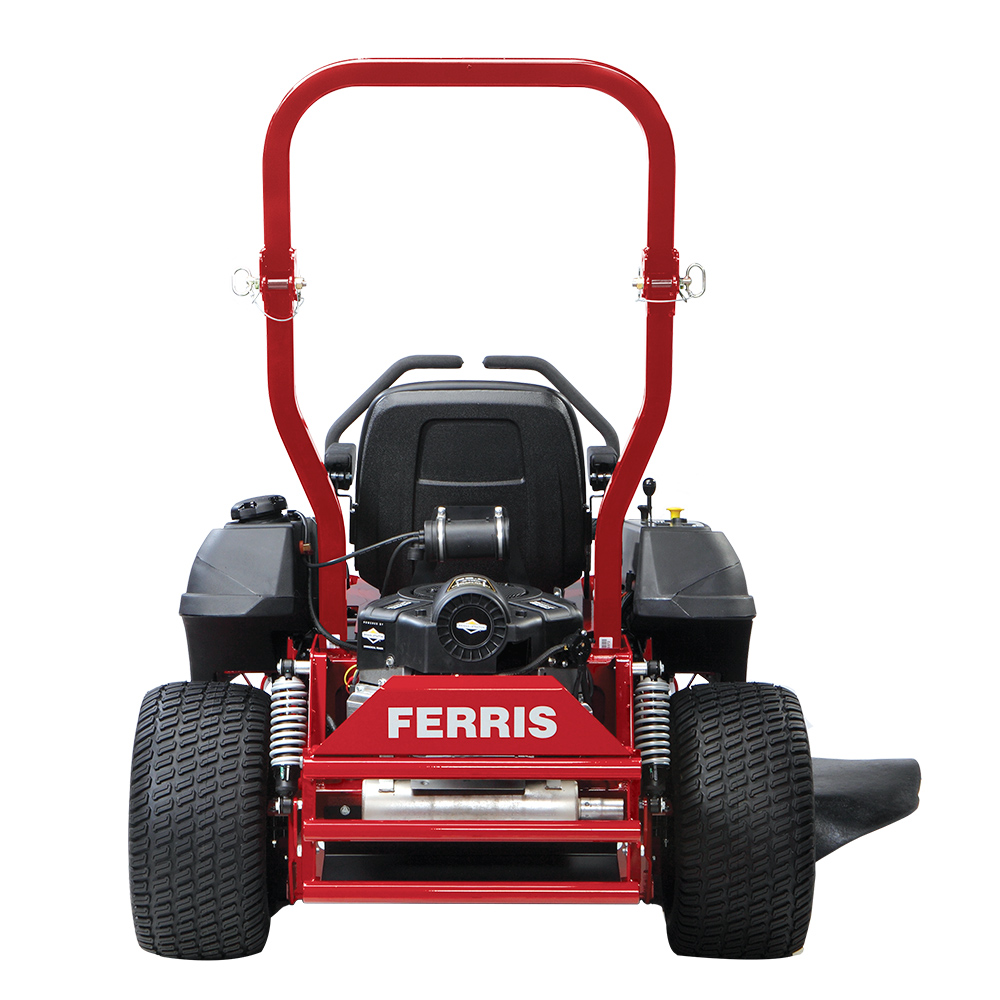

IS700 Zero Turn Mower
OUTSTANDING VALUE AND PRODUCTIVITY
The IS® 700 Series, with a 52" cutting width, is amazing value. With Ferris suspension technology, iCD™ Cutting System, heavy-duty Hydro-Gear® drive system and up to 16 kph speeds, this mower is full of features to increase the operator's productivity. You'll mow more lawn in less time.
Cutting Width
52 in
Power Rating*
27 HP
Ground Speed
16.1 kph
Limited Warranty†
4 Years
Features

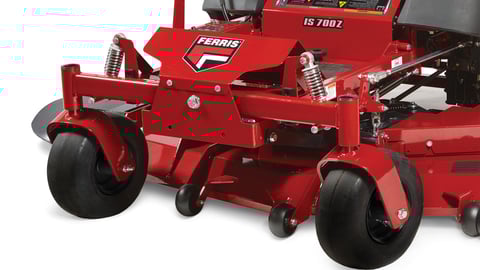

INDEPENDENT SUSPENSION SYSTEM
Equipped with swing-arm rear and pivoting front coil-over shocks means less concern for uneven ground, and more focus on getting work done.

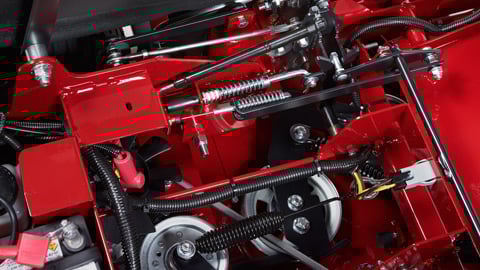

EXCEPTIONAL PERFORMANCE
The well-tuned steering system delivers smooth and confident operation for excellent performance time after time.

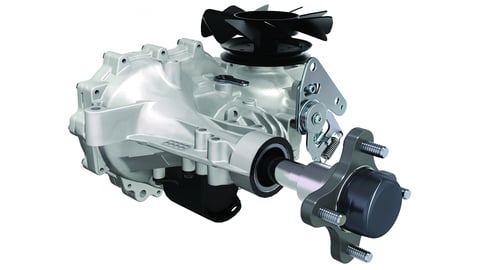

INTEGRATED TRANSMISSIONS
Commercial Hydro-Gear® ZT-3200™ transaxles are designed for high performance and are fully serviceable.

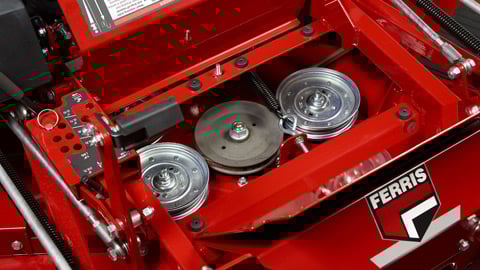

EASY ACCESS
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

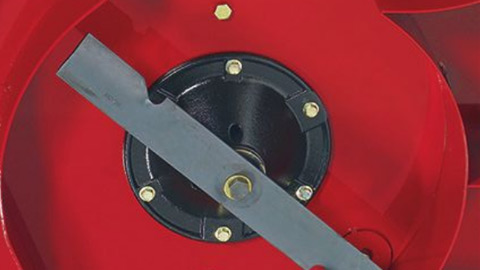

ICD™ CUTTING SYSTEM
The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. Every component works together to achieve superior cut quality and longer component life.

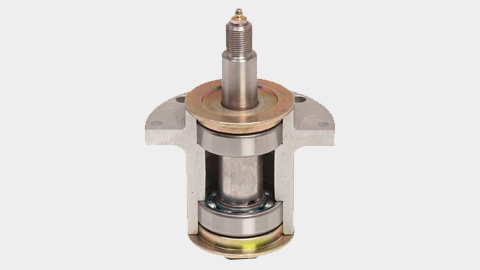

CAST ALUMINIUM SPINDLES
1" steel inner shaft with dual sealed ball bearings for low maintenance.

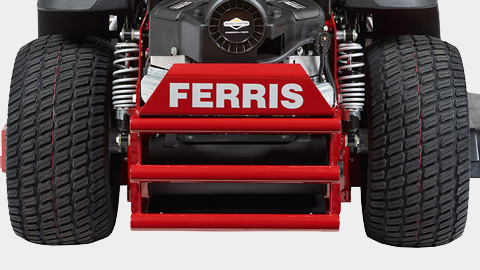

HEAVY-DUTY BUMPER
Heavy-duty bumper protects the engine while also allowing for easy service access.
Specifications
| 5902108 | |
| RRP | $18,999 |
| Engine Brand | Briggs & Stratton® CXi Series |
| Horsepower* | 27 |
| Engine Displacement (cc) | 810 |
| Number of Cylinders | 2 |
| Starter | Electric |
| Transmission Type | Dual commercial Hydro-Gear® ZT-3200® transaxles with 7" cooling fans |
| Ground Speed - Fwd (kph) | 0 - 16.1 |
| Ground Speed - Rev (kph) | 0 - 8.1 |
| Parking Brake | Hand-operated internal transaxle brake |
| Suspension | Adjustable front and rear coil-over shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over shocks |
| Seat Package | Mid-back suspension seat with adjustable arm rests |
| Fuel Tank Capacity (L) | 20.8 |
| Certified Roll-over Protection System | 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank |
| Deck Size (in/cm) | 52/132 |
| Deck Construction | iCD™+ Cutting System |
| Cutting Height (in / cm) | 1.5-5/3.8-12.7 |
| Spindles | Aluminum greasable |
| Drive Tyres (in) | 22 x 11 - 10 |
| Castor Tyres (in) | 13 x 6.5 - 6 |
| Axles (in) | 1.125 |
| Overall Length (mm) | 2058 |
| Overall Width (mm) Deflector Down/Deflector Up | 1651/1448 |
| Dry Weight (KG) | 481 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks are covered for 6 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Suspension | 10 Years |
| Operator's Manuals |
Fine Print
* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
