300S Zero Turn Mowers
COMMERCIALLY INSPIRED
Now in a compact footprint, the 300S delivers a premium, commercially inspired platform that meets the needs of home owners and land owners alike. As expected with Ferris, the 300S provides suspension technology, serving up speed, cut quality, comfort, and durability.

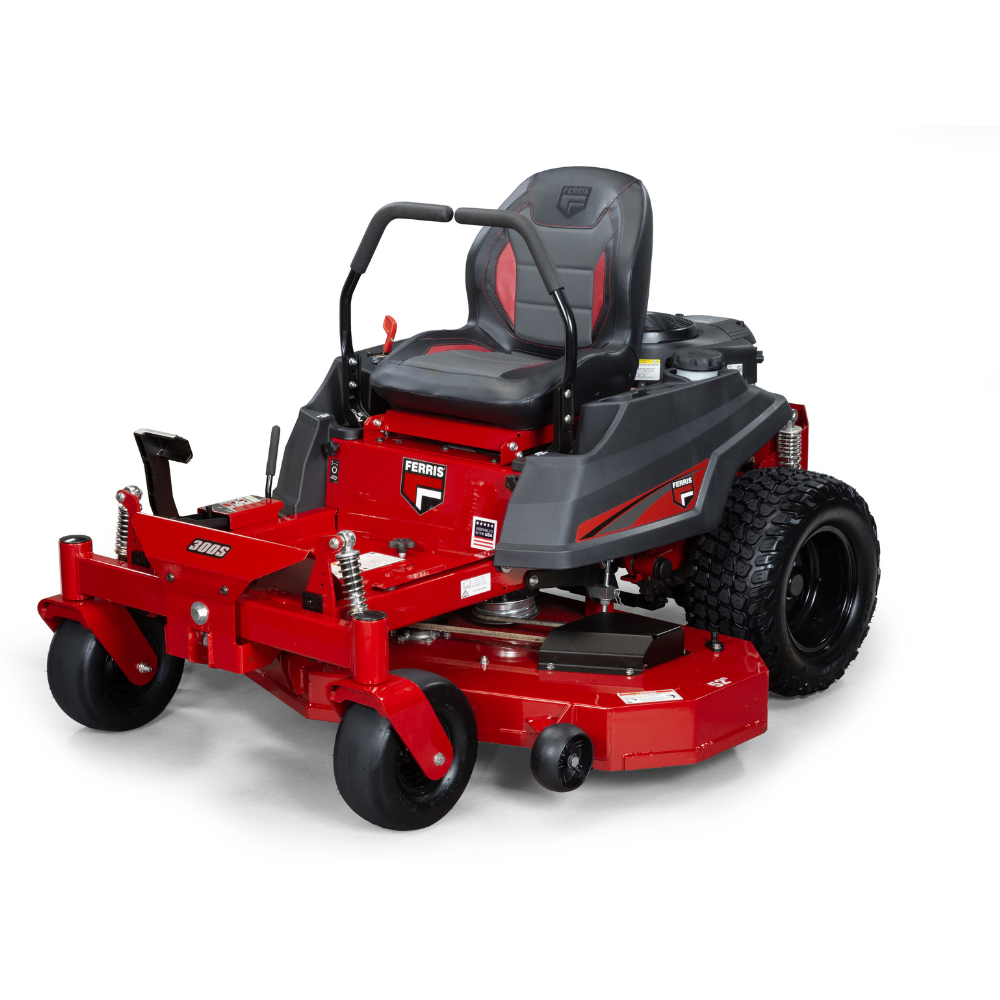

** Image shown is Ferris 300S 52.
Cutting Width
42-52 in
Power Rating*
23-25 HP
Ground Speed
11.2 kph
Limited Warranty†
3 Years
Features
COMPACT MANOEUVRABILITY
The combination of a smaller frame and deck size options allows for easy manoeuvrability in tight spaces or around intricate landscaping.
PREMIUM FEATURES WITHIN REACH
You don't have to settle for less. 300S is loaded with commercially inspired components, including the suspension we are known for, delivering a smooth ride and quality cut at faster speeds.
TRUSTED POWER
Powered by a Briggs & Stratton® PXi Series™ V-twin engine, experience smooth power in the roughest and thickest of turf conditions.
FABRICATED MOWING DECK
Durable, steel-fabricated mowing decks provide reliable cutting performance and include anti-scalp wheels.
PRE-DRILLED HITCH MOUNT
A pre-drilled hitch mount on the bumper makes it convenient to attach any standard size trailer hitch ball and immediately boost your versatility.
HYDRO-GEAR® TRANSAXLES
Dual transaxles with 7" cooling fans repel debris and provide consistent power. 48" and 52" decks: Hydro-Gear® ZT-2800®
Specifications
| 5902149 | 5902148 | 5902147 | |
| Engine Brand | Briggs & Stratton® PXi SeriesTM | Briggs & Stratton® PXi SeriesTM | Briggs & Stratton® PXi SeriesTM |
| Horsepower* | 23 | 23 | 25 |
| Engine Displacement (cc) | 724 | 724 | 724 |
| Number of Cylinders | 2 | 2 | 2 |
| Starter | Electric | Electric | Electric |
| Fuel Type | Petrol | Petrol | Petrol |
| Transmission Type | Hydro-Gear® EZT | Hydro-Gear® EZT | Hydro-Gear® ZT-2800® |
| Ground Speed - Fwd (kph) | 0-11.2 | 0-11.2 | 0-12.8 |
| Ground Speed - Rev (kph) | 0-6.4 | 0-6.4 | 0-6.4 |
| Parking Brake | Hand-operated external transaxle brake | Hand-operated external transaxle brake | Hand-operated external transaxle brake |
| Suspension | Front | Front and Rear | Front and Rear |
| Seat Package | Mid-back seat | Mid-back seat | Mid-back seat |
| Fuel Tank Capacity (lit) | 11.3 | 11.3 | 11.3 |
| Hour Meter/Instrumentation | Hour meter in control panel | Hour meter in control panel | Hour meter in control panel |
| Deck Size (in/cm) | 42/106 | 48/122 | 52/132 |
| Deck Construction | 10-gauge, Fabricated | 10-gauge, Fabricated | 10-gauge, Fabricated |
| Cutting Height (in / cm) | 1.5 - 4.5 / 3.8 - 11.4 | 1.5 - 4.5 / 3.8 - 11.4 | 1.5 - 4.5 / 3.8 - 11.4 |
| Spindles | Aluminum Greasable | Aluminum Greasable | Aluminum Greasable |
| Drive Tyres (in) | 20 x 8 - 8 | 20 x 10 - 8 | 20 x 10 - 10 |
| Caster Tyres (in) | 11 x 6 - 5 | 11 x 6 - 5 | 11 x 6 - 5 |
| Axles (in) | 1 | 1 | 1 |
| Overall Length (mm) | 1829 | 1829 | 1829 |
| Overall Width (mm) Deflector Down/Deflector Up | 1397/1143 | 1499/1245 | 1651/1347 |
| Dry Weight (KG) | 256 | 285 | 313 |
| Warranty (Balance of Machine) † | Warranty Consumer Warranty (Product), 3-Years / Commercial Warranty (Product), 90-Days † | Warranty Consumer Warranty (Product), 3-Years / Commercial Warranty (Product), 90-Days † | Warranty Consumer Warranty (Product), 3-Years / Commercial Warranty (Product), 90-Days † |
| Warranty (Engine) † | 2-Year limited manufacturer's warranty † | 2-Year limited manufacturer's warranty † | 2-Year limited manufacturer's warranty † |
| Operator's Manuals |
Fine Print
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
