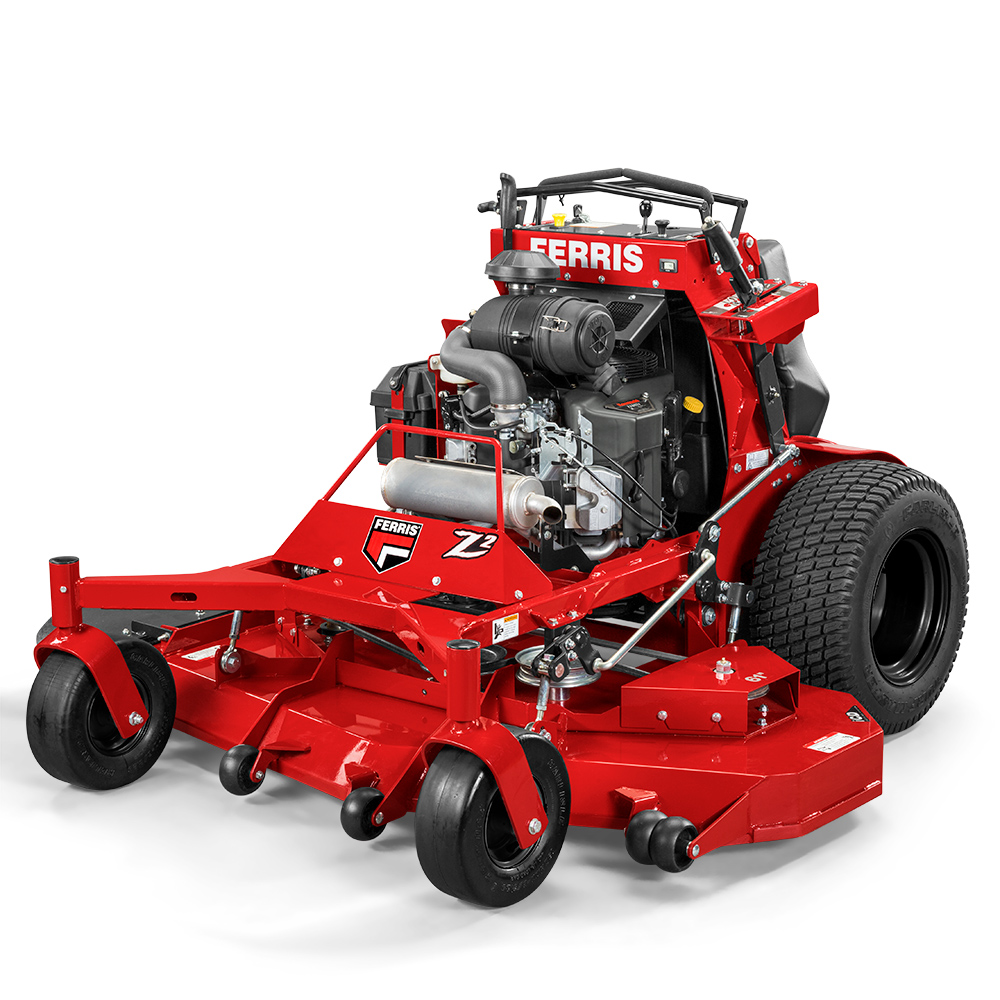

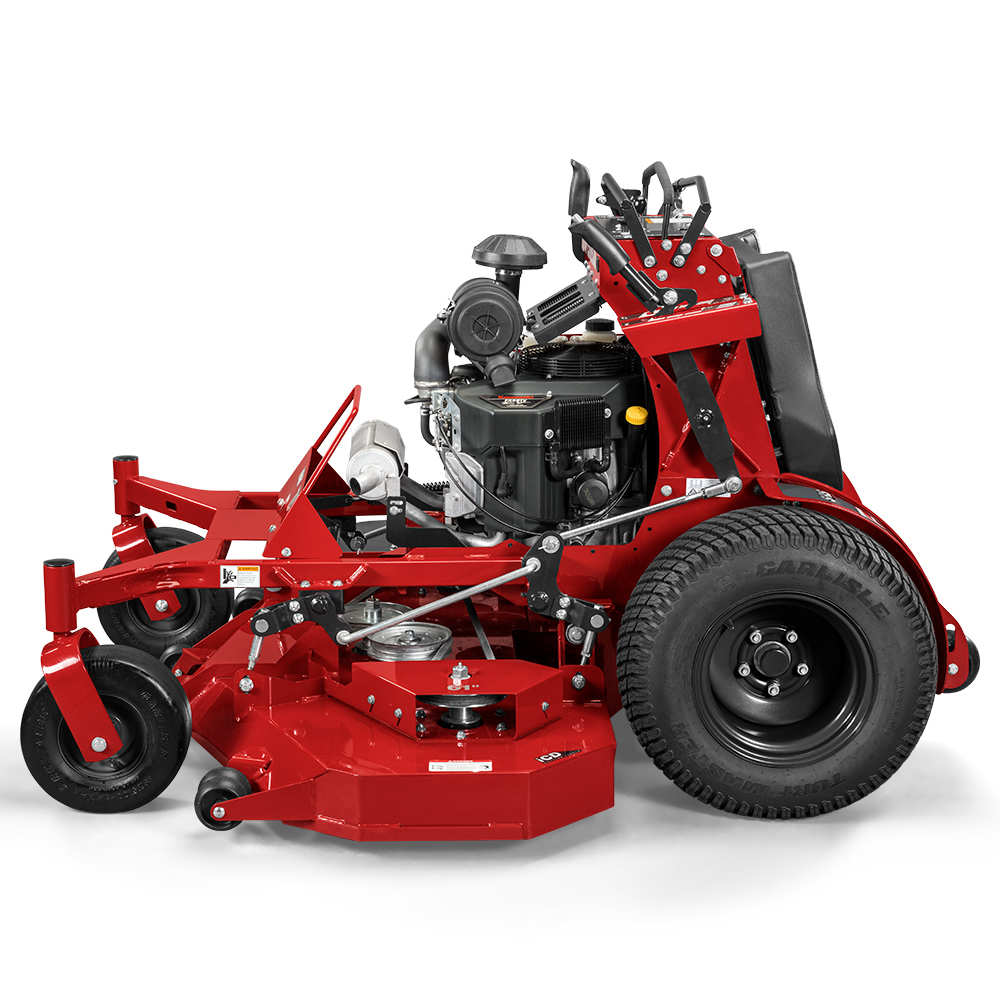

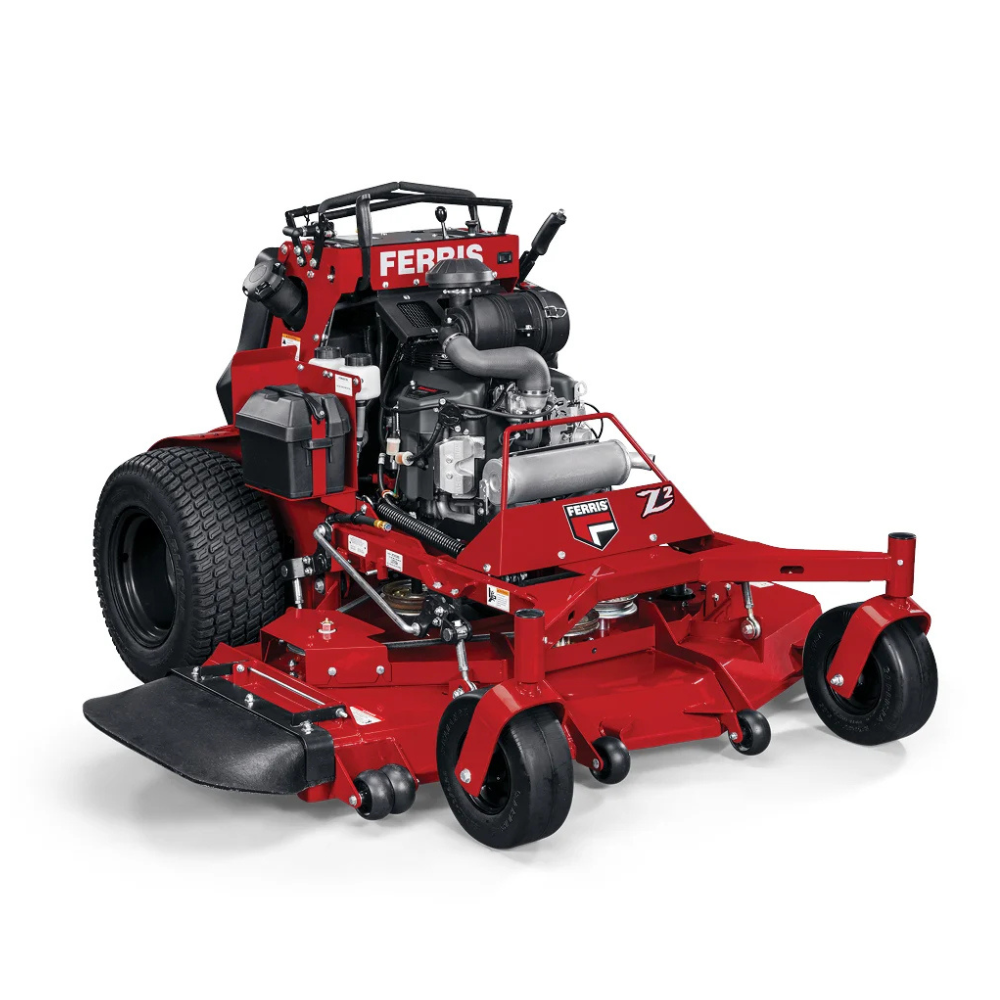

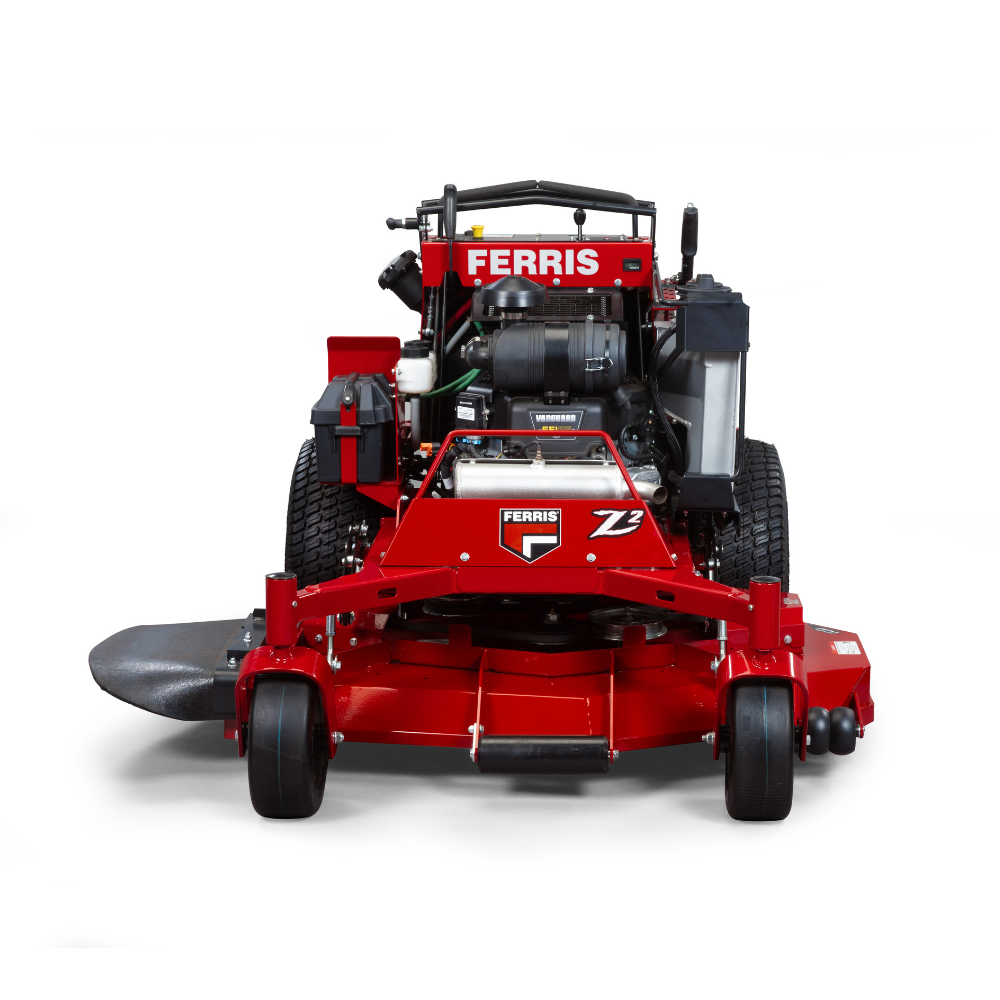

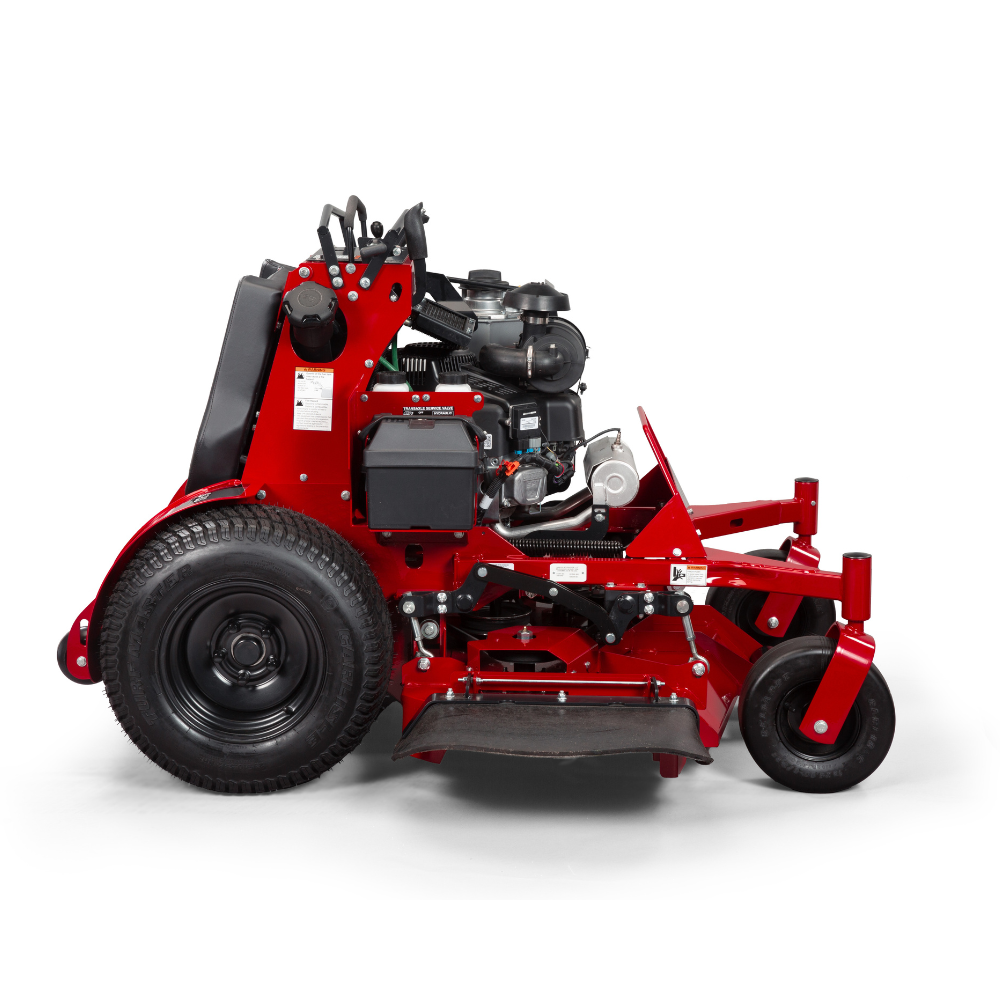

SRS Z2 Stand-On Mower
A COMBINATION OF SPEED, AGILITY AND HIGH QUALITY OF CUT
The Soft Ride Stand-On SRS™ Z2 raises the bar with our adjustable operator platform, which features suspension technology that optimises operator comfort and increases productivity. The superior balance provides stability and maneuverability that exceeds expectations for traction and handling.
Deck Size
52 in
Power Rating*
28 HP
Ground Speed
0 - 16.1 kph
Limited Warranty†
4 Years
Features

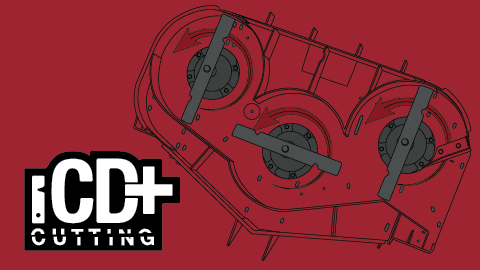

ICD™+ CUTTING SYSTEM
Redesigned to deliver next-level performance, increased durability and superior results. Select models.

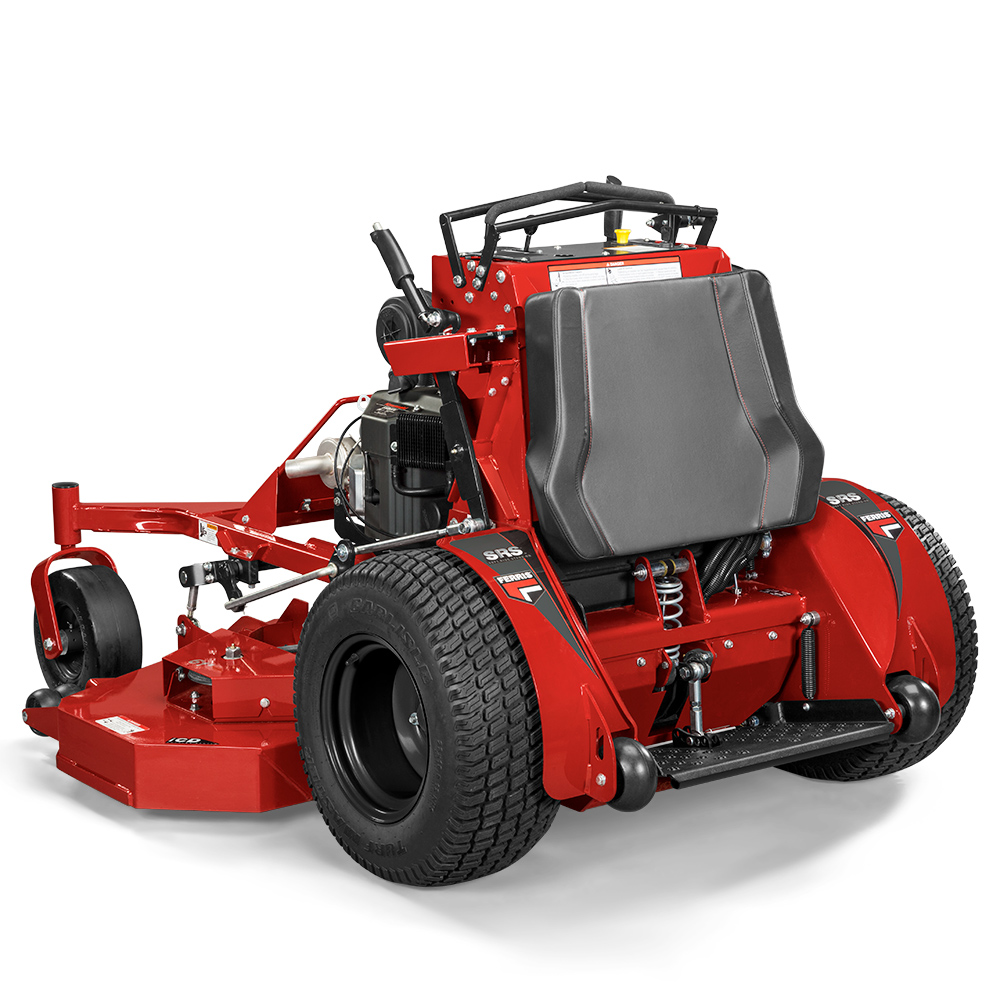

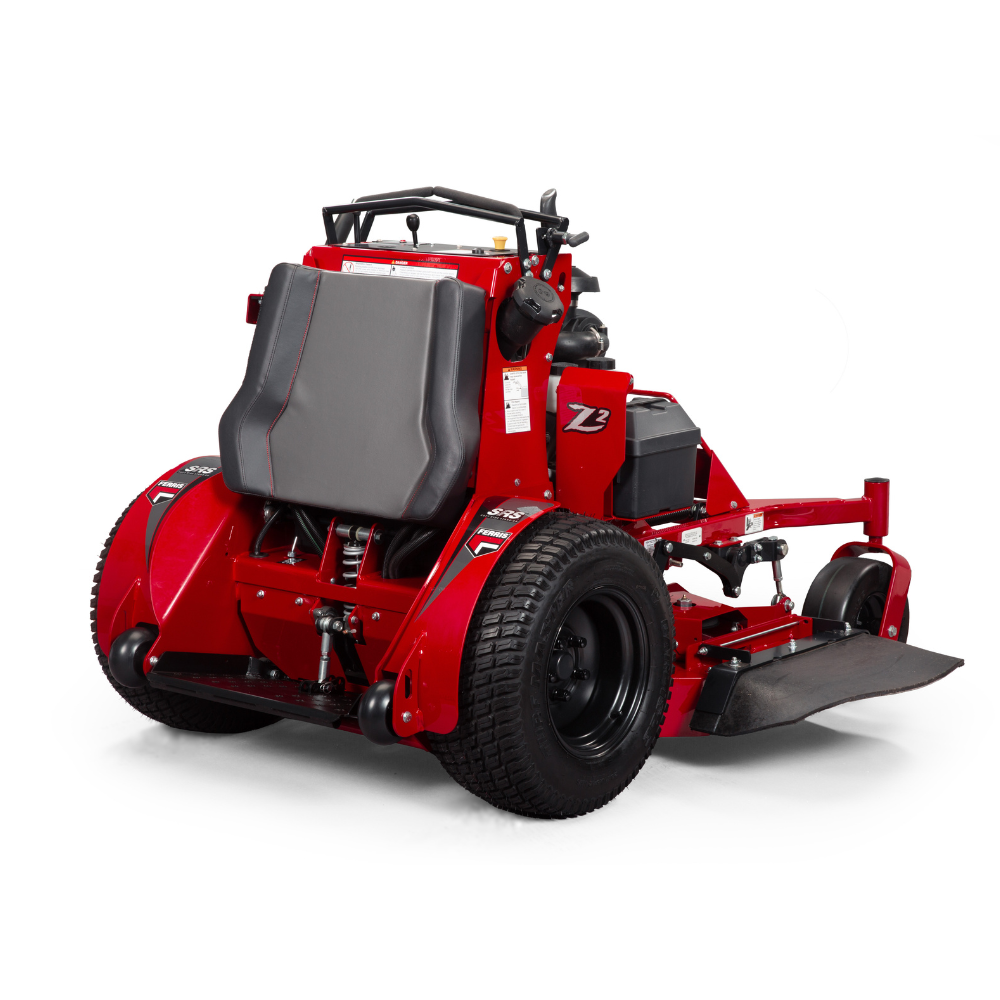

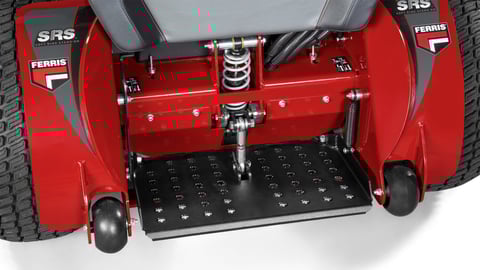

SUSPENSION PLATFORM SYSTEM
The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
500 HOUR OIL CHANGE (SELECT MODELS)
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
VANGUARD™ 810CC EFI ENGINES
Vanguard™ 810cc engines deliver the optimum power, performance and efficiency commercial zero-turn mowers need.

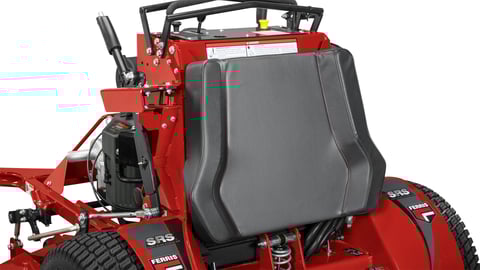

STANDING COMFORT
Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.

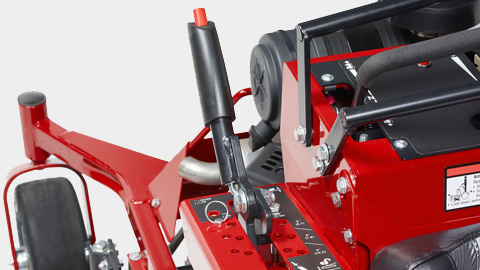

ADJUSTABLE HEIGHT OF CUT
Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 5".

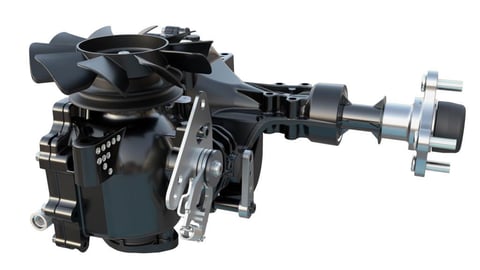

INTEGRATED MOWING TRANSMISSIONS
Commercial Hydro-Gear® ZT-3800® transaxles are designed for high performance and are fully serviceable.
Specifications
| 5902070 | |
| Engine Brand | Vanguard™ 810 EFI with Oil Guard |
| Horsepower | 28 |
| Engine Displacement (cc) | 810 |
| Number of Cylinders | 2 |
| Starter | Electric |
| Type | Hydro-Gear® ZT-3800™ transaxles with 7" cooling fans & external oil coolers |
| Ground Speed - Fwd (kph) | 0 - 16.1 |
| Ground Speed - Rev (kph) | 0 - 8.1 |
| Parking Brake | Hand operated Internal transaxle brake |
| Suspension | Adjustable coil-over shock, Operator Suspension Platform |
| Fuel Tank Capacity (lit) | 30 |
| Controls / Safety Group | Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart |
| Hour Meter/Instrumentation | Fuel gauge, hour meter |
| Deck Size (in/cm) | 52/132 |
| Deck Construction | iCD+™ Cutting System |
| Cutting Height (in) | 1.75-5/4.4-12.7 |
| Spindles | Aluminum Greasable |
| Drive Tyres (in) | 23 x 10.5-12 |
| Caster Tires | 13 X 6.5-6, Flat Free |
| Axles (in) | 1.125 |
| Overall Length (cm) | 1702 |
| Overall Width (in) Deflector Down/Deflector Up | 1651/1391 |
| Dry Weight (lbs) | 426 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Operator's Manuals |
Fine Print
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
