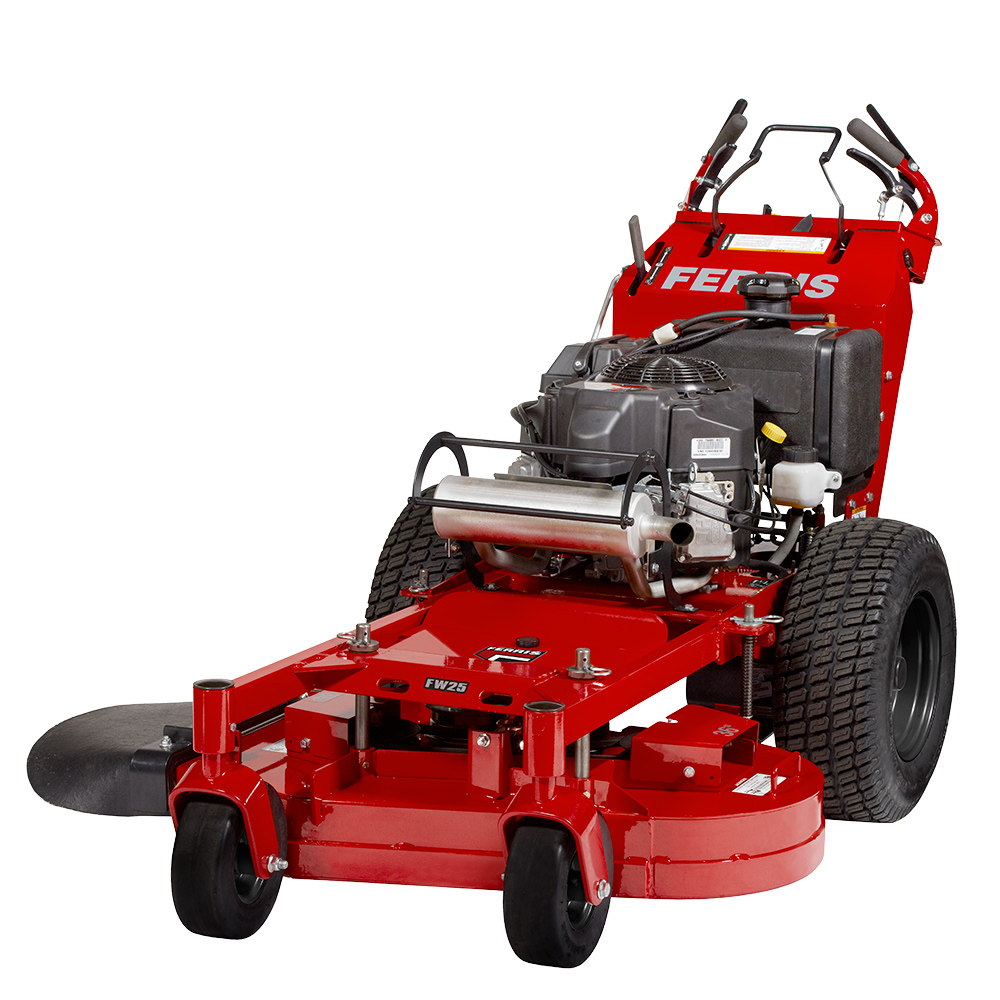

FW25 Walk Behind Mower
Compact, Self-Propelled Mower for the Landscape Professional
Your crew will breeze through jobs the easy-to-use controls, electric start option, and 6 mph top ground speed on the FW25 walk-behind. With a choice of 36” and 48” deck widths, the FW25 fits most small sheds and trailers, while delivering superior control for navigating thick turf, surface imperfections, and hills.
Gross Torque
18.5 HP
Deck Size
36"
Ground Speed
6 MPH
Limited Warranty†
2 Years
Features

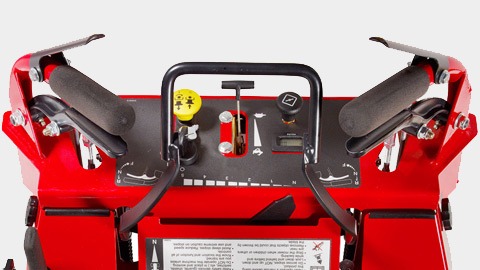

CRUISE CONTROL TO SET SPEED
Adjust the mower's speed without removing your hands from the control handles with the improved, ready-access cruise control bar. Simply press forward to increase speed and pull back a slow down. A convenient speed indicator is placed within easy view on the control panel.

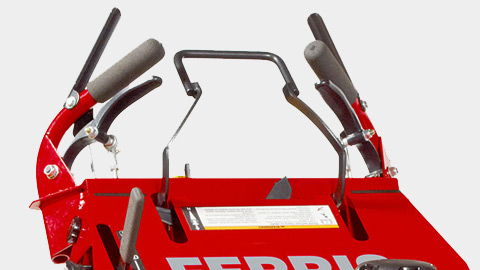

EASIER-TO-USE CONTROLS
The CC™ Centralized Control lawn mower handle design places the operator's hands in the ideal position to access all in-demand controls. Ergonomic operator presence, steering and reverse levers on both handles operate with a light touch to reduce operator fatigue. Easily adjust control tensions to fine tune for different operating conditions.

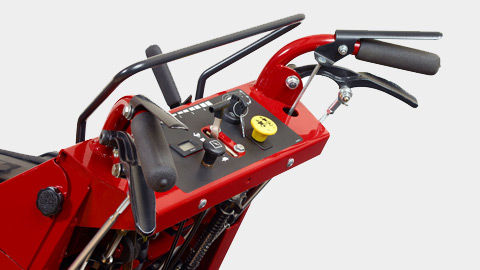

KEEPS THE ENGINE RUNNING
Need to walk away from the mower to move an obstacle or debris? The new PTO switch allows the operator to stop the mower blades quickly and easily. While mowing, simply step on the centralized foot activated neutral pedals or pull back on the cruise control bar to place in neutral. Then, remove your hands from the controls. The blades will stop while the engine continues to run. Restarting the blades is just as easy. Place your hand on the controls, pull up the PTO switch and set your speed with the cruise control bar.

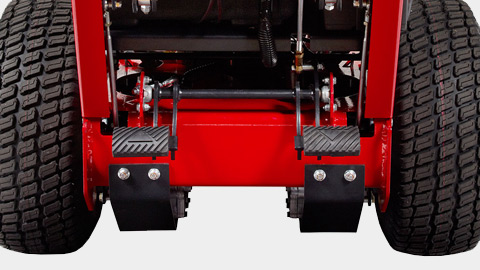

EASY-ACCESS NEUTRAL POSITION
New dual access neutral pedals take the guesswork out of finding neutral, simplifying operation and saving time. The operator can use either foot to put the mower in neutral. The neutral position is clearly identified on the speed indicator on the dash.

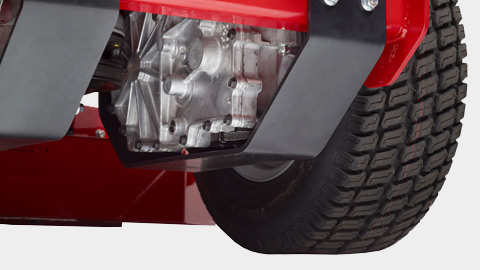

WELL BUILT, WELL PROTECTED
Thick, 1/4" steel guards protect the front deck mower's transmission when going over curbs or rolling on and off a trailer - the type of rough handling that occurs daily under commercial use and can render lesser mowers inoperable. The design also reduces build up of debris to improve air flow and allow for access to the filter for maintenance.

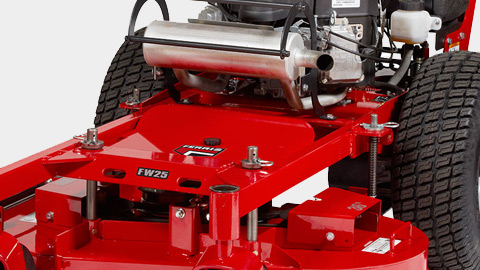

ROBUST DECK MOUNTING
The deck mounting system provides easier deck leveling, improved flexibility over terrain, easy-access grease points and more durable wear points for reduced maintenance.

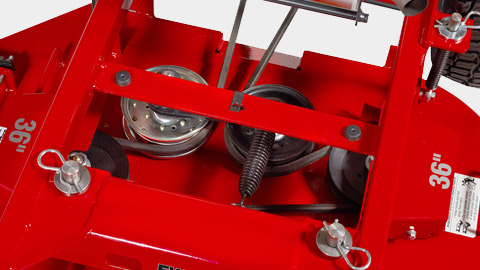

LONGER BELT LIFE
The parts that wear out the soonest don't have to go so soon. The Ferris-engineered deck drive belt system and larger pulleys provide gentler belt tension, which - combined with our unique debris shield - extends belt life and reduces wear on bearings.

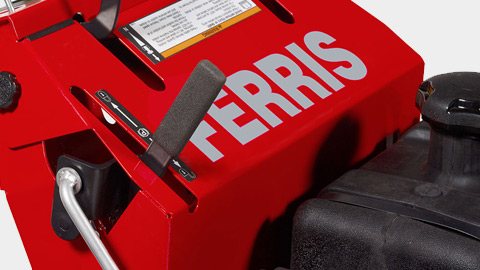

EASY REACH PARKING BRAKE
We located the parking brake handle conveniently in front of the control panel, providing instant access with minimal operator effort to reach and engage.
Specifications
| 5901886 | 5901887 | 5901888 | |
| US MSRP ^ | $8,139.00 | $8,579.00 | $8,579.00 |
| CA MSRP ^ | $10,988.00 | $11,582.00 | $11,582.00 |
| Engine Brand | Kawasaki® FS600V | Kawasaki® FS600V | Kawasaki® FS600V |
| Horsepower | 18.5 | 18.5 | 18.5 |
| Engine Displacement (cc) | 603 | 603 | 603 |
| Number of Cylinders | 2 | 2 | 2 |
| Starter | Electric | Electric | Electric |
| Fuel Type | Gas | Gas | Gas |
| Type | Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans | Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans | Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans |
| Ground Speed - Fwd (mph) | 0-6 | 0-6 | 0-6 |
| Ground Speed - Rev (mph) | 0-3 | 0-3 | 0-3 |
| Parking Brake | Hand operated Internal transaxle brake | Hand operated Internal transaxle brake | Hand operated Internal transaxle brake |
| Fuel Tank Capacity (gal) | 5 | 5 | 5 |
| Controls / Safety Group | Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls | Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls | Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls |
| Hour Meter/Instrumentation | Dual-function hour meter | Dual-function hour meter | Dual-function hour meter |
| Deck Size (in) | 36 | 48 | 48 |
| Deck Construction | 10-gauge, Fabricated | 10-gauge, Fabricated | 10-gauge, Fabricated |
| Cutting Height (in) | 1.5-4.5 | 1.5-4.5 | 1.5-4.5 |
| Spindles | Aluminum Greasable | Aluminum Greasable | Aluminum Greasable |
| Drive Tires (in) | 20 x 7-10 | 20 x 7-10 | 20 x 7-10 |
| Caster Tires | 9 x 3.5-4, Flat-free | 9 x 3.5-4, Flat-free | 9 x 3.5-4, Flat-free |
| Overall Length (in) | 73 | 78 | 73 |
| Dry Weight (lbs) | 632 | 694 | 694 |
| Warranty (Balance of Machine) † | 2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details. | 2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details. | 2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
