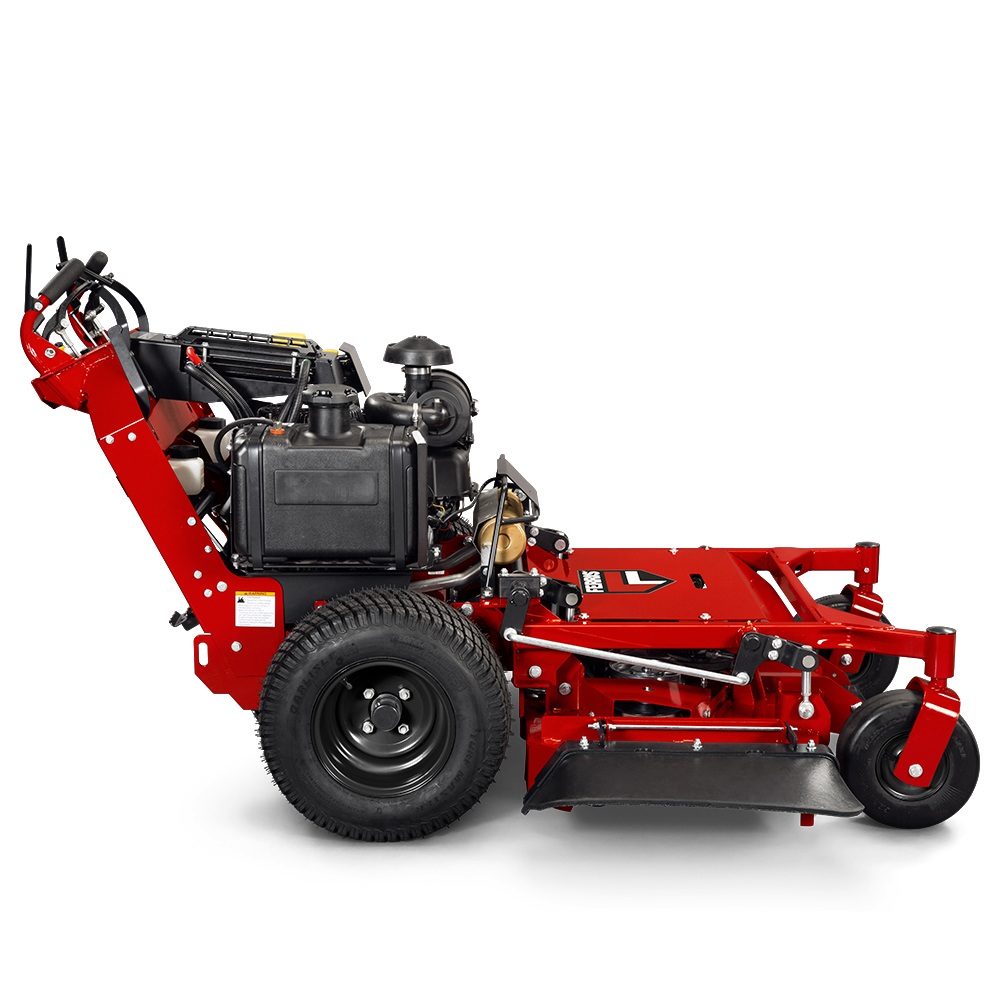

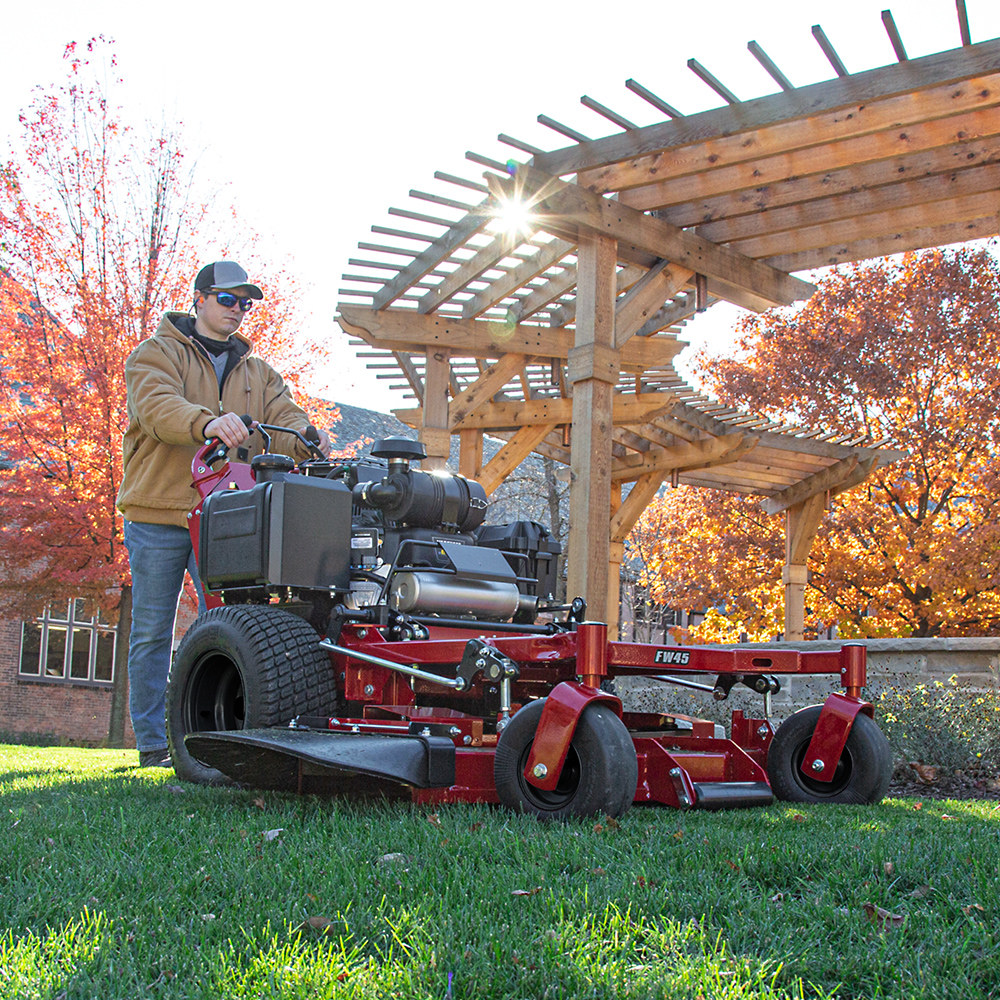

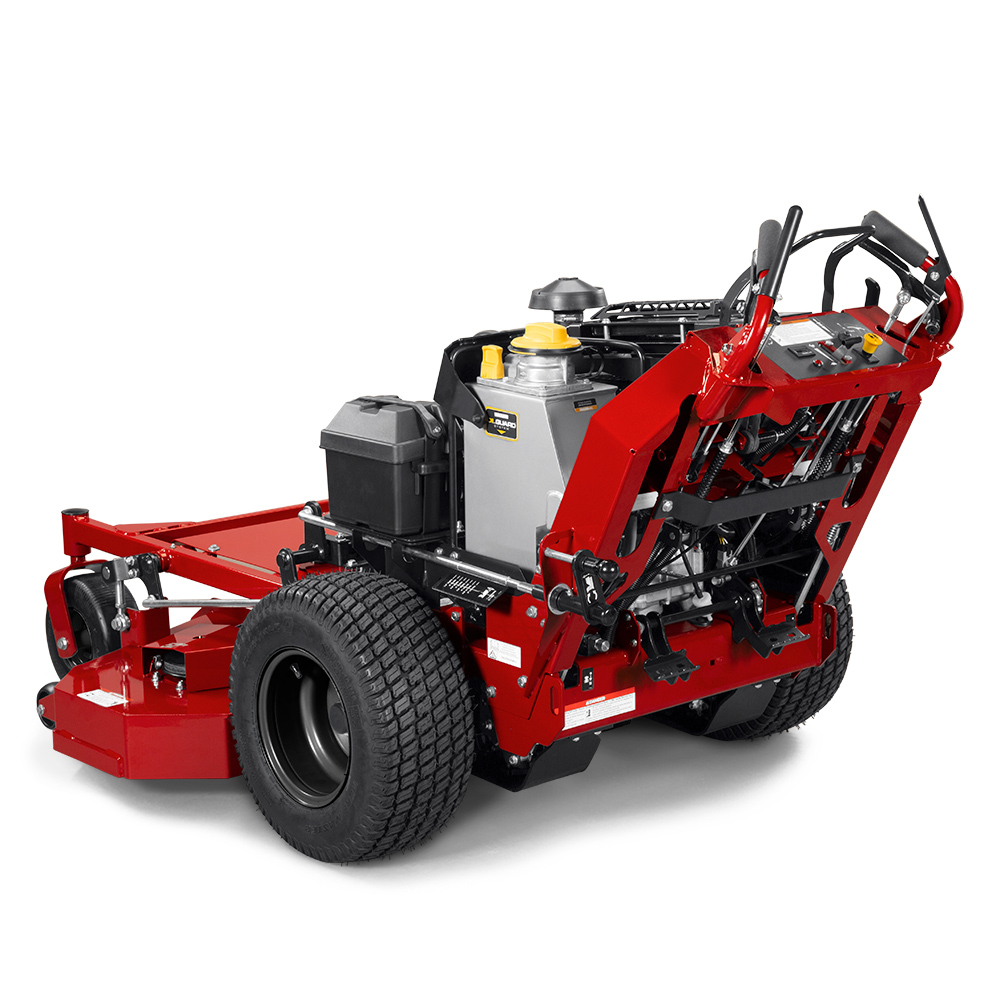

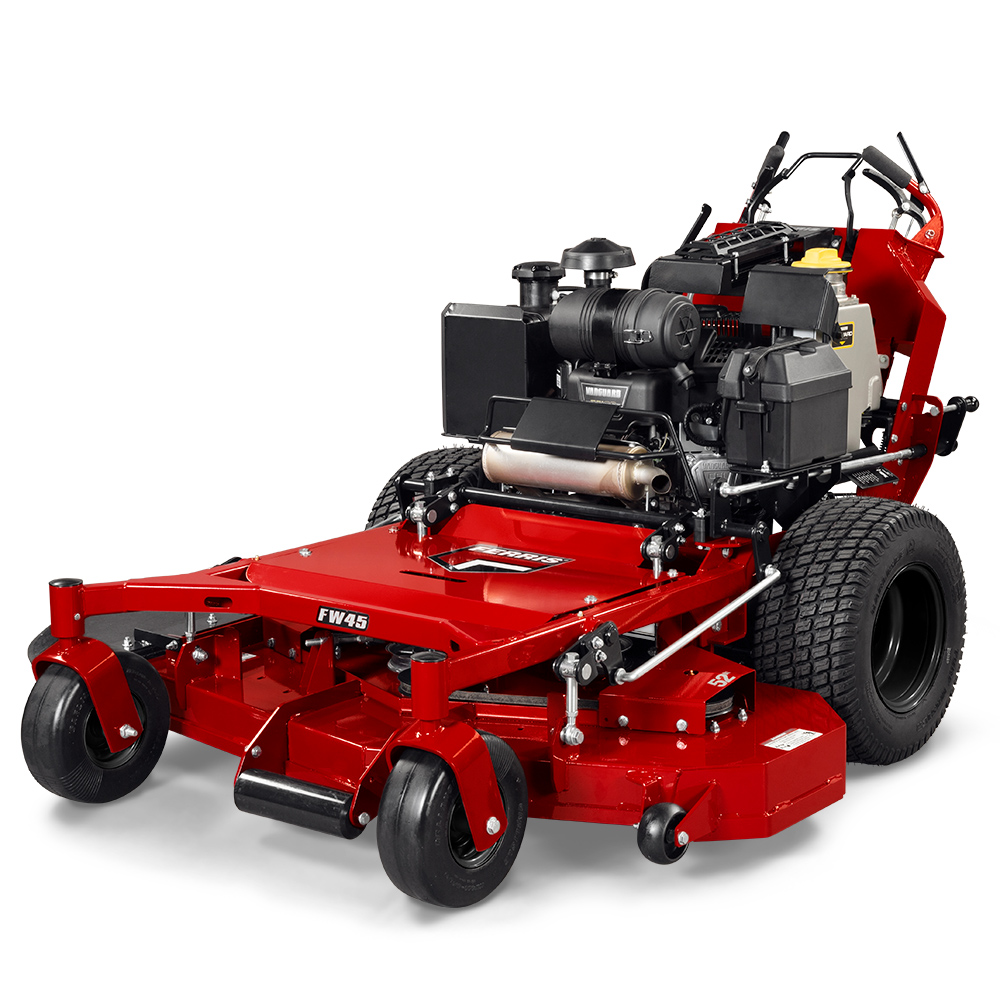

FW45 Walk Behind Mower
Fuel-Efficient Wide Area Commerical Mowers Built for Comfort & Control
The FW45 is engineered for performance, productivity, and comfort. The three available deck sizes allow for maneuverability while engine options provide the power a commercial walk mower needs. Pairing comfort features like ergonomically designed controls with easy maintenance and durability mean the FW45 can handle whatever is thrown at it.
Gross Torque
28+ HP
Deck Size
48+"
Ground Speed
7 MPH
Limited Warranty†
2 Years
Features

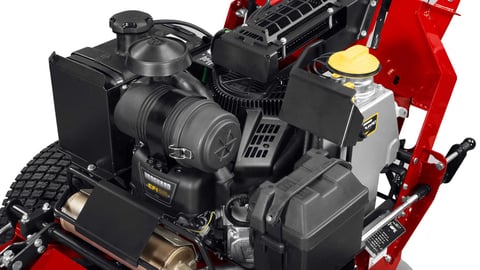

ADDED POWER AND PERFORMANCE
Powered by a 28 hp* Vanguard® 810 EFI Engine with Oil Guard™, you will get a 500-hour oil change interval that can reduce maintenance time and costs by 60%**. (Select models)

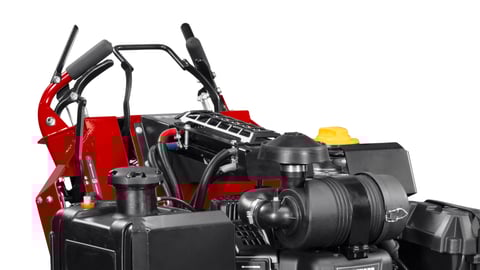

COOL OIL FOR EFFICIENT USE
External oil coolers for the dual Hydro-Gear ZT-3400 transaxles reduce oil temperature by as much as 25%, plus a new quick fill system makes maintenance that much easier.

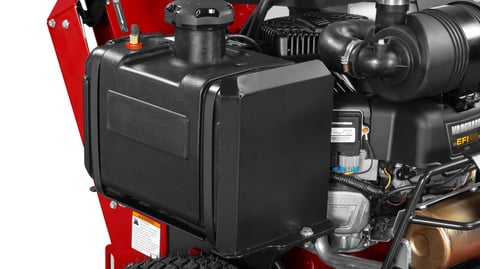

GAS TANK GUARD
Additional protection has been added to protect the gas tank from obstacles and debris.

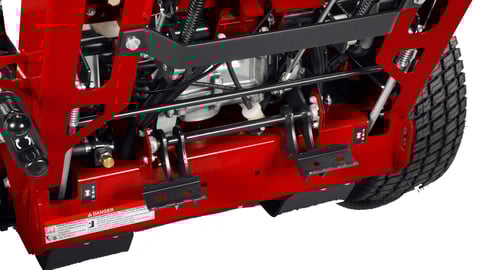

ENHANCED FOOT PEDAL SUPPORT
Upgraded with dual solid-steel return-to-neutral foot pedals for better user support.

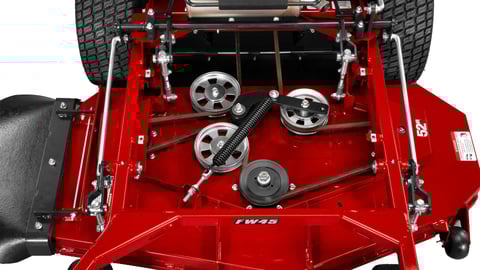

NEW SPINDLE ACCESS
We listened closely to our commercial users when considering the enhancements on our redesigned mower deck. The new, improved deck provides a new spindle easy-access slot for faster greasing and accessibility.

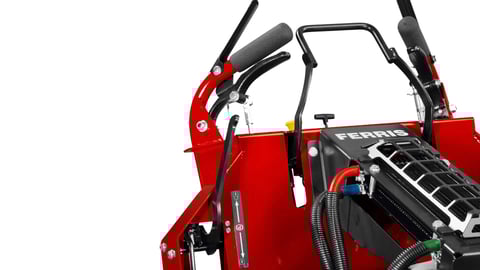

ERGONOMIC PARKING BRAKE
We modified and added an angles parking brake that is pulled into the frame to prevent snagging or bending. This now provides instant access with minimal operator effort to each and engage.

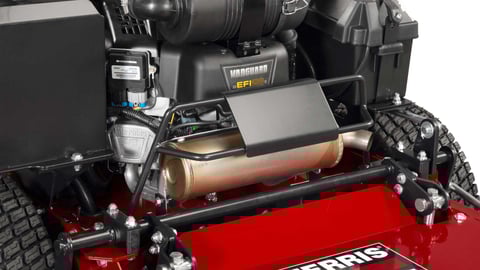

ENHANCED MUFFLER GUARD
Enhanced muffler guard has been added to protect the O2 sensor on the EFI Oil Guard models.
HYDRO-GEAR® ZT-3400™ TRANSAXLES
Dual commercial grade transaxles with remote oil coolers that reduce oil temperature by as much as 25% and feature 1.125" tapered axle, forged steel bull gear and steel cut pinion gear for enhanced performance in commercial applications.
Specifications
| 5901891 | 5901892 | 5901893 | |
| US MSRP ^ | $10,723.00 | $11,494.00 | $11,494.00 |
| CA MSRP ^ | $14,476.00 | $15,517.00 | $15,517.00 |
| Engine Brand | Kawasaki® FX651 | Vanguard™ 810cc EFI with Oil Guard | Vanguard™ 810cc EFI with Oil Guard |
| Horsepower | 20.5 | 28 | 28 |
| Engine Displacement (cc) | 726 | 810 | 810 |
| Number of Cylinders | 2 | 2 | 2 |
| Starter | Electric | Electric | Electric |
| Fuel Type | Gas | Gas | Gas |
| Type | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers |
| Ground Speed - Fwd (mph) | 0-7 | 0-7 | 0-7 |
| Ground Speed - Rev (mph) | 0-3 | 0-3 | 0-3 |
| Parking Brake | Hand operated Internal transaxle brake | Hand operated Internal transaxle brake | Hand operated Internal transaxle brake |
| Fuel Tank Capacity (gal) | 5 | 5 | 5 |
| Controls / Safety Group | Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls | Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls | Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls |
| Hour Meter/Instrumentation | Dual-function hour meter | Dual-function hour meter | Dual-function hour meter |
| Deck Size (in) | 52 | 52 | 52 |
| Deck Construction | 10-gauge, Fabricated | 10-gauge, Fabricated | 10-gauge, Fabricated |
| Cutting Height (in) | 1.5-5 | 1.5-5 | 1.5-5 |
| Spindles | Cast-iron Greaseable | Cast-iron Greaseable | Cast-iron Greaseable |
| Drive Tires (in) | 20 x 8-10 | 20 x 8-10 | 20 x 8-10 |
| Caster Tires | 11 x 4-5 | 11 x 4-5 | 11 x 4-5 |
| Overall Length (in) | 78.75 | 78.75 | 75 |
| Overall Width (in) Deflector Down/Deflector Up | 67 / 57 | 67 / 57 | 67 / 57 |
| Dry Weight (lbs) | 814 | 814 | 814 |
| Warranty (Balance of Machine) † | 2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details. | 2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details. | 2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Operator's Manuals |
Fine Print
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
**Cost savings based on standard oil maintenance with 100-hour interval versus Oil Guard™ system 500 hour service interval.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
