Coming Soon: ISX™ 3300 Rear Discharge Zero Turn Mowers
Keeps clippings within a narrow path for safer operation near crowds, traffic, and tight obstacles.
Because landscapers rarely operate in ideal, open spaces, controlling deck discharge is just as critical as the cut quality beneath it.
To address discharge challenges, we launched a new SKU with advanced rear-discharge deck technology to the ISX™ 3300 lineup. This solution enhances debris management, enables dual-side trimming, and boosts safety in bustling settings.
Features

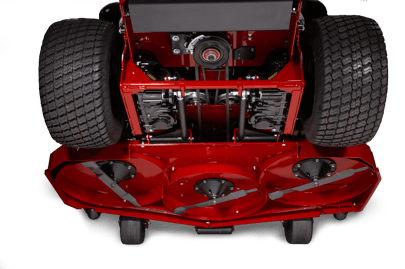

REAR DISCHARGE DECK
Discharges debris out of the back of the mower. Work seamlessly along fence lines, medians, high-traffic areas and obstacles while safely containing debris, even in wet and heavy grass.
ICD™+ CUTTING SYSTEM
Redesigned to deliver next-level performance, increased durability and superior results. Select models.
CAST-IRON, MAINTENANCE-FREE SPINDLES
Designed with sealed bearings, maintenance-free spindles guard against moisture and dirt to ensure cleaner, trouble-free performance. They eliminate the need for routine greasing, preventing common operator mistakes such as over- or under-lubricating.
VANGUARD BIG BLOCK™ ENGINE
The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)

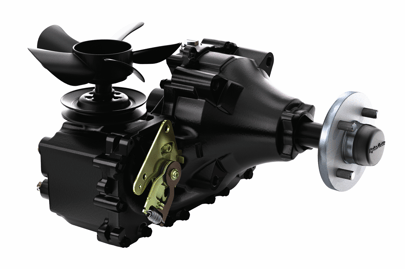

INTEGRATED MOWING TRANSMISSIONS
Commercial Hydro-Gear® ZT-5400® transaxles are designed for high performance and are fully serviceable.
VANGUARD ELECTRONIC THROTTLE CONTROL
This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)
Specifications
| 5902266 (Coming Soon!) | 5902267 (Coming Soon!) | |
| Deck Size (in) | 61 | 72 |
| Engine Brand | Vanguard® EFI-ETC with Oil Guard™ | Vanguard® EFI-ETC with Oil Guard™ |
| Transmission | Dual Hydro-Gear® ZT-5400® w/ internal expansion tanks | Dual Hydro-Gear® ZT-5400® w/ internal expansion tanks |
| Horsepower | 40 | 40 |
| Engine Displacement (cc) | 993 | 993 |
| Number of Cylinders | 2 | 2 |
| Starter | Electric | Electric |
| Fuel Type | Gas | Gas |
| Ground Speed - Fwd (mph) | 0-12 | 0-12 |
| Ground Speed - Rev (mph) | 0-5 | 0-5 |
| Parking Brake | Hand-operated internal transaxle brake | Hand-operated internal transaxle brake |
| Suspension | ForeFront™ Suspension System | ForeFront™ Suspension System |
| Seat Package | Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline | Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline |
| Fuel Tank Capacity (gal) | 11 | 11 |
| Certified Roll-over Protection System | 158° foldable | 158° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank | Dual-function hour meter, fuel level gauge in tank |
| Deck Construction | 10-Gauge w/ Rear Discharge iCD™ Cutting System | 10-Gauge w/ Rear Discharge iCD™ Cutting System |
| Cutting Height (in) | 1.5-5 | 1.5-5 |
| Spindles | Hercules II Cast-Iron greaseable | Hercules II Cast-Iron greaseable |
| Drive Tires (in) | 26 x 12-12 | 26 x 12-12 |
| Caster Tires | 13 X 6.5-6 | 13 X 6.5-6 |
| Overall Length (in) | 84.5 | 84.5 |
| Overall Width (in) Deflector Down/Deflector Up | 74/65 | 74/65 |
| Dry Weight (lbs) | 1,496 | 1,496 |
| Warranty (Balance of Machine) † | 4 years / 1,000 hours (whichever occurs first) | 4 years / 1,000 hours (whichever occurs first) |
| Warranty (Suspension) | 10 years | 10 years |
| Warranty (Engine) † | See Engine Operator's Manual | See Engine Operator's Manual |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Accessories
3-Bag Soft Top Collection System
Simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 12.5 cu. ft.
.jpg?width=422&height=300&name=turbo-pro_max_ez_dump_collection_system%20(1).jpg)
EZ DUMP™ Collection System
Simply pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped. Capacity: 12 cu. ft.
EZ DUMP XL™ Collection System
Ideal for larger jobs. Simply pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped. Capacity: 14 cu. ft.
Mulch Kit
Select kits include dedicated mulching blades, baffles, hardware and instruction sheet. Includes iCD+ options.
Rubber Striping Kits
Rubber flap system lays down grass to create patterns across the landscape. Includes iCD+ options.
Roller Bar Stripe Kit
Available for 48" and 52" Models
Service Jack & Mounting Kit
Heavy-duty steel bracket and jack allow for easy and convenient access to under the deck.
ROPS LED Light Kit
Models are pre-wired for simple installation.
Trailer Hitch Kit
Will accept a 1/2" shank ball and comes complete with hardware.
Fender Kit
Protects the engine from debris while also allowing for easy service access.
.png?width=368&height=300&name=Accessories%20for%20Site%20(1).png)
Michelin® X® Tweel® Turf Airless Radial Tires
60" and 72" Models Only
