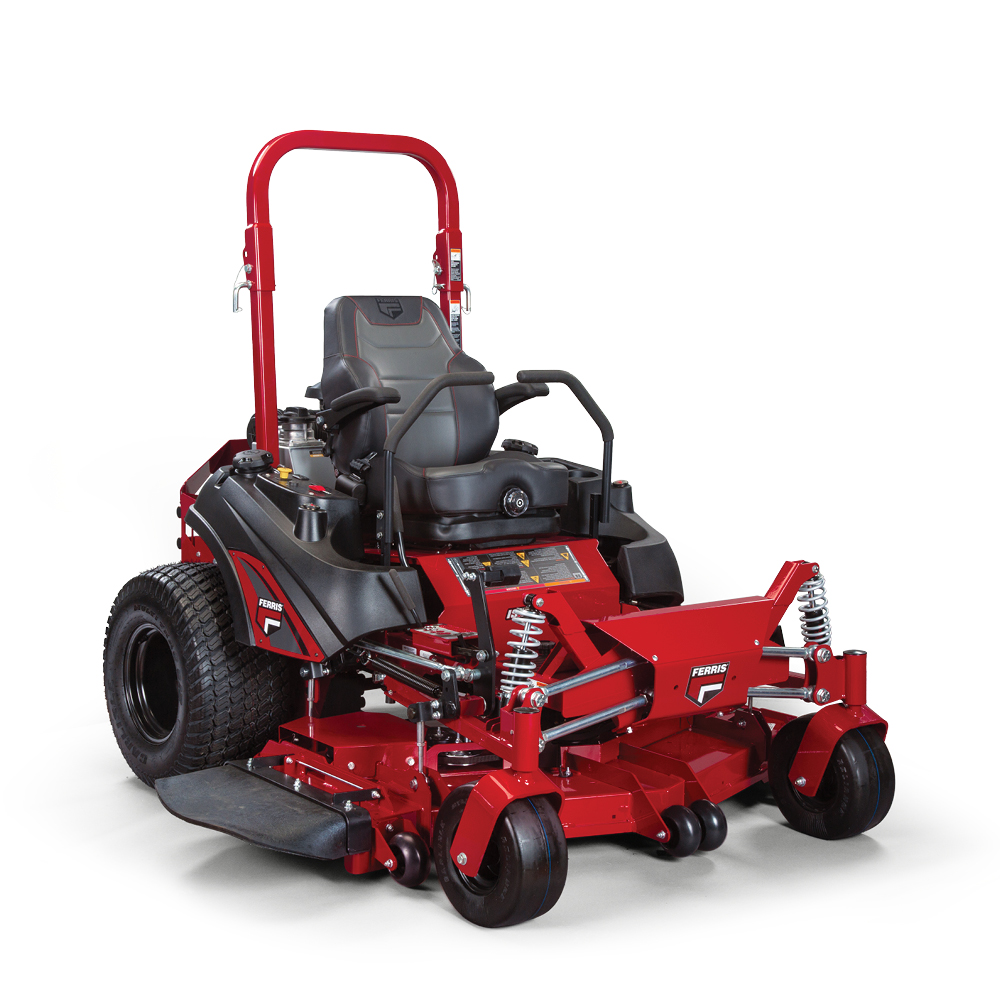

ISX™ 3300 Zero Turn Mowers
The Leader In Suspension Technology For Turf
Featuring next-generation suspension technology – ForeFront™ Suspension, a redesigned 2-belt iCD™+ cutting system, heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system, and travel speeds up to 12 mph. Plus, select models feature EFI-ETC technology for fuel savings, easy starting, and smooth, consistent productivity.
Deck Size
60+"
Power Rating*
31+ HP
Ground Speed
12 MPH
Limited Warranty†
4 Years
Features
ICD™+ CUTTING SYSTEM
-Redesigned to deliver next-level performance, increased durability and superior results. Select models.

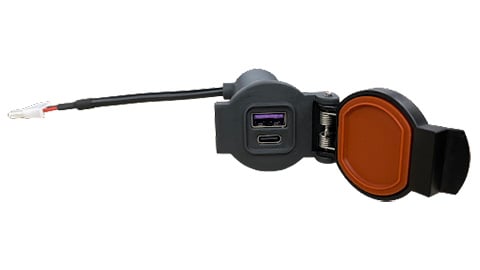

USB PORT
12V-60V, USB Type A & C located on the dash panel for easy access and charging.
VANGUARD BIG BLOCK™ ENGINE
The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)

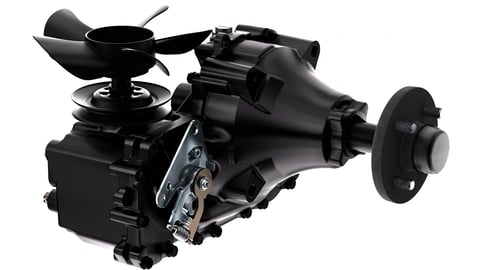

DRIVE SYSTEM
Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans

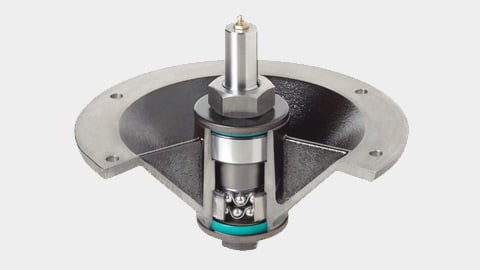

HERCULES™ II CAST-IRON
Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

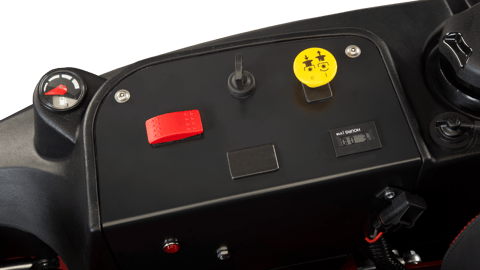

VANGUARD ELECTRONIC THROTTLE CONTROL
This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)
Specifications
| 5902065 | 5902064 | 5902160 | |
| US MSRP ^ | $20,514.00 | $20,129.00 | $21,284.00 |
| CA MSRP ^ | $27,694.00 | $27,174.00 | $28,733.00 |
| Engine Brand | Kawasaki® FX1000V EFI | Vanguard® BIG BLOCK™ EFI ETC with Oil Guard | Kawasaki® FX1000V EFI |
| Horsepower | 38.5 | 40 | 38.5 |
| Engine Displacement (cc) | 999 | 993 | 999 |
| Number of Cylinders | 2 | 2 | 2 |
| Starter | Electric | Electric | Electric |
| Fuel Type | Gas | Gas | Gas |
| Type | Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans | Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans | Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans |
| Ground Speed - Fwd (mph) | 0-12 | 0-12 | 0-12 |
| Ground Speed - Rev (mph) | 0-5 | 0-5 | 0-5 |
| Parking Brake | Hand-operated internal transaxle brake | Hand-operated internal transaxle brake | Hand-operated internal transaxle brake |
| Suspension | ForeFront™ Suspension System | ForeFront™ Suspension System | ForeFront™ Suspension System |
| Seat Package | Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline | Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline | Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline |
| Fuel Tank Capacity (gal) | 11 | 11 | 11 |
| Certified Roll-over Protection System | 158° foldable | 158° foldable | 158° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank | Dual-function hour meter, fuel level gauge in tank | Dual-function hour meter, fuel level gauge in tank |
| Deck Size (in) | 60 | 60 | 72 |
| Deck Construction | iCD™+ Cutting System, 2-Belt | iCD™+ Cutting System, 2-Belt | iCD™+ Cutting System, 2-Belt |
| Cutting Height (in) | 1.5-5 | 1.5-5 | 1.5-5 |
| Spindles | Hercules II Cast-Iron greaseable | Hercules II Cast-Iron greaseable | Hercules II Cast-Iron greaseable |
| Drive Tires (in) | 26 x 12-12 | 26 x 12-12 | 26 x 12-12 |
| Caster Tires | 13 X 6.5-6 | 13 X 6.5-6 | 13 X 6.5-6 |
| Overall Length (in) | 84.5 | 84.5 | 84.5 |
| Overall Width (in) Deflector Down/Deflector Up | 74/65 | 74/65 | 86/74 |
| Dry Weight (lbs) | 1,496 | 1,634 | 1,579 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
