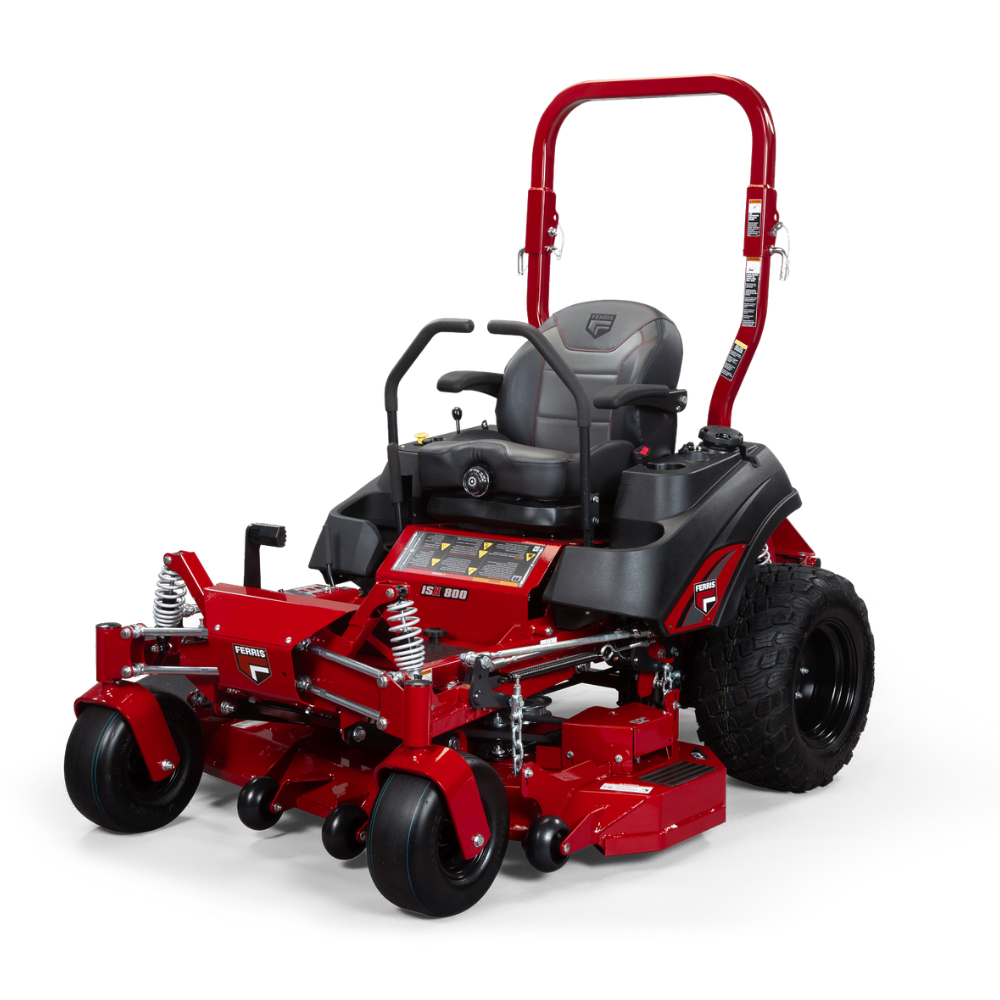

ISX™ 800 Zero Turn Mower
Affordable Commercial Zero Turn With Next Generation Ferris Suspension Technology
The ISX™ 800 is engineered to increase comfort and efficiency, including new OilXtend™ technology to boost productivity. We combine next-generation Ferris technology - ForeFront™ Suspension with iCD™ and iCD™+ Cutting Systems for a smoother ride and improved cut.
Deck Size
52+"
Power Rating*
24+ HP
Ground Speed
10 MPH
Limited Warranty†
4 Years
Features

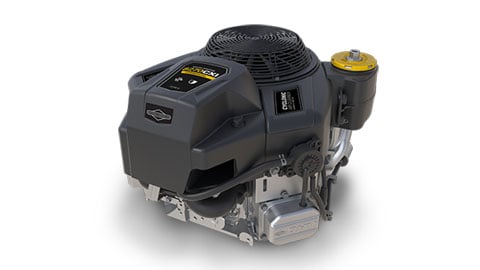

OILXTEND™
Boosts productivity and minimizes downtime by 250 hours - 2.5 times longer than the industry standard. (5902172 only)

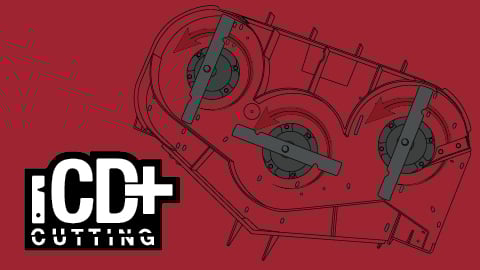

ICD™+ CUTTING SYSTEM
Redesigned to deliver next-level performance, increased durability and superior results. Select models.

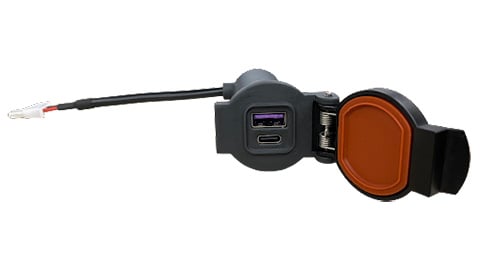

USB PORT
12V-60V, USB Type A & C located on the dash panel for easy access and charging.
EFI-ETC ENGINE TECHNOLOGY
Select models feature the Briggs & Stratton Commercial Series engine with EFI-ETC technology for easy starting and smooth performance.

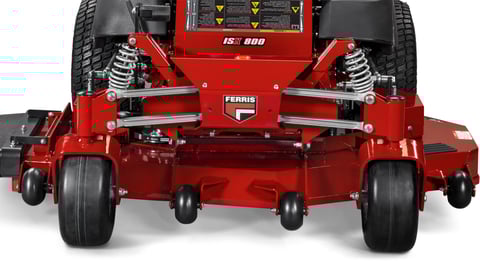

FOREFRONT™ SUSPENSION SYSTEM
The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

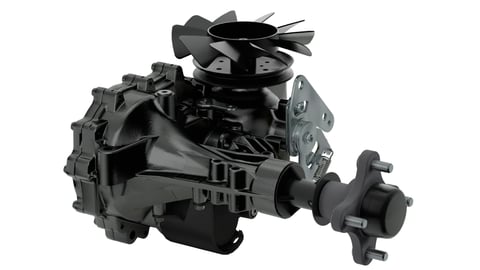

INTEGRATED TRANSMISSION
Commercial Hydro-Gear® ZT-3400™ transaxles, with 7" cooling fans, are designed for high performance and are fully serviceable.

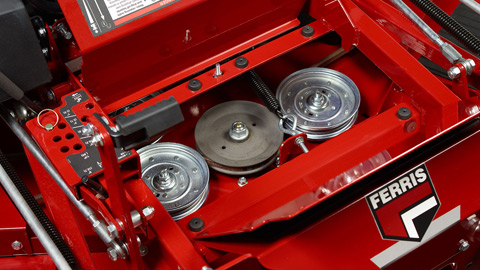

EASY ACCESS
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Specifications
| 5902154 | 5902075 | 5902155 | |
| US MSRP ^ | $11,769.00 | $11,989.00 | $11,989.00 |
| CA MSRP ^ | $15,888.00 | $16,185.00 | $16,185.00 |
| Engine Brand | Briggs & Stratton® CXi | Briggs & Stratton® CXi | Kawasaki® FT730V |
| Horsepower | 27 | 27 | 24 |
| Engine Displacement (cc) | 810 | 810 | 726 |
| Number of Cylinders | 2 | 2 | 2 |
| Starter | Electric | Electric | Electric |
| Fuel Type | Gas | Gas | Gas |
| Type | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans |
| Ground Speed - Fwd (mph) | 0-10 | 0-10 | 0-10 |
| Ground Speed - Rev (mph) | 0-5 | 0-5 | 0-5 |
| Parking Brake | Hand-operated internal transaxle brake | Hand-operated internal transaxle brake | Hand-operated internal transaxle brake |
| Suspension | ForeFront™ Suspension System | ForeFront™ Suspension System | ForeFront™ Suspension System |
| Seat Package | Mid-back suspension seat with adjustable arm rests | Mid-back suspension seat with adjustable arm rests | Mid-back suspension seat with adjustable arm rests |
| Fuel Tank Capacity (gal) | 6 | 6 | 6 |
| Certified Roll-over Protection System | 180° foldable | 180° foldable | 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank | Dual-function hour meter, fuel level gauge in tank | Dual-function hour meter, fuel level gauge in tank |
| Deck Size (in) | 52 | 60 | 52 |
| Deck Construction | 10-gauge, Fabricated | 10-gauge, Fabricated | 10-gauge, Fabricated |
| Cutting Height (in) | 1.5 - 5 | 1.5 - 5 | 1.5 - 5 |
| Spindles | Aluminum Greasable | Aluminum Greasable | Aluminum Greasable |
| Drive Tires (in) | 23 x 10.5-12 | 23 x 10.5-12 | 23 x 10.5-12 |
| Caster Tires | 13 x 6.5 - 6 | 13 x 6.5 - 6 | 13 x 6.5 - 6 |
| Overall Length (in) | 81 | 81 | 81 |
| Overall Width (in) Deflector Down/Deflector Up | 65/57 | 74/65 | 65/57 |
| Dry Weight (lbs) | 1206 | 1268 | 1206 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. | 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Operator's Manuals |
Fine Print
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
