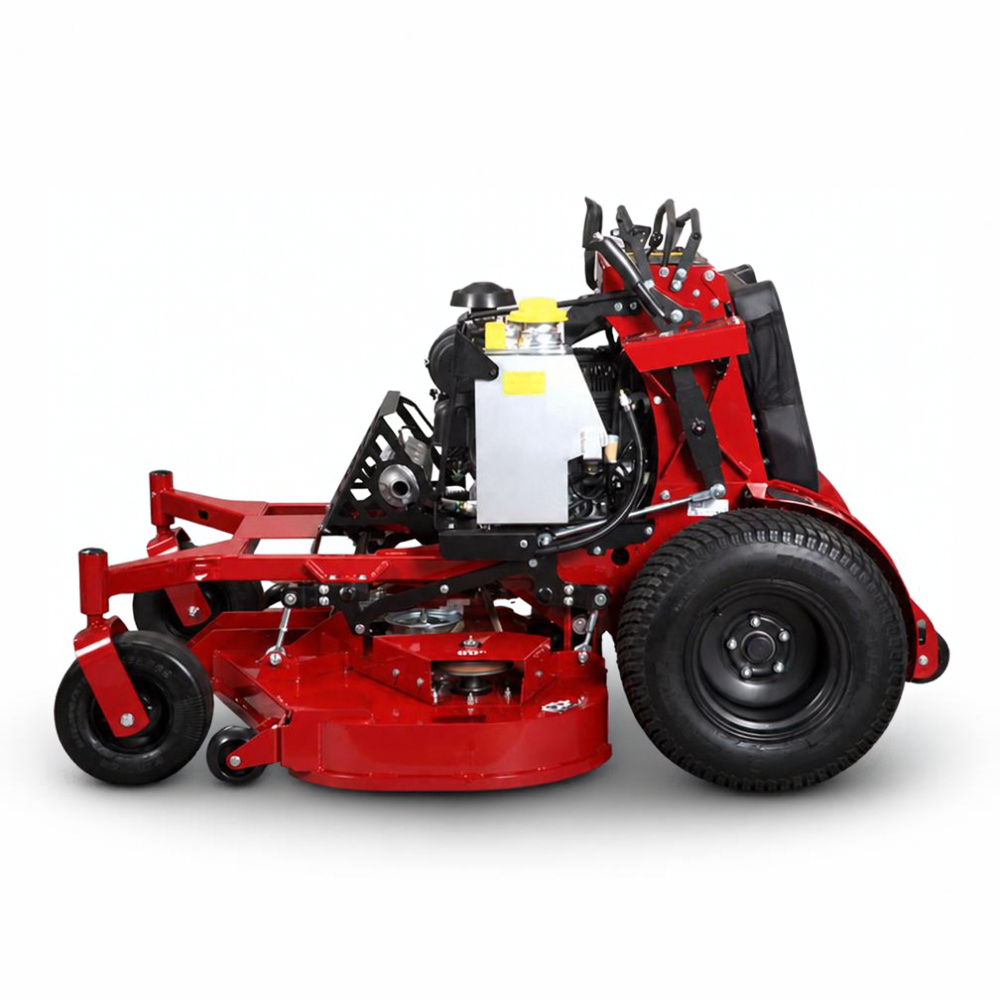

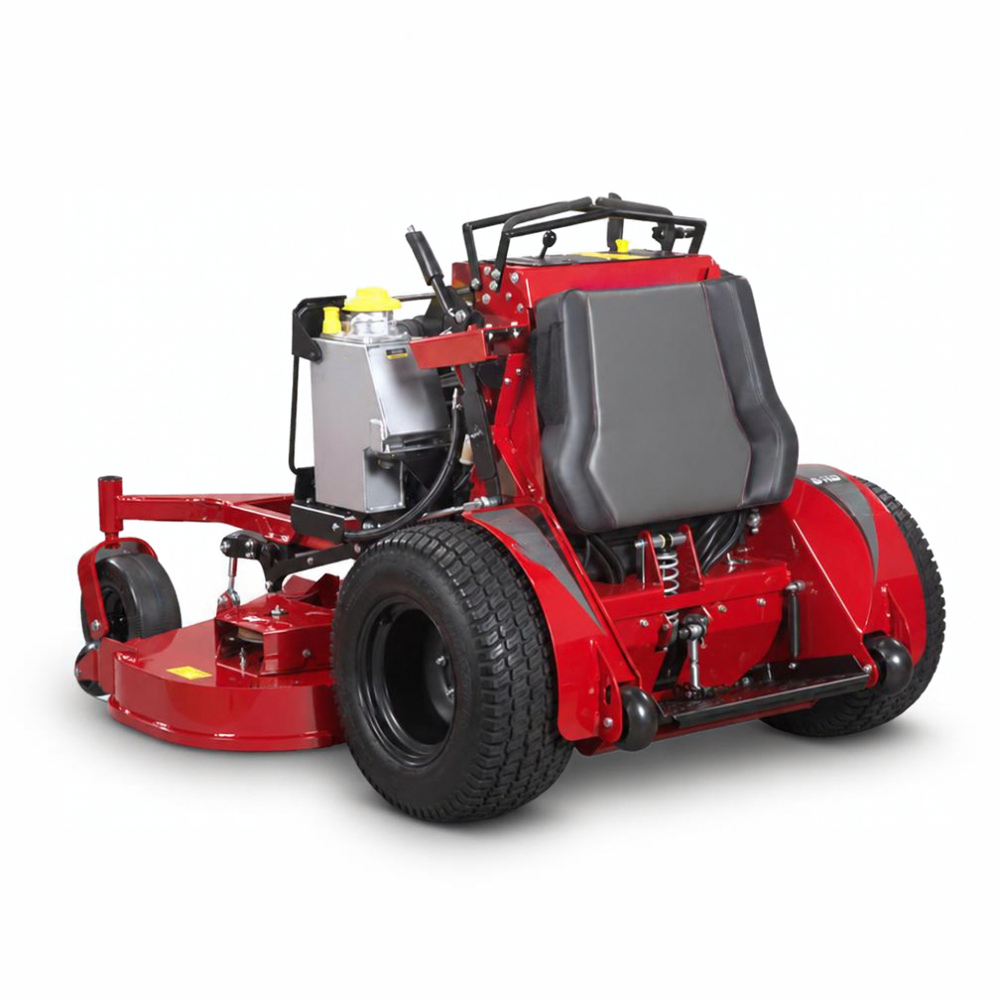

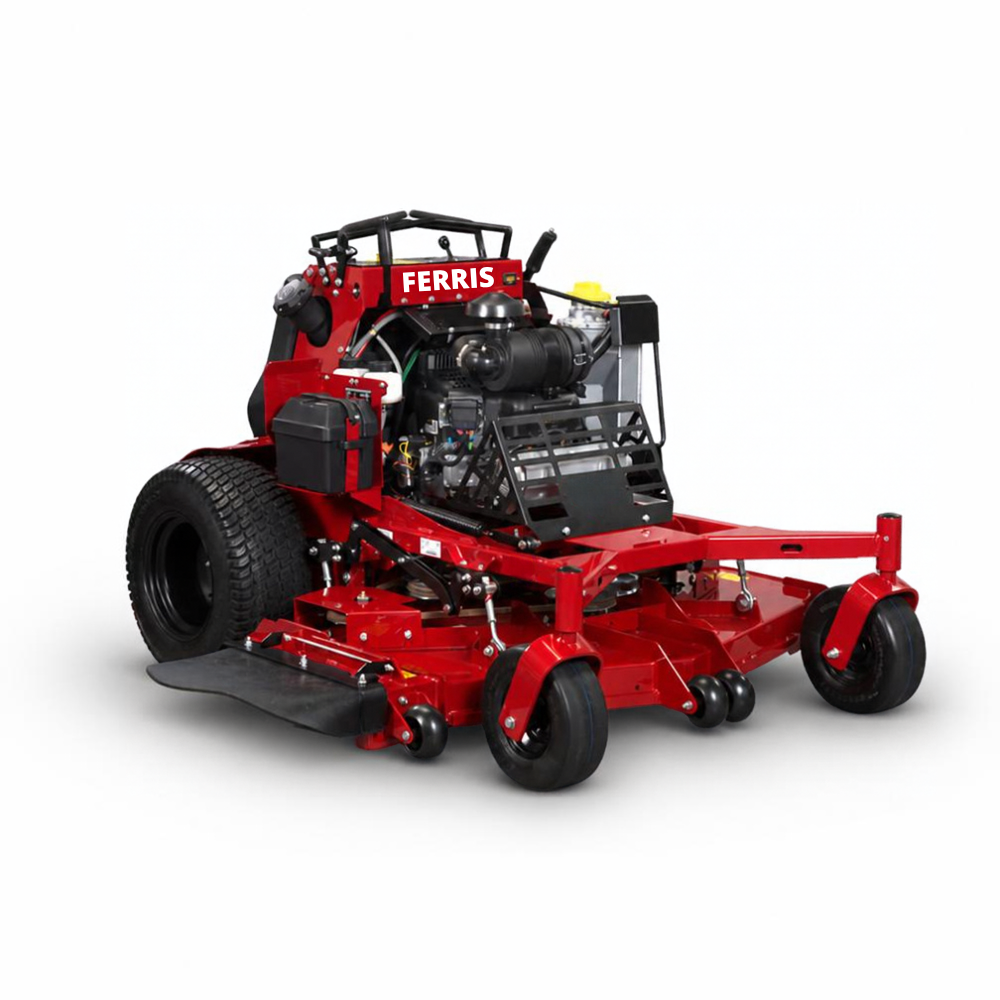

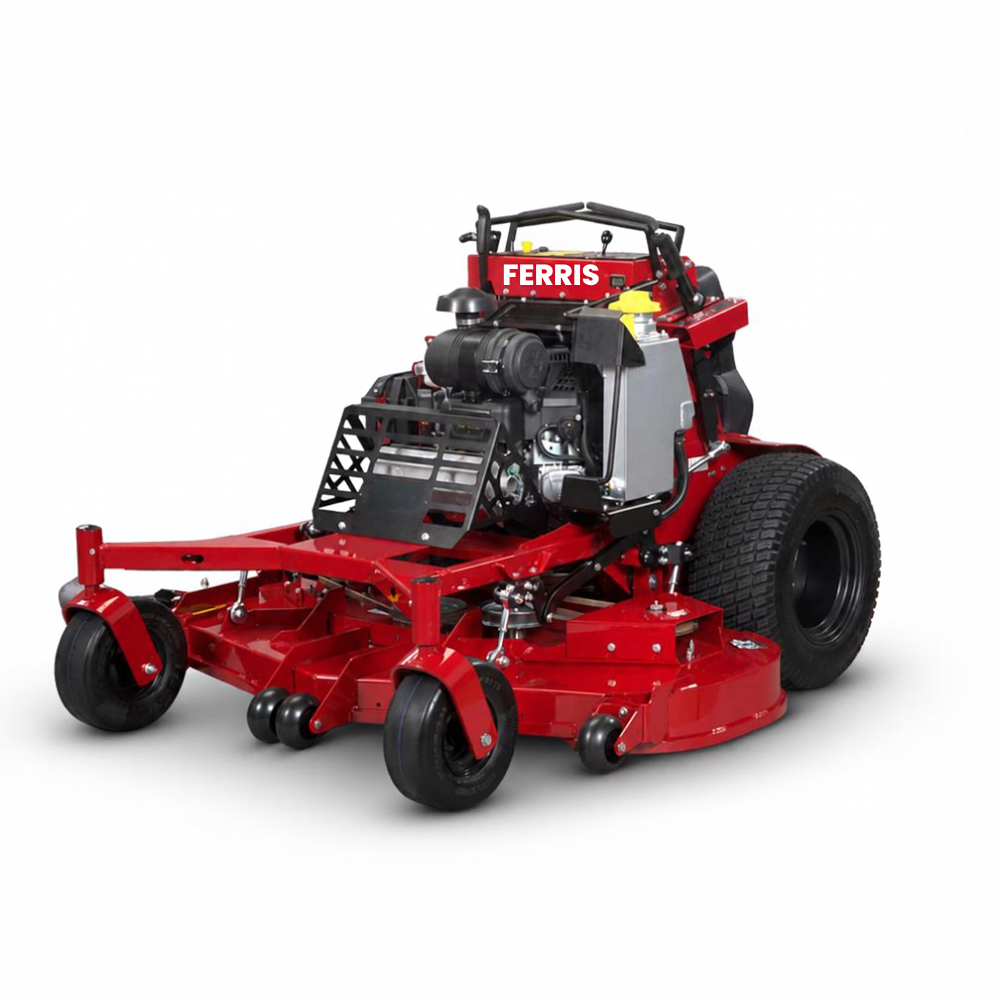

SRS™ Z2 Soft Ride Stand-On Mowers
A Combination Of Speed, Agility, and High Quality of Cut
The Soft Ride Stand-On SRS™ Z2 features our adjustable operator platform with suspension technology that optimizes operator comfort and increases productivity. The superior balance provides excellent stability and maneuverability that exceeds expectations for traction and handling. Featuring our redesigned iCD™+ Cutting System (select models) for maximum vacuum and clipping ejection to deliver only the most premium cut.
Deck Size
52+"
Power Rating*
28 HP
Ground Speed
10 MPH
Limited Warranty†
4 Years
Features
ICD™+ CUTTING SYSTEM
Redesigned to deliver next-level performance, increased durability and superior results. Select models.
SUSPENSION PLATFORM SYSTEM
The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
500 HOUR OIL CHANGE (SELECT MODELS)
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
VANGUARD™ 810CC EFI ENGINES
Vanguard™ 810cc engines deliver the optimum power, performance and efficiency commercial zero-turn mowers need.
STANDING COMFORT
Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.
ADJUSTABLE HEIGHT OF CUT
Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 5".
INTEGRATED MOWING TRANSMISSIONS
Commercial Hydro-Gear® ZT-3800® transaxles are designed for high performance and are fully serviceable.
Specifications
| 5902164 | 5902165 | 5902070 | |
| US MSRP ^ | $12,814.00 | $13,144.00 | $13,639.00 |
| CA MSRP ^ | $17,299.00 | $17,744.00 | $18,413.00 |
| Engine Brand | Vanguard™ 810 EFI with Oil Guard | Kawasaki® FX801V | Vanguard™ 810 EFI with Oil Guard |
| Horsepower | 25.5 | 28 | 28 |
| Engine Displacement (cc) | 852 | 810 | 810 |
| Number of Cylinders | 2 | 2 | 2 |
| Starter | Electric | Electric | Electric |
| Fuel Type | Gas | Gas | Gas |
| Type | Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7" cooling fans and oil coolers | Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7" cooling fans and oil coolers | Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7" cooling fans and oil coolers |
| Ground Speed - Fwd (mph) | 0-10 | 0-10 | 0-10 |
| Ground Speed - Rev (mph) | 0-5 | 0-5 | 0-5 |
| Parking Brake | Hand operated Internal transaxle brake | Hand operated Internal transaxle brake | Hand operated Internal transaxle brake |
| Suspension | Adjustable coil-over shock, Operator Suspension Platform | Adjustable coil-over shock, Operator Suspension Platform | Adjustable coil-over shock, Operator Suspension Platform |
| Fuel Tank Capacity (gal) | 8 | 8 | 8 |
| Controls / Safety Group | Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart | Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart | Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge | Dual-function hour meter, fuel level gauge | Dual-function hour meter, fuel level gauge |
| Deck Size (in) | 52 | 52 | 60 |
| Deck Construction | iCD+™ Cutting System | iCD+™ Cutting System | iCD+™ Cutting System |
| Cutting Height (in) | 1.75 - 5 | 1.75 - 5 | 1.75 - 5 |
| Spindles | Aluminum Greasable | Aluminum Greasable | Aluminum Greasable |
| Drive Tires (in) | 23 x 10.5-12 | 23 x 10.5-12 | 23 x 10.5-12 |
| Caster Tires | 13 X 6.5-6 | 13 X 6.5-6 | 13 X 6.5-6 |
| Overall Length (in) | 67 | 67 | 72.75 |
| Overall Width (in) Deflector Down/Deflector Up | 65/54.75 | 65/54.75 | 74 / 65 |
| Dry Weight (lbs) | 938 | 938 | 1,051 |
| Warranty (Balance of Machine) † | 4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details. | 4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details. | 4-Year limited warranty (48 months) or 500 hours whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxles are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details. |
| Warranty (Engine) † | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) | 3-Year Manufacturer’s Limited Warranty (36 month) |
| Operator's Manuals |
Fine Print
All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval. See operator's manual or dealer for complete warranty details.
† Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
