SRS™ Z1 Stand-On Mower

SRS™ Z1 Stand-On Mower

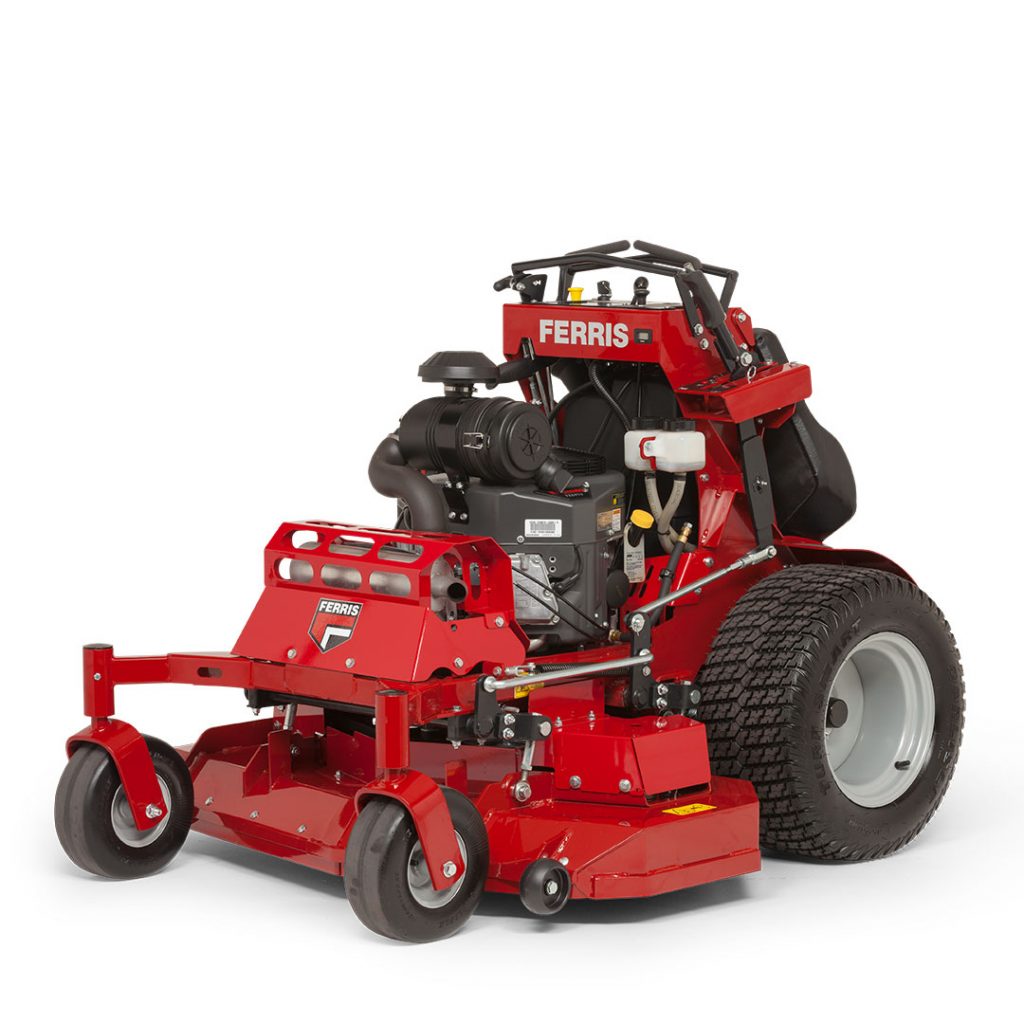

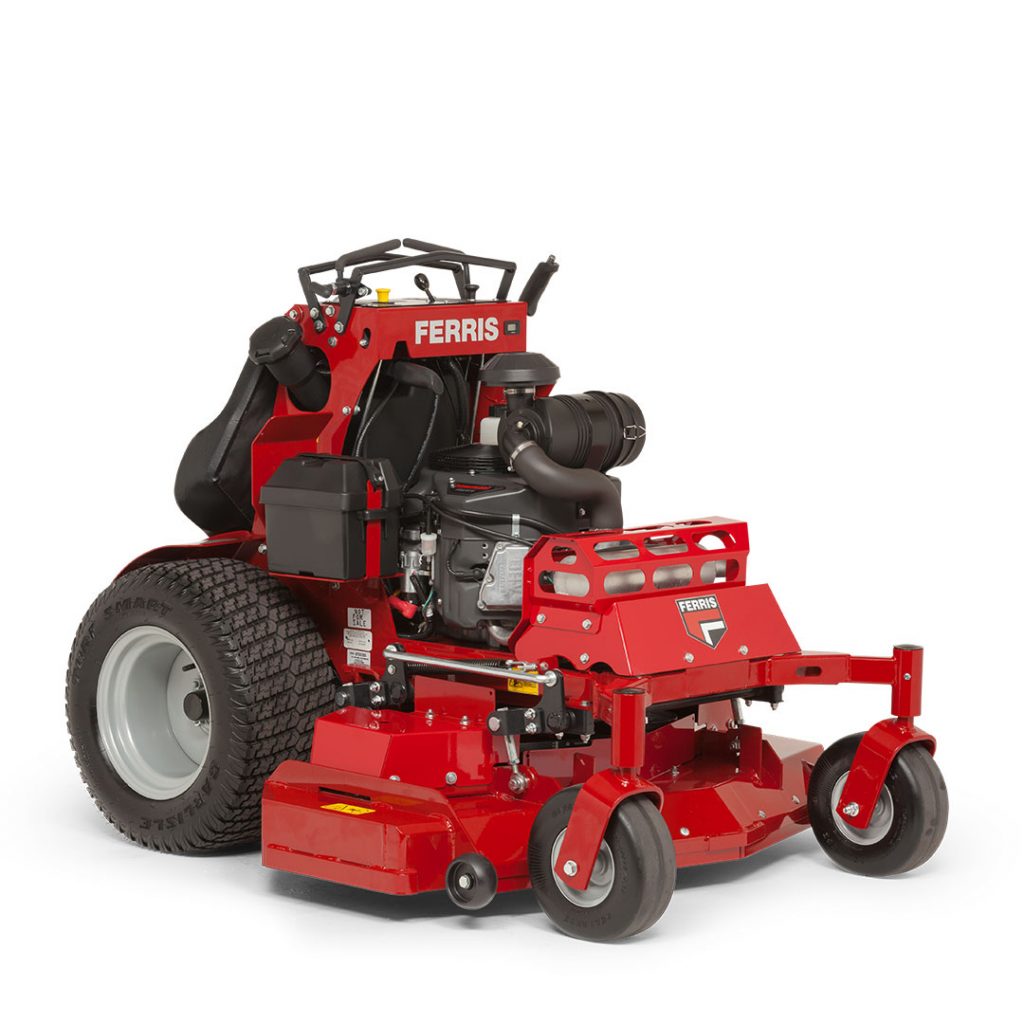

The Soft Ride Stand-on SRS™ Z1 is raising the bar with our adjustable operator platform, featuring suspension technology, optimizing operator comfort and increasing productivity! The superior balance provides stability and manoeuvrability that exceeds expectations for traction and handling.

The Soft Ride Stand-on SRS™ Z1 is designed to allow for quick operator exit and re-entry which is particularly useful if you frequently have to open gateways, pick up litter or often require loading and unloading for transporting the machine to different work sites. Its compact footprint allows the SRS™ Z1 to be transported in the back of a standard-sized van which is a significant advantage because it limits the need of a trailer. This simplifies the search for a parking spot in busy urban areas.

More info? Let us call you back!

4,4 - 11,4

Height of Cut (cm)

0 - 12,8

Ground Speed (km/h)

0,93 / 1,25

Productivity (ha/h)*

19.0 / 22.0

Horsepower (HP)**

Features

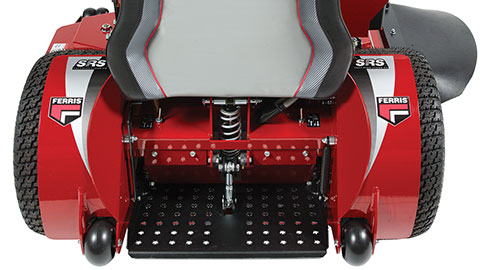

Operator suspension platform

Operator suspension platform with coil-over-shock, adjustable for large range of weights and operating conditions.

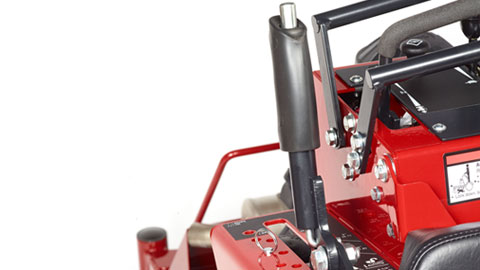

Hand operated deck lift

Hand operated and spring assisted deck lift easily changes height of cut from the operator’s position.

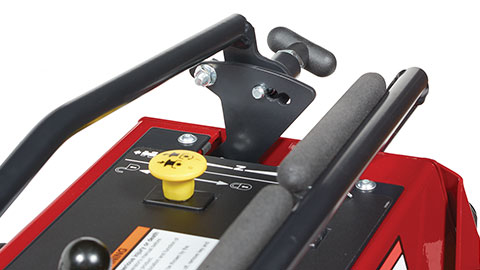

Speed control setting

Individual forward and reverse levers with dual stabilizer bars. Easy locking 3-position speed control setting to adapt speed to conditions.

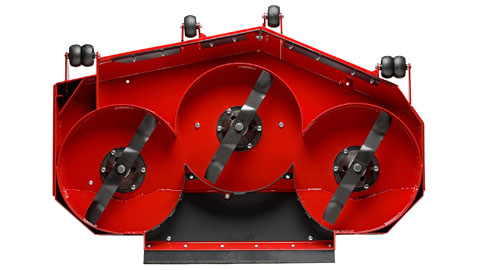

iCD™ deck

iCD™ deck technology allows grass a longer period of time to rise in the chamber before cutting blades make contact, resulting in a better cut quality. (122 cm model only)

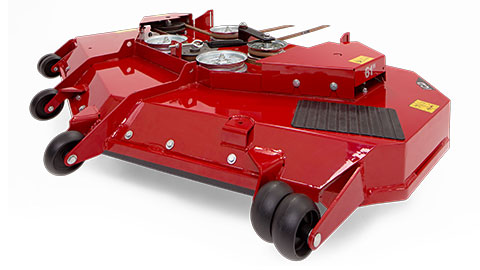

Rear discharge deck

Rear discharge mower deck configuration with top greaseable cast-aluminium mower spindles. The factory fitted rear discharge baffle insert and mulching blades form a versatile setup for most conditions.

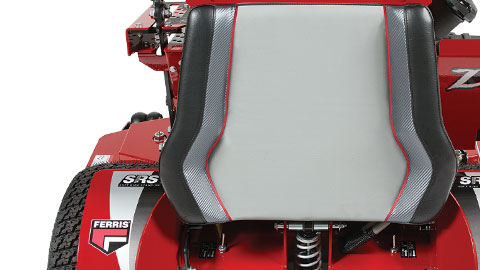

Thigh pad

Ergonomically designed thigh pad provides superior operator comfort, especially on hilly terrain.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901676
Engine Make
Kawasaki
Engine Model
FX600V
Fuel Type
Petrol
Fuel System
Carburetor
Horsepower (HP)**
19.0
Gross kW**
14.2
Cylinders
2 Cylinders V-Twin
Displacement (cc)
603
Cooling
Air-cooled
PTO Clutch
Warner TG Clutch-Brake (169 Nm)
PTO Engagement
Electric
Starting
Electric
Fuel Capacity (l)
23
Cutting Width (cm / inch)
91 / 36
Deck Configuration
Rear discharge and mulching blades
Height of Cut (cm)
4,4 - 11,4
Deck Construction
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
Mower Spindles
Cast aluminium 133 mm; 25,4 mm shaft
Deck Lift System
Hand-operated, spring assisted
Suspension
Suspended operator platform utilizing a pivoting footplate supported by a large coil-over-shock
Drive System
Independent Hydro-Gear® ZT-3400® transaxles
Drive Axles
Ø28,6 mm Tapered with 4-bolt wheel hub
Drive Tyres (inch)
23 x 8.50 - 12 (4 ply) Pneumatic tyre w. turf tread
Caster Tyres (inch)
11 x 4.00 - 5 (4 ply) Flat-free tyre w. smooth tread
Speed-fwd. (km/h)
0 - 12,8
Speed-rev. (km/h)
0 - 6,4
Overall Length (cm)
162
Overall Width (cm)
92
Dry Weight (kg)
368
Roll-Over Protection Structure
N.A.
Instrumentation
Fuel gauge, hour meter
Controls / Safety Circuit
Independent (left and right) forward & reverse levers with stability bar, Automatic PTO Stop, Operator presence in platform, Parking brake safety circuit
Parking Brake
Internal transaxle brake
Warranty (Balance of Machine) ‡
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
Warranty (Coil-Over-Shocks, Suspension Related Components) ‡
5-Years (60 months) unlimited hours
Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡
90 Days
Warranty (Deck Drive Belt) ‡
1-Year (12 months) or 100 hours, whichever occurs first
Warranty (Engine) ‡
3-Year Manufacturer’s Limited Warranty

‡ See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
* Based on 80% efficiency. Up to 0,93 hectares/hour (91 cm deck) and 1,25 hectares/hour (122 cm deck).
** All power levels are provided by Kawasaki.

Part Number
5901677
Engine Make
Kawasaki
Engine Model
FX691V
Fuel Type
Petrol
Fuel System
Carburetor
Horsepower (HP)**
22.0
Gross kW**
16.4
Cylinders
2 Cylinders V-Twin
Displacement (cc)
726
Cooling
Air-cooled
PTO Clutch
Warner TG Clutch-Brake (169 Nm)
PTO Engagement
Electric
Starting
Electric
Fuel Capacity (l)
23
Cutting Width (cm / inch)
122 / 48
Deck Configuration
Rear Discharge iCD™ and mulching blades
Height of Cut (cm)
4,4 - 11,4
Deck Construction
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
Mower Spindles
Cast aluminium 133 mm; 25,4 mm shaft
Deck Lift System
Hand-operated, spring assisted
Suspension
Suspended operator platform utilizing a pivoting footplate supported by a large coil-over-shock
Drive System
Independent Hydro-Gear® ZT-3400® transaxles
Drive Axles
Ø28,6 mm Tapered with 4-bolt wheel hub
Drive Tyres (inch)
23 x 10.50 - 12 (4 ply) Pneumatic tyre w. turf tread
Caster Tyres (inch)
11 x 4.00 - 5 (4 ply) Flat-free tyre w. smooth tread
Speed-fwd. (km/h)
0 - 12,8
Speed-rev. (km/h)
0 - 6,4
Overall Length (cm)
166
Overall Width (cm)
124
Dry Weight (kg)
398
Roll-Over Protection Structure
N.A.
Instrumentation
Fuel gauge, hour meter
Controls / Safety Circuit
Independent (left and right) forward & reverse levers with stability bar, Automatic PTO Stop, Operator presence in platform, Parking brake safety circuit for starting engine
Parking Brake
Internal transaxle brake
Warranty (Balance of Machine) ‡
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
Warranty (Coil-Over-Shocks, Suspension Related Components) ‡
5-Years (60 months) unlimited hours
Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡
90 Days
Warranty (Deck Drive Belt) ‡
1-Year (12 months) or 100 hours, whichever occurs first
Warranty (Engine) ‡
3-Year Manufacturer’s Limited Warranty

‡ See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
* Based on 80% efficiency. Up to 0,93 hectares/hour (91 cm deck) and 1,25 hectares/hour (122 cm deck).
** All power levels are provided by Kawasaki.

Part Number
5901676
5901677
Engine Make
Kawasaki
Kawasaki
Engine Model
FX600V
FX691V
Fuel Type
Petrol
Petrol
Fuel System
Carburetor
Carburetor
Horsepower (HP)**
19.0
22.0
Gross kW**
14.2
16.4
Cylinders
2 Cylinders V-Twin
2 Cylinders V-Twin
Displacement (cc)
603
726
Cooling
Air-cooled
Air-cooled
PTO Clutch
Warner TG Clutch-Brake (169 Nm)
Warner TG Clutch-Brake (169 Nm)
PTO Engagement
Electric
Electric
Starting
Electric
Electric
Fuel Capacity (l)
23
23
Cutting Width (cm / inch)
91 / 36
122 / 48
Deck Configuration
Rear discharge and mulching blades
Rear Discharge iCD™ and mulching blades
Height of Cut (cm)
4,4 - 11,4
4,4 - 11,4
Deck Construction
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
3,4 mm fabricated construction, full width double top deck, metal scuff guards, reinforced leading edge, overlap welded corners
Mower Spindles
Cast aluminium 133 mm; 25,4 mm shaft
Cast aluminium 133 mm; 25,4 mm shaft
Deck Lift System
Hand-operated, spring assisted
Hand-operated, spring assisted
Suspension
Suspended operator platform utilizing a pivoting footplate supported by a large coil-over-shock
Suspended operator platform utilizing a pivoting footplate supported by a large coil-over-shock
Drive System
Independent Hydro-Gear® ZT-3400® transaxles
Independent Hydro-Gear® ZT-3400® transaxles
Drive Axles
Ø28,6 mm Tapered with 4-bolt wheel hub
Ø28,6 mm Tapered with 4-bolt wheel hub
Drive Tyres (inch)
23 x 8.50 - 12 (4 ply) Pneumatic tyre w. turf tread
23 x 10.50 - 12 (4 ply) Pneumatic tyre w. turf tread
Caster Tyres (inch)
11 x 4.00 - 5 (4 ply) Flat-free tyre w. smooth tread
11 x 4.00 - 5 (4 ply) Flat-free tyre w. smooth tread
Speed-fwd. (km/h)
0 - 12,8
0 - 12,8
Speed-rev. (km/h)
0 - 6,4
0 - 6,4
Overall Length (cm)
162
166
Overall Width (cm)
92
124
Dry Weight (kg)
368
398
Roll-Over Protection Structure
N.A.
N.A.
Instrumentation
Fuel gauge, hour meter
Fuel gauge, hour meter
Controls / Safety Circuit
Independent (left and right) forward & reverse levers with stability bar, Automatic PTO Stop, Operator presence in platform, Parking brake safety circuit
Independent (left and right) forward & reverse levers with stability bar, Automatic PTO Stop, Operator presence in platform, Parking brake safety circuit for starting engine
Parking Brake
Internal transaxle brake
Internal transaxle brake
Warranty (Balance of Machine) ‡
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
Warranty (Coil-Over-Shocks, Suspension Related Components) ‡
5-Years (60 months) unlimited hours
5-Years (60 months) unlimited hours
Warranty (Hydro Drive Belt, Tires, Brake Pads, Hoses, Battery, Blades) ‡
90 Days
90 Days
Warranty (Deck Drive Belt) ‡
1-Year (12 months) or 100 hours, whichever occurs first
1-Year (12 months) or 100 hours, whichever occurs first
Warranty (Engine) ‡
3-Year Manufacturer’s Limited Warranty
3-Year Manufacturer’s Limited Warranty

‡ See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
* Based on 80% efficiency. Up to 0,93 hectares/hour (91 cm deck) and 1,25 hectares/hour (122 cm deck).
** All power levels are provided by Kawasaki.
