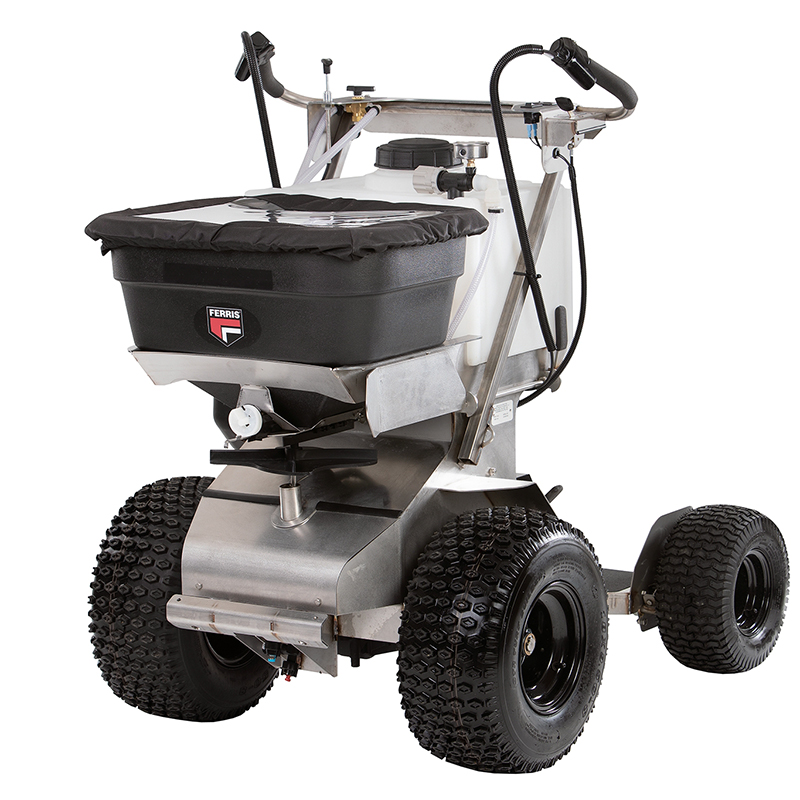

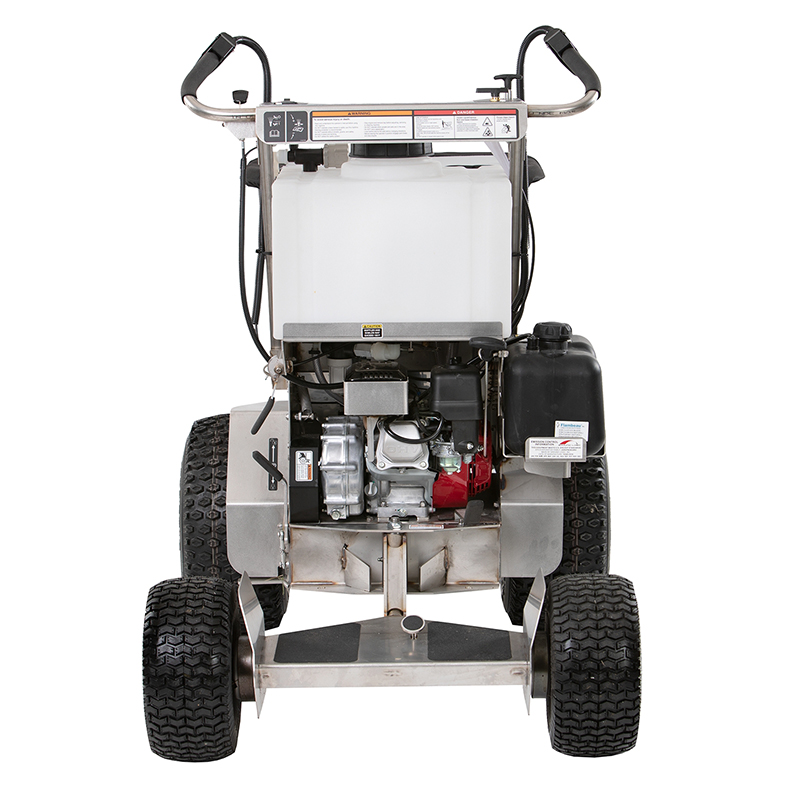

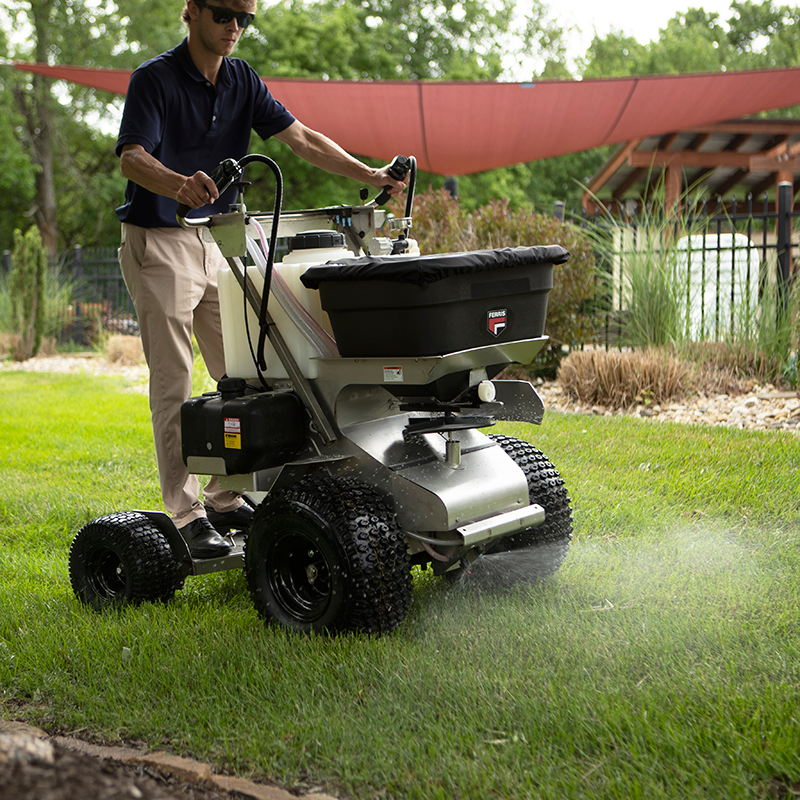

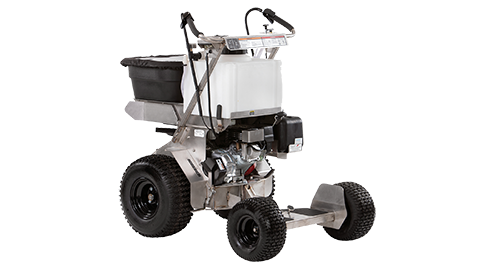

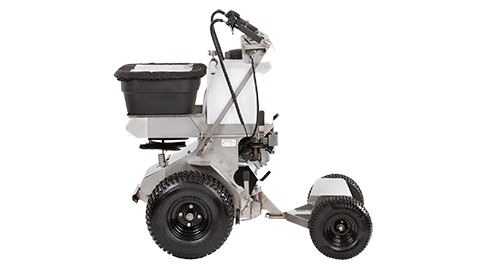

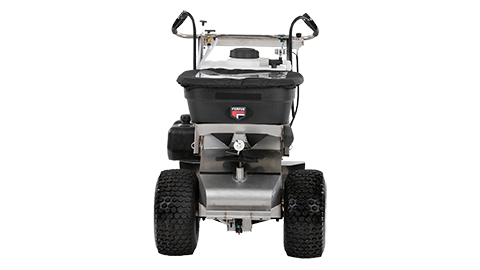

Pathfinder™ FS2100 Ride-On Spreader/Sprayer

DRY COVERAGE OVER HALF ACRE AND LIQUID COVERAGE OVER ONE ACRE

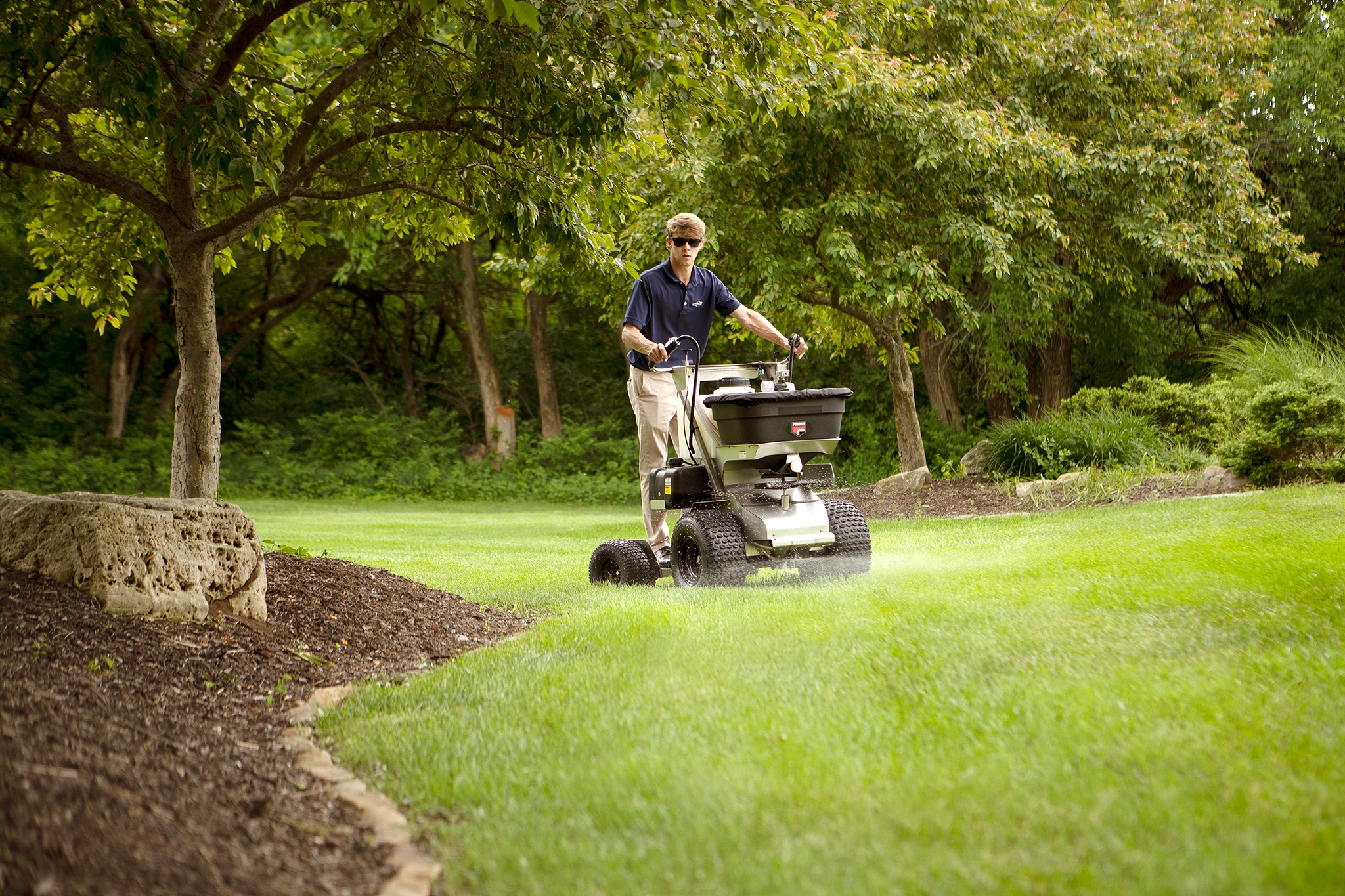

The Pathfinder™ FS2100 ride-on spreader/sprayer releases dry and liquid material with a spray system that has settings for both trim and broadcast applications. The stainless steel frame and Peerless transaxle resist corrosive chemicals for longevity and durability, and a 35.5" width means easy access through tight areas like gates.

Features

100 lbs. Spyker Hopper

The Pathfinder™ FS2100 hopper will handle up to 100 lbs. of granular material providing over one acre of maximum coverage.

12 Gallons of Liquid Capacity

Covers a maximum of 1.2 acres between fill-ups.

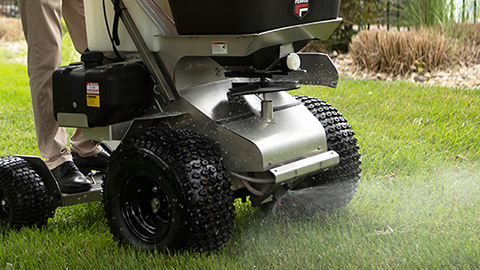

Selectable Spray Width

The Pathfinder™ FS2100 allows the operator to select between two spray widths. A 3' spray width is perfect for trim applications and narrow spaces. A 10' broadcast spray is used for wide open spaces.

100% Stainless Steel Frame

Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.

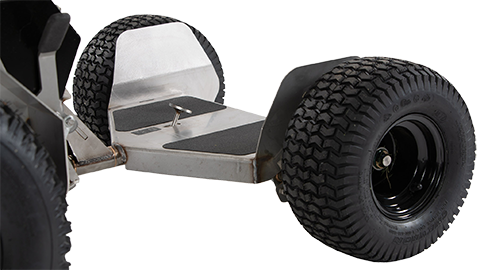

Best-in-Class Maneuverability

A low-friction sulky pivots on a 3/4" tapered roller bearing for smooth movement. No mechanical steering assistance is required.

Specifications

Engine Model

5901752

US MSRP ^

$10,499.00

CAN MSRP ^

$14,249.00

RPM

Full Speed: 3750 RPM (No load) Idle: 1400 RPM

Fuel Capacity - gal (L)

2.5 (9.5)

Fuel Type

Regular unleaded gasoline, 87 octane or higher

Fuel Shut-Off Valve

Located on engine and below tank

Transmission Model

Peerless 855 Series, coated for corrosion resistance

Speed (mph)

Low Gear: 3.5 mph (5.6 km/hr) High Gear: 5.0 mph (8.0 km/hr)

Front Tires

18 x 9.5 - 8, RV antifreeze added for ballast and traction

Rear Tires

13 x 6.50 - 6

Spreader Model

Spyker 120 Series

Spreader Hopper Capacity (lbs.)

100

Spray Pump

2.0 gpm mechanically driven diaphragm pump

Sprayer Tank Capacity - gal (L)

12.0 (45.4)

Nozzles

Broadcast: Turbo FloodJet TF-VS5 Trim: Turbo TeeJet TT11004VP

Spray Rate

1/4 gallon per 1,000 ft² at 20 psi

Productivity (sq. ft. per fill)

48,000 (1/4 gallon per 1,000 ft² at 25 psi at 5 mph)

Overall Length - in. (cm)

54.0 (137)

Overall Width - in. (cm)

35.5 (90)

Overall Height - in. (cm)

49.0 (124)

Dry Weight - lbs (kg)

420 (190)

Full Weight - lbs (kg)

640 (290)

Safety Interlock

This machine is equipped with a neutral safety start module. To start the engine, the transmission must be in the neutral (N) position.

Accessories Warranty

Standard: 1 year Rental: 90 days

Belts, Tires, Brake Pads, Hoses, Battery Warranty

Standard: 90 days Rental: 90 days

Engine Brand

Honda® GX200-URH2

Legacy Material Number

5901752

Operator's Manuals

Operator's Manual - English
Download Icon

Illustrated Parts List - English
Download Icon

Wiring Diagram Schematic - English

^{^ Suggested prices will vary by market. Price shown in US dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.}

Attachments

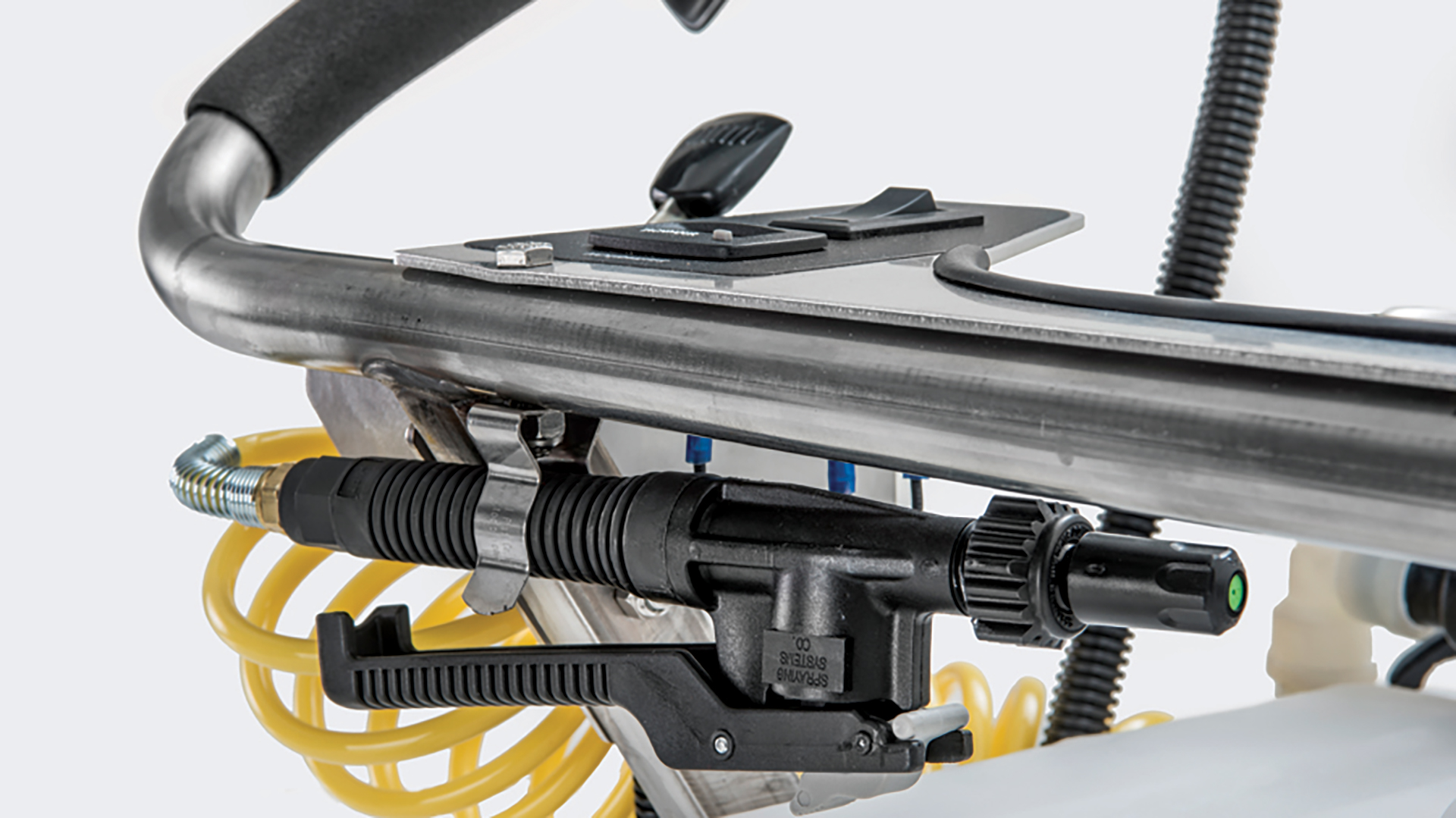

SPRAY WAND

Spray wand attachment taps into the liquid tank for spot treatment of trouble spots or gardens.

SPRAY BAR

Spray bar attachment allows the operator to choose between the standard single nozzle system and a 2 nozzle spray boom.

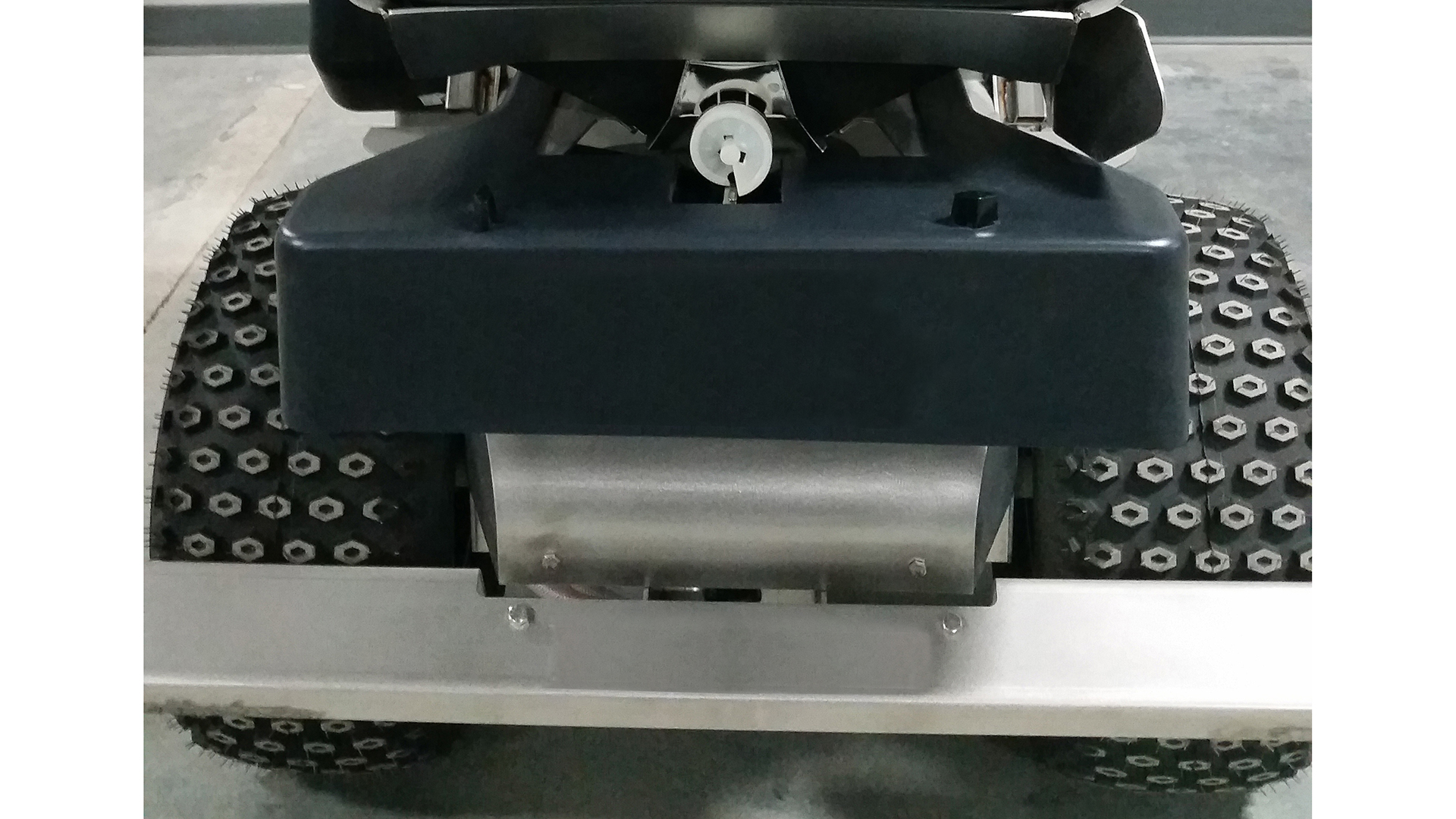

SALT SPREADER BAFFLE

Allows the Pathfinder™ FS2100 to spread salt to extend seasonal use. Not to be used with rock salt.

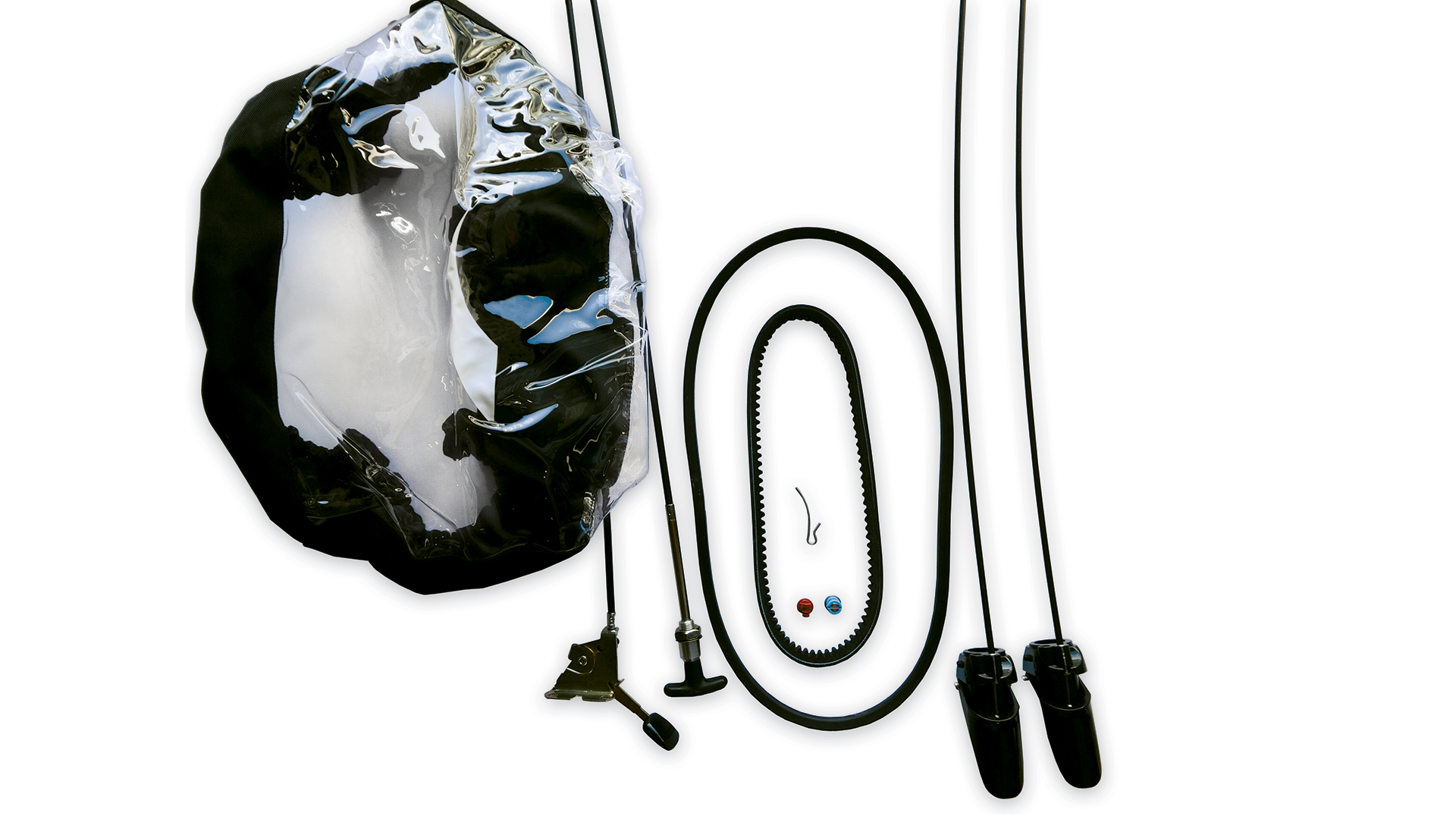

SPARE PARTS KIT

A convenient package of high-wear parts that allow for fast service and maintenance.
