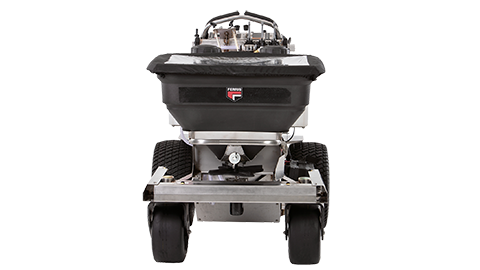

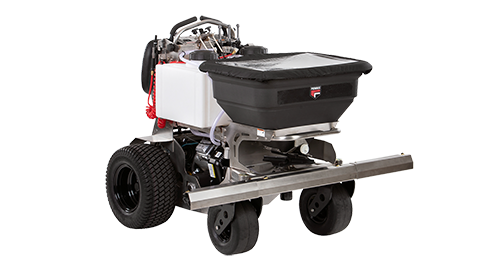

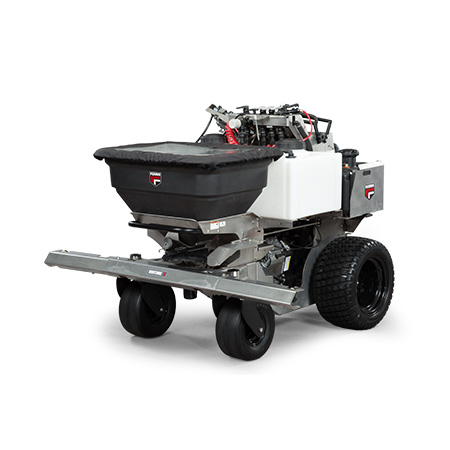

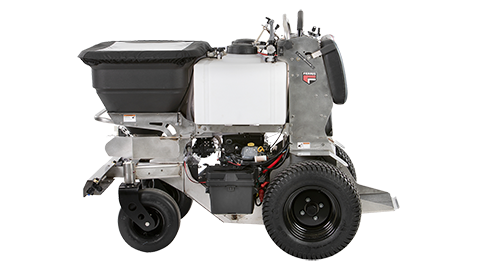

Venture X Ride-On Zero Turn Spreader/Sprayer

DRY COVERAGE OVER ONE ACRE AND MAXIMUM LIQUID COVERAGE OF 2.2 ACRES

The Venture™ X is redesigned for optimal performance and operator comfort. The quick pin TeeJet 530 Manifold with push-to-connect (PTC) hose system and improved boom durability optimize performance and increase productivity. The increased fuel capacity, hard linked trim shield, FB1000 style folding operator platform and knee pad, included speedometer, and Z1 Style steering levers with thumb following spray switch enhance the operator experience.

Features

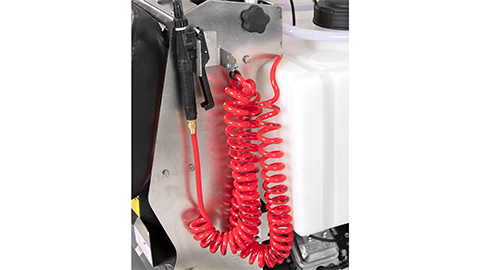

NEW! Spray Wand

Quick pin TeeJet 530 Manifold with push-to-connect (PTC) hose system.

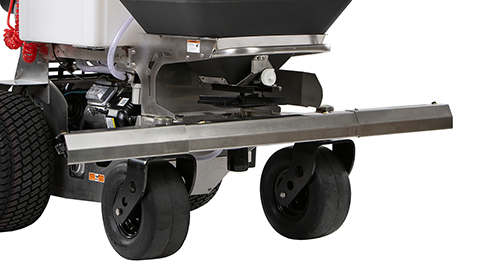

Boom Durability

The 3-section breakaway boom allows access narrow areas and take up less space on a trailer. Spray width is variable at 2’, 4’, 6’, or 8’ widths.

200 lbs. Spyker Hopper

The Venture X™ hopper will handle up to 200 lbs. of granular material providing over one acre of maximum coverage.

24 Gallons of Liquid Capacity

Covers a maximum of 2.2 acres between fill-ups.

100% Stainless Steel Frame

Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.

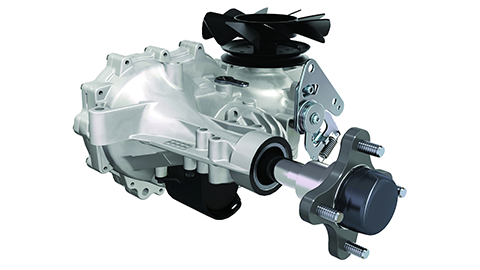

Zero Turn Maneuverability

Maneuver in tight areas with zero turn functionality provided by HydroGear® transaxles.

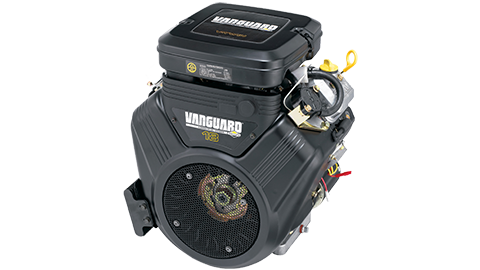

Commercial Power

Vanguard 18 gross hp* V-twin engine provides commercial strength power.

Specifications

Engine Model

5902195

US MSRP ^

$18,149.00

CAN MSRP ^

$24,501.00

Fuel Capacity - gal (L)

Fuel Type

Regular unleaded gasoline, 87 octane or higher

Top Ground Speed (mph)

Spreader Model

Spyker 220 Series

Spreader Hopper Capacity (lbs.)

200

Spray Pump

Quick Pin TeeJet 530 Manifold with Push-to-Connect (PTC) hose system

Sprayer Tank Capacity - gal (L)

24.0 (90.8)

Nozzles

4 - AIXR110025

Spray Rate

1/4 gallon per 1,000 ft²

Productivity (sq. ft. per fill)

72,000 (1/4 gallon per 1,000 ft² at 20 psi at 5 mph)

Overall Length - in. (cm)

65 (165.1 cm)

Overall Height - in. (cm)

48 (121.9 cm)

Dry Weight - lbs (kg)

39 (99.1 cm)

Full Weight - lbs (kg)

Dry: 627 lbs. (284.4 kg); Full: 939 lbs. (425.9 kg)

Accessories Warranty

Standard: 1 year Rental: 90 days

Belts, Tires, Brake Pads, Hoses, Battery Warranty

Standard: 90 days Rental: 90 days

GPM

Engine Brand

Vanguard® V-Twin

Operator's Manuals

^{* All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
^ Suggested prices will vary by market. Price shown in US dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.}
