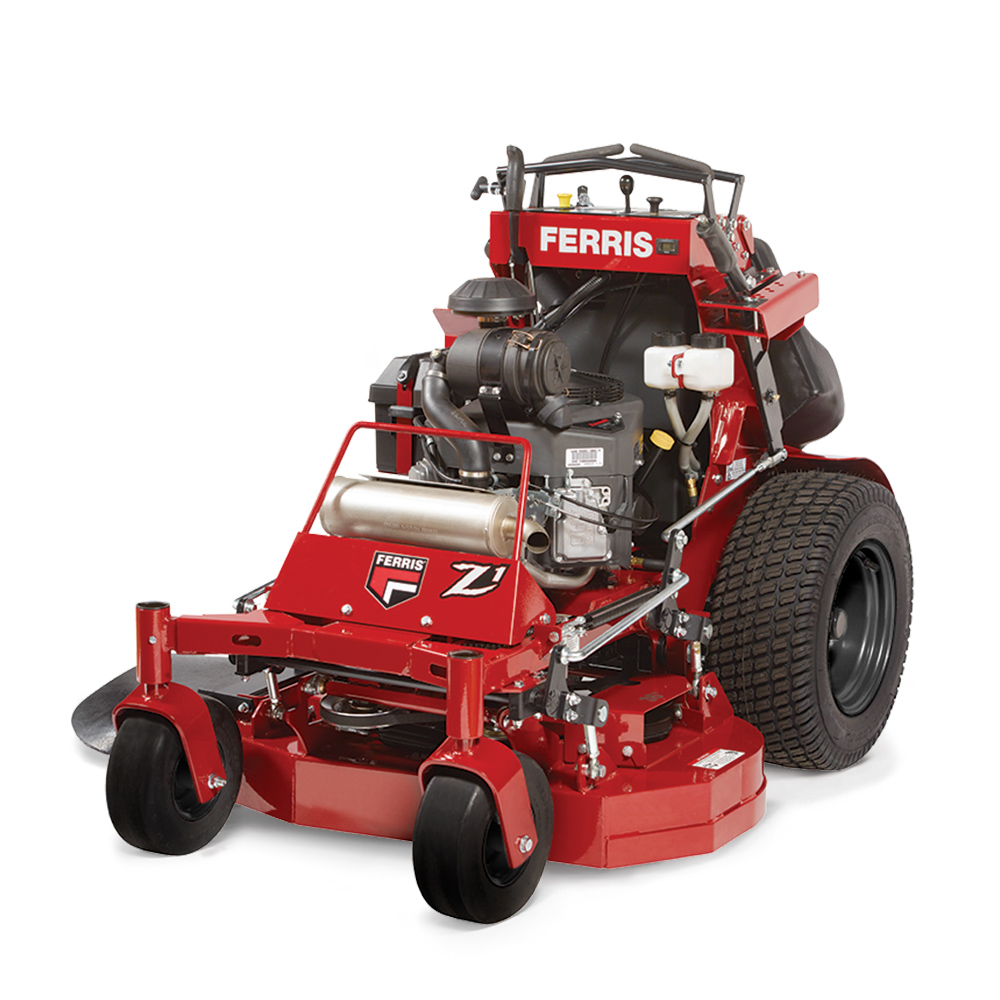

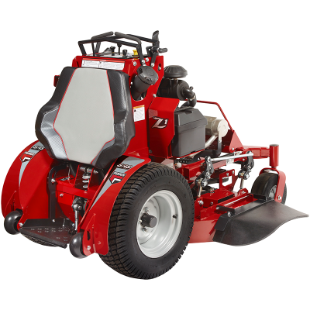

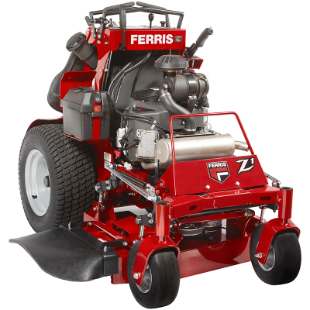

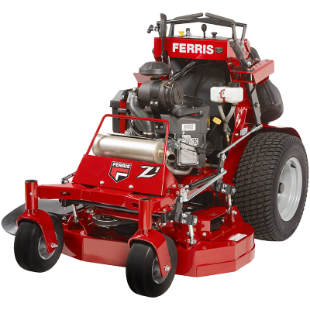

Soft Ride Stand-On (SRS™) Z1 Mowers
COMPACT PERFORMANCE & ULTIMATE COMFORT
The SRS™ Z1 offers all of the same great productivity and comfort as the larger SRS Z2, but in a more compact package. With smaller mowing deck options, the Z1 is optimal for navigating through tight gates or loading on smaller trailers. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1, features suspension technology, offering operator comfort and performance. While providing stability and maneuverability that exceeds expectations for traction and handling, whether on slopes or on flat terrain.
Z1 SRS Features:
- Vanguard™, Kawasaki® FX600V or FX691V engine options.
- The PTO conveniently disengages when the operator leaves the platform to move an obstacle or pick up debris. When the operator steps back onto the platform and re-engages the PTO switch the blades start again for continued mowing.
- Easy-locking 3-position ground speed control ensures smooth operation in tight spaces while the Hydro-Gear® ZT-3400® transaxle allows the unit to handle grueling conditions.
- Available with a 36" 10-gauge fabricated deck or a 48” iCD™ Cutting System mowing deck, that comes equipped with strong 1/4-inch Marbain® steel blades which generate greater lift and improve airflow.

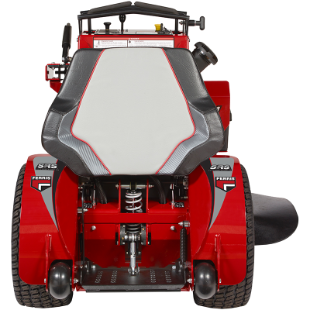

- The operator platform, with adjustable suspension technology, integrated forward and reverse levers and ergonomic thigh pads, delivers a more comfortable ride.
Looking For A Price?
Click and drag image to rotate.
Overview
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Engine Brand
Kawasaki® FX600V
Displacement (cc)
603
Cylinders
2
Cutting Width (in)
36
Spindles
Aluminum
Transmission
Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 8.5-12
Ground Speed-Fwd (mph)
0-8
Overall Length (in)
63.5
Dry Weight (lbs)
765
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine
Warranty (Engine) †
3-Year limited manufacturer's warranty
Deck Construction
10-gauge fabricated
Engine Power Rating *
19 gross hp
PTO
Electric
Fuel Tank Capacity (gal)
6.0
Cutting Height (in)
1.75-4.5
Suspension
Adjustable coil-over-shock, Operator Suspension Platform
Drive Axles (in)
1.125
Caster Tires (in.)
11 x 4-5, Flat free
Ground Speed-Rev (mph)
0-4
Overall Width (in) Deflector Down/Deflector Up
48.5/37
Seat Package
N/A
Instrumentation
Engine and PTO hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Starter
Electric
Marketing Model
5901546
Operator's Manuals
Wiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishIllustrated Parts List - EnglishOperator's Manual - EnglishWiring Diagram Schematic - EnglishSetup Guide - EnglishOperator's Manual - EnglishEngine Brand
Kawasaki® FX691V
Displacement (cc)
726
Cylinders
2
Cutting Width (in)
48
Spindles
Aluminum
Transmission
Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-8
Overall Length (in)
65
Dry Weight (lbs)
830
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine
Warranty (Engine) †
3-Year limited manufacturer's warranty
Deck Construction
iCD™ Cutting System
Engine Power Rating *
22 gross hp
PTO
Electric
Fuel Tank Capacity (gal)
6.0
Cutting Height (in)
1.75-4.5
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Drive Axles (in)
1.125
Caster Tires (in.)
11 x 4-5, Flat-free
Ground Speed-Rev (mph)
0-4
Overall Width (in) Deflector Down/Deflector Up
61/49
Seat Package
N/A
Instrumentation
Engine and PTO hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Starter
Electric
Marketing Model
5901547
Operator's Manuals
Wiring Diagram Schematic - EnglishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishIllustrated Parts List - EnglishOperator's Manual - EnglishWiring Diagram Schematic - EnglishSetup Guide - EnglishOperator's Manual - EnglishEngine Brand
Vanguard™
Displacement (cc)
627
Cylinders
2
Fuel Tank Capacity (gal)
6.0
Cutting Height (in)
1.75-4.5
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Drive Axles (in)
1.125
Caster Tires (in.)
11 x 4-5, Flat-free
Ground Speed-Rev (mph)
0-4
Overall Width (in) Deflector Down/Deflector Up
48.5/37
Seat Package
N/A
Instrumentation
Engine and PTO hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Safety Group
Operator presence in platform, Parking brake safety circuit for starting engine
Marketing Model
5901550
Operator's Manuals
Wiring Diagram Schematic - EnglishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishIllustrated Parts List - EnglishOperator's Manual - EnglishSetup Guide - EnglishOperator's Manual - EnglishEngine Power Rating *
23 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
36
Spindles
Aluminum
Transmission
Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 8.5-12
Ground Speed-Fwd (mph)
0-8
Overall Length (in)
63.5
Dry Weight (lbs)
765
Certified Roll-over Protection System
N/A
Safety Group/Controls
Integrated forward & reverse control levers with stabilizer bars, Automatic PTO disengagement
Warranty (Engine) †
3-Year limited manufacturer's warranty
Deck Construction
10-gauge fabricated
Engine Brand
Vanguard™
Displacement (cc)
627
Cylinders
2
Cutting Width (in)
48
Spindles
Aluminum
Transmission
Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-8
Overall Length (in)
65
Dry Weight (lbs)
830
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine
Warranty (Engine) †
3-Year limited manufacturer's warranty
Deck Construction
iCD™ Cutting System
Engine Power Rating *
23 gross hp
PTO
Electric
Fuel Tank Capacity (gal)
6.0
Cutting Height (in)
1.75-4.5
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Drive Axles (in)
1.125
Caster Tires (in.)
11 x 4-5 Flat-free
Ground Speed-Rev (mph)
0-4
Overall Width (in) Deflector Down/Deflector Up
61/49
Seat Package
N/A
Instrumentation
Engine and PTO hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Starter
Electric
Marketing Model
5901675
Operator's Manuals
Wiring Diagram Schematic - EnglishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishIllustrated Parts List - EnglishOperator's Manual - EnglishSetup Guide - EnglishOperator's Manual - English* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Engine Brand
Kawasaki® FX691V
Kawasaki® FX600V
Kawasaki® FX691V
Engine Power Rating *
22 gross hp
19 gross hp
22 gross hp
Displacement (cc)
726
603
726
PTO
Electric
Electric
Electric
Cylinders
2
2
2
Fuel Tank Capacity (gal)
6.0
6.0
6.0
Cutting Width (in)
48
36
48
Cutting Height (in)
1.75-4.5
1.75-4.5
1.75-4.5
Spindles
Aluminum
Aluminum
Aluminum
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Adjustable coil-over-shock, Operator Suspension Platform
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
1.125
1.125
Drive Tires (in)
23 x 10.5-12
23 x 8.5-12
23 x 10.5-12
Caster Tires (in.)
11 x 4-5, Flat-free
11 x 4-5, Flat free
11 x 4-5, Flat-free
Ground Speed-Fwd (mph)
0-8
0-8
0-8
Ground Speed-Rev (mph)
0-4
0-4
0-4
Overall Length (in)
65
63.5
65
Overall Width (in) Deflector Down/Deflector Up
61/49
48.5/37
61/49
Dry Weight (lbs)
830
765
830
Seat Package
N/A
N/A
N/A
Certified Roll-over Protection System
N/A
N/A
N/A
Instrumentation
Engine and PTO hour meter, fuel level gauge
Engine and PTO hour meter, fuel level gauge
Engine and PTO hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine
Operator presence in platform, Parking brake safety circuit for starting engine
Operator presence in platform, Parking brake safety circuit for starting engine
Parking Brake / Safety Circuit
Internal transaxle
Internal transaxle
Internal transaxle
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Deck Construction
iCD™ Cutting System
10-gauge fabricated
iCD™ Cutting System
Starter
Electric
Electric
Electric
Marketing Model
5901547
5901546
5901547
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
