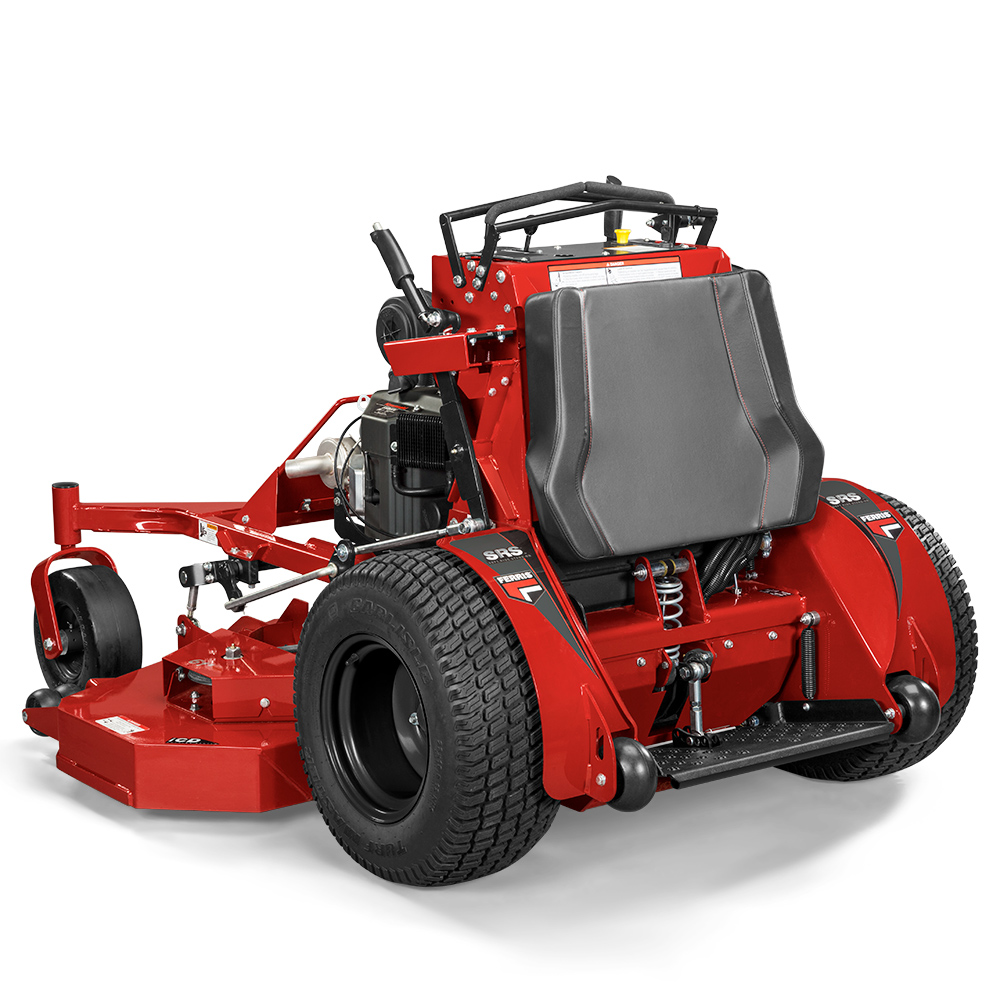

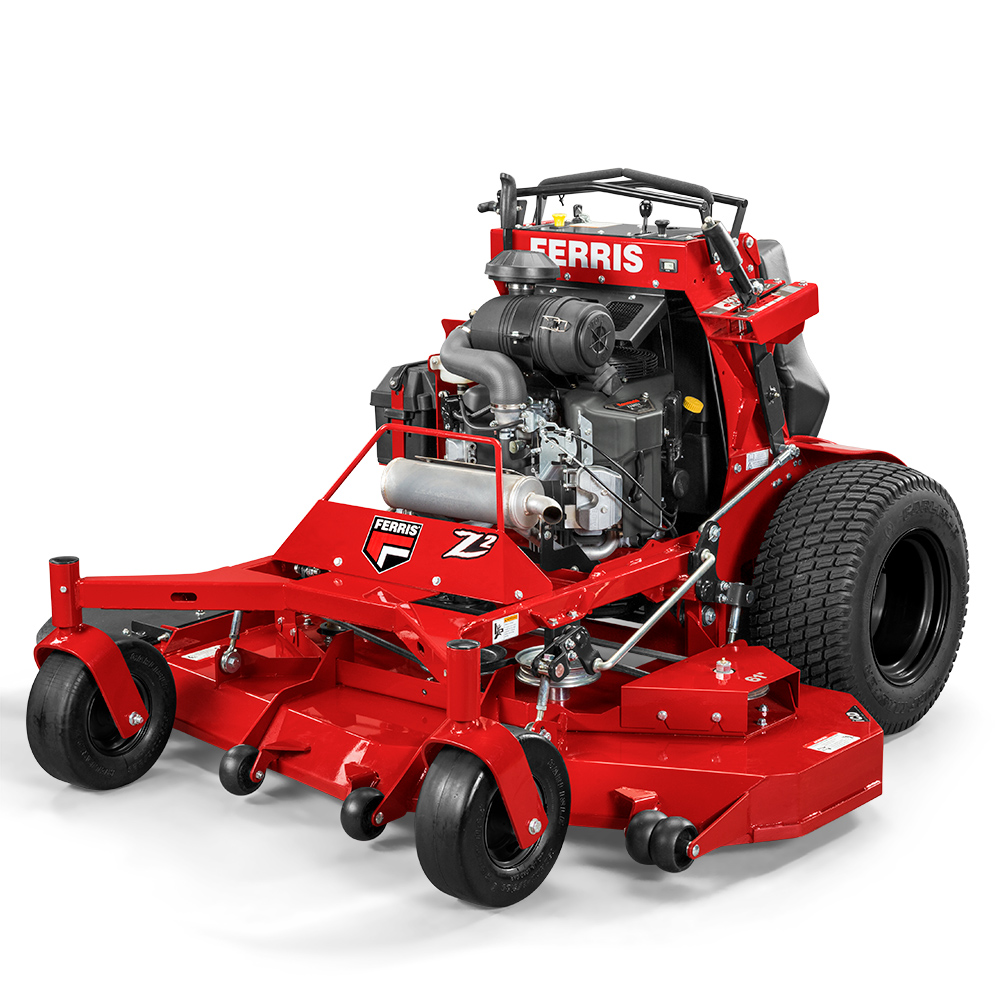

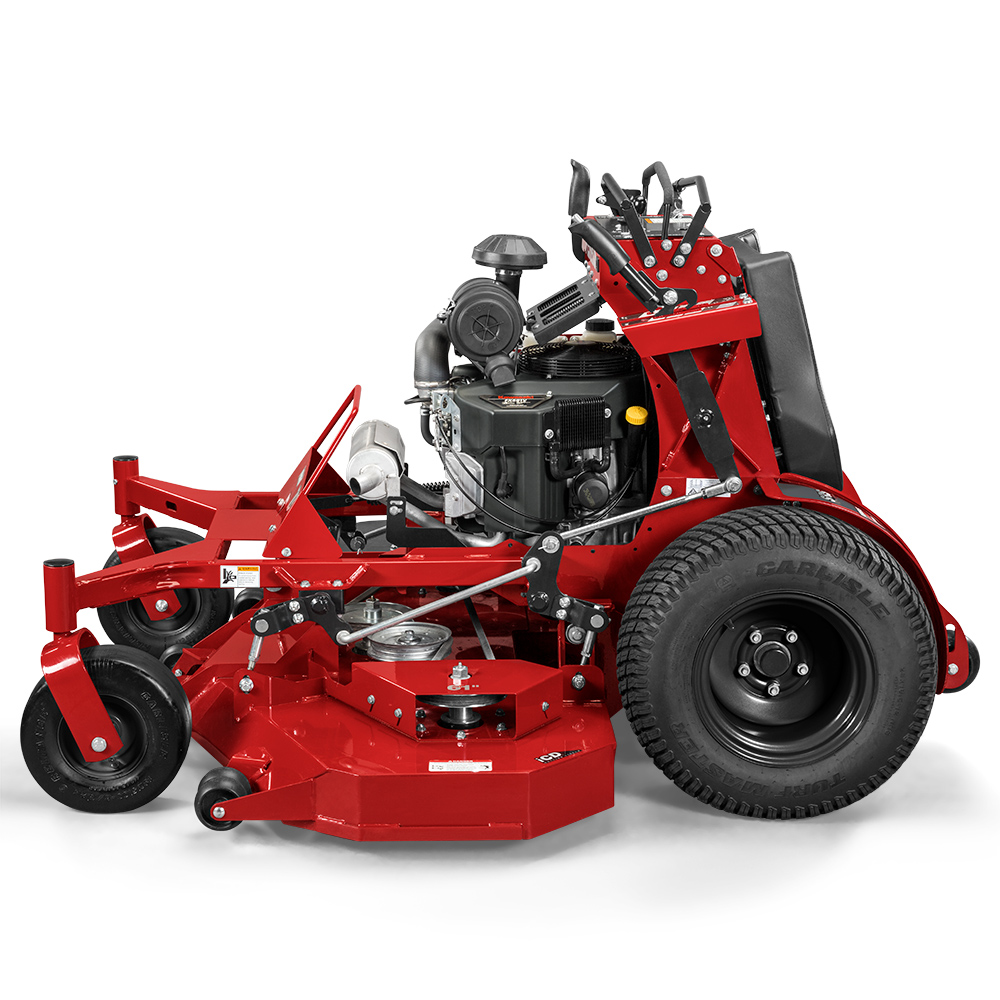

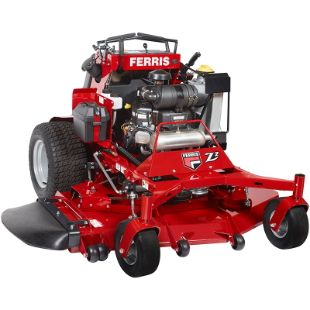

Soft Ride Stand-On (SRS™) Z2 Mowers

A COMBINATION OF SPEED, AGILITY AND HIGH QUALITY OF CUT

The Soft Ride Stand-On SRS  Z2 raises the bar with our adjustable operator platform, which features suspension technology that optimizes operator comfort and increases productivity! The superior balance provides stability and maneuverability that exceeds expectations for traction and handling. The Soft Ride Stand-on SRS  Z2 is designed to allow for quick operator exit and re-entry.

Choose between multiple engine options: a Vanguard™ 810 EFI offering a 500 hour oil change interval with the new Oil Guard System, a Kawasaki® FX801V or a Kawasaki® FX730V EFI all with a 3-year limited manufacturer’s warranty†

Z2 SRS Features:

  • Featuring the tried-and-true Oil Guard System on Vanguard BIG BLOCK EFI engine options. Save 60% on oil maintenance per season per unit!**
  • Available in 52” or 61” cutting deck, our iCD Cutting System comes equipped with strong ¼-inch Marbain® steel blades that generate greater lift and improve airflow.
  • The SRS Z2 has an efficient 10 mph max ground speed.
  • The PTO conveniently disengages when the operator leaves the platform to move an obstacle or pick up debris. When the operator steps back onto the platform and re-engages the PTO switch, the blades start again for continued mowing.
  • Easy-locking 3-position ground speed control ensures smooth operation in tight spaces while our fan-cooled Hydro-Gear® ZT-3400® transaxle allows the unit to handle grueling conditions.
  • The operator platform, with adjustable suspension technology, integrated forward and reverse levers and ergonomic thigh pads, delivers a more comfortable ride.

Looking For A Price?

Overview

500 Hour Oil Change (Select Models)

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Ride-On Mower Warranties†

Coil-over-shocks and all suspension-related components are covered for 4 years (48 months) unlimited hours. We are committed to providing performance, productivity and durability.

Fuel Capacity

Generous 8-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

Vanguard™ 810cc EFI engines

Vanguard™ 810cc engines deliver the optimum power, performance and efficiency commercial zero-turn mowers need.

Speed Control Setting

The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.

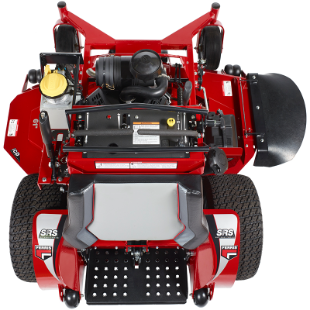

Suspension Platform System

The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

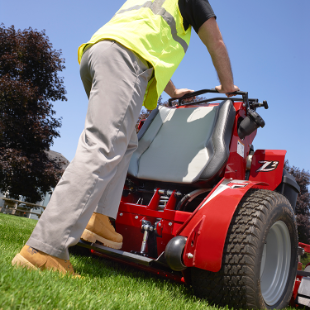

Standing Comfort

Ergonomically designed thigh pad provides superior operator comfort, especially on hilly terrain.

Acres Per Hour

Mows up to 5 acres per hour, based on 80% efficiency.

Adjustable Height of Cut

Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 5".

Integrated Mowing Transmissions

Commercial Hydro-Gear® ZT-3400® transaxles are designed for high performance and are fully serviceable.

Speed

Up to 10 mph ground speed.

iCD™ Cutting System

Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

Engine Brand
Kawasaki® FX801V
Displacement (cc)
852
Cylinders
2
Fuel Tank Capacity (gal)
8
Cutting Height (in)
1.75 - 5
Suspension
Adjustable coil-over-shock Operator Supension Platform
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Overall Length (in)
67
Dry Weight (lbs)
921
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Warranty (Engine) †
3-Year limited manufacturer's warranty
PTO Switch Mower Engagement
Electric
Warranty Consumer Engine Info
3-Year limited manufacturer's warranty
Engine Power Rating *
25.5 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
52
Spindles
Aluminum
Deck Construction
iCD™ Cutting System
Drive Axles (in)
1.125
Caster Tires (in.)
13 x 5-6 Flat-free
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
65 / 54
Seat Package
N/A
Instrumentation
Hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Brake
Internal transaxles
Assembled Height
46"
Marketing Model
5901466
Engine Brand
Kawasaki® FX801V
Displacement (cc)
852
Cylinders
2
Fuel Tank Capacity (gal)
8
Cutting Height (in)
1.75 - 5
Suspension
Adjustable coil-over-shock Operator Supension Platform
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Overall Length (in)
72
Dry Weight (lbs)
998
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Warranty (Engine) †
3-Year limited manufacturer's warranty
PTO Switch Mower Engagement
Electric
Warranty Consumer Engine Info
3-Year limited manufacturer's warranty
Engine Power Rating *
25.5 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
61
Spindles
Cast-iron
Deck Construction
iCD™ Cutting System
Drive Axles (in)
1.125
Caster Tires (in.)
13 x 5-6 Flat-free
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
77 / 64
Seat Package
N/A
Instrumentation
Hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Brake
Internal transaxles
Assembled Height
46
Marketing Model
5901468
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Displacement (cc)
810
Cylinders
2
Fuel Tank Capacity (gal)
8
Cutting Height (in)
1.75 - 5
Suspension
Adjustable coil-over-shock Operator Supension Platform
Transmission
Dual commercial Hydro-Gear® ZT-3400 transaxles with 7" cooling fans
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Overall Length (in)
67
Dry Weight (lbs)
921
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Warranty (Engine) †
3-Year limited manufacturer's warranty
PTO Switch Mower Engagement
Electric
Warranty Consumer Engine Info
3-Year limited manufacturer's warranty
Engine Power Rating *
28 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
52
Spindles
Aluminum
Deck Construction
iCD™ Cutting System
Drive Axles (in)
1.125
Caster Tires (in.)
13 x 5-6 Flat-free
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
65 / 54
Seat Package
N/A
Instrumentation
Hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Brake
Internal transaxles
Assembled Height
46"
Marketing Model
5901605
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Displacement (cc)
810
Cylinders
2
Fuel Tank Capacity (gal)
8
Cutting Height (in)
1.75 - 5
Suspension
Adjustable coil-over-shock Operator Supension Platform
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Overall Length (in)
72
Dry Weight (lbs)
998
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Warranty (Engine) †
3-Year limited manufacturer's warranty
PTO Switch Mower Engagement
Electric
Marketing Model
5901606
Engine Power Rating *
28 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
61
Spindles
Cast-iron
Deck Construction
iCD™ Cutting System
Drive Axles (in)
1.125
Caster Tires (in.)
13 x 5-6 Flat-free
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
77 / 64
Seat Package
N/A
Instrumentation
Hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Brake
Internal transaxles
Warranty Consumer Engine Info
3-Year limited manufacturer's warranty
Engine Brand
Kawasaki® FX730V EFI
Displacement (cc)
726
Cylinders
2
Fuel Tank Capacity (gal)
8
Cutting Height (in)
1.75-5
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual, commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Overall Length (in)
72
Dry Weight (lbs)
998
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Warranty (Engine) †
3-Year limited manufacturer's warranty
Starter
Electric
Warranty Consumer Engine Info
3-Year limited manufacturer's warranty
Engine Power Rating *
25.5 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
61
Spindles
Cast-iron
Deck Construction
iCD™ Cutting System
Drive Axles (in)
1.125
Caster Tires (in.)
13 x 5-6 Flat freee
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
77/64
Seat Package
N/A
Instrumentation
Hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Marketing Model
5901679
Engine Brand
Kawasaki® FX730V EFI
Displacement (cc)
762
Cylinders
2
Fuel Tank Capacity (gal)
8
Cutting Height (in)
1.75-5
Suspension
Adjustable coil-over-shock; Operator Suspension Platform
Transmission
Dual, commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Overall Length (in)
67
Dry Weight (lbs)
921
Certified Roll-over Protection System
N/A
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Warranty (Engine) †
3-Year limited manufacturer's warranty
Starter
Electric
Warranty Consumer Engine Info
3-Year limited manufacturer's warranty
Engine Power Rating *
25.5 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
52
Spindles
Aluminum
Deck Construction
iCD™ Cutting System
Drive Axles (in)
1.125
Caster Tires (in.)
13 x 5-6 Flat free
Ground Speed-Rev (mph)
0-5
Overall Width (in) Deflector Down/Deflector Up
65/54
Seat Package
N/A
Instrumentation
Hour meter, fuel level gauge
Parking Brake / Safety Circuit
Internal Transaxle
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Marketing Model
5901680

* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand
Kawasaki® FX801V
Kawasaki® FX801V
Engine Power Rating *
25.5 gross hp
25.5 gross hp
Displacement (cc)
852
852
PTO
Electric
Electric
Cylinders
2
2
Starting
Electric
Electric
Fuel Tank Capacity (gal)
8
8
Cutting Width (in)
52
61
Cutting Height (in)
1.75 - 5
1.75 - 5
Spindles
Aluminum
Cast-iron
Suspension
Adjustable coil-over-shock Operator Supension Platform
Adjustable coil-over-shock Operator Supension Platform
Deck Construction
iCD™ Cutting System
iCD™ Cutting System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
1.125
Drive Tires (in)
23 x 10.5-12
23 x 10.5-12
Caster Tires (in.)
13 x 5-6 Flat-free
13 x 5-6 Flat-free
Ground Speed-Fwd (mph)
0-10
0-10
Ground Speed-Rev (mph)
0-5
0-5
Overall Length (in)
67
72
Overall Width (in) Deflector Down/Deflector Up
65 / 54
77 / 64
Dry Weight (lbs)
921
998
Seat Package
N/A
N/A
Certified Roll-over Protection System
N/A
N/A
Instrumentation
Hour meter, fuel level gauge
Hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Internal transaxle
Internal transaxle
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
PTO Switch Mower Engagement
Electric
Electric
Brake
Internal transaxles
Internal transaxles
Assembled Height
46"
46
Warranty Consumer Engine Info
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Marketing Model
5901466
5901468

Attachments

Lawn Striping Kit

Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.

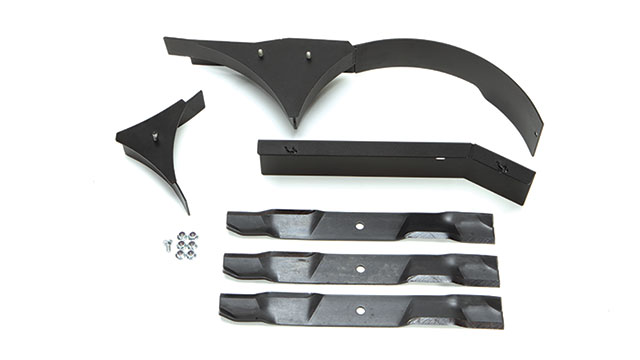

Mulch Kit

Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.

Reviews

Q&A
