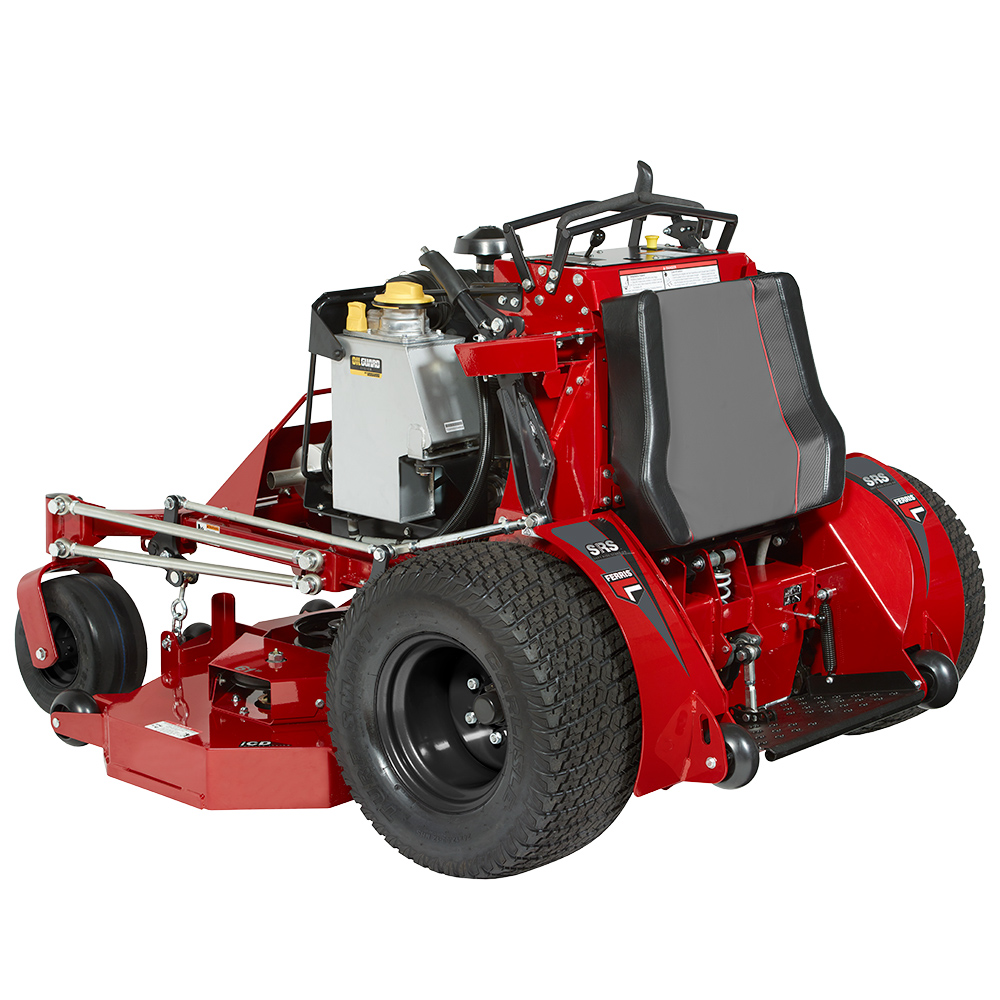

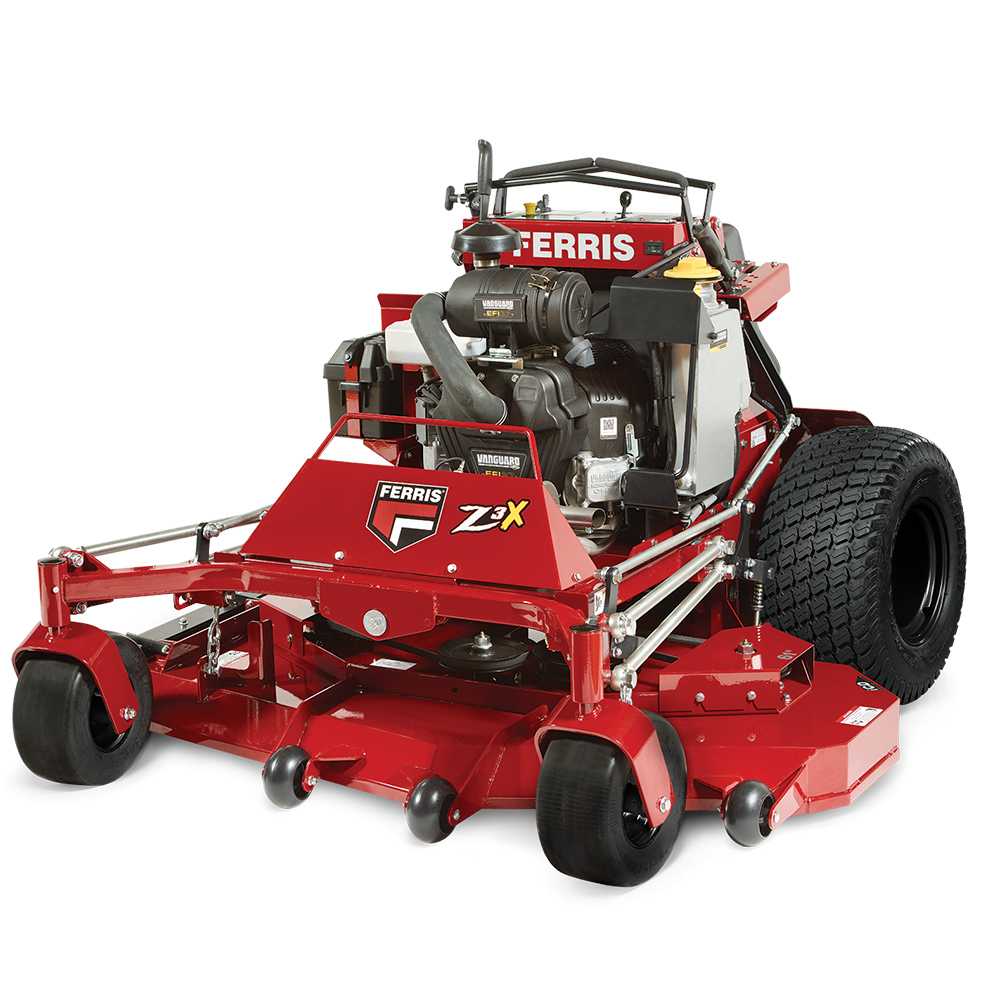

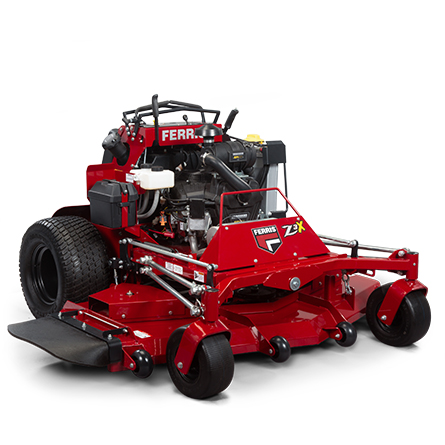

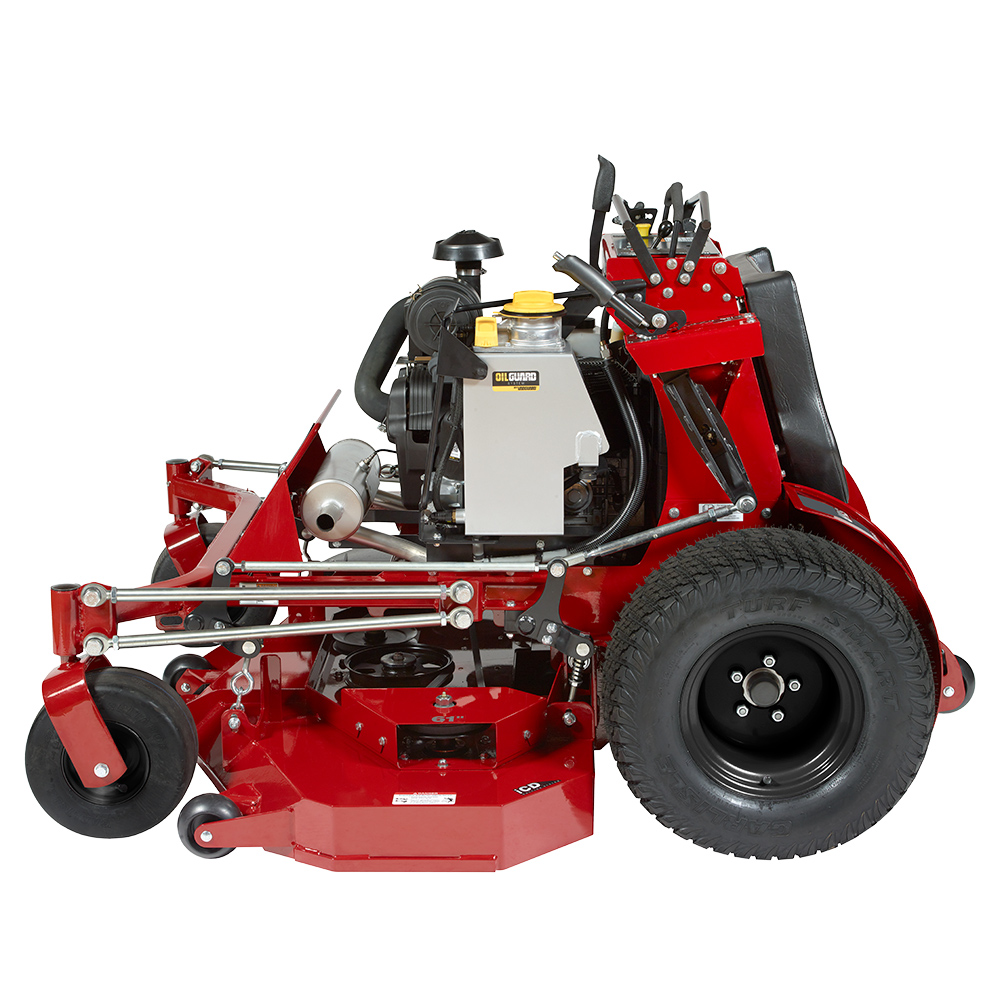

SRS™ Z3X Soft Ride Stand-On Mowers

SUPERIOR TRACTION WITH STAND-OUT PERFORMANCE

Built to deliver superior traction and performance, the SRS™ Z3X raises the bar for stand-on productivity. With various deck options, the Z3X increases productivity without sacrificing the trusted Ferris cut quality. A pivoting front axle allows for steeper inclines, meaning you can mow safer and more efficiently on even the most difficult yards. Featuring our redesigned iCD™+ Cutting System (select models) for maximum vacuum and clipping ejection to deliver only the most premium cut.

72"

Deck Size

37 HP

Power Rating*

12 MPH

Ground Speed

4-Years

Limited Warranty

Features

NEW! iCD+™ Cutting System

Redesigned to deliver next-level performance, increased durability and superior results. Select models.

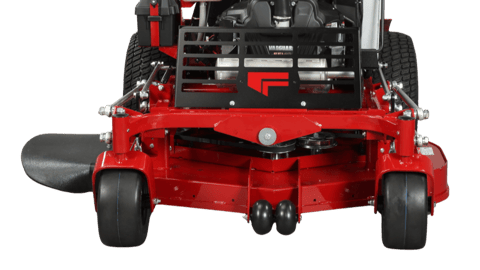

Pivoting Front Axle with Radius Rod

Robust front axle ensures that all four wheels hold their contact, enhancing comfort and quality of cut.

Suspension Platform System

The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

500 Hour Oil Change (Select Models)

Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

Learn More >

Large Fuel Capacity

Generous 11-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.

Adjustable Speed Control

No tools are required to set the speed control bar, in increments of 1-2 mph, for smooth operation to max travel speed of 12 mph.

 † See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.



Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
5901955
US MSRP ^
$13,099.00
CAN MSRP ^
$17,699.00
Engine Brand
Kawasaki® FX850V
Engine Power Rating (hp) *
27
Starter
Electric
Displacement (cc)
852
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
11
Deck Construction
iCD™ Cutting System
Deck Size (in)
52
Cutting Height (in)
1.75 - 5
Spindles
Cast-iron
Suspension
Operator suspension platform with coil-over shock suspension
Transmission
Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Drive Axles (in)
1.375
Drive Tires (in)
24 X 9.5-12
Caster Tires (in)
13 X 6.5-6, Flat-free
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
69
Overall Width (in) Deflector Down/Deflector Up
65 / 54.5
Dry Weight (lbs)
1184
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
Warranty (Balance of Machine) †
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxle components are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
Warranty (Engine) †
3-Year Limited Manufacturer's Warranty

* All power levels are stated gross horsepower at 3600 ROM per SAE J1940 as rated by Briggs & Stratton.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

^ Suggested prices will vary by market. Prices are shown in U.S. dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
5902123
US MSRP ^
$14,399.00
CAN MSRP ^
$19,499.00
Engine Brand
Vanguard™ BIG BLOCK™ EFI-ETC with Oil Guard
Engine Power Rating (hp) *
37
Starter
Electric
Displacement (cc)
993
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
11
Deck Construction
iCD™ Cutting System
Deck Size (in)
52
Cutting Height (in)
1.75 - 5
Spindles
Cast-iron
Suspension
Operator suspension platform with coil-over shock suspension
Transmission
Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Drive Axles (in)
1.375
Drive Tires (in)
24 X 9.5-12
Caster Tires (in)
13 X 6.5-6, Flat-free
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
69
Overall Width (in) Deflector Down/Deflector Up
65 / 54.5
Dry Weight (lbs)
1184
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxle components are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
Warranty (Engine) †
3-Year Limited Manufacturer's Warranty

* All power levels are stated gross horsepower at 3600 ROM per SAE J1940 as rated by Briggs & Stratton.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

Model Number
5902071
US MSRP ^
$14,949.00
CAN MSRP ^
$20,199.00
Engine Brand
Vanguard™ BIG BLOCK™ EFI-ETC with Oil Guard
Engine Power Rating (hp) *
37
Starter
Electric
Displacement (cc)
993
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
11
Deck Construction
iCD™+ Cutting System
Deck Size (in)
60
Cutting Height (in)
1.75 - 5
Spindles
Cast-iron
Suspension
Operator suspension platform with coil-over shock suspension
Transmission
Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Drive Axles (in)
1.375
Drive Tires (in)
24 X 12-12
Caster Tires (in)
13 X 6.5-6, Flat-free
Ground Speed-Fwd (mph)
0 - 12
Ground Speed-Rev (mph)
0 - 5
Overall Length (in)
73.75
Overall Width (in) Deflector Down/Deflector Up
74 / 65
Dry Weight (lbs)
1273
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand-operated internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Warranty (Engine) †
3-Year limited manufacturer's warranty

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

Model Number
5902170
US MSRP ^
$16,099.00
CAN MSRP ^
$21,749.00
Engine Brand
Vanguard™ BIG BLOCK™ EFI-ETC with Oil Guard
Engine Power Rating (hp) *
37
Starter
Electric
Displacement (cc)
993
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
11
Deck Construction
iCD™+ Cutting System
Deck Size (in)
72
Cutting Height (in)
1.75 - 5
Spindles
Cast-iron
Suspension
Operator suspension platform with coil-over shock suspension
Transmission
Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Drive Axles (in)
1.375
Drive Tires (in)
24 X 12-12
Caster Tires (in)
13 X 6.5-6, Flat-free
Ground Speed-Fwd (mph)
0 - 12
Ground Speed-Rev (mph)
0 - 5
Overall Length (in)
74.5
Overall Width (in) Deflector Down/Deflector Up
85.25 / 77
Dry Weight (lbs)
1327
Seat Package
N/A
Certified Roll-over Protection System
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Hand-operated internal transaxle brake
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Warranty (Engine) †
3-Year limited manufacturer's warranty

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ Suggested prices will vary by market. Prices are shown in U.S. dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
5901955
5902123
5902071
5902170
US MSRP ^
$13,099.00
$14,399.00
$14,949.00
$16,099.00
CAN MSRP ^
$17,699.00
$19,499.00
$20,199.00
$21,749.00
Engine Brand
Kawasaki® FX850V
Vanguard™ BIG BLOCK™ EFI-ETC with Oil Guard
Vanguard™ BIG BLOCK™ EFI-ETC with Oil Guard
Vanguard™ BIG BLOCK™ EFI-ETC with Oil Guard
Engine Power Rating (hp) *
27
37
37
37
Starter
Electric
Electric
Electric
Electric
Displacement (cc)
852
993
993
993
PTO
Electric
Electric
Electric
Electric
Cylinders
2
2
2
2
Fuel Tank Capacity (gal)
11
11
11
11
Deck Construction
iCD™ Cutting System
iCD™ Cutting System
iCD™+ Cutting System
iCD™+ Cutting System
Deck Size (in)
52
52
60
72
Cutting Height (in)
1.75 - 5
1.75 - 5
1.75 - 5
1.75 - 5
Spindles
Cast-iron
Cast-iron
Cast-iron
Cast-iron
Suspension
Operator suspension platform with coil-over shock suspension
Operator suspension platform with coil-over shock suspension
Operator suspension platform with coil-over shock suspension
Operator suspension platform with coil-over shock suspension
Transmission
Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Dual commercial Hydro-Gear® ZT-4400® transaxles with 8" cooling fans
Drive Axles (in)
1.375
1.375
1.375
1.375
Drive Tires (in)
24 X 9.5-12
24 X 9.5-12
24 X 12-12
24 X 12-12
Caster Tires (in)
13 X 6.5-6, Flat-free
13 X 6.5-6, Flat-free
13 X 6.5-6, Flat-free
13 X 6.5-6, Flat-free
Ground Speed-Fwd (mph)
0-12
0-12
0 - 12
0 - 12
Ground Speed-Rev (mph)
0-5
0-5
0 - 5
0 - 5
Overall Length (in)
69
69
73.75
74.5
Overall Width (in) Deflector Down/Deflector Up
65 / 54.5
65 / 54.5
74 / 65
85.25 / 77
Dry Weight (lbs)
1184
1184
1273
1327
Seat Package
N/A
N/A
N/A
N/A
Certified Roll-over Protection System
N/A
N/A
N/A
N/A
Instrumentation
Dual-function hour meter, fuel level gauge
Dual-function hour meter, fuel level gauge
Dual-function hour meter, fuel level gauge
Dual-function hour meter, fuel level gauge
Safety Group/Controls
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Parking Brake / Safety Circuit
Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
Hand-operated internal transaxle brake
Hand-operated internal transaxle brake
Warranty (Balance of Machine) †
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxle components are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Transaxle components are covered for 3 years (36 months). Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Warranty (Engine) †
3-Year Limited Manufacturer's Warranty
3-Year Limited Manufacturer's Warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty

* All power levels are stated gross horsepower at 3600 ROM per SAE J1940 as rated by Briggs & Stratton.

† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

^ Suggested prices will vary by market. Prices are shown in U.S. dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Attachments

Mulch Kit

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

Lawn Striping Kit

Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.

Metal Grass Catcher

Rugged steel-framed catcher has handles that make attaching and removing a breeze. Capacity: 3.5 bushels. Fits 52" model.

Flat-Free Caster Tires

Eliminate downtime by running all-day with flat-free caster tires.

Email Sign Up
