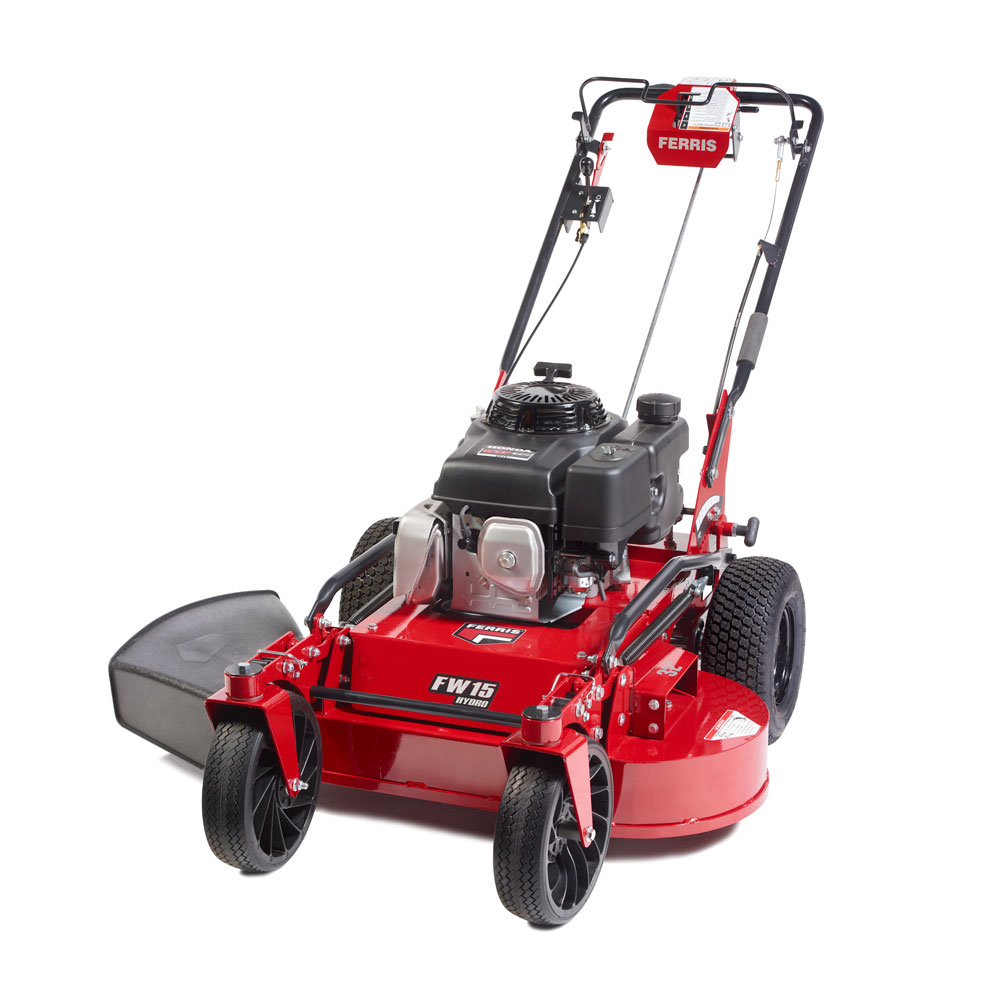

FW15 Walk Behind Mower

VARIABLE HYDROSTATIC 32” COMMERCIAL WALK BEHIND

The FW15 variable hydrostatic walk-behind provides a narrow footprint for trimming around trees and planter beds. Maneuverable and easy to operate, this unit will become a crew favorite.

10.2 HP

Gross Torque

32"

Cutting Width

4 MPH

Ground Speed

2-Years

Limited Warranty

Features

One Hand Operation

Comfortable, single-handed operation with adjustable speed control. The handlebars are adjustable with four positions for operator comfort.

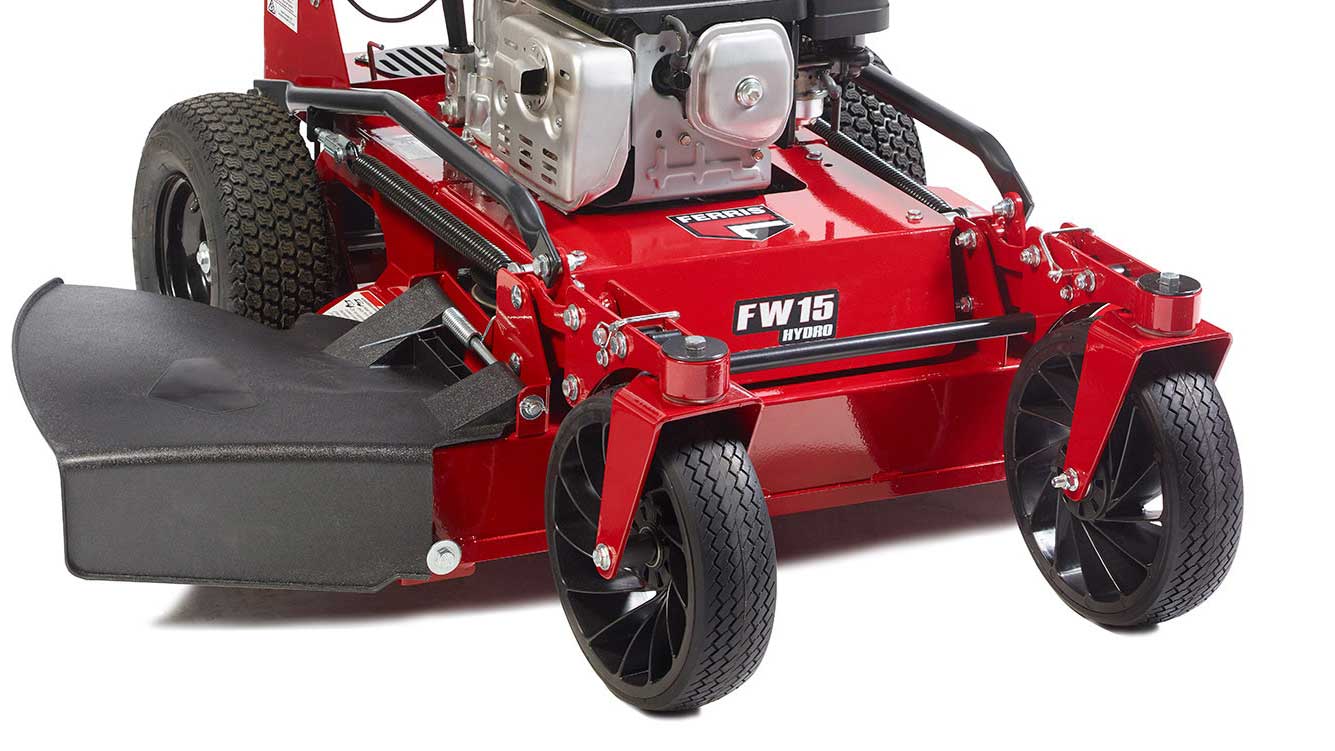

Commercial-grade Steel Timed Mower Deck

32” compact fully-commercial, fabricated, reinforced, steel deck with dual timed cutting blades.

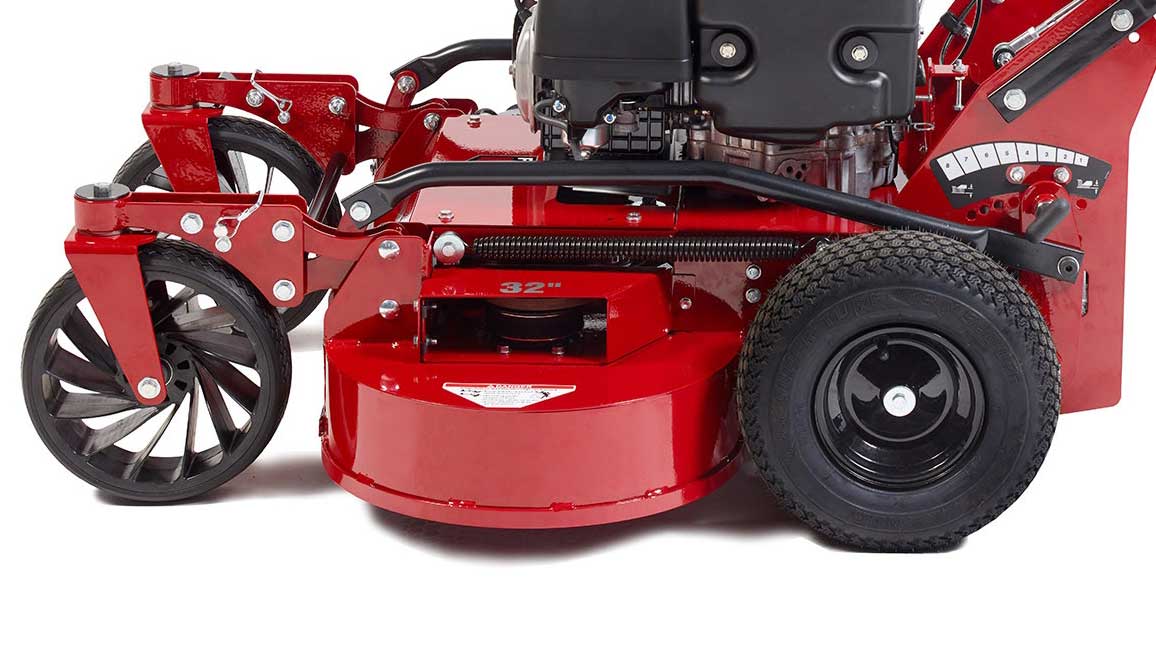

Easy Cut Height Adjustment

Spring assisted, single adjustment point lever for easy cut height adjustment.

Caster Wheel Model Available

The lockable 10.5" front caster wheels are sturdy and easy to maneuver with.

Variable Hydrostatic Drive

In forward and reverse, the FW15 provides smooth traction for sloping terrain and precise trimming.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
5901737
US MSRP ^
$3,299.00
CAN MSRP ^
$3,699.00
Engine Brand
Honda® GXV390
Engine Power Rating *
10.2
Displacement (cc)
389
PTO
Manual, Cable
Cylinders
1
Starter
Manual
Fuel Tank Capacity (gal)
0.55
Cutting Width (in)
32
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Deck Construction
14 and 12-gauge
Transmission
Peerless axle with differential chain driven by Hydro-Gear® RT-310 pump and motor
Drive Axles (in)
0.75
Caster Tires (in)
10.5 x 3 Lockable Wheel
Drive Tires (in)
13 x 5-6
Ground Speed-Fwd (mph)
0 - 4
Ground Speed-Rev (mph)
0 -2
Overall Length (in)
73.5
Overall Width (in) Deflector Down/Deflector Up
44 / 32.5
Dry Weight (lbs)
285
Instrumentation
Speed Indicator
Safety Group/Controls
Blade Control Bail OPC
Warranty (Balance of Machine) †
2-year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components vary, please see operator’s manual for complete details. ¹
Warranty Commercial Product Info
3-year Limited engine warranty¹

¹ See operator’s manual or dealer for complete warranty details/ Refer to engine operator’s manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Attachments

Mulch Kit

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

Cloth Bagger

Durable, fabric cloth bag with 7" hose and 90" inlet. Capacity 2.5 bushels.
