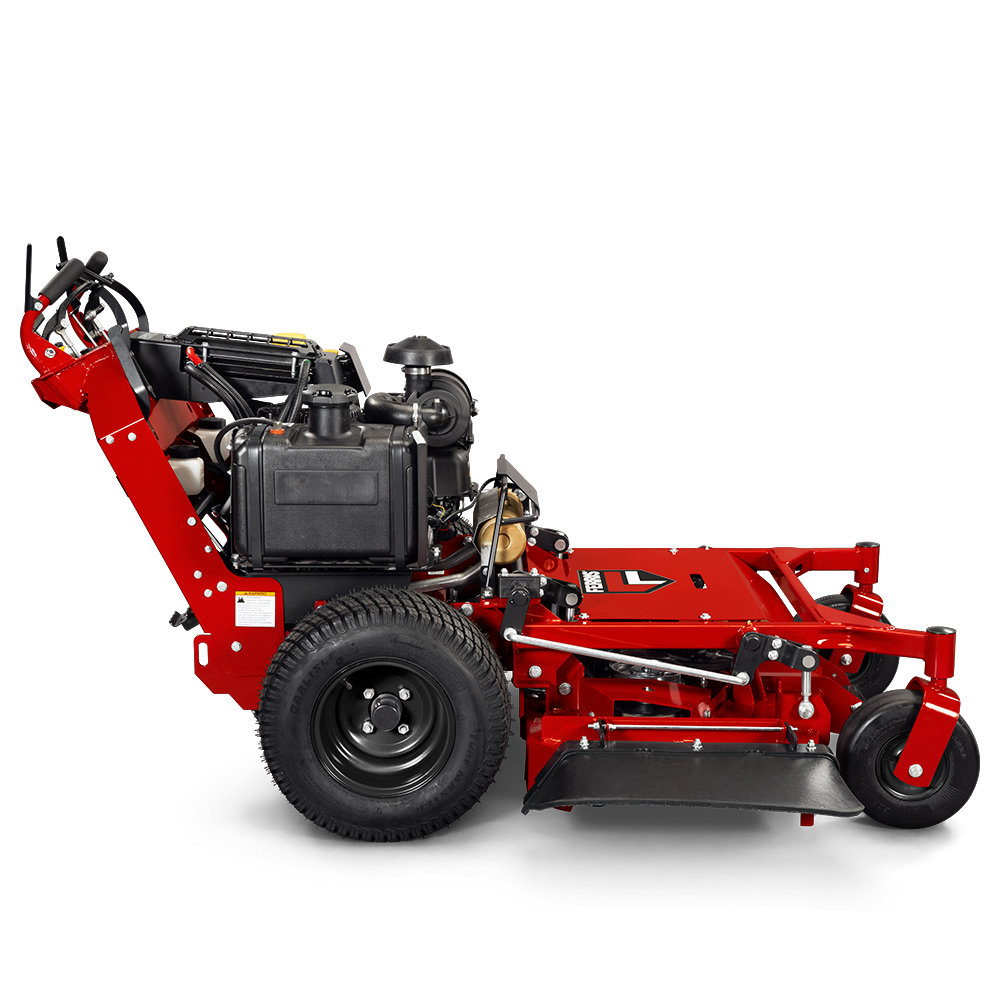

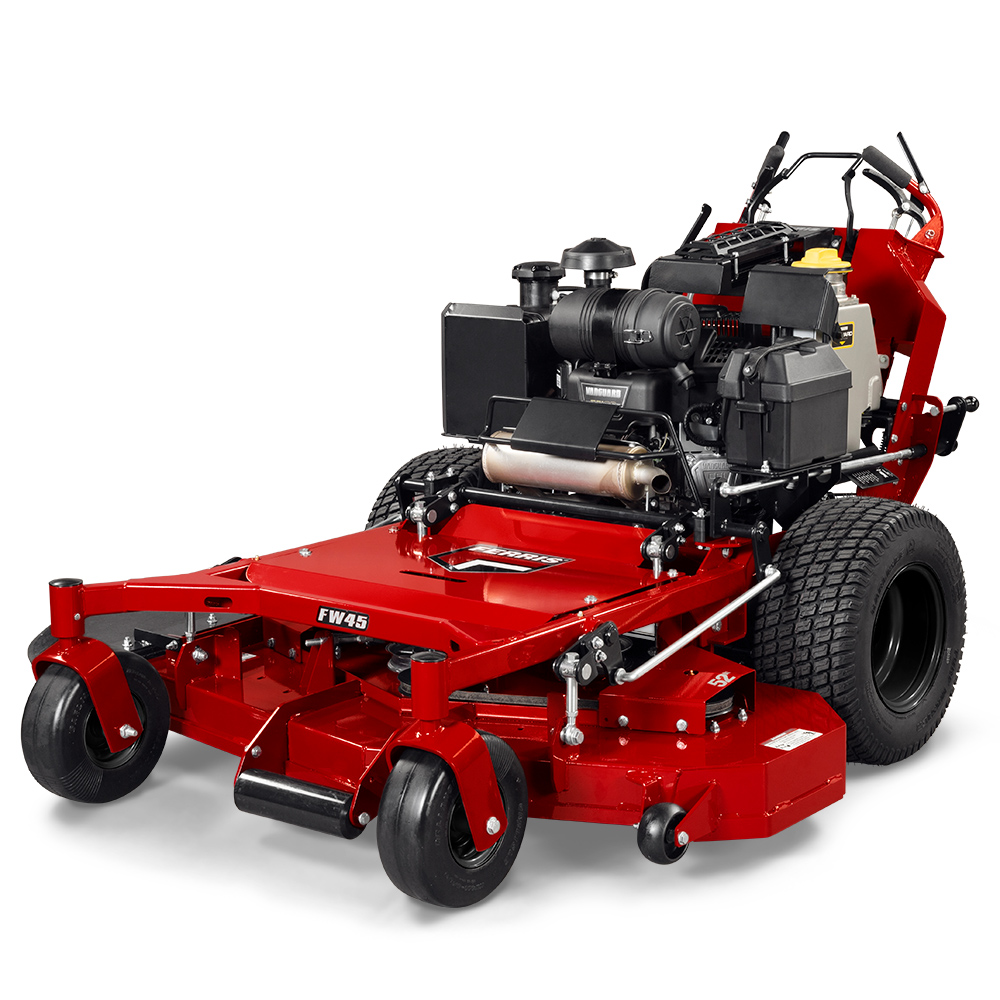

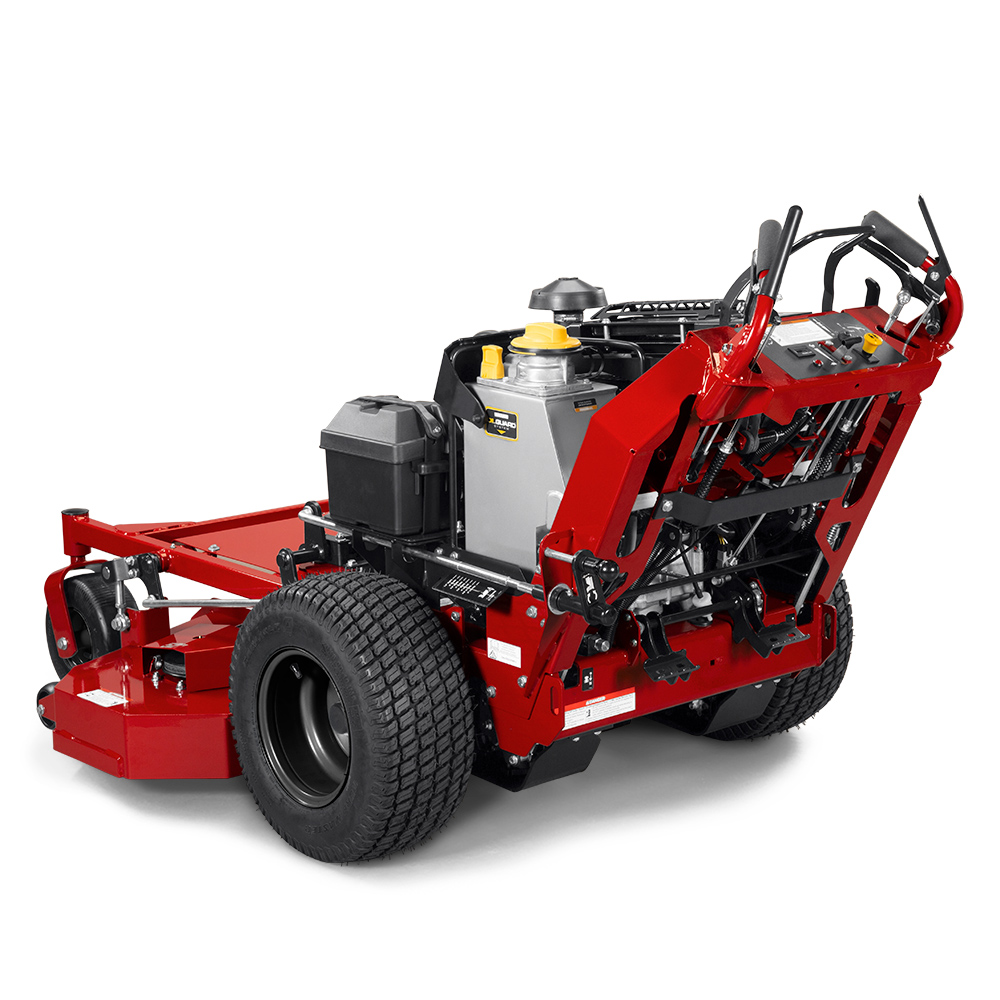

FW45 Walk Behind Mowers

Fuel-Efficient Wide Area Commercial Mowers Built for Comfort & Control

The FW45 is engineered for performance, productivity, and comfort. The three available deck sizes allow for maneuverability while engine options provide the power a commercial walk mower needs. Pairing comfort features like ergonomically designed controls with easy maintenance and durability mean the FW45 can handle whatever is thrown at it.

28 HP +

Gross Torque

48" +

Cutting Width

7 MPH

Ground Speed

2-Years Commercial

Limited Warranty

Features

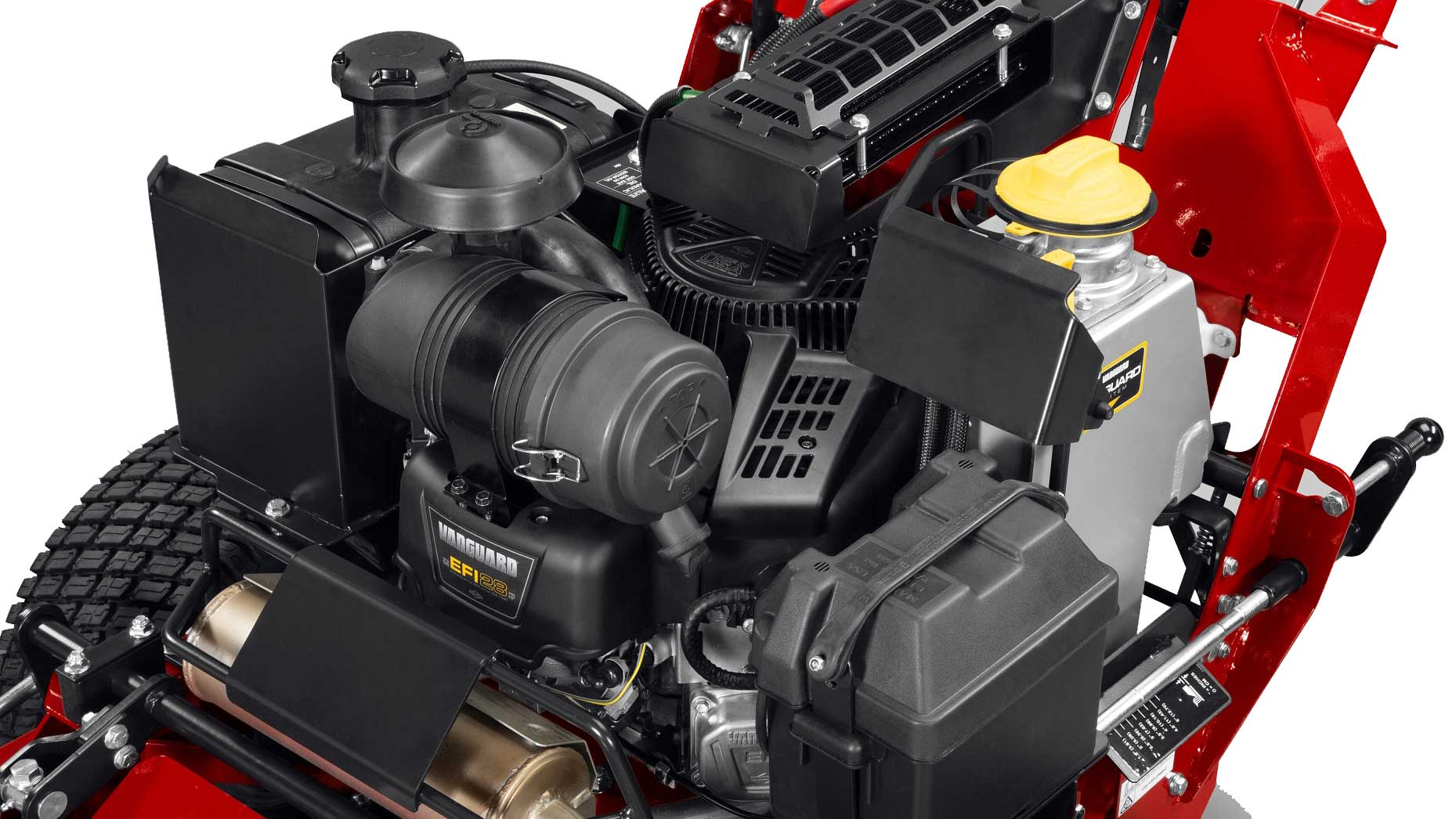

Added Power and Performance

Powered by a 28 hp* Vanguard® 810 EFI Engine with Oil Guard™, you will get a 500-hour oil change interval that can reduce maintenance time and costs by 60%**. (Select models)

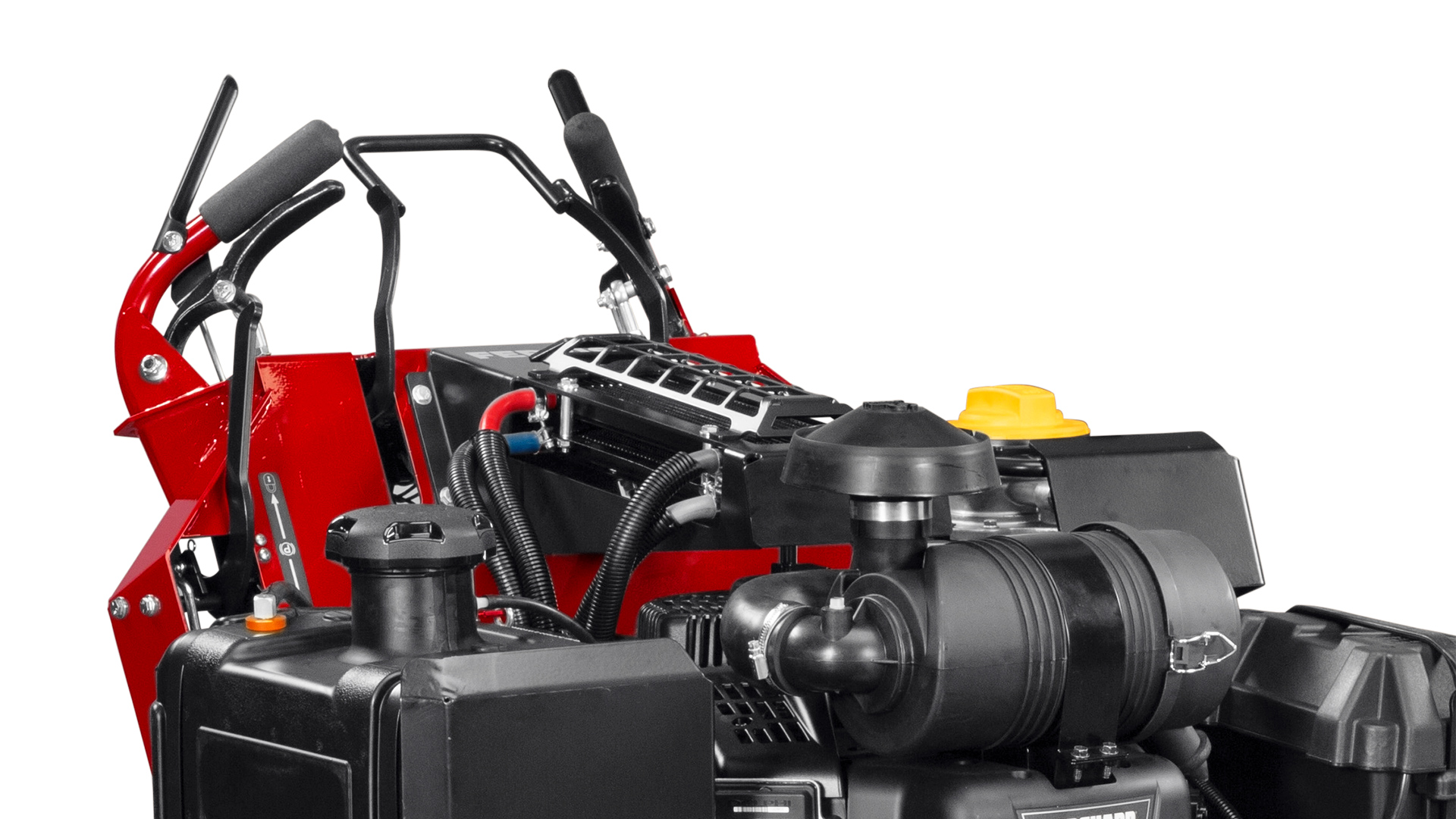

Cool Oil for Efficient Use

External oil coolers for the dual Hydro-Gear ZT-3400 transaxles reduce oil temperature by as much as 25%, plus a new quick fill system makes maintenance that much easier.

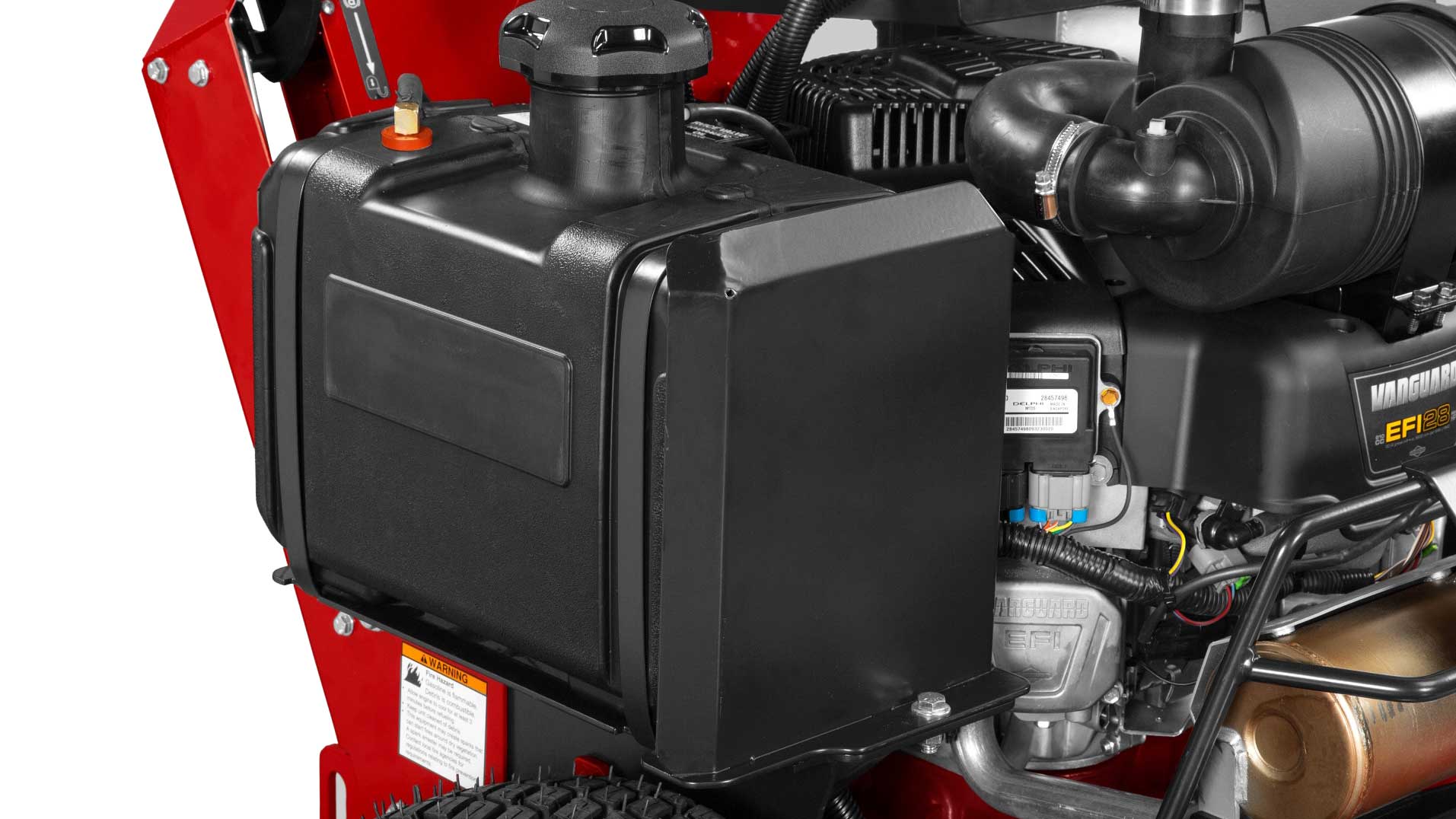

Gas Tank Guard

Additional protection has been added to protect the gas tank from obstacles and debris.

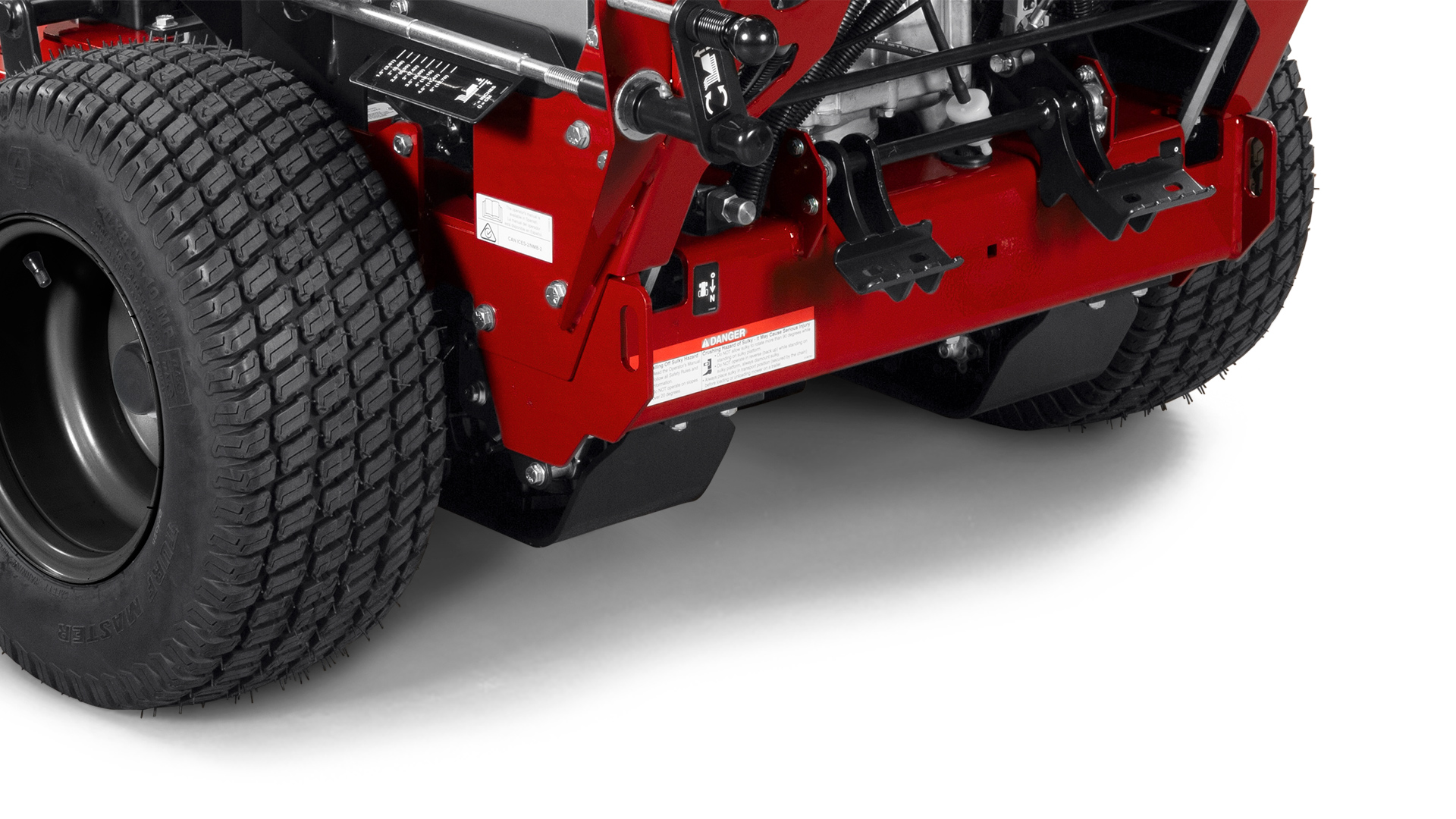

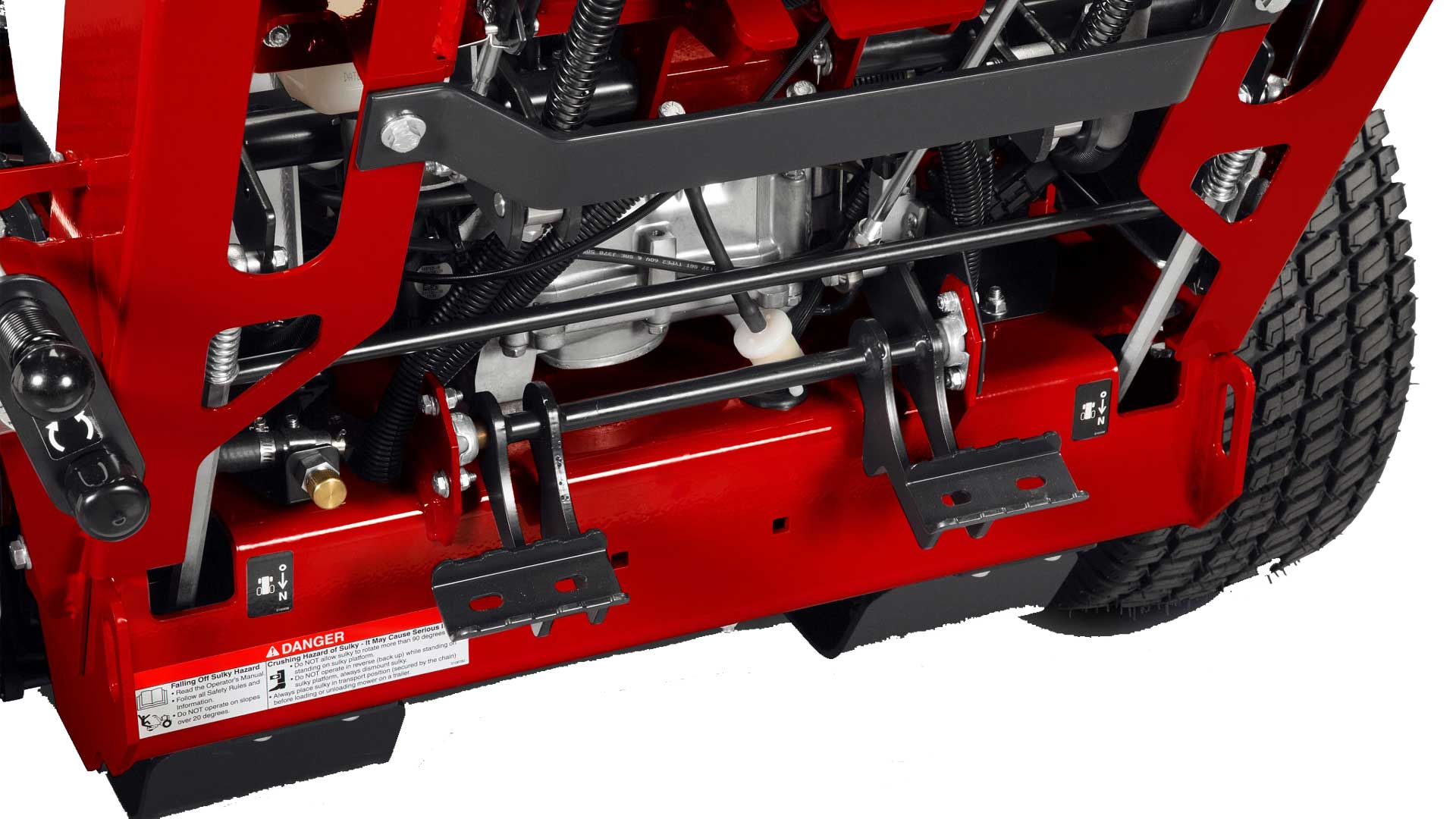

Enhanced Foot Pedal Support

Upgraded with dual solid-steel return-to-neutral foot pedals for better user support.

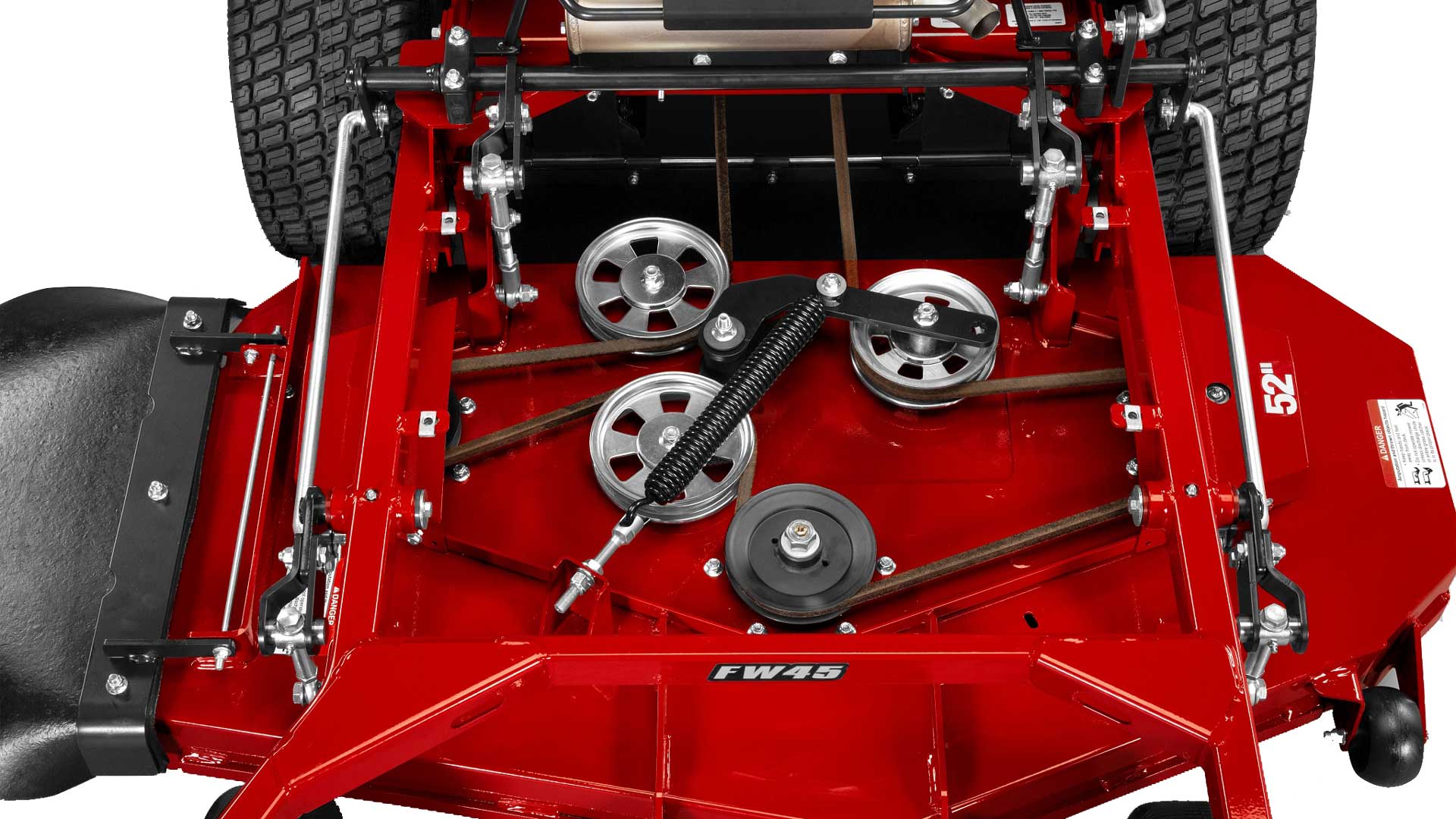

New Spindle Access

We listened closely to our commercial users when considering the enhancements on our redesigned mower deck. The new, improved deck provides a new spindle easy-access slot for faster greasing and accessibility.

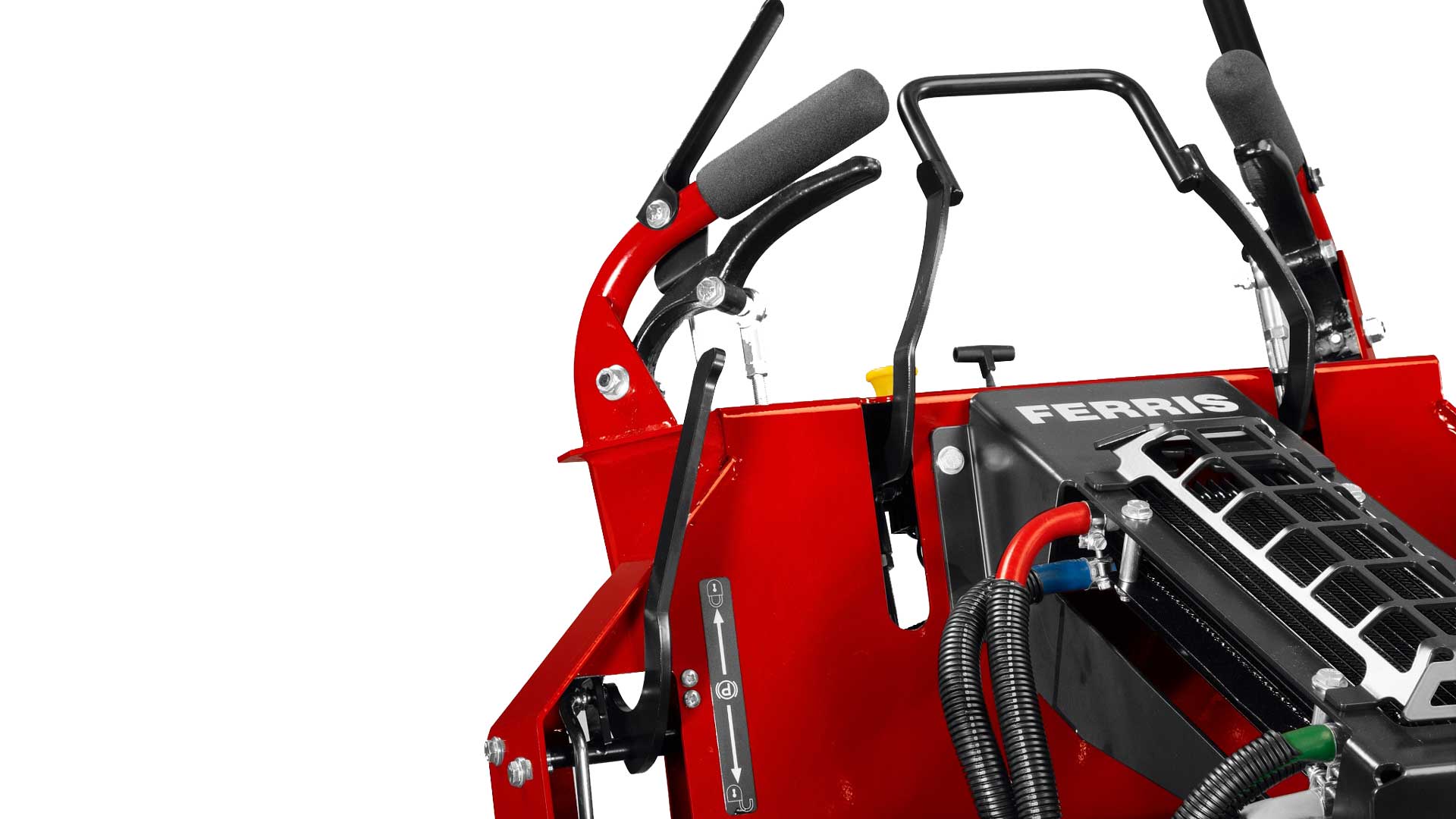

Ergonomic Parking Brake

We modified and added an angles parking brake that is pulled into the frame to prevent snagging or bending. This now provides instant access with minimal operator effort to each and engage.

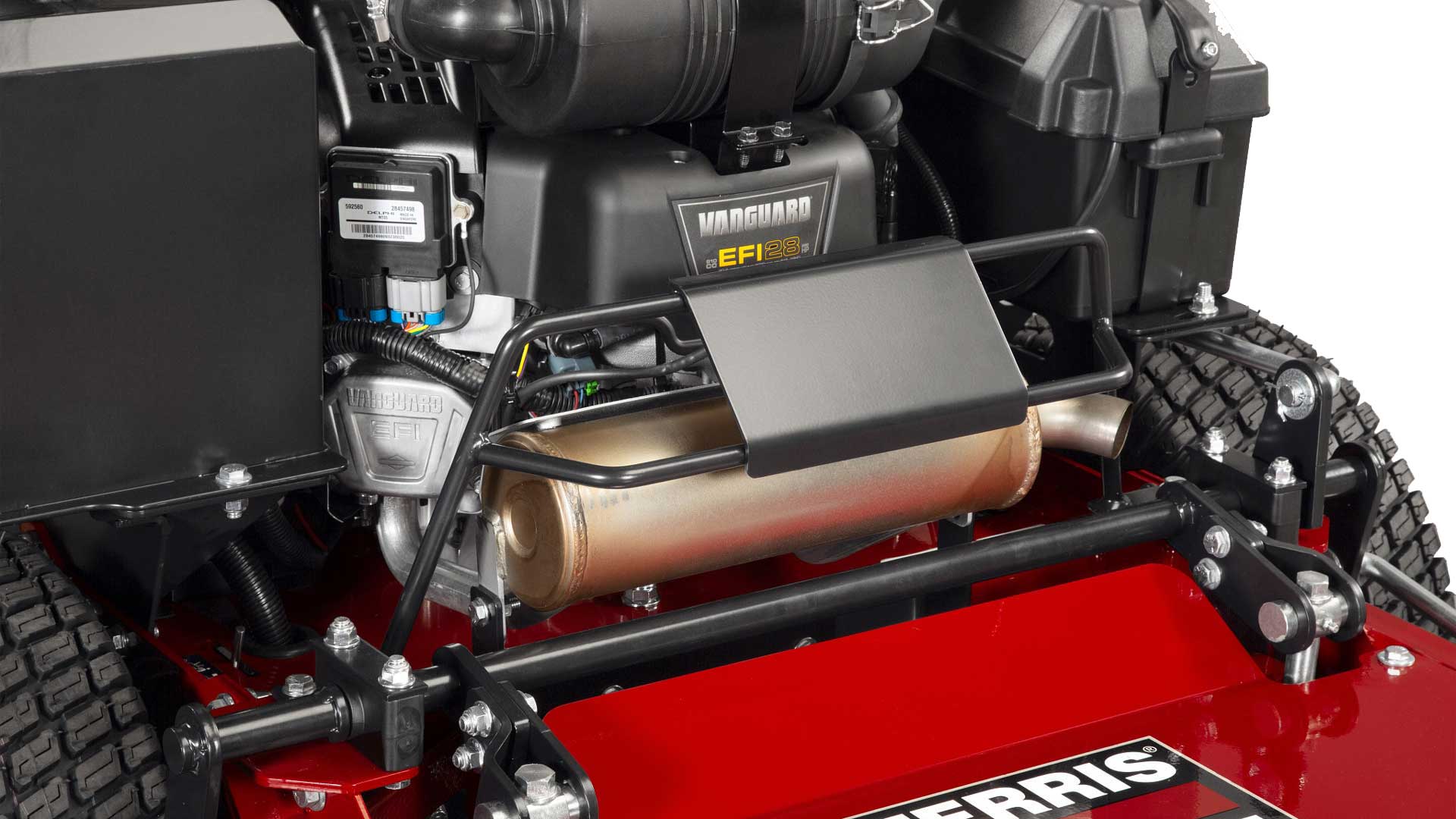

Enhanced Muffler Guard

Enhanced muffler guard has been added to protect the O2 sensor on the EFI Oil Guard models.

Hydro-Gear® ZT-3400™ Transaxles

Dual commercial grade transaxles with remote oil coolers that reduce oil temperature by as much as 25% and feature 1.125" tapered axle, forged steel bull gear and steel cut pinion gear for enhanced performance in commercial applications.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
5902014/5901965
US MSRP ^
$9,149.00
CAN MSRP ^
$11,599.00
Engine Brand
Kawasaki® FX651V
Engine Power Rating (hp)*
20.5
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
48
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron
Deck Construction
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 7-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
CC: 75
Overall Width (in) Deflector Down/Deflector Up
62.5 / 49.5
Dry Weight (lbs)
809
Seat
N/A
Control Type
CC™ Centralized Control
Instrumentation
Dual-function hour meter, speed indicator
Parking Brake/Safety Circuit
Hand operated Internal transaxle brakeOperator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
**Cost savings based on standard oil maintenance with 100-hour interval versus Oil Guard™ system 500 hour service interval.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
5901891/5901882
US MSRP ^
$9,449.00
CAN MSRP ^
$11,999.00
Engine Brand
Kawasaki® FX651V
Engine Power Rating (hp)*
20.5
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron
Deck Construction
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 78.75"
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
814
Seat
N/A
Control Type
Standard, Pistol Grip
Instrumentation
Engine and PTO hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
**Cost savings based on standard oil maintenance with 100-hour interval versus Oil Guard™ system 500 hour service interval.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
5902015/5901966
US MSRP ^
$9,449.00
CAN MSRP ^
$11,999.00
Engine Brand
Kawasaki® FX651V
Engine Power Rating (hp)*
20.5
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron
Deck Construction
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
CC: 75
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
814
Seat
N/A
Control Type
CC™ Centralized Control
Instrumentation
Dual-function hour meter, speed indicator
Parking Brake/Safety Circuit
Hand operated Internal transaxle brake
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
**Cost savings based on standard oil maintenance with 100-hour interval versus Oil Guard™ system 500 hour service interval.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
5901892/5901883
US MSRP ^
$10,199.00
CAN MSRP ^
$12,899.00
Engine Brand
Vanguard™ 810cc EFI with Oil Guard
Engine Power Rating (hp)*
28
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron
Deck Construction
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
Standard: 78.75
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
814
Seat
N/A
Control Type
Standard, Pistol Grip
Instrumentation
Dual-function hour meter, speed indicator
Parking Brake/Safety Circuit
Hand operated Internal transaxle brake
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
**Cost savings based on standard oil maintenance with 100-hour interval versus Oil Guard™ system 500 hour service interval.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
5901893/5901884
US MSRP ^
$10,199.00
CAN MSRP ^
$12,899.00
Engine Brand
Vanguard™ 810 EFI with Oil Guard
Engine Power Rating (hp)*
28
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron
Deck Construction
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
CC: 75
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
814
Seat
N/A
Control Type
CC™ Centralized Control
Instrumentation
Dual-function hour meter, speed indicator
Parking Brake/Safety Circuit
Hand operated Internal transaxle brake
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
**Cost savings based on standard oil maintenance with 100-hour interval versus Oil Guard™ system 500 hour service interval.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
5902016/5901968
US MSRP ^
$10,099.00
CAN MSRP ^
$12,799.00
Engine Brand
Kawasaki® FX730V
Engine Power Rating (hp)*
23.5
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
5
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron
Deck Construction
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Drive Axles (in)
1
Caster Tires (in)
11 x 4-5 Flat-free
Drive Tires (in)
20 x 8-10
Ground Speed-Fwd (mph)
0-7
Ground Speed-Rev (mph)
0-3
Overall Length (in)
CC: 75
Overall Width (in) Deflector Down/Deflector Up
76.5 / 65
Dry Weight (lbs)
888
Seat
N/A
Control Type
CC™ Centralized Control
Instrumentation
Dual-function hour meter, speed indicator
Parking Brake/Safety Circuit
Hand operated Internal transaxle brake
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
**Cost savings based on standard oil maintenance with 100-hour interval versus Oil Guard™ system 500 hour service interval.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Model Number
5902014/5901965
5901891/5901882
5902015/5901966
5901892/5901883
5901893/5901884
5902016/5901968
US MSRP ^
$9,149.00
$9,449.00
$9,449.00
$10,199.00
$10,199.00
$10,099.00
CAN MSRP ^
$11,599.00
$11,999.00
$11,999.00
$12,899.00
$12,899.00
$12,799.00
Engine Brand
Kawasaki® FX651V
Kawasaki® FX651V
Kawasaki® FX651V
Vanguard™ 810cc EFI with Oil Guard
Vanguard™ 810 EFI with Oil Guard
Kawasaki® FX730V
Engine Power Rating (hp)*
20.5
20.5
20.5
28
28
23.5
Displacement (cc)
726
726
726
810
810
726
PTO
Electric
Electric
Electric
Electric
Electric
Electric
Cylinders
2
2
2
2
2
2
Starter
Electric
Electric
Electric
Electric
Electric
Electric
Fuel Tank Capacity (gal)
5
5
5
5
5
5
Cutting Width (in)
48
52
52
52
52
61
Cutting Height (in)
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
Spindles
Cast-iron
Cast-iron
Cast-iron
Cast-iron
Cast-iron
Cast-iron
Deck Construction
Fabricated 10-gauge
Fabricated 10-gauge
Fabricated 10-gauge
Fabricated 10-gauge
Fabricated 10-gauge
Fabricated 10-gauge
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
Drive Axles (in)
1
1
1
1
1
1
Caster Tires (in)
11 x 4-5 Flat-free
11 x 4-5 Flat-free
11 x 4-5 Flat-free
11 x 4-5 Flat-free
11 x 4-5 Flat-free
11 x 4-5 Flat-free
Drive Tires (in)
20 x 7-10
20 x 8-10
20 x 8-10
20 x 8-10
20 x 8-10
20 x 8-10
Ground Speed-Fwd (mph)
0-7
0-7
0-7
0-7
0-7
0-7
Ground Speed-Rev (mph)
0-3
0-3
0-3
0-3
0-3
0-3
Overall Length (in)
CC: 75
Standard: 78.75"
CC: 75
Standard: 78.75
CC: 75
CC: 75
Overall Width (in) Deflector Down/Deflector Up
62.5 / 49.5
67 / 57
67 / 57
67 / 57
67 / 57
76.5 / 65
Dry Weight (lbs)
809
814
814
814
814
888
Seat
N/A
N/A
N/A
N/A
N/A
N/A
Control Type
CC™ Centralized Control
Standard, Pistol Grip
CC™ Centralized Control
Standard, Pistol Grip
CC™ Centralized Control
CC™ Centralized Control
Instrumentation
Dual-function hour meter, speed indicator
Engine and PTO hour meter, speed indicator
Dual-function hour meter, speed indicator
Dual-function hour meter, speed indicator
Dual-function hour meter, speed indicator
Dual-function hour meter, speed indicator
Parking Brake/Safety Circuit
Hand operated Internal transaxle brakeOperator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Internal transaxle
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.

* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
**Cost savings based on standard oil maintenance with 100-hour interval versus Oil Guard™ system 500 hour service interval.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Attachments

Mulch Kit

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

Grass Catcher

A lightweight durable fabric bag with hard plastic bottom attaches quickly. Capacity: 3.75 bushels. Fits: 48" and 52" models.

Metal Grass Catcher

Rugged steel-framed catcher has handles that make attaching and removing a breeze. Capacity: 4.3 bushels. Fits 48" and 52" models.

Email Sign Up
