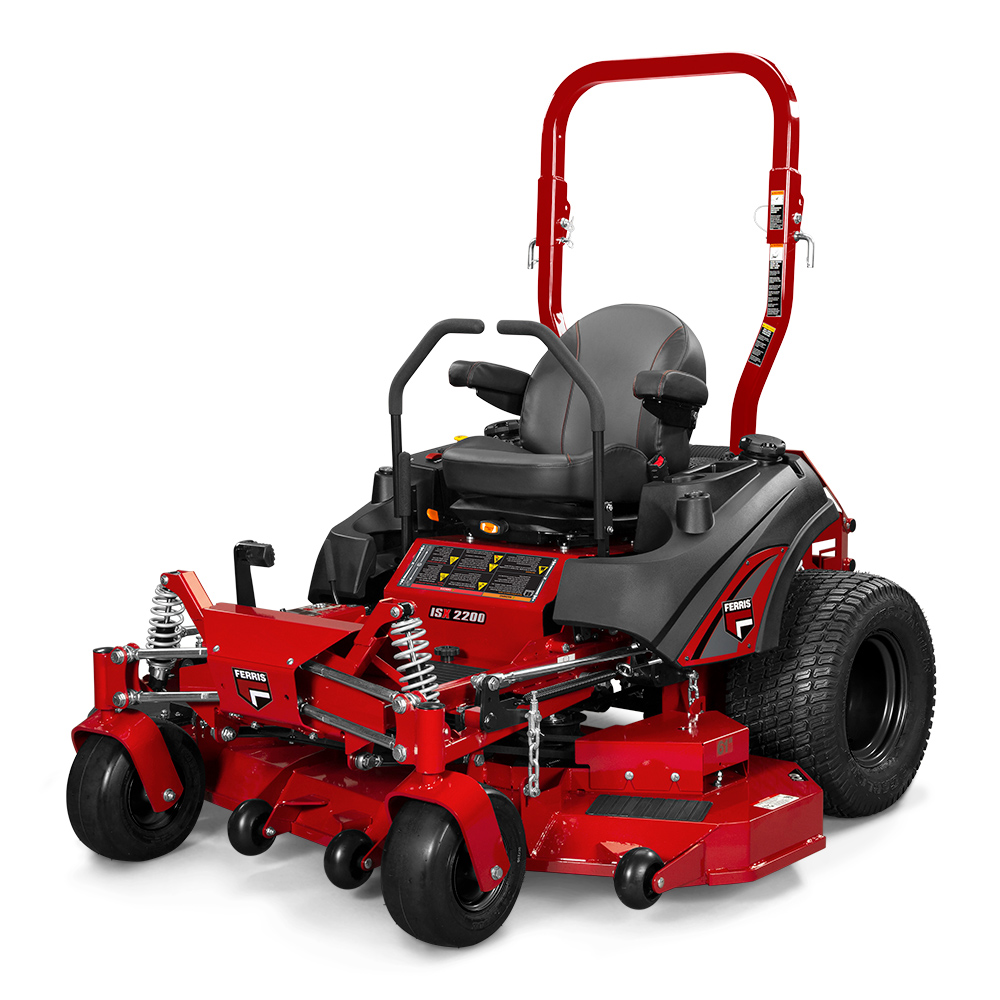

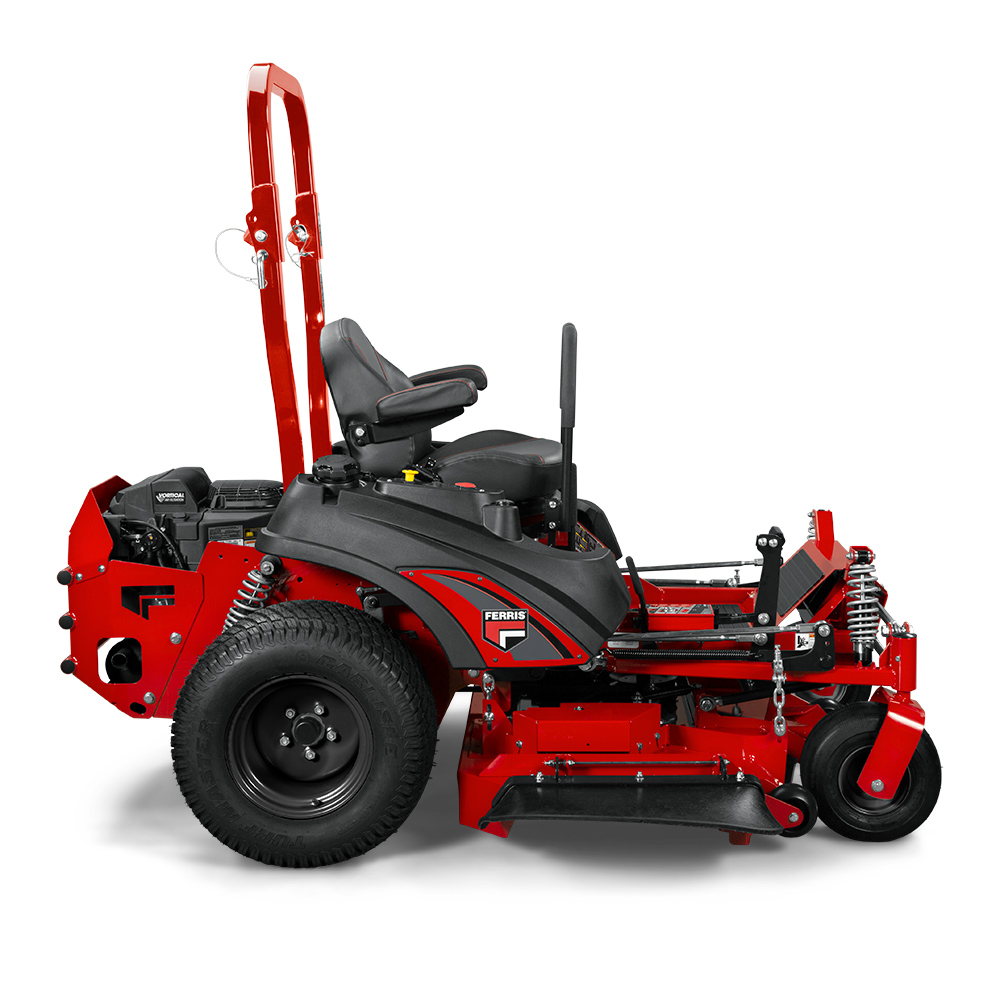

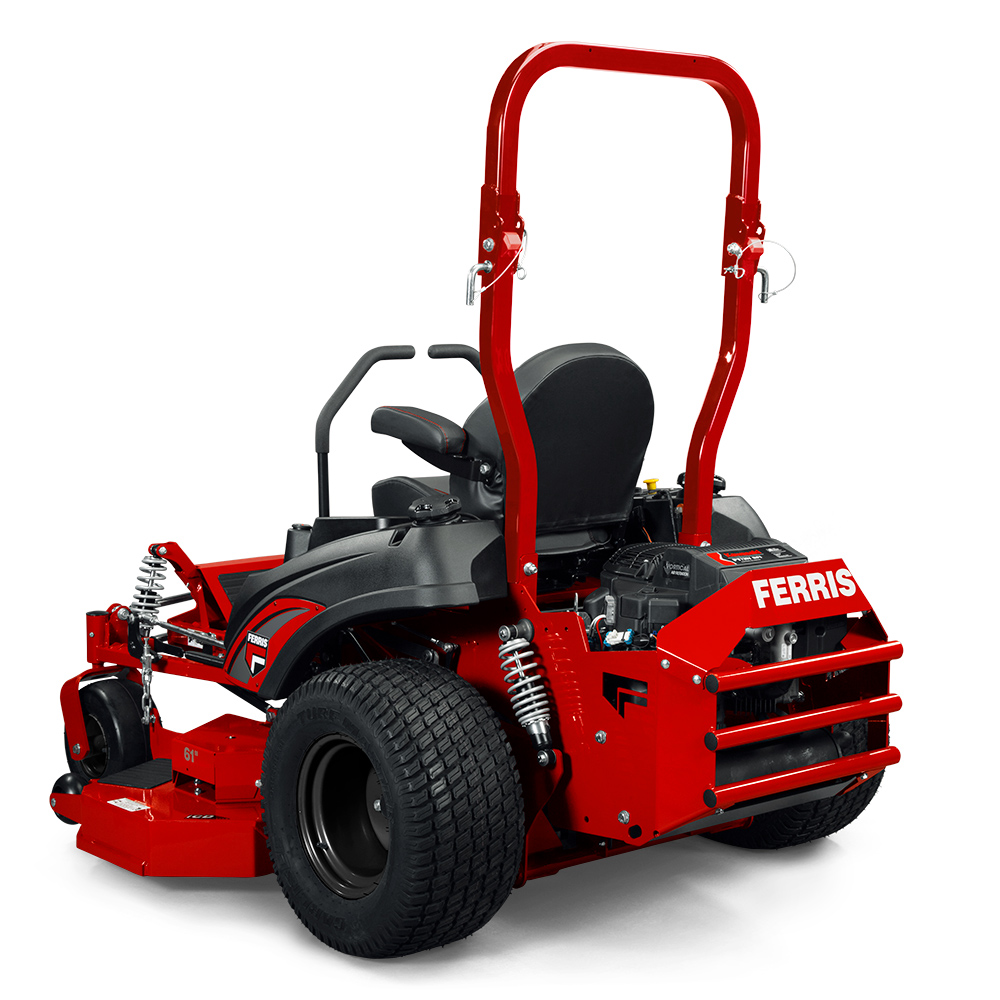

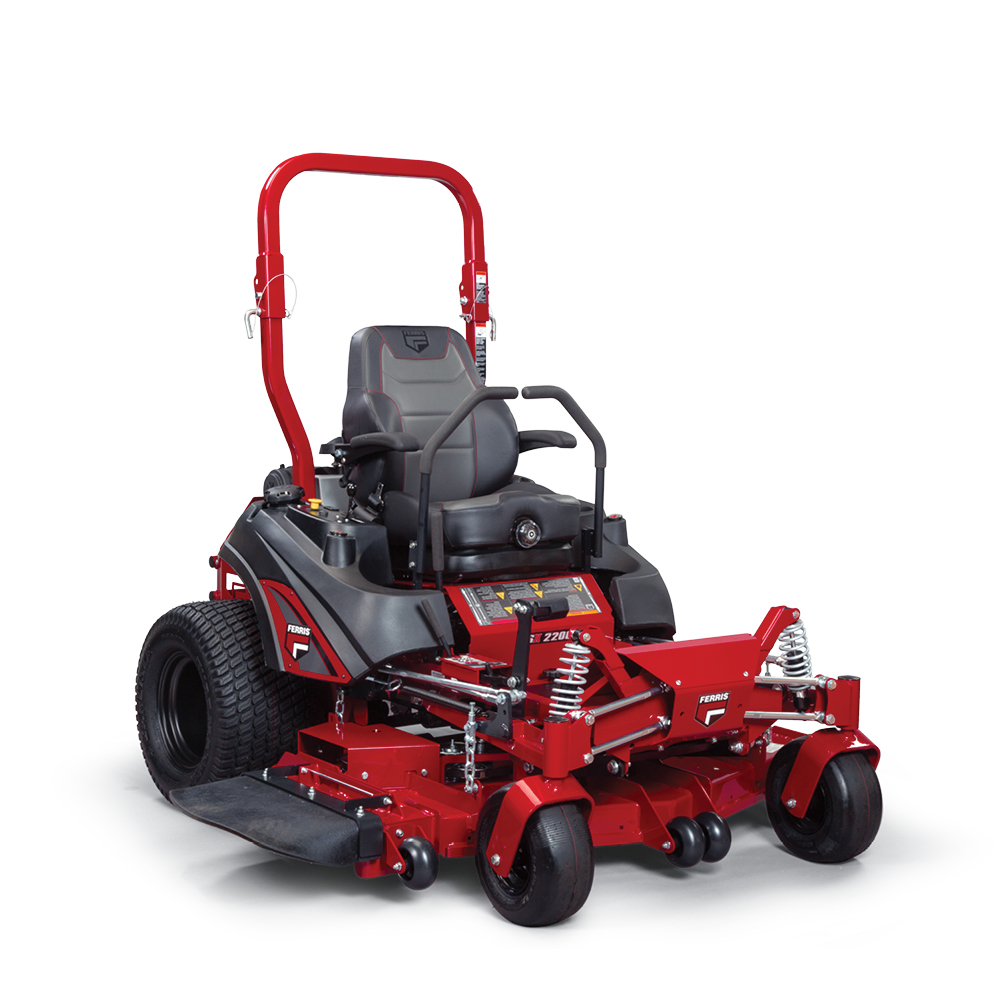

ISX™ 2200 Zero Turn Mowers
THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF
Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system and travel speeds up to 10 mph, the ISX™ 2200 is engineered to increase efficiency and operator comfort.
Click and drag image to rotate.
52+"
Cutting Width
25.5+ HP
Power Rating*
10 MPH
Ground Speed
4-Years
Limited Warranty†
Features
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model Number
5901843
Engine Brand
Vanguard™ 810cc EFI with Oil Guard
US MSRP ^
$11,549.00
CAN MSRP ^
$15,049.00
Engine Power Rating *
28 gross hp
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Cast Iron Greasable
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Deck Construction
iCD™ Cutting System, 2-Belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 9.5 - 12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
83.63
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
1319
Seat Package
Adjustable sport suspension seat w/ armrests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Wiring Diagram Schematic
- English* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Prices are show in U.S. dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901845
Engine Brand
Vanguard™ 810cc EFI with Oil Guard
US MSRP ^
$12,099.00
CAN MSRP ^
$15,649.00
Engine Power Rating *
28 gross hp
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Cast Iron Greasable
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Deck Construction
iCD™ Cutting System, 2-Belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
83.63
Overall Width (in) Deflector Down/Deflector Up
78 / 61.5
Dry Weight (lbs)
1398
Seat Package
Adjustable sport suspension seat w/ armrests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
* Power rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901977
Engine Brand
Kawasaki® FX801V
US MSRP ^
$11,049.00
CAN MSRP ^
$14,199.00
Engine Power Rating *
25.5 gross hp
Displacement (cc)
852
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 9.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
67 / 57
Dry Weight (lbs)
1223
Seat Package
Adjustable sport suspension seat w/ armrests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
* Power rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901978
Engine Brand
Kawasaki® FX801V
US MSRP ^
$11,549.00
CAN MSRP ^
$14,849.00
Engine Power Rating *
25.5 gross hp
Displacement (cc)
852
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron greaseable
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Deck Construction
iCD™ Cutting System, 2-Belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
78 / 61.5
Dry Weight (lbs)
1295
Seat Package
Adjustable sport suspension seat w/ armrests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
* Power rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901995
Engine Brand
Kawasaki® FT730V EFI
US MSRP ^
$9,999.00
CAN MSRP ^
$13,449.00
Engine Power Rating *
26 gross hp
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
52
Cutting Height (in)
1.5 -5
Spindles
Cast-iron greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 9.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
78 / 61.5
Dry Weight (lbs)
1295
Seat Package
Adjustable sport suspension seat w/ armrests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
* Power rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901996
Engine Brand
Kawasaki® FT730V EFI
US MSRP ^
$10,499.00
CAN MSRP ^
$14,099.00
Engine Power Rating *
26 gross hp
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
78 / 61.5
Dry Weight (lbs)
1295
Seat Package
Adjustable sport suspension seat w/ armrests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
* Power rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901843
5901845
5901977
5901978
5901995
5901996
Engine Brand
Vanguard™ 810cc EFI with Oil Guard
Vanguard™ 810cc EFI with Oil Guard
Kawasaki® FX801V
Kawasaki® FX801V
Kawasaki® FT730V EFI
Kawasaki® FT730V EFI
US MSRP ^
$11,549.00
$12,099.00
$11,049.00
$11,549.00
$9,999.00
$10,499.00
CAN MSRP ^
$15,049.00
$15,649.00
$14,199.00
$14,849.00
$13,449.00
$14,099.00
Engine Power Rating *
28 gross hp
28 gross hp
25.5 gross hp
25.5 gross hp
26 gross hp
26 gross hp
Displacement (cc)
810
810
852
852
726
726
PTO
Electric
Electric
Electric
Electric
Electric
Electric
Cylinders
2
2
2
2
2
2
Starter
Electric
Electric
Electric
Electric
Electric
Electric
Fuel Tank Capacity (gal)
11
11
11
11
11
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
52
61
52
61
52
61
Cutting Height (in)
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
1.5 -5
1.5 - 5
Spindles
Cast Iron Greasable
Cast Iron Greasable
Cast-iron greaseable
Cast-iron greaseable
Cast-iron greaseable
Cast-iron greaseable
Suspension
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil over shocks and a rear swing with large adjustable coilover shocks
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Deck Construction
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
Drive Axles (in)
1.375
1.375
1.375
1.375
1.375
1.375
Caster Tires (in)
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
Drive Tires (in)
24 x 9.5 - 12
24 x 12-12
24 x 9.5-12
24 x 12-12
24 x 9.5-12
24 x 12-12
Ground Speed-Fwd (mph)
0-10
0-10
0-10
0-10
0-10
0-10
Ground Speed-Rev (mph)
0-5
0-5
0-5
0-5
0-5
0-5
Overall Length (in)
83.63
83.63
82.5
82.5
82.5
82.5
Overall Width (in) Deflector Down/Deflector Up
67 / 57
78 / 61.5
67 / 57
78 / 61.5
78 / 61.5
78 / 61.5
Dry Weight (lbs)
1319
1398
1223
1295
1295
1295
Seat Package
Adjustable sport suspension seat w/ armrests
Adjustable sport suspension seat w/ armrests
Adjustable sport suspension seat w/ armrests
Adjustable sport suspension seat w/ armrests
Adjustable sport suspension seat w/ armrests
Adjustable sport suspension seat w/ armrests
Certified Roll-over Protection System
180° foldable
180° foldable
180° foldable
180° foldable
180° foldable
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Prices are show in U.S. dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

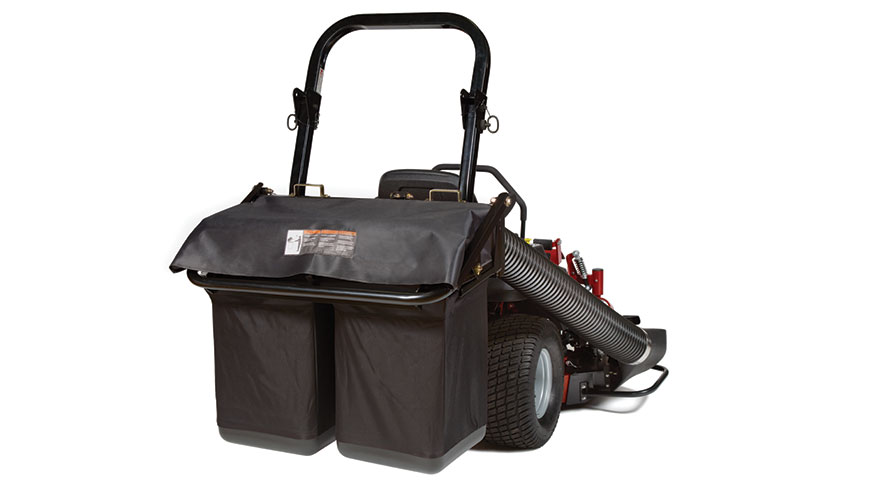

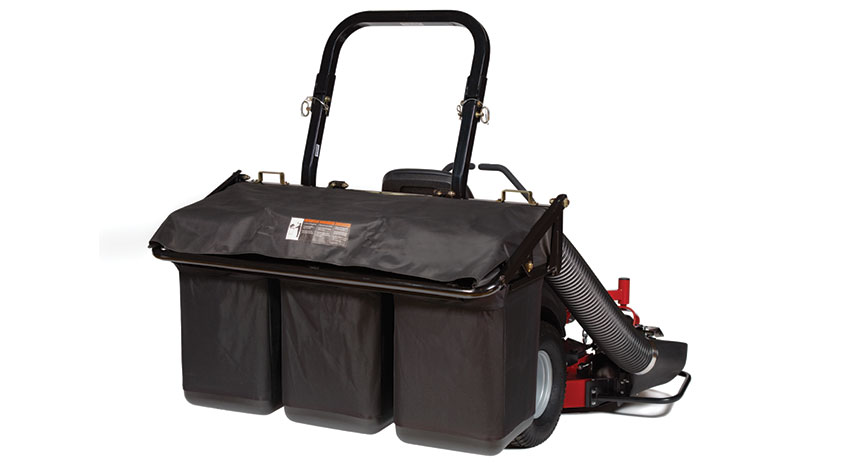

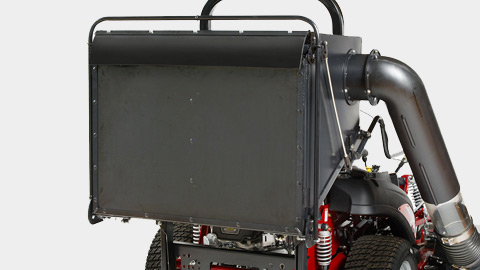

Attachments
