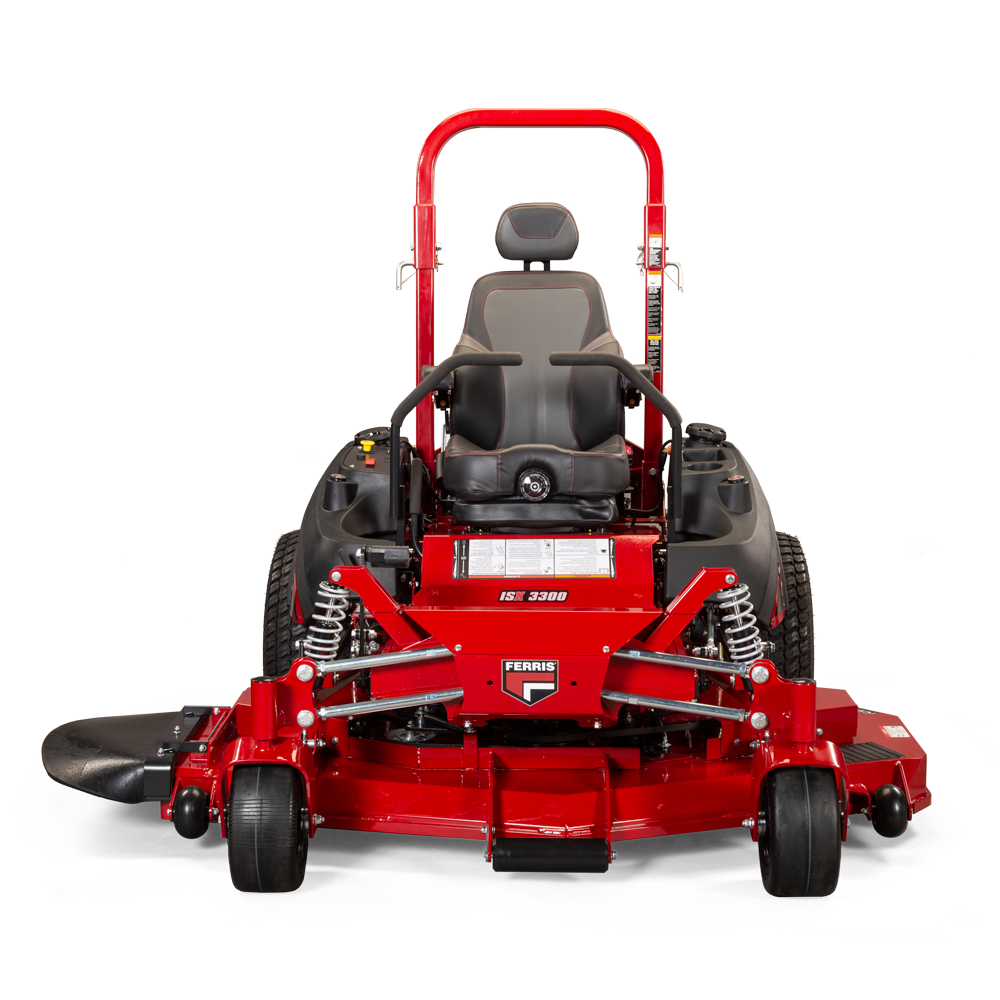

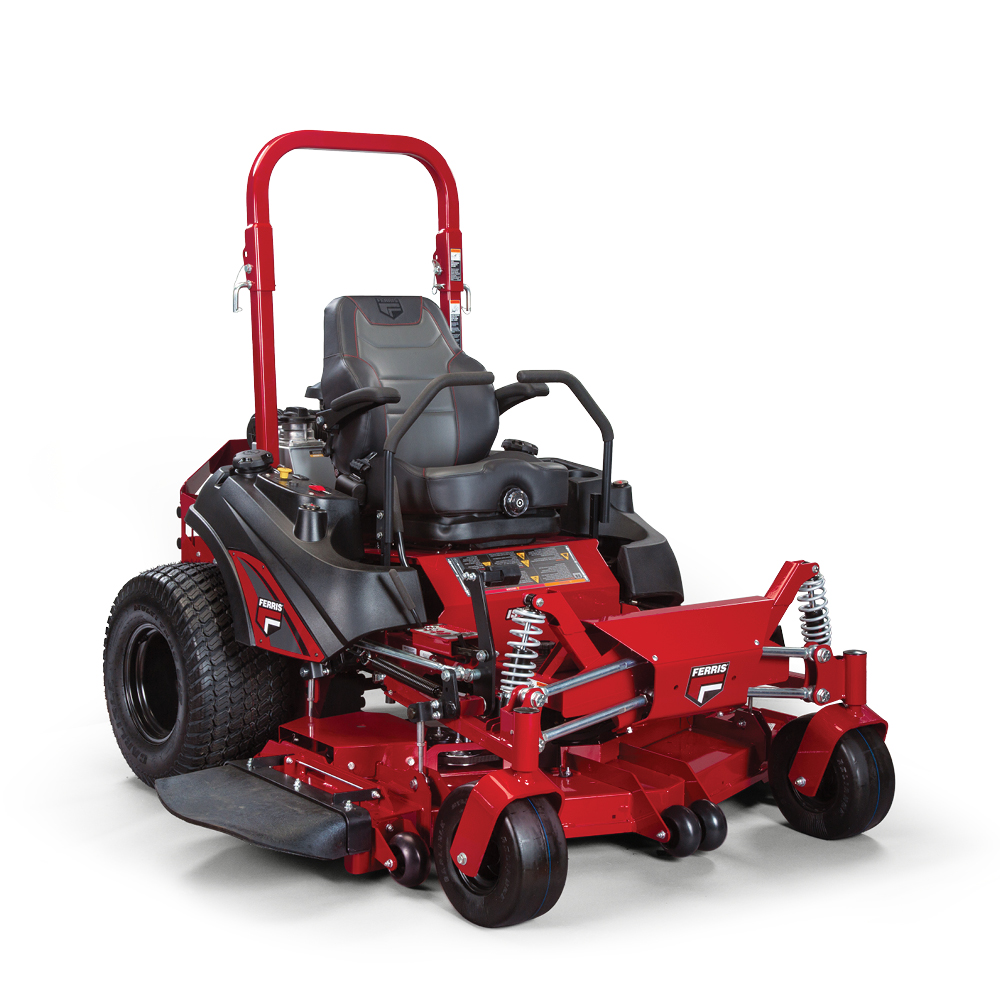

ISX™ 3300 Zero Turn Mowers
THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF
Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty dual commercial Hydro-Gear® ZT-5400 drive system and travel speeds up to 12 mph, the ISX™ 3300 is engineered to increase efficiency and operator comfort.
Click and drag image to rotate.
61+
Cutting Width
31+ HP
Power Rating*
12 MPH
Ground Speed
4-Years
Limited Warranty†
Features
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model Number
5901979
US MSRP ^
$15,449.00
CAN MSRP ^
$19,449.00
Engine Brand
Kawasaki® FX921V
Engine Power Rating *
31
Displacement (cc)
999
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Hercules™ II Cast-Iron
Deck Construction
iCD™ Cutting System
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
77/66.5
Dry Weight (lbs)
1470
Seat Package
Premium high-back Suspension Seat with arm rests, multipostion head rest , adjustable lumbar and back recline
Certified Roll-over Protection System
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Engine Configuration
Kawasaki®
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901980
US MSRP ^
$15,249.00
CAN MSRP ^
$19,449.00
Engine Brand
Vanguard™ BIG BLOCK™ with Oil Guard
Engine Power Rating *
32
Displacement (cc)
896
Cylinders
2
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Deck Construction
iCD™ Cutting System, 2-Belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
77/66.5
Dry Weight (lbs)
1470
Seat Package
Premium high-back Suspension Seat with arm rests, multipostion head rest , adjustable lumbar and back recline
Certified Roll-over Protection System
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Starter
Electric
Engine Configuration
Vanguard™
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901981
US MSRP ^
$15,899.00
CAN MSRP ^
$20,499.00
Engine Brand
Vanguard™ BIG BLOCK™ with Oil Guard
Engine Power Rating *
32
Displacement (cc)
896
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
72
Cutting Height (in)
1.5 - 5
Spindles
Hercules™ II Cast-Iron
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
86/74
Dry Weight (lbs)
1579
Seat Package
Premium high-back Suspension Seat with arm rests, multipostion head rest , adjustable lumbar and back recline
Certified Roll-over Protection System
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Engine Configuration
Vanguard™
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901982
US MSRP ^
$16,799.00
CAN MSRP ^
$21,449.00
Engine Brand
Kawasaki® FX1000V EFI
Engine Power Rating *
38.5
Displacement (cc)
999
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Hercules™ II Cast-Iron
Deck Construction
iCD™ Cutting System
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
77/66.5
Dry Weight (lbs)
1470
Seat Package
Premium high-back Suspension Seat with arm rests, multiposition head rest, adjustable lumbar and back recline
Certified Roll-over Protection System
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Engine Configuration
Kawasaki®
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901983
US MSRP ^
$17,449.00
CAN MSRP ^
$22,599.00
Engine Brand
Kawasaki® FX1000V EFI
Engine Power Rating *
38.5
Displacement (cc)
999
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
72
Cutting Height (in)
1.5 - 5
Spindles
Hercules™ II Cast-Iron
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
86/74
Dry Weight (lbs)
1579
Seat Package
Premium high-back Suspension Seat with arm rests, multipostion head rest , adjustable lumbar and back recline
Certified Roll-over Protection System
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5901979
5901980
5901981
5901982
5901983
US MSRP ^
$15,449.00
$15,249.00
$15,899.00
$16,799.00
$17,449.00
CAN MSRP ^
$19,449.00
$19,449.00
$20,499.00
$21,449.00
$22,599.00
Engine Brand
Kawasaki® FX921V
Vanguard™ BIG BLOCK™ with Oil Guard
Vanguard™ BIG BLOCK™ with Oil Guard
Kawasaki® FX1000V EFI
Kawasaki® FX1000V EFI
Engine Power Rating *
31
32
32
38.5
38.5
Displacement (cc)
999
896
896
999
999
Cylinders
2
2
2
2
2
Starter
Electric
Electric
Electric
Electric
Electric
Fuel Type
Gasoline
Gasoline
Gasoline
Gasoline
Gasoline
Fuel Tank Capacity (gal)
11
11
11
11
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Dual-function hour meter, fuel level gauge in each tank
Cutting Width (in)
61
61
72
61
72
Cutting Height (in)
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
Spindles
Hercules™ II Cast-Iron
iCD™ Cutting System, 2-Belt
Hercules™ II Cast-Iron
Hercules™ II Cast-Iron
Hercules™ II Cast-Iron
Deck Construction
iCD™ Cutting System
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
ForeFront™ Suspension System
ForeFront™ Suspension System
ForeFront™ Suspension System
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Dual commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles with 9" cooling fans
Dual commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" cooling fans
Drive Axles (in)
1.375
1.375
1.375
1.375
1.375
Caster Tires (in)
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
Drive Tires (in)
26 x 12-12
26 x 12-12
26 x 12-12
26 x 12-12
26 x 12-12
Ground Speed-Fwd (mph)
0-12
0-12
0-12
0-12
0-12
Ground Speed-Rev (mph)
0-5
0-5
0-5
0-5
0-5
Overall Length (in)
84.5
84.5
84.5
84.5
84.5
Overall Width (in) Deflector Down/Deflector Up
77/66.5
77/66.5
86/74
77/66.5
86/74
Dry Weight (lbs)
1470
1470
1579
1470
1579
Seat Package
Premium high-back Suspension Seat with arm rests, multipostion head rest , adjustable lumbar and back recline
Premium high-back Suspension Seat with arm rests, multipostion head rest , adjustable lumbar and back recline
Premium high-back Suspension Seat with arm rests, multipostion head rest , adjustable lumbar and back recline
Premium high-back Suspension Seat with arm rests, multiposition head rest, adjustable lumbar and back recline
Premium high-back Suspension Seat with arm rests, multipostion head rest , adjustable lumbar and back recline
Certified Roll-over Protection System
165° foldable
165° foldable
165° foldable
165° foldable
165° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Hand operated internal transaxle brake
Hand operated internal transaxle brake
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
Engine Configuration
Kawasaki®
Vanguard™
Vanguard™
Kawasaki®
* All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^ ^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Attachments
