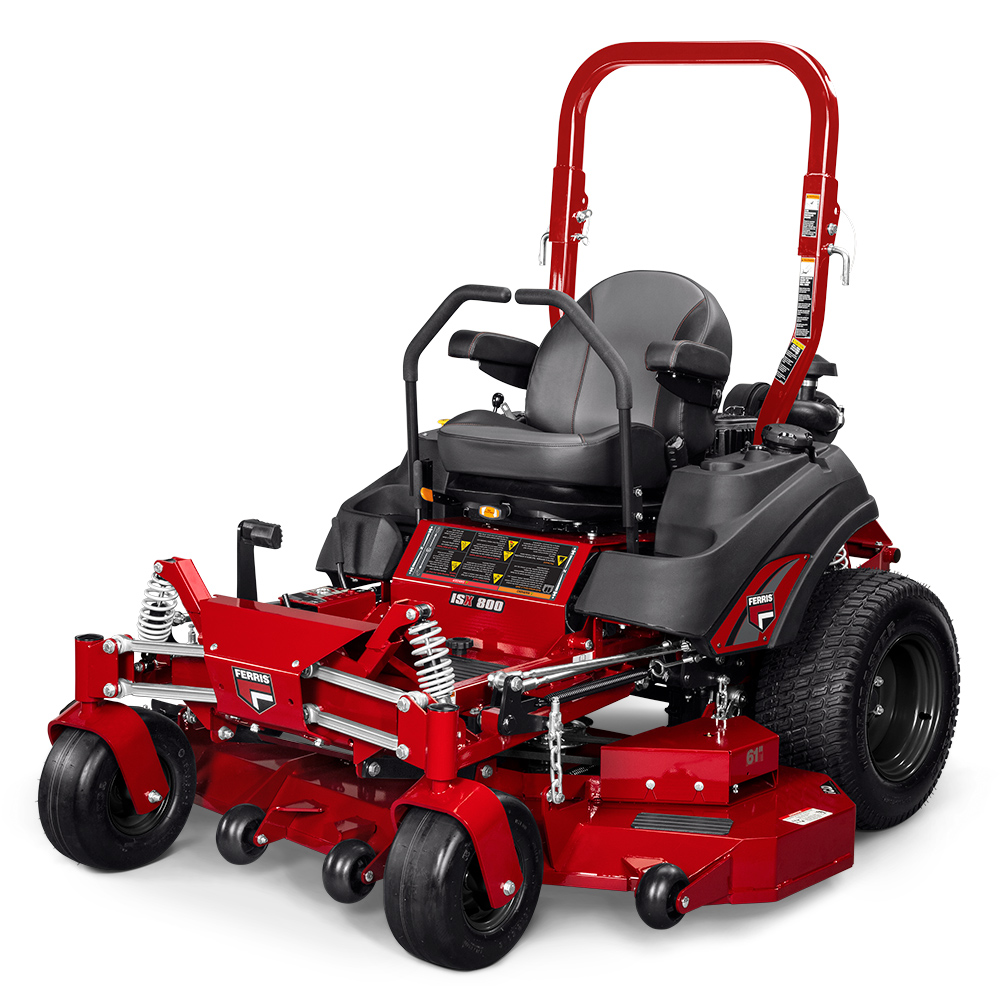

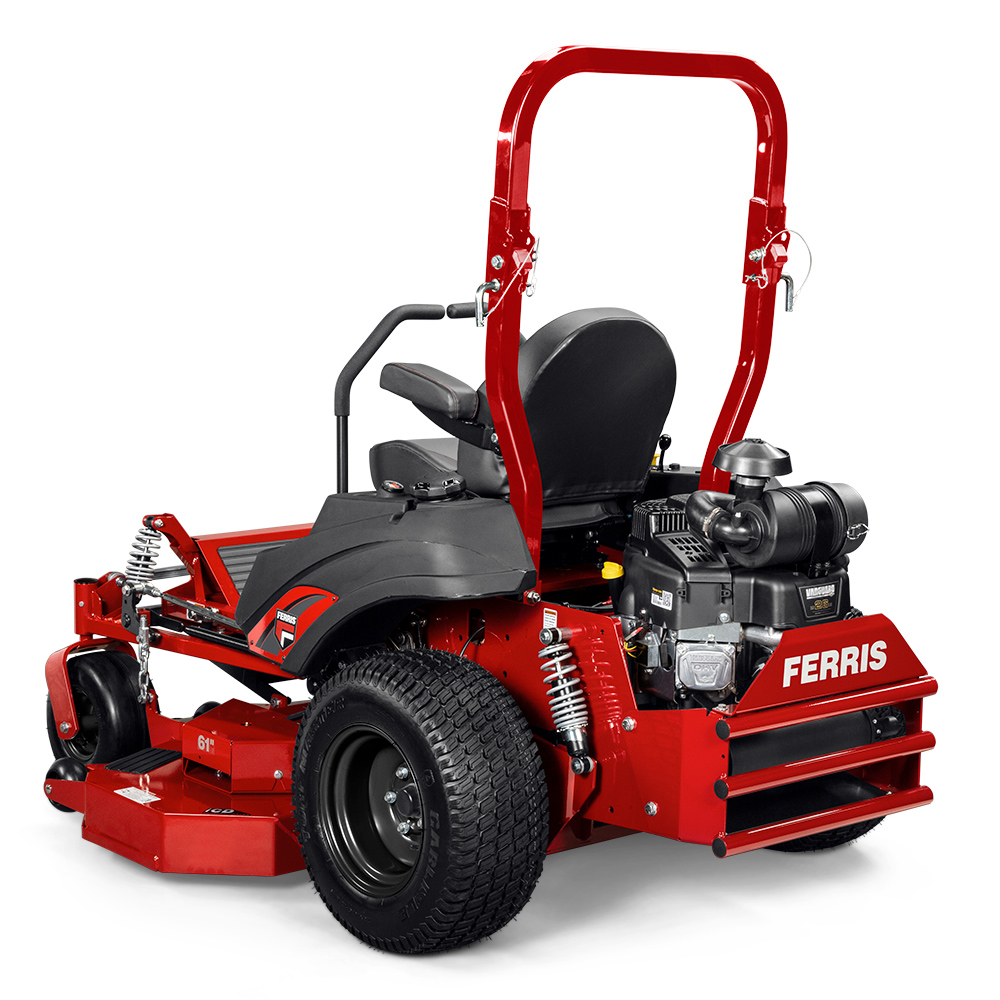

ISX™ 800 Zero Turn Mower
AFFORDABLE COMMERCIAL ZERO TURN WITH NEXT GENERATION FERRIS SUSPENSION TECHNOLOGY
The ISX™ 800 is engineered to increase efficiency and comfort. Combining next-generation Ferris® technology - ForeFront™ Suspension with a 2-belt iCD™ Cutting System, means a smoother ride and improved cut.
Click and drag image to rotate.
52+"
Cutting Width
24+ HP
Power Rating*
10 MPH
Ground Speed
4-Years
Limited Warranty†
Features
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model Number
5902018/5901972
US MSRP ^
$9,699.00
CAN MSRP ^
$12,299.00
Engine Brand
Kawasaki® FT730V
Engine Power Rating *
24
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
65 / 57
Dry Weight (lbs)
1119
Seat Package
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Engine Configuration
Kawasaki®
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5902023/5902002
US MSRP ^
$9,149.00
CAN MSRP ^
$11,549.00
Engine Brand

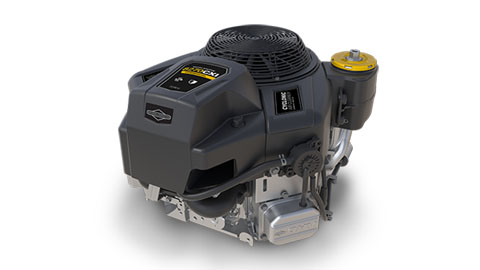

Briggs & Stratton® Commercial Series
Engine Power Rating *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
52
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Deck Construction
iCD™ Cutting System, 2-Belt
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-5
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0 - 10
Ground Speed-Rev (mph)
0 - 5
Overall Length (in)
81
Overall Width (in) Deflector Down/Deflector Up
65 / 57
Dry Weight (lbs)
1119
Seat Package
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year Limited Manufacturer's Warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Starter
Electric
Engine Configuration
Briggs & Stratton®
Engine Fuel Type
Gasoline
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5902019/5901997
US MSRP ^
$10,199.00
CAN MSRP ^
$13,249.00
Engine Brand
Kawasaki® FT730V
Engine Power Rating *
24
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
83
Overall Width (in) Deflector Down/Deflector Up
75 / 63.5
Dry Weight (lbs)
1197
Seat Package
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Engine Configuration
Kawasaki®
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5902022/5902001
US MSRP ^
$10,749.00
CAN MSRP ^
$13,649.00
Engine Brand
Kawasaki® FT730V - EFI
Engine Power Rating *
26
Displacement (cc)
726
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
83
Overall Width (in) Deflector Down/Deflector Up
75 / 63.5
Dry Weight (lbs)
1197
Seat Package
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Engine Configuration
Kawasaki®
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5902024/5902003
US MSRP ^
$9,699.00
CAN MSRP ^
$12,299.00
Engine Brand
Briggs & Stratton® Commercial Series
Engine Power Rating *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
83
Overall Width (in) Deflector Down/Deflector Up
75 / 63.5
Dry Weight (lbs)
1197
Seat Package
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Engine Configuration
Briggs & Stratton®
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5902017/5901879
US MSRP ^
$10,199.00
CAN MSRP ^
$12,599.00
Engine Brand
Briggs & Stratton® Commercial Series - EFI ETC
Engine Power Rating *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
61
Cutting Height (in)
1.5 - 5
Spindles
Aluminum Greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
83
Overall Width (in) Deflector Down/Deflector Up
75 / 63.5
Dry Weight (lbs)
1197
Seat Package
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Engine Configuration
Briggs & Stratton®
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Model Number
5902018/5901972
5902023/5902002
5902019/5901997
5902022/5902001
5902024/5902003
5902017/5901879
US MSRP ^
$9,699.00
$9,149.00
$10,199.00
$10,749.00
$9,699.00
$10,199.00
CAN MSRP ^
$12,299.00
$11,549.00
$13,249.00
$13,649.00
$12,299.00
$12,599.00
Engine Brand
Kawasaki® FT730V
Briggs & Stratton® Commercial Series
Kawasaki® FT730V
Kawasaki® FT730V - EFI
Briggs & Stratton® Commercial Series
Briggs & Stratton® Commercial Series - EFI ETC
Engine Power Rating *
24
27
24
26
27
27
Displacement (cc)
726
810
726
726
810
810
PTO
Electric
Electric
Electric
Electric
Electric
Electric
Cylinders
2
2
2
2
2
2
Starter
Electric
Electric
Electric
Electric
Electric
Electric
Fuel Type
Gasoline
Gasoline
Gasoline
Gasoline
Gasoline
Fuel Tank Capacity (gal)
5.5
5.5
5.5
5.5
5.5
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in tank
Dual-function hour meter, fuel level gauge in tank
Dual-function hour meter, fuel level gauge in tank
Dual-function hour meter, fuel level gauge in tank
Dual-function hour meter, fuel level gauge in tank
Dual-function hour meter, fuel level gauge in tank
Cutting Width (in)
52
52
61
61
61
61
Cutting Height (in)
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
Spindles
Aluminum Greaseable
Aluminum Greaseable
Aluminum Greaseable
Aluminum Greaseable
Aluminum Greaseable
Aluminum Greaseable
Deck Construction
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
iCD™ Cutting System, 2-Belt
Suspension
ForeFront™ Suspension System
ForeFront™ Suspension System
ForeFront™ Suspension System
ForeFront™ Suspension System
ForeFront™ Suspension System
ForeFront™ Suspension System
Transmission
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans
Drive Axles (in)
1.125
1.125
1.125
1.125
1.125
1.125
Caster Tires (in)
13 x 6.5-6
13 x 6.5-5
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
13 x 6.5-6
Drive Tires (in)
23 x 10.5-12
23 x 10.5-12
23 x 10.5-12
23 x 10.5-12
23 x 10.5-12
23 x 10.5-12
Ground Speed-Fwd (mph)
0-10
0 - 10
0-10
0-10
0-10
0-10
Ground Speed-Rev (mph)
0-5
0 - 5
0-5
0-5
0-5
0-5
Overall Length (in)
81
81
83
83
83
83
Overall Width (in) Deflector Down/Deflector Up
65 / 57
65 / 57
75 / 63.5
75 / 63.5
75 / 63.5
75 / 63.5
Dry Weight (lbs)
1119
1119
1197
1197
1197
1197
Seat Package
Mid-back suspension seat with arm rests
Mid-back suspension seat with arm rests
Mid-back suspension seat with arm rests
Mid-back suspension seat with arm rests
Mid-back suspension seat with arm rests
Mid-back suspension seat with arm rests
Certified Roll-over Protection System
180° foldable
180° foldable
180° foldable
180° foldable
180° foldable
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
Hand operated internal transaxle brake
Hand operated Internal transaxle brake
Hand operated Internal transaxle brake
Hand operated internal transaxle brake
Hand operated Internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year Limited Manufacturer's Warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Engine Configuration
Kawasaki®
Briggs & Stratton®
Kawasaki®
Kawasaki®
Briggs & Stratton®
Briggs & Stratton®
Engine Fuel Type
Gasoline
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
Attachments
