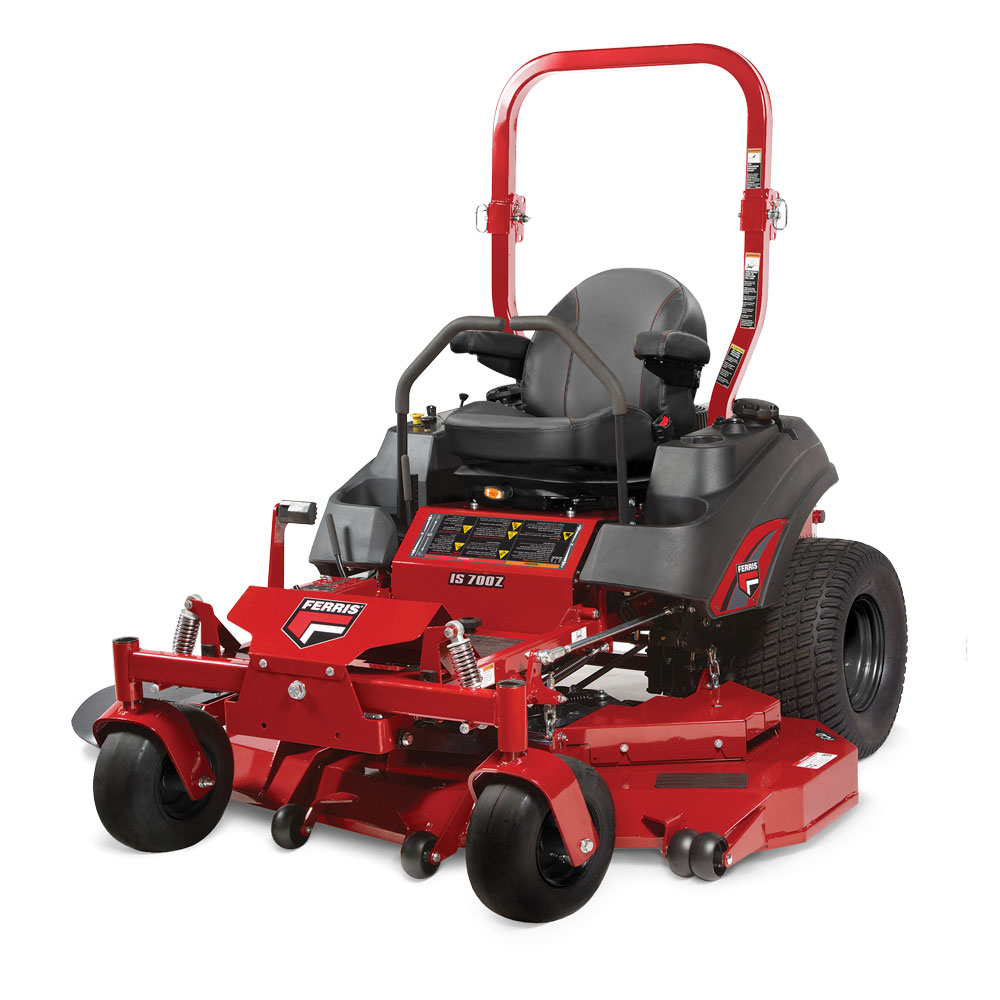

IS® 700 Zero Turn Mower

OUTSTANDING VALUE AND PRODUCTIVITY

The IS® 700 Series, with a 52" cutting width, is amazing value. With Ferris suspension technology, iCD™ Cutting System, heavy-duty Hydro-Gear® drive system and up to 16 kph speeds, this mower is full of features to increase the operator's productivity. You'll mow more lawn in less time.

52

Cutting Width (in)

27

Power Rating* (HP)

0 - 16.1

Ground Speed (kph)

4-Years

Limited Warranty†

Features

Suspension

Pivoting front axle plus small shocks and medium rear shocks allow the wheels to follow the ground and improve comfort in a wide variety of conditions.

Exceptional Performance

The well-tuned steering system delivers smooth and confident operation for excellent performance time after time.

Integrated Transmissions

Commercial Hydro-Gear® ZT-3200™ transaxles are designed for high performance and are fully serviceable.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

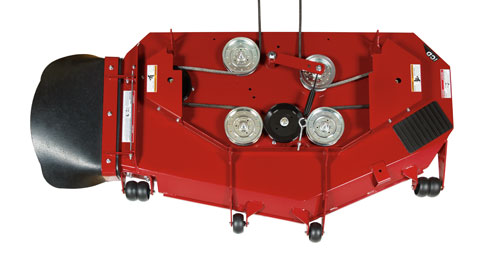

iCD™ Cutting System

The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. Every component works together to achieve superior cut quality and longer component life.

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Heavy-Duty Bumper

Heavy-duty bumper protects the engine while also allowing for easy service access.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901838
Engine Brand
Briggs & Stratton® Commercial Series
Engine Power Rating (HP) *
27
Displacement (cc)
810
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
20.8
Cutting Width in(cm)
52 (132)
Cutting Height in(cm)
1.5 - 5 (38 - 127)
Spindles
Aluminum greaseable
Deck Construction
iCD™ Cutting System
Deck Discharge Type
Side Discharge
Suspension
Adjustable front and rear coil-over-shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over-shocks
Transmission
Dual commercial Hydro-Gear® ZT-3200™ transaxles with 7" cooling fans
Drive Axles (in)
1.125
Caster Tyres (in)
13 x 6.5 - 6
Drive Tyres (in)
22 x 11 - 10
Ground Speed-Fwd (kph)
0 - 16.1
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2058
Overall Width (mm) Deflector Down / Up
1696 / 1436
Dry Weight (kg)
481
Seat Package
Mid-back seat with arm rests
Instrumentation
Dual-function hour meter, fuel level gauge in tank
ROPS (Rollover Protection System)
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand-operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

* Power levels rated by engine manufacturer.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
