    ISX 2200 Zero Turn Mower
    ISX 2200 Zero Turn Mower

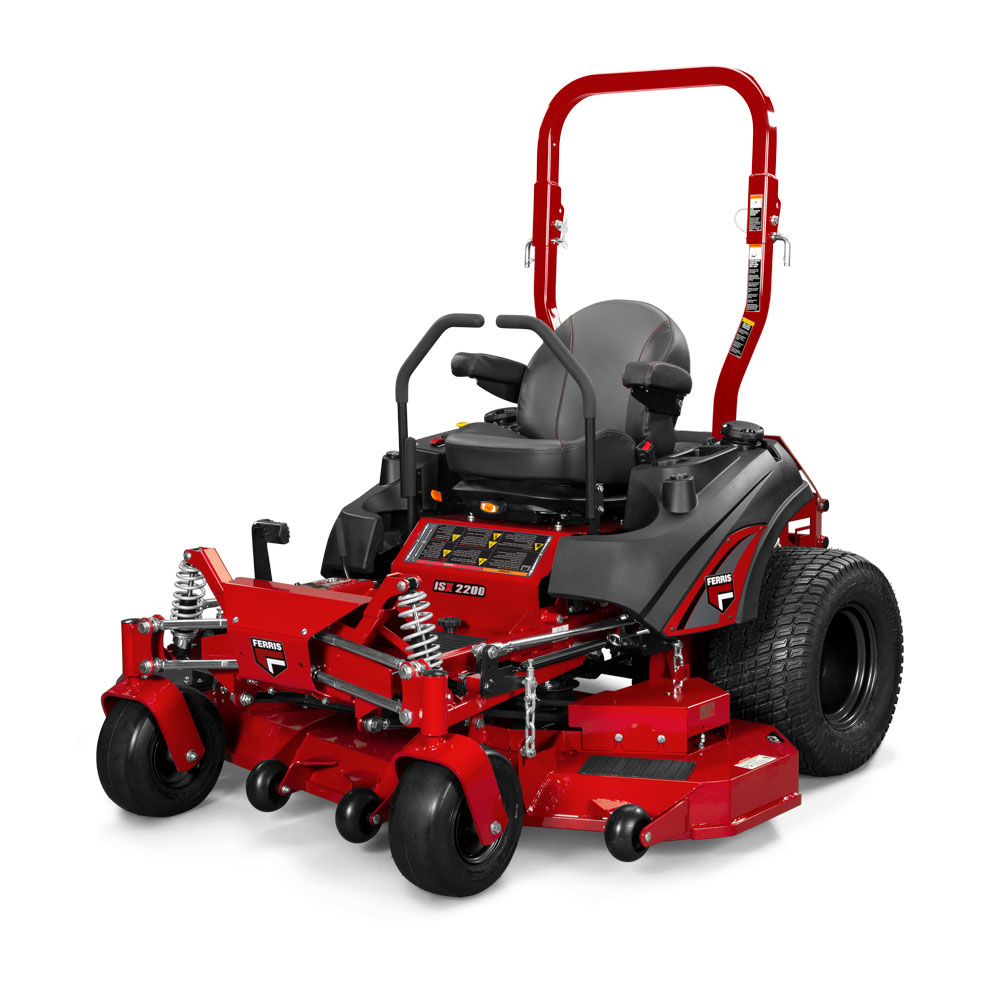

    ISX™ 2200 Zero Turn Mower

    THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF

    Featuring the next generation of Ferris suspension technology – ForeFront™ Suspension, a 2-belt iCD™ cutting system, heavy-duty Hydro-Gear® drive system and travel speeds up to 16 kph, the ISX™ 2200 is engineered to increase efficiency and operator comfort.

    61

    Cutting Width (in)

    28

    Power Rating* (HP)

    0 - 16.1

    Ground Speed (kph)

    4-Years

    Limited Warranty†
    Feature

    Features

    Forefront™ Suspension System

    The system utilises four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

    Ride-On Mower Warranties†

    Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

    500 Hour Oil Change

    Vanguard™ Engines with Oil Guard™ System reduce maintenance time and costs by up to 60%.**

    Premium Suspension Seat

    Premium high-back suspension seat with armrests, adjustable lumbar and back recline.

    Hydro-Gear ZT-4400™ Transaxles

    Dual-commercial transaxles with 8.3" cooling fans to repel debris.

    Adjustable Cut Height

    Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5" (38 mm - 127 mm).

    Specifications

    Only 2 products can be compared at once. Please remove one of your selections to compare this product.

    Only 3 products can be compared at once. Please remove one of your selections to compare this product.

    At least one product must be displayed. Please select another option to remove this product

    Part Number
    5901847
    Engine Brand
    Vanguard® 810cc EFI with Oil Guard™
    Engine Power Rating (HP) *
    28
    Displacement (cc)
    810
    PTO
    Electric
    Cylinders
    2
    Starter
    Electric
    Fuel Tank Capacity (litres)
    41.6
    Cutting Width in(cm)
    61 (155)
    Cutting Height in(cm)
    1.5 - 5 (38 - 127)
    Spindles
    Cast-iron greaseable
    Deck Construction
    iCD™ Cutting System, 2-belt
    Deck Discharge Type
    Side Discharge
    Suspension
    ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks
    Transmission
    Dual, commercial Hydro-Gear® ZT-4400™ transaxles with 8.3" cooling fans
    Drive Axles (in)
    1.375
    Caster Tyres (in)
    13 x 6.5 - 6
    Drive Tyres (in)
    24 x 12 - 12
    Ground Speed-Fwd (kph)
    0 - 16.1
    Ground Speed-Rev (kph)
    0 - 8.1
    Overall Length (mm)
    2096
    Overall Width (mm) Deflector Down / Up
    1982 / 1563
    Dry Weight (kg)
    634
    Seat Package
    Premium high-back suspension seat with arm rests, adjustable lumbar and back recline
    Instrumentation
    Dual-function hour meter, fuel level gauge in tank
    ROPS (Rollover Protection System)
    180° foldable
    Controls / Safety Group
    Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
    Parking Brake / Safety Circuit
    Hand-operated internal transaxle brake
    Warranty (Engine) †
    3-Year limited manufacturer's warranty
    Warranty (Balance of Machine) †
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

    * Power levels rated by engine manufacturer.
    † See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
    ** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.

    Part Number
    5902030
    Engine Brand
    Vanguard® 810cc EFI with Oil Guard™
    Engine Power Rating (HP) *
    28
    Displacement (cc)
    810
    PTO
    Electric
    Cylinders
    2
    Starter
    Electric
    Fuel Tank Capacity (litres)
    41.6
    Cutting Width in(cm)
    61 (155)
    Cutting Height in(cm)
    1.5 - 5 (38 - 127)
    Spindles
    Cast-iron greaseable
    Deck Construction
    iCD™ Cutting System, 2-belt
    Deck Discharge Type
    3 in 1 mulch / side / rear discharge
    Suspension
    ForeFront™ Suspension System - Front independent with four control rods paired with large size adjustable coil-over shocks and a rear swing with large adjustable coil-over shocks
    Transmission
    Dual, commercial Hydro-Gear® ZT-4400™ transaxles with 8.3" cooling fans
    Drive Axles (in)
    1.375
    Caster Tyres (in)
    13 x 6.5 - 6
    Drive Tyres (in)
    24 x 12 - 12
    Ground Speed-Fwd (kph)
    0 - 16.1
    Ground Speed-Rev (kph)
    0 - 8.1
    Overall Length (mm)
    2096
    Overall Width (mm) Deflector Down / Up
    1982 / 1563
    Dry Weight (kg)
    634
    Seat Package
    Premium high-back suspension seat with arm rests, adjustable lumbar and back recline
    Instrumentation
    Dual-function hour meter, fuel level gauge in tank
    ROPS (Rollover Protection System)
    180° foldable
    Controls / Safety Group
    Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
    Parking Brake / Safety Circuit
    Hand-operated internal transaxle brake
    Warranty (Engine) †
    3-Year limited manufacturer's warranty
    Warranty (Balance of Machine) †
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

    * Power levels rated by engine manufacturer.
    † See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
    ** Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
