Pathfinder XC™ FS2200 Ride-On Spreader/Sprayer

DRY COVERAGE OVER ONE ACRE AND MAXIMUM LIQUID COVERAGE OF 1.4 ACRES

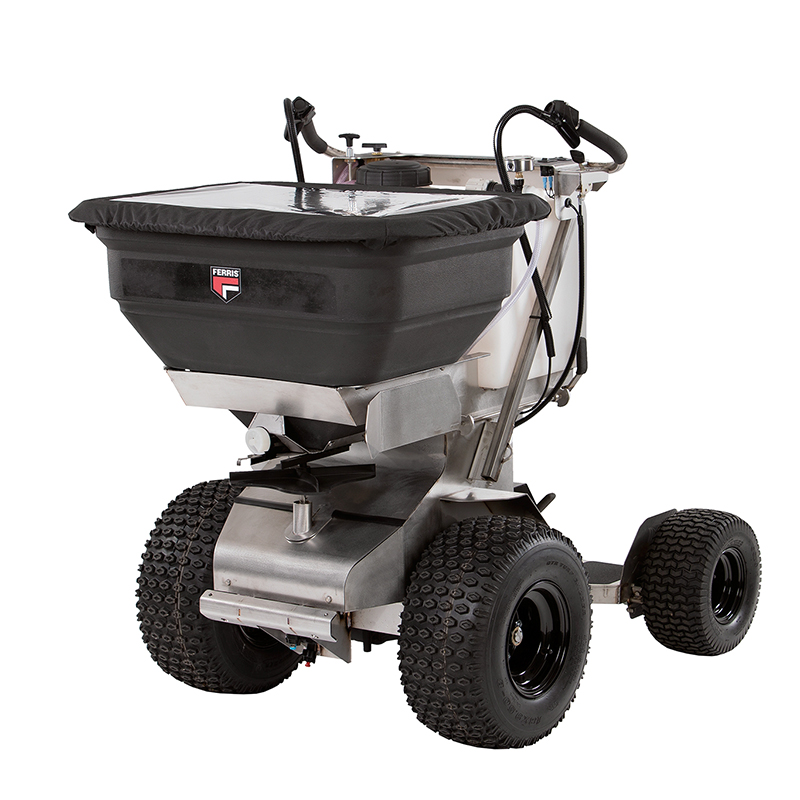

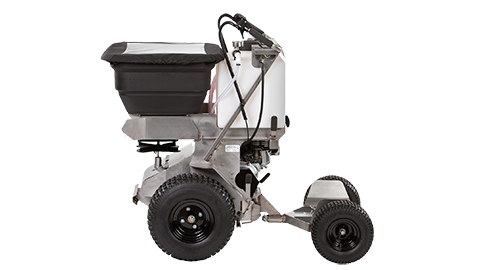

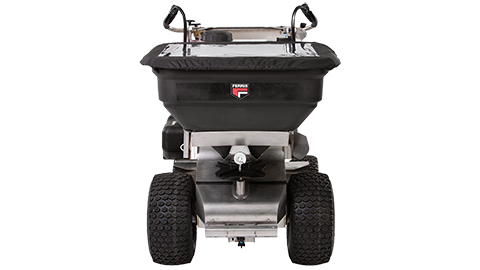

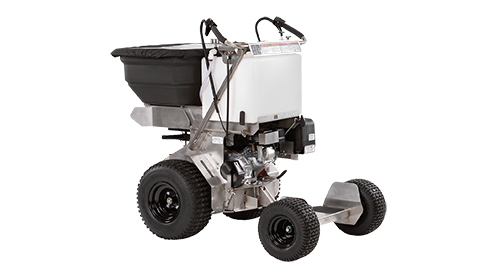

The Pathfinder XC™ FS2200 is a rugged ride-on spreader/sprayer that releases both dry and liquid material. The spray system allows two settings, a 3’ trim setting and a 10’ broadcast spray for use in a variety of applications. A 100% stainless steel frame and coated Peerless transaxle resist corrosive chemicals for added life. Its narrow width of only 35.5” allows for easy access through gates for residential areas and condominium complexes.

Features

200 lbs. Spyker Hopper

The Pathfinder XC™ FS2200 hopper will handle up to 200 lbs. of granular material providing over one acre of maximum coverage.

16 Gallons of Liquid Capacity

Covers a maximum of 1.4 acres between fill-ups.

Selectable Spray Width

The Pathfinder XC™ FS2200 allows the operator to select between two spray widths. A 3’ spray width is perfect for trim applications and narrow spaces. A 10’ broadcast spray is used for wide open spaces.

100% Stainless Steel Frame

Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.

Best-in-Class Maneuverability

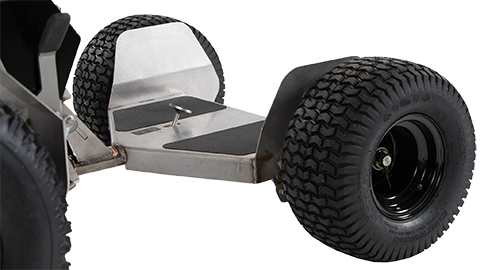

A low-friction sulky pivots on a ¾” tapered roller bearing for smooth movement. No mechanical steering assistance is required.

Compact Size

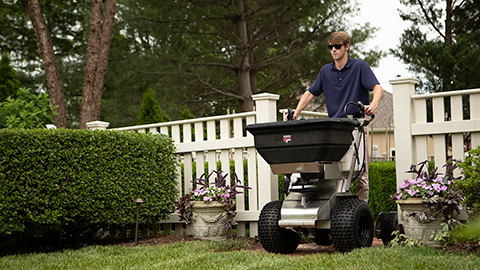

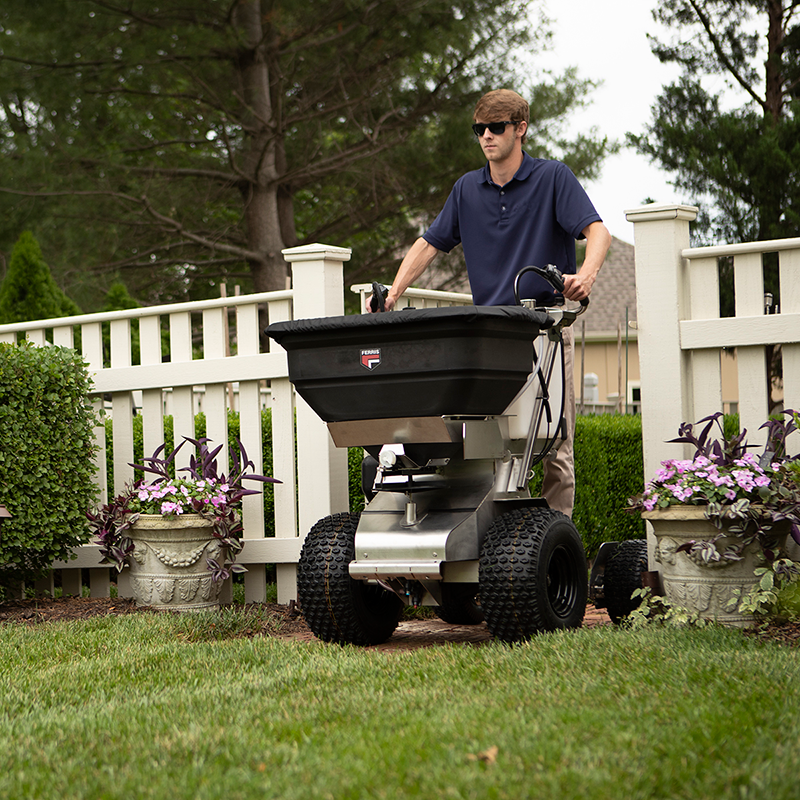

The Pathfinder XC™ FS2200 fits easily through a 36” gate, providing access to residential areas and condominium common areas.

Specifications

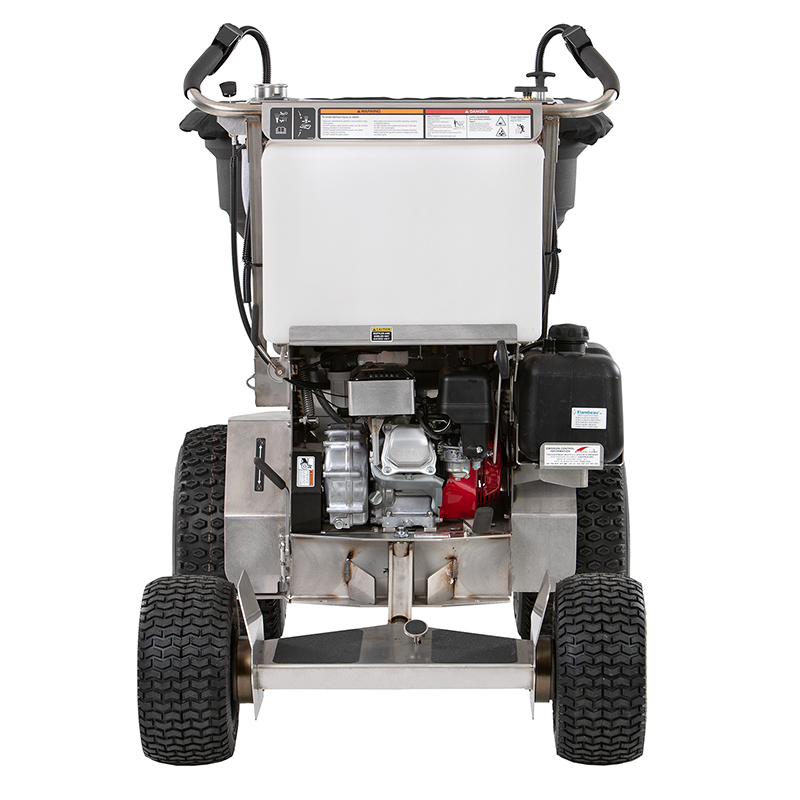

Engine Model

GX200-URH2

RPM

Full Speed: 3750 RPM (No Load) Idle: 1400 RPM

Fuel Capacity - gal (L)

2.5 gal (9.5 L)

Fuel Type

Regular unleaded gasoline, 87 octane or higher

Fuel Shut-Off Valve

Located on engine and below tank

Transmission Model

Peerless 855 Series, coated for corrosion

Speed

Low Gear: 3.5 mph (5.6 km/hr) High Gear: 5.0 mph (8.0 km/hr)

Front Tires

18 x 9.5 - 8, RB antifreeze added for ballast and traction

Rear Tires

13 x 6.50 - 6

Spreader Model

Spyker 220 Series

Spreader Hopper Capacity (lbs.)

200

Spray Pump

2.0 gpm mechanically driven diaphragm pump

Sprayer Tank Capacity - gal (L)

16.0 (60.6)

Nozzles

Broadcast: Turbo FloodJet TF-VS5 Trim: TurboTeeJet TT11004VP

Spray Rate

Adjustable from 1/4 to 1/2 gallon per thousand feet

Overall Length - in. (cm)

58.0 (147)

Overall Width - in. (cm)

35.5 (90)

Overall Height - in. (cm)

49.0 (124)

Dry Weight - lbs (kg)

450 (204)

Full Weight - lbs (kg)

670 (304)

Charging System

N/A

Charging Capacity

N/A

Safety Interlock

This machine is equipped with a neutral safety start module. To start the engine, the transmission must be in the neutral (N) position.

Spreader Warranty

Standard: 1 year Rental: 90 days

Belts, Tires, Brake Pads, Hoses, Battery Warranty

Standard: 90 days Rental: 90 days

Accessories Warranty

Standard: 1 year Rental: 90 days

Engine Warranty

See Engine Operator's Manual

Operator's Manuals

Illustrated Parts List - English
Download Icon

Operator's Manual - English
Download Icon

Setup Guide - English

Attachments

SPRAY WAND

Spray wand attachment taps into the liquid tank for spot treatment of trouble spots or gardens.

SPRAY BAR

Spray bar attachment converts the central spray nozzle on the Pathfinder™ XC FS2200 into three spray points.

SALT SPREADER BAFFLE

Allows the Pathfinder™ XC FS2200 to spread salt to extend seasonal use. Not to be used with rock salt.

SPARE PARTS KIT

A convenient package of high-wear parts that allow for fast service and maintenance.
