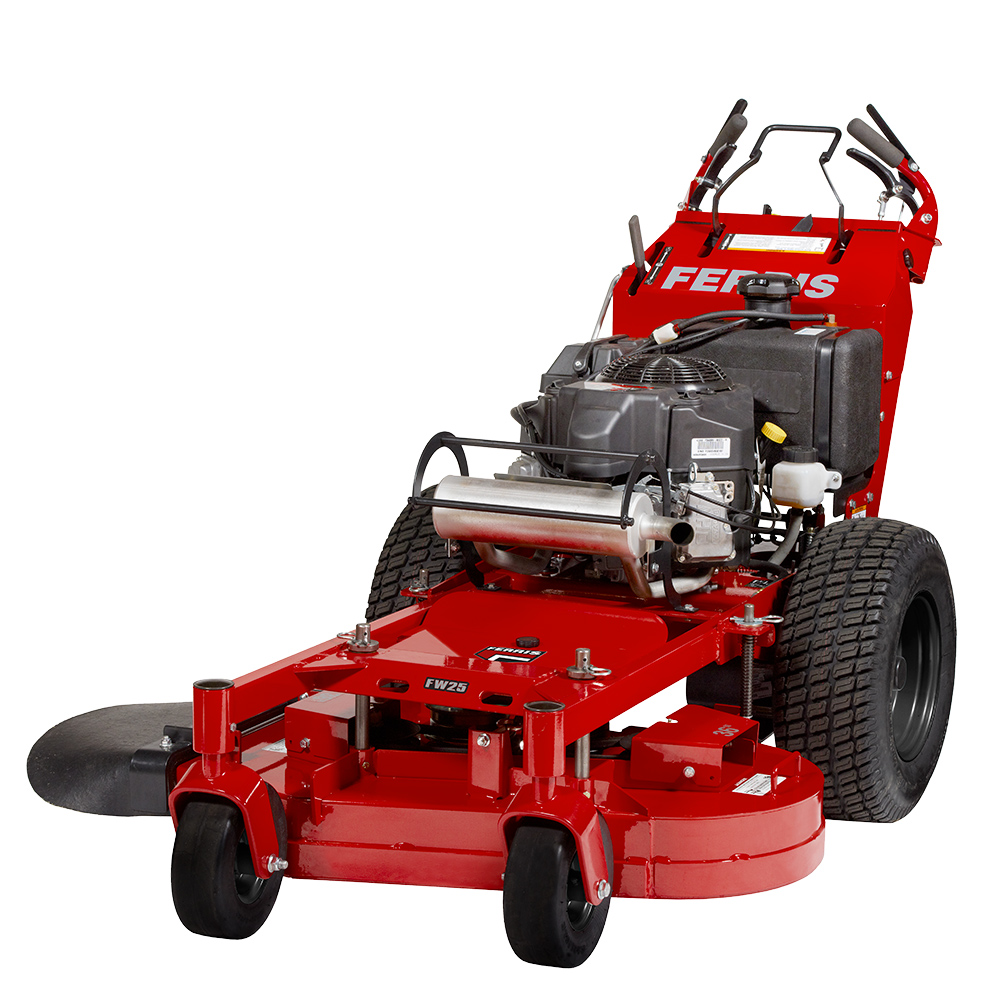

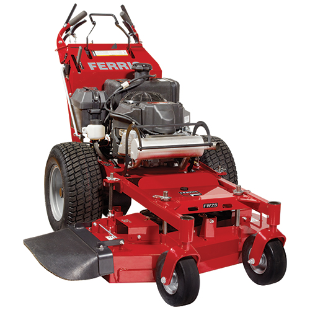

FW25 Walk Behind Mowers
COMPACT, SELF-PROPELLED MOWER FOR THE LANDSCAPE PROFESSIONAL
The FW25 dual hydrostatic walk-behind packs the professional features of our FW35 model in a narrower package. With easy-to-use controls, an electric start option and a top ground speed of 6 mph, it’s all your crew needs to breeze through lawn jobs with little effort. With a choice of 36” and 48” cutting widths, the FW25 will readily fit most small sheds and trailers, while still delivering superior control for navigating over thick grass, surface imperfections and hills.
Click and drag image to rotate.
Overview
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Engine Brand
Kawasaki® FS541V
Displacement (cc)
603
Cylinders
2
Fuel Tank Capacity (gal)
5
Cutting Height (in)
1.5 - 4.5
Deck Construction
Fabricated 10-gauge
Transmission
Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Caster Tires (in)
9 x 3.5-4 Flat-Free
Ground Speed-Fwd (mph)
0-6
Overall Length (in)
Standard: 77.5, CC™: 73
Dry Weight (lbs)
632
Rollover Protection System (ROPS)
N/A
Parking Brake/Safety Circuit
Internal transaxle
Warranty (Engine) †
3-Year limited manufacturer's warranty
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - EnglishInstruction Sheet - EnglishOperator's Manual - Spanish, Latin AmericaOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishEngine Power Rating *
15 gross hp
PTO
Electric
Starting
Manual
Cutting Width (in)
36
Spindles
Aluminum
Suspension
N/A
Drive Axles (in)
1
Drive Tires (in)
20 x 7-10
Ground Speed-Rev (mph)
0-3
Overall Width (in) Deflector Down/Deflector Up
48.5 / 37
Seat
N/A
Instrumentation
Engine and PTO hour meter, speed indicator
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Engine Brand
Kawasaki® FS600V
Displacement (cc)
603
Cylinders
2
Fuel Tank Capacity (gal)
5
Cutting Height (in)
1.5 - 4.5
Deck Construction
Fabricated 10-gauge
Transmission
Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Caster Tires (in)
9 x 3.5-4 Flat-Free
Ground Speed-Fwd (mph)
0-6
Overall Length (in)
Standard: 77.5 CC™: 73
Dry Weight (lbs)
632
Rollover Protection System (ROPS)
N/A
Parking Brake/Safety Circuit
Internal transaxle
Warranty (Engine) †
3-Year limited manufacturer's warranty
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - EnglishInstruction Sheet - EnglishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - EnglishInstruction Sheet - EnglishOperator's Manual - Spanish, Latin AmericaSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishEngine Power Rating *
18.5 gross hp
PTO
Electric
Starting
Manual
Cutting Width (in)
36
Spindles
Aluminum
Suspension
N/A
Drive Axles (in)
1
Drive Tires (in)
20 x 7-10
Ground Speed-Rev (mph)
0-3
Overall Width (in) Deflector Down/Deflector Up
48.5 / 37
Seat
N/A
Instrumentation
Engine and PTO hour meter, speed indicator
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Engine Brand
Kawasaki® FS600V
Displacement (cc)
603
Cylinders
2
Fuel Tank Capacity (gal)
5
Cutting Height (in)
1.5 - 4.5
Deck Construction
Fabricated 10-gauge
Transmission
Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Caster Tires (in)
9 x 3.5-4 Flat-Free
Ground Speed-Fwd (mph)
0-6
Overall Length (in)
Standard: 75.5, CC™: 71
Dry Weight (lbs)
647
Rollover Protection System (ROPS)
N/A
Parking Brake/Safety Circuit
Internal transaxle
Warranty (Engine) †
3-Year limited manufacturer's warranty
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - EnglishOperator's Manual - Spanish, Latin AmericaOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishEngine Power Rating *
18.5 gross hp
PTO
Electric
Starting
Electric
Cutting Width (in)
48
Spindles
Aluminum
Suspension
N/A
Drive Axles (in)
1
Drive Tires (in)
20 x 7-10
Ground Speed-Rev (mph)
0-3
Overall Width (in) Deflector Down/Deflector Up
61 / 49.5
Seat
N/A
Instrumentation
Engine and PTO hour meter, speed indicator
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Engine Brand
Kawasaki® FS600V
Displacement (cc)
603
Cylinders
2
Fuel Tank Capacity (gal)
5 gallons
Cutting Height (in)
1.5" - 4.5"
Deck Construction
Fabricated 10-gauge
Transmission
Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Caster Tires (in)
9 x 3.5-4 Flat-Free
Ground Speed-Fwd (mph)
0-6
Overall Length (in)
Standard: 75.5, CC™: 71
Dry Weight (lbs)
647
Rollover Protection System (ROPS)
N/A
Parking Brake/Safety Circuit
Internal transaxle
Warranty (Engine) †
3-Year limited manufacturer's warranty
Operator's Manuals
Illustrated Parts List - EnglishInstruction Sheet - English, Bulgarian, Czech, Estonian, Croatian, Hungarian, Lithuanian, Latvian, Polish, Romanian, Russian, Slovak, Slovenian, TurkishInstruction Sheet - English, Spanish-Latin American, Portuguese-Brazilian, French-European, Arabic, SwahiliInstruction Sheet - English, Spanish, FrenchInstruction Sheet - English, Danish, Dutch, Finnish, French-European, Greek, Italian, German, Norwegian, Portuguese-European, Spanish-European, SwedishInstruction Sheet - EnglishOperator's Manual - Spanish, Latin AmericaOperator's Manual - EnglishSetup Guide - EnglishWiring Diagram Schematic - EnglishWiring Diagram Schematic - EnglishEngine Power Rating *
18.5 gross hp
PTO
Electric
Starting
Manual
Cutting Width (in)
48
Spindles
Aluminum
Suspension
N/A
Drive Axles (in)
1"
Drive Tires (in)
20 x 7-10
Ground Speed-Rev (mph)
0-3
Overall Width (in) Deflector Down/Deflector Up
61" / 49.5"
Seat
N/A
Instrumentation
Engine and PTO hour meter, speed indicator
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Engine Brand
Kawasaki® FS600V
Kawasaki® FS541V
Kawasaki® FS600V
Engine Power Rating *
18.5 gross hp
15 gross hp
18.5 gross hp
Displacement (cc)
603
603
603
PTO
Electric
Electric
Electric
Cylinders
2
2
2
Starting
Manual
Manual
Manual
Fuel Tank Capacity (gal)
5
5
5
Cutting Width (in)
36
36
36
Cutting Height (in)
1.5 - 4.5
1.5 - 4.5
1.5 - 4.5
Spindles
Aluminum
Aluminum
Aluminum
Deck Construction
Fabricated 10-gauge
Fabricated 10-gauge
Fabricated 10-gauge
Suspension
N/A
N/A
N/A
Transmission
Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Drive Axles (in)
1
1
1
Caster Tires (in)
9 x 3.5-4 Flat-Free
9 x 3.5-4 Flat-Free
9 x 3.5-4 Flat-Free
Drive Tires (in)
20 x 7-10
20 x 7-10
20 x 7-10
Ground Speed-Fwd (mph)
0-6
0-6
0-6
Ground Speed-Rev (mph)
0-3
0-3
0-3
Overall Length (in)
Standard: 77.5 CC™: 73
Standard: 77.5, CC™: 73
Standard: 77.5 CC™: 73
Overall Width (in) Deflector Down/Deflector Up
48.5 / 37
48.5 / 37
48.5 / 37
Dry Weight (lbs)
632
632
632
Seat
N/A
N/A
N/A
Rollover Protection System (ROPS)
N/A
N/A
N/A
Instrumentation
Engine and PTO hour meter, speed indicator
Engine and PTO hour meter, speed indicator
Engine and PTO hour meter, speed indicator
Parking Brake/Safety Circuit
Internal transaxle
Internal transaxle
Internal transaxle
Safety Group/Controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Warranty (Engine) †
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
