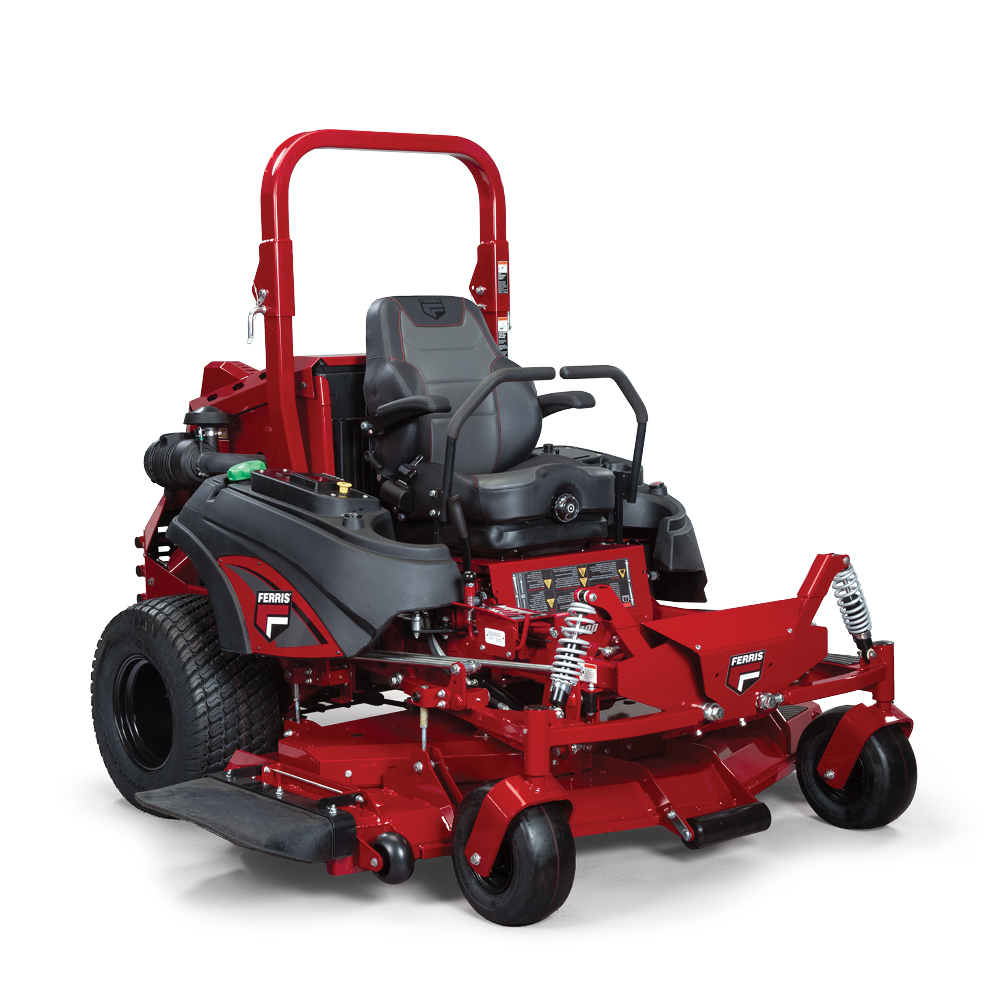

IS^® 6200 Zero Turn Mower

BIG JOBS REQUIRE BIG POWER

Comfort, durability, and power are what make the IS 6200 more than a luxury, it's a necessity. The 48 hp* CAT^® turbo diesel engine provides up to two times more longevity than a traditional gas engine. Designed for the rigors of maintaining municipal and industrial properties, the IS 6200 is a must in your trailer to grow your business. Featuring our redesigned iCD™+ Cutting System for maximum vacuum and clipping ejection to deliver only the most premium cut.

72"

Deck Size

Power Rating*

12 MPH

Ground Speed

4-Years

Limited Warranty†

Features

NEW! iCD™+ Cutting System

Redesigned to deliver next-level performance, increased durability and superior results. Select models.

NEW! USB Port

12V-60V, USB Type A & C located on the dash panel for easy access and charging.

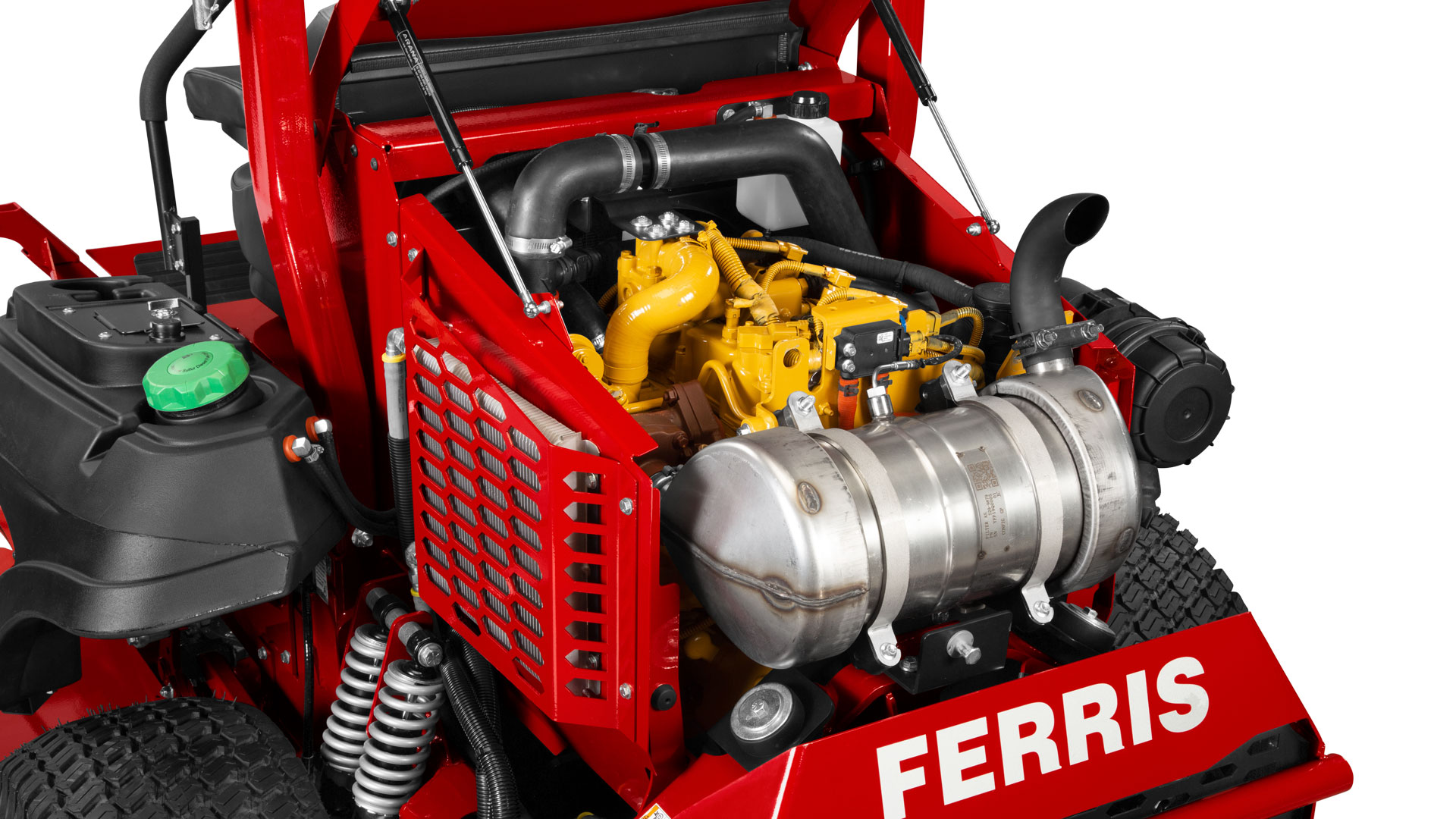

CAT 48 HP* Turbo Diesel Engine

The top-of-the-line CAT C1.7L turbo diesel engine has a life expectancy between four and five thousand hours (double that of gas engines). It's rated at 48 gross horsepower (the highest for a zero turn mower in its class) and 1700cc of grass dominating power.

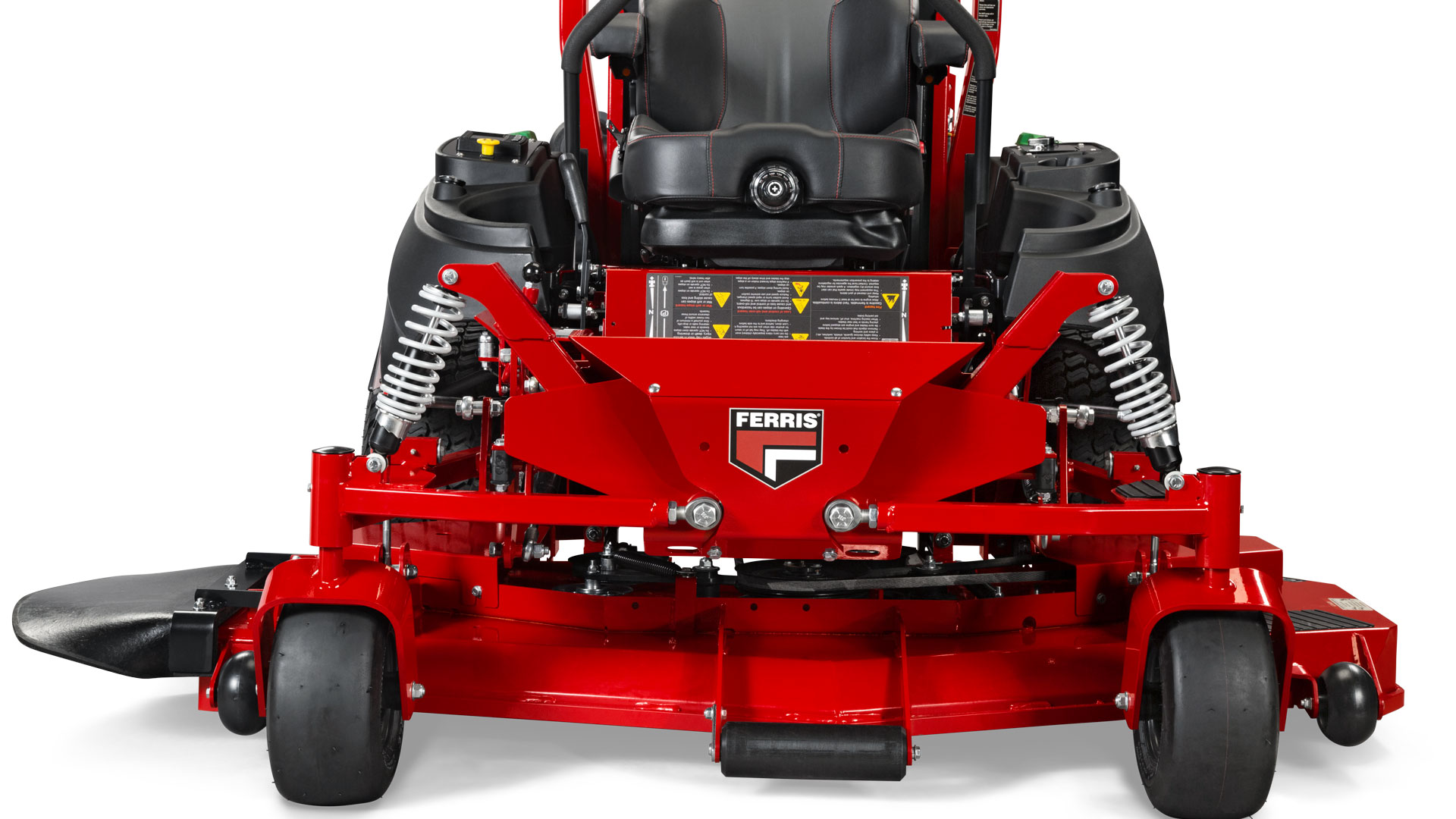

Independent Suspension System

Featuring the famous multi-patented Ferris independent suspension to deliver a smooth, consistent cut. Plus, the adjustable coil-over shocks mean you can tune the suspension to maximize productivity and comfort.

Performance Monitoring Display

The interactive onboard display maintains and monitors the performance and operation of the mower for peak performance. The display also ensures the proper engagement of safety interlock and mower components with visual fault indicators to extend the life of belts and clutch.

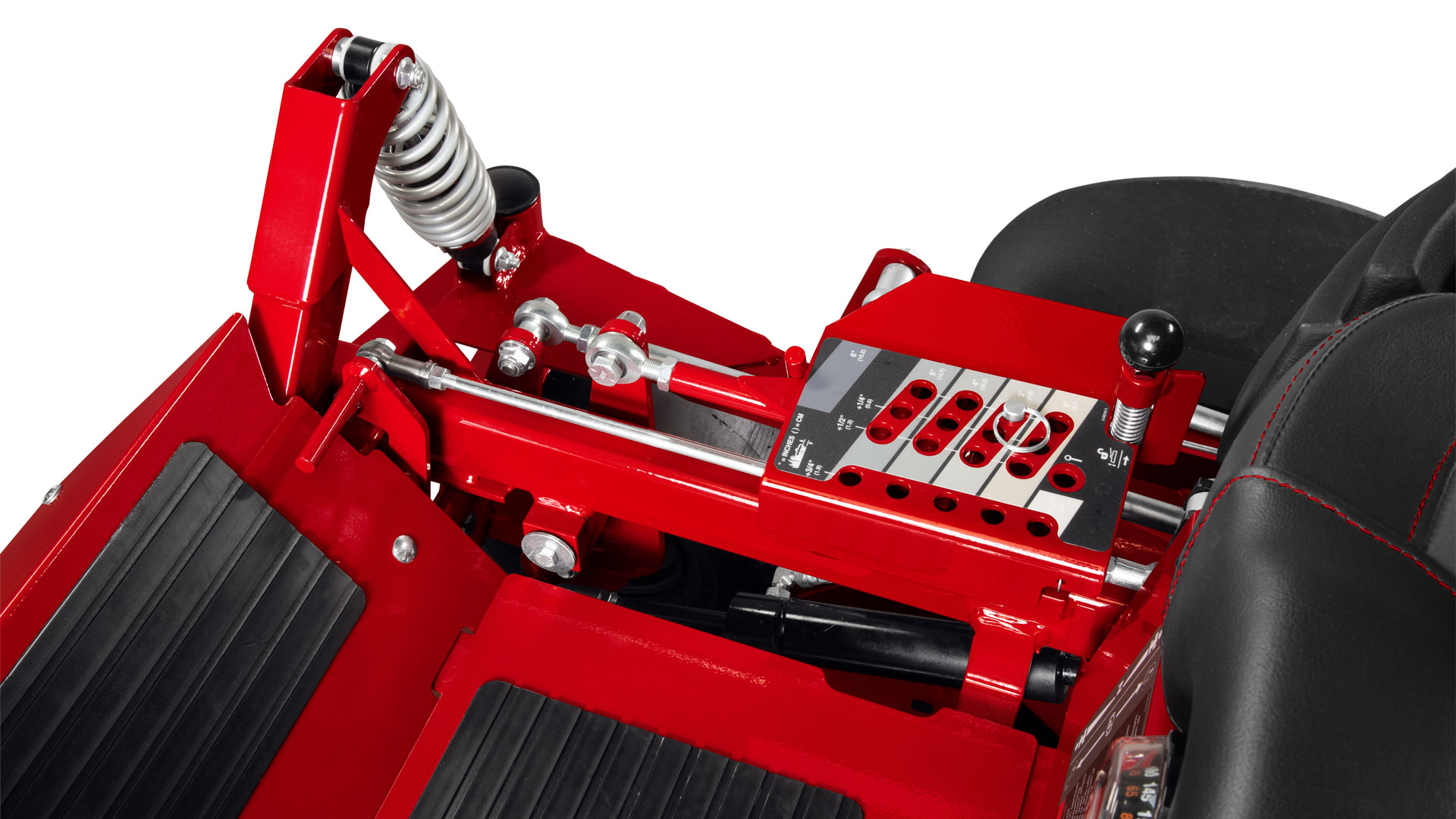

Hydraulic Deck Lift

Hydraulic deck lift makes it easy to lift and lower the mower deck to achieve the optimal height-of-cut for the job at hand. Cut height ranges from 1.5-6 inches.

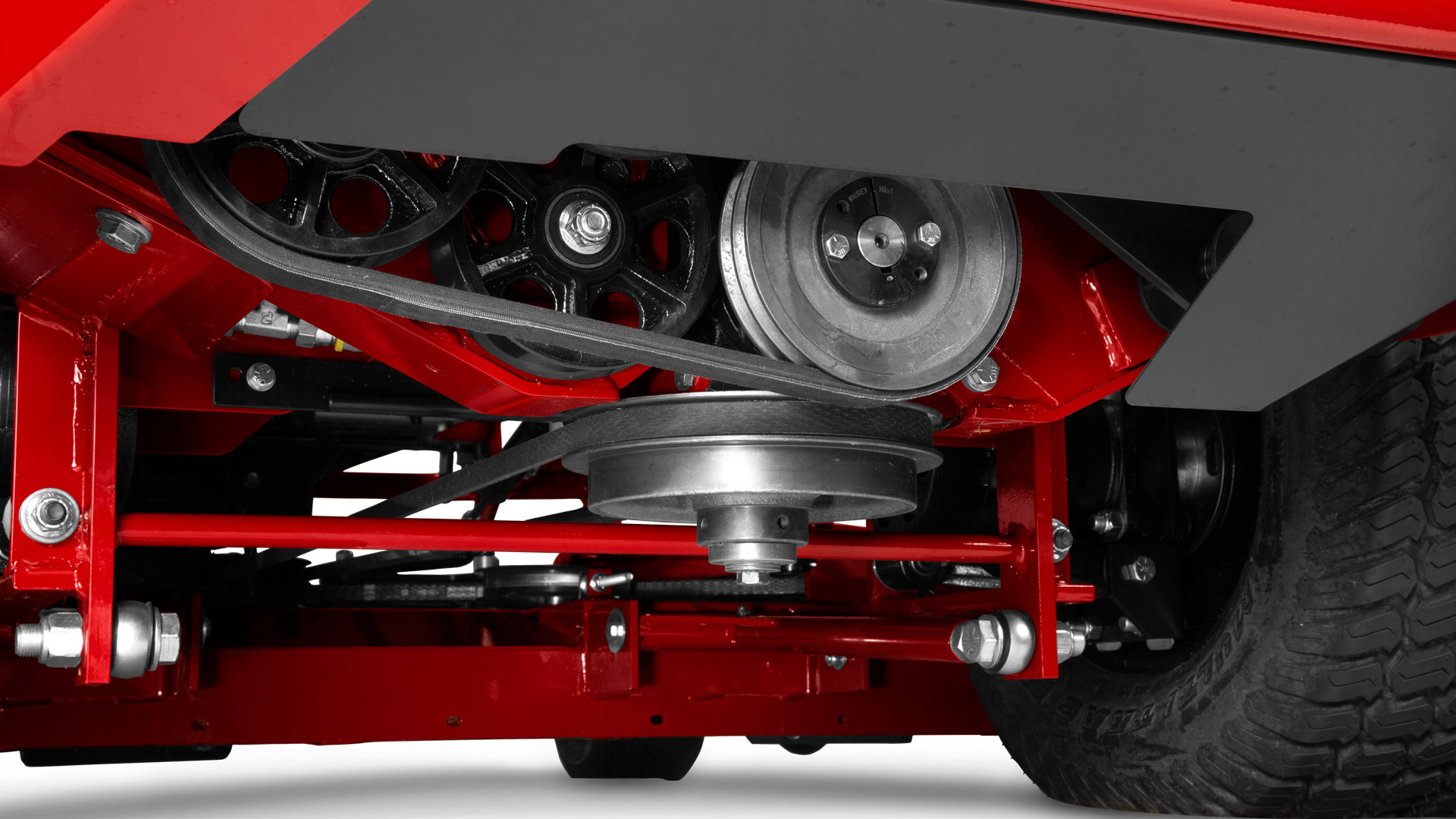

Heavy Duty Components

A hand-operated 450 ft lb Warner Electric clutch and a right angled Curtis© gearbox with dual 1" shafts harnesses more horsepower for a smoother and faster operation. Dual-commercial 21cc Hydro-Gear pumps and 20.6 cu inch Parker wheel motors with an external oil cooler.

Specifications

US MSRP ^

$38,599.00

CAN MSRP ^

$52,199.00

Engine Brand

CAT Turbo Diesel

Engine Power Rating *

Displacement (cc)

1700

PTO

Electric, 450 ft lbs

Cylinders

Starter

Electric

Fuel Type

Diesel

Fuel Tank Capacity (gal)

Deck Size (in)

Cutting Height (in)

1.5 - 6

Spindles

Hercules™ II Cast-Iron

Suspension

Independent front and rear-suspension, featuring adjustable large coil-over shock

Transmission

Dual 21cc hydro pumps 20.6 cu in wheel motors with external oil cooler

Deck Construction

iCD™+ Cutting System

Drive Axles (in)

1.25 Tapered

Caster Tires (in)

13 x 6.5-6

Drive Tires (in)

26 x 12-12

Ground Speed-Fwd (mph)

0 - 12

Ground Speed-Rev (mph)

0 - 6

Overall Length (in)

89.66

Overall Width (in) Deflector Down/Deflector Up

86/74

Dry Weight (lbs)

2518

Seat Package

Premium high-back suspension seat with adjustable armrests, adjustable lumbar and back recline

Certified Roll-over Protection System

105° foldable

Parking Brake / Safety Circuit

Hand operate external drum type

Warranty (Engine) †

2-Year limited manufacturer's warranty

Warranty (Balance of Machine) †

4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.

Engine Configuration

CAT

Operator's Manuals

Operator's Manual - English
Download Icon

Illustrated Parts List - English

_{* Engine output is rated for 48 gross horsepower at 2800 rpm as rated by CAT.
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
^ Suggested prices will vary by market. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.}

Attachments

Mulch Kit

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

Lawn Striping Kit

Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.

Service Jack

Heavy-duty jack allows for easy and convenient access under multiple deck sizes.

Service Jack Mounting Kit

Heavy-duty steel bracket and jack allow for easy and convenient access under multiple deck sizes. (Brackets may vary per model)

Flat-free Caster Tire
